Audioengine D1 Headphone DAC/Amp – 24-bit, 192kHz, 600 ohms

DAC type
USB and Optical

Inputs
USB audio
SPDIF Optical

D/A converter
AKM4396

USB transfer mode
Asynchronous dual clock

USB controller
TI1020B

USB device class
Type 1.1 or above

Input bit depth
16 bit, 24 bit

Input sample rate (USB)
32kHz-96kHz native playback
188.2kHz & 192kHz re-sampled to 96kHz

Input sample rate (optical)
32kHz-192kHz native playback

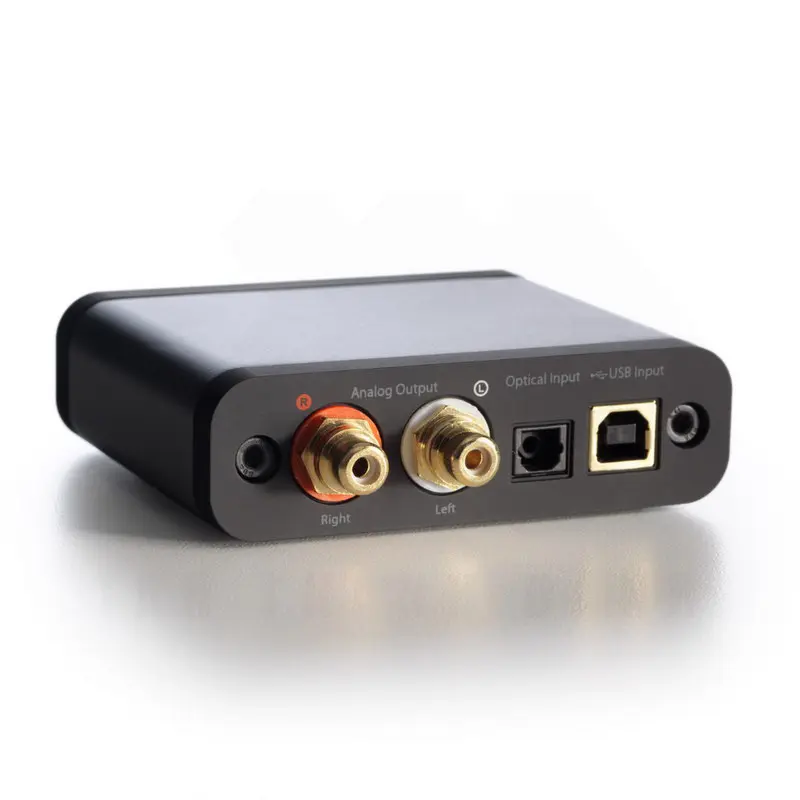

Outputs
Analog RCA L/R stereo
Analog 3.5mm mini-jack stereo

Full-scale output level
2.0V RMS

Output impedance
2 ohms

Recommended headphone impedance range
10 ohms to 600 ohms

Headphone amplifier
OPA2134

Optical receiver
CS8416

Frequency response
10Hz-25KHz (+/- 0.5dB)

SNR
(DC to 20 kHz) >110dB

THD+N
(1kHz FS 96kS/s) <0.0025%

Crosstalk
-85db

Input bit depth
16 bit, 24 bit

Input sample rate (USB)
32kHz-96kHz native playback
188.2kHz & 192kHz re-sampled to 96kHz

Input sample rate (optical)
32kHz-192kHz native playback

Power requirement
USB 5V DC, 200mA

USB power filtering
2-stage redundant regulation

D1 Internal Converter
The D1 uses the AK4396 DAC, which is well-regarded for its low noise and high fidelity. Due to the high signal-to-noise specs of the AK4396 and the added benefit of double redundancy power source conversion and filtering, the D1 presents impressive low noise and low distortion characteristics. The D1 can process digital audio at any bit depth up to 24-bits and any sample rate up to 192kHz.

D1 Headphone Amplifier
The D1 includes a headphone amp based on the TI OPA2134 low noise opamp. The high-performance headphone output was designed for a wide range of headphones and will satisfy even the most demanding headphone enthusiasts.

D1 Power
The D1 is powered directly from the USB bus and power is passed through two stages of regulation to ensure no USB bus power variations affect the audio quality.

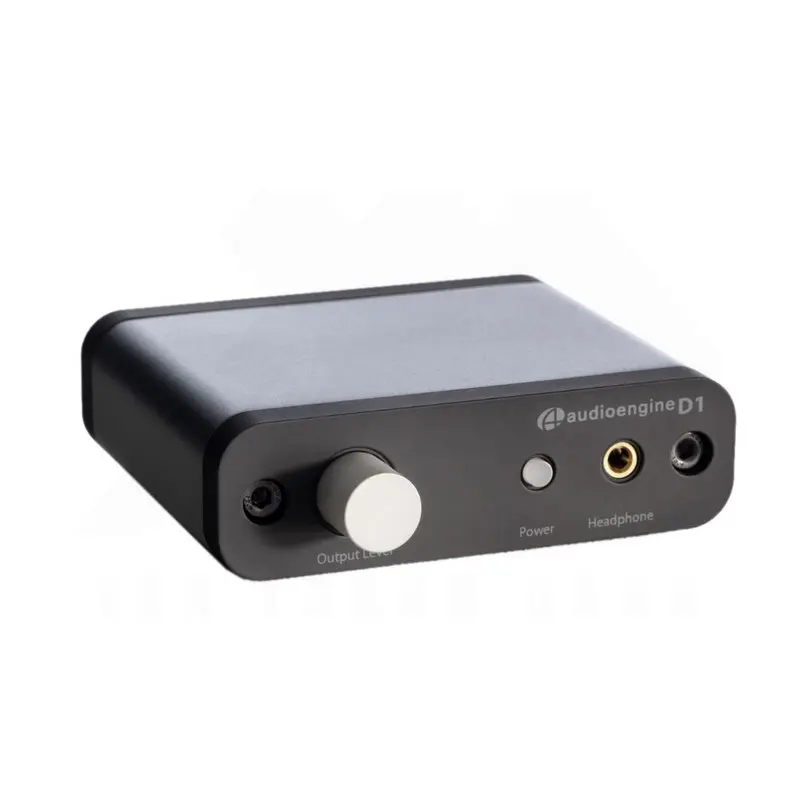

D1 Volume Control
Volume is controlled directly from the D1 front panel via the digitally-controlled analog potentiometer.

Product dimensions
3.5×3.75×1″ (89x95x25mm)

Shipping weight
1.0lbs (0.5kg)
