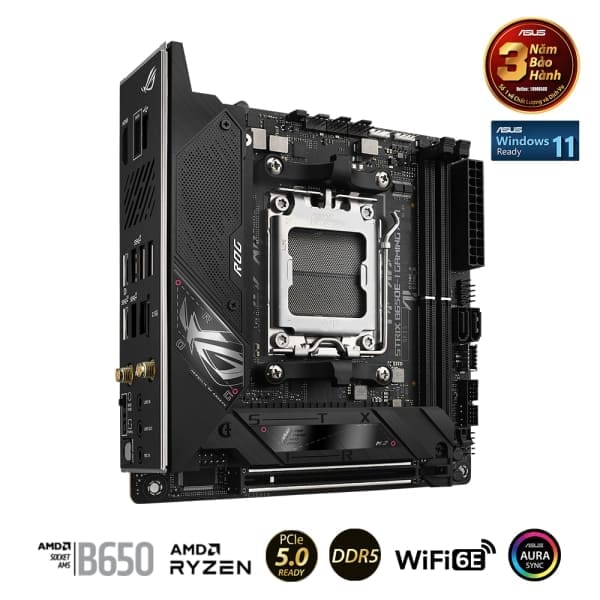

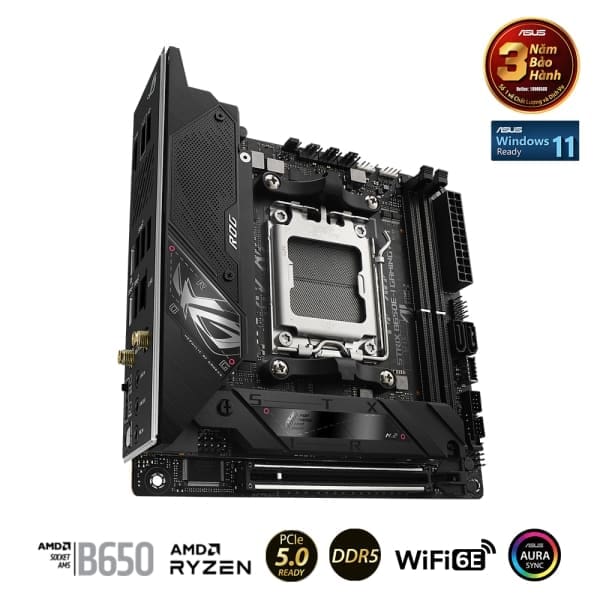

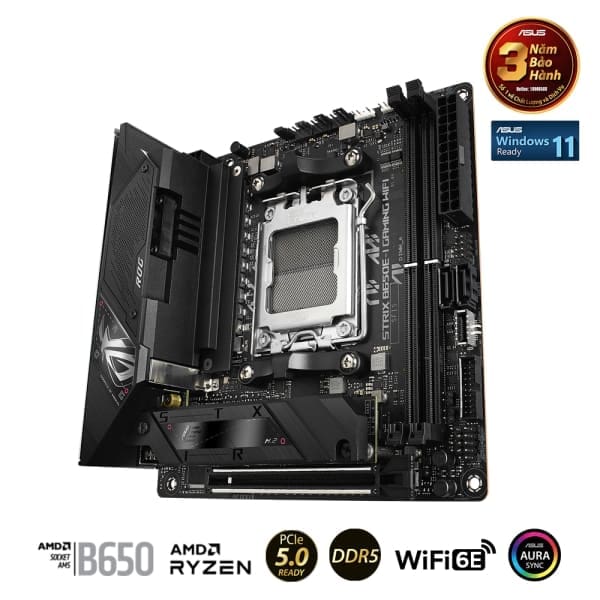

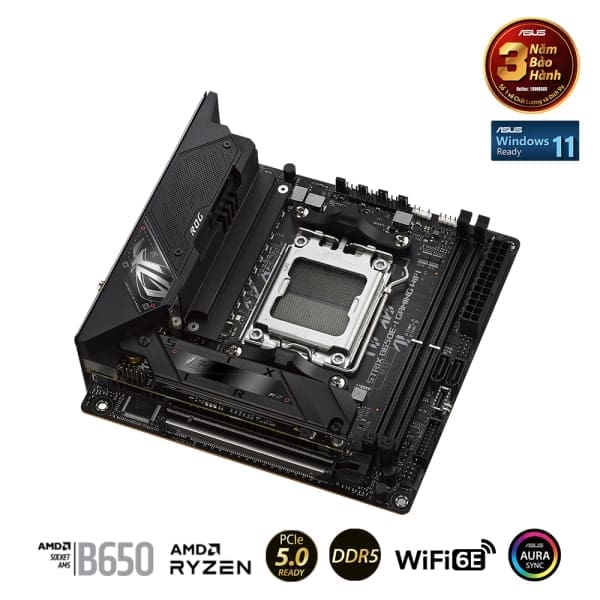

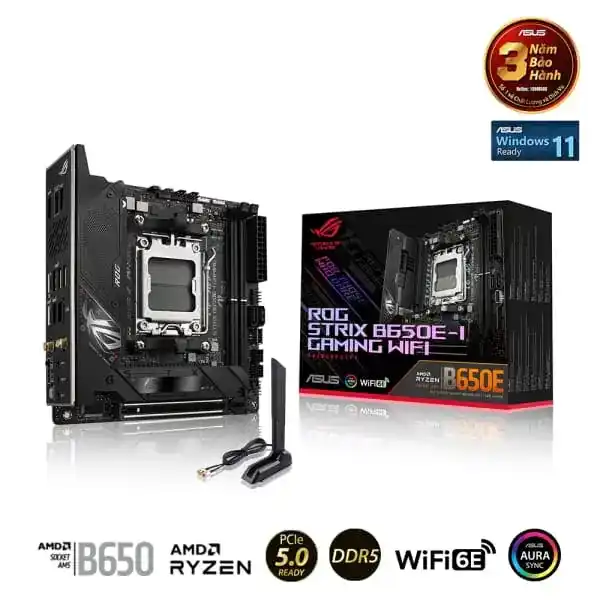

ASUS ROG STRIX B650E-I GAMING WIFI – iTX Mainboard

Name: ASUS ROG STRIX B650E-I GAMING WIFI - iTX Mainboard
SKU: SKU
Rating: 5 (20 reviews)

Giá: Giá gốc là: 9.990.000 VNĐ.Giá hiện tại là: 7.990.000 VNĐ.

Socket AM5
B650 Chipset Supports 7000 series AMD Ryzen
2x DIMM Slots DDR5 6400MHz
PCIe Gen 4
2x SATA 6Gb/s connectors
2xM.2 Slot
2.5GB LAN, USB Type-C, WIFI 6E
ITX Form factor (ASUS ROG STRIX B650EI GAMING WIFI – iTX Mainboard)

Cho phép đặt hàng trước

Mô tả
Thông tin bổ sung

ROG STRIX B650E I GAMING WIFI TTD page

	ROG STRIX B650E-I GAMING WIFI

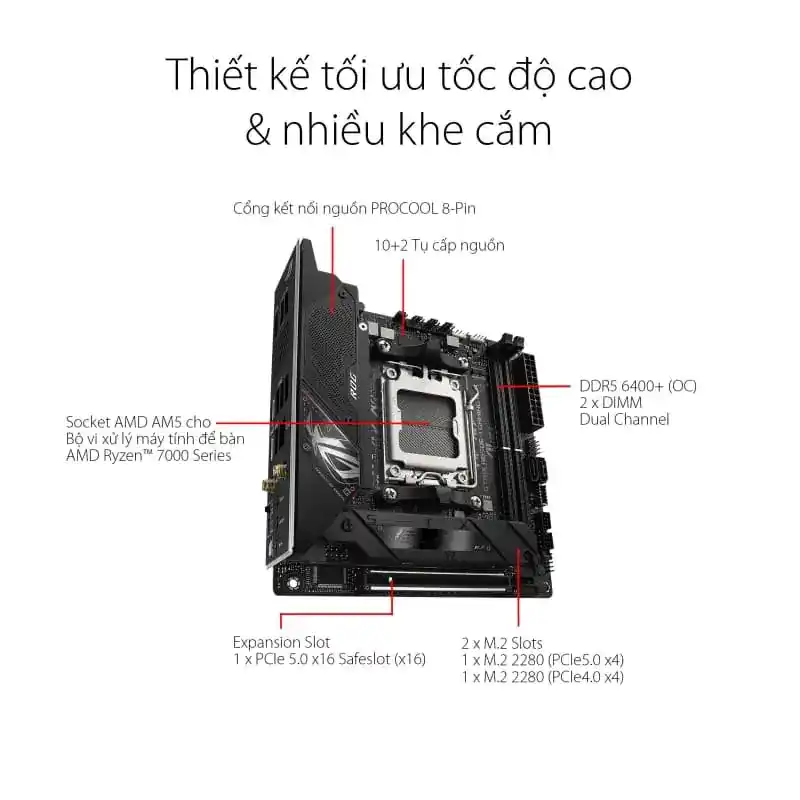

CPU	AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
Chipset	AMD B650
Memory	2 x DIMM, Max. 64GB, DDR5 5200MHz upto 6400MHz (OC) Supports AMD EXTended Profiles for Overclocking (EXPO)
Onboard Graphics Outputs	1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz 1 x USB3 Gen2 port supports USB Type-C® display outputs
PCI Slots	AMD Ryzen™ 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot
Storage	Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen™ 7000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Networking	1 x 2.5Gb Ethernet WIFI 6E Bluetooth

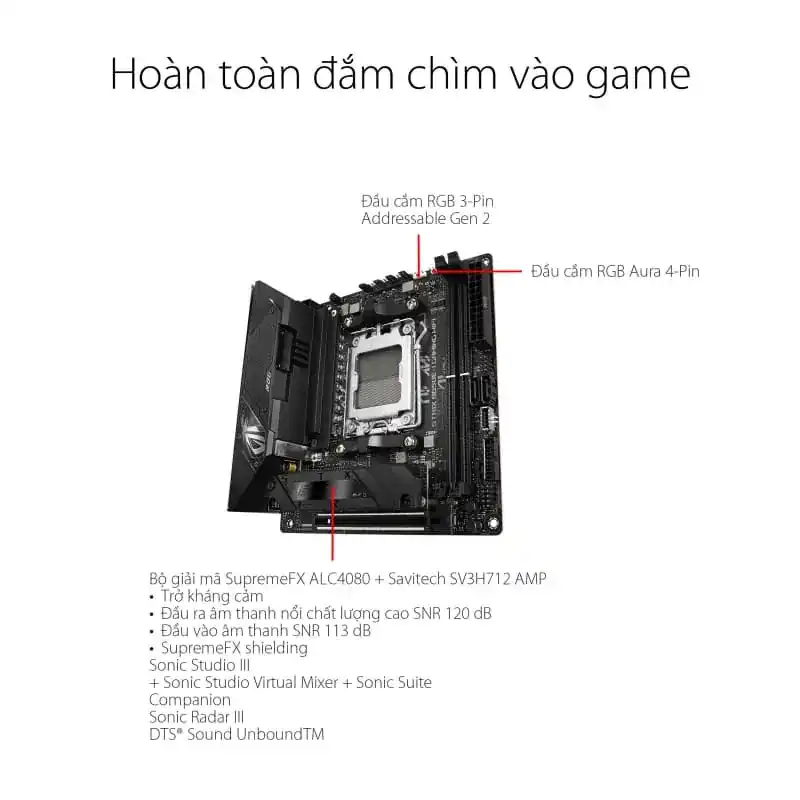

Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

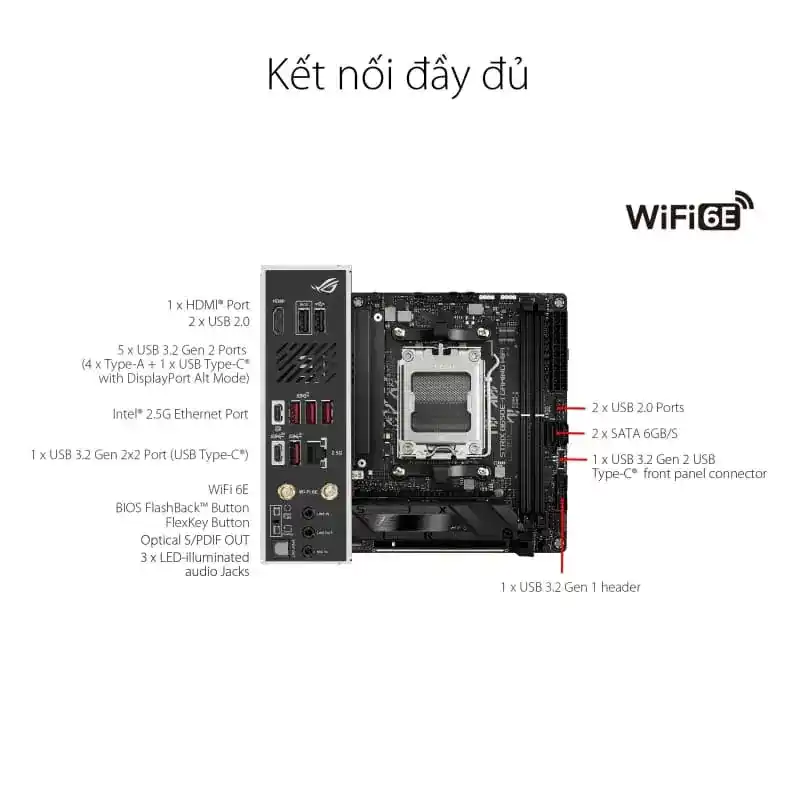

Connectivity	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 5 x USB 3.2 Gen 2 ports (4 x Type-A + 1 x USB Type-C® with DP Alt mode) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI® port 1 x Intel® 2.5Gb Ethernet port 3 x LED-illuminated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x FlexKey button

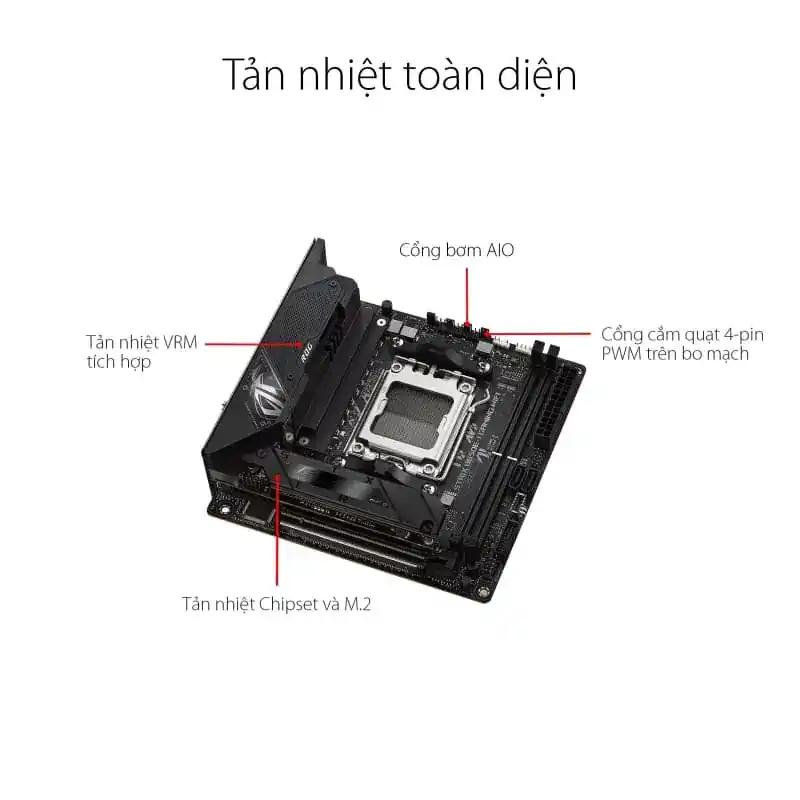

Internal Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 headers supports additional 2 USB 2.0 ports Miscellaneous 1 x Addressable Gen 2 header 1 x AURA RGB header 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x 12-1 pin Front Panel Audio header (AAFP) 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
Form Factor	Mini-ITX Form Factor – 6.7 inch x 6.7 inch (17 cm x 17 cm)

Bảo hành 36 tháng

Mainboard Socket	AMD Socket AM5
Mainboard Chipset	AMD B650
Mainboard Form Factor	mITX (Mini-ITX)
Mainboard Memory Type	DDR5
Mainboard Memory Slot	2
Mainboard Graphics Interface	PCIe 5.0
Mainboard Graphics Output	HDMI
Mainboard M.2 SSD Slots	2 x M.2
Mainboard USB	USB 2.0, USB 3.2 GEN 1, USB 3.2 GEN 2, USB 3.2 GEN 2×2
Mainboard Networking	2.5GbE LAN, Wi-Fi 6E/6
