ASUS ProArt X670E-CREATOR WIFI Mainboard

CPU

Chipset

Memory

Graphics

Expansion Slots

Storage

Ethernet

Wireless & Bluetooth

USB

• Rear USB (Total 11 ports)
  • 2 x USB4^® with Intel^® JHL8540 USB4^® controller ports (2 x USB Type-C^®)
  • 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C^®)
  • 7 x USB 3.2 Gen 2 ports (7 x Type-A)
  • 1 x USB 2.0 port (1 x Type-A)
• Front USB (Total 9 ports)
  • 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C^® with up to 60W PD/QC4+)
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 3 x USB 2.0 headers support 6 additional USB 2.0 ports

Audio

• Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
  • – Impedance sense for front and rear headphone outputs
  • – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
  • – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
  • – Supports up to 32-Bit/192 kHz playback*
• Audio Features
  • – Power pre-regulator reduces power input noise to ensure consistent performance
  • – Premium audio capacitors
  • – Dedicated audio PCB layers
  • – Audio cover
  • – Unique de-pop circuit
  • * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
  • ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

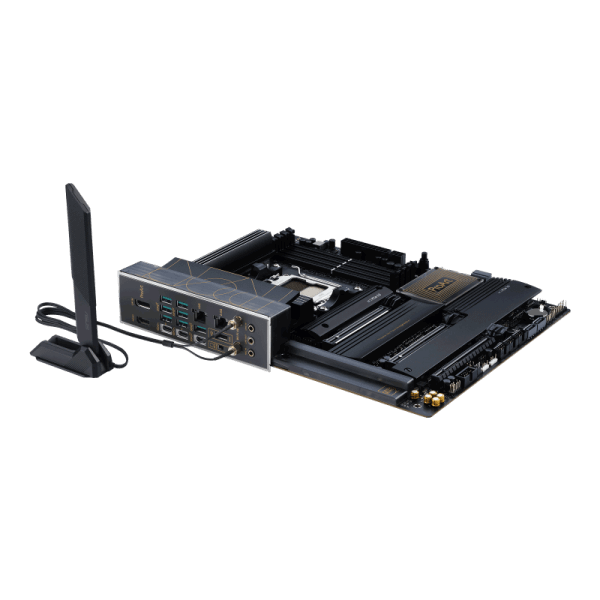

Back Panel I/O Ports

• 2 x USB4^® with Intel® JHL8540 USB4^® controller ports (2 x USB Type-C^®)
• 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C^®)
• 7 x USB 3.2 Gen 2 ports (7 x Type-A)
• 1 x USB 2.0 port (1 x Type-A)
• 1 x DisplayPort (Input only)
• 1 x HDMI^® port
• 1 x Wi-Fi Module
• 1 x Marvell^® AQtion 10Gb Ethernet
• 1 x Intel^® 2.5Gb Ethernet
• 3 x Audio jacks
• 1 x BIOS FlashBack™ button

Internal I/O Connectors

• Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  5 x 4-pin Chassis Fan headers
• Power related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V Power connectors
  1 x 6-pin PCIe Power connector
• Storage related
  4 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
• USB
  1 x USB 3.2 Gen 2×2 connector (supports USB Type-C^®)
  1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  3 x USB 2.0 headers support 6 additional USB 2.0 ports
• Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Aura RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x CPU Over Voltage jumper
  1 x Front Panel Audio header (AAFP)
  1 x 20-3 pin System Panel header with Chassis intrude function
  1 x Thermal Sensor header

Special Features

• ASUS 5X PROTECTION III
  – DIGI+ VRM (- Digital power design)
  – Enhanced DRAM Overcurrent Protection
  – ESD Guards
  – LANGuard
  – Overvoltage Protection
  – Safeslot
  – Stainless-Steel Back I/O
• ASUS Q-Design
  – M.2 Q-Latch
  – PCIe Slot Q-Release
  – Q-Connector
  – Q-DIMM
  – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  – Q-Slot
• ASUS Thermal Solution
  – M.2 heatsink backplate
  – M.2 heatsinks
  – VRM heatsink design
• ASUS EZ DIY
  – BIOS FlashBack™ button
  – BIOS FlashBack™ LED
  – ProCool
  – Pre-mounted I/O shield
  – SafeSlot
  – SafeDIMM
• AURA Sync
  – Aura RGB header
  – Addressable Gen 2 headers
• Bespoke Motherboard Design & Business Focused Features
  – 24/7 Reliability
  – Overcurrent Protection
• Front Panel USB 3.2 Gen 2×2 with Quick Charge 4+ Support
  – Support: up to 60W charging*
  – Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
  – Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
  * To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W

Software Features

• ASUS Exclusive Software
  Armoury Crate
  – Aura Creator
  – Aura Sync
  – Fan Xpert 4 with AI Cooling II
  – Power Saving
  – Two-Way AI Noise Cancellation
  AI Suite 3
  TPU
  DIGI+ VRM
  Turbo app
  ASUS CPU-Z
  IT Management software supported
  – ASUS Control Center Express(ACCE)
  CreationFirst
  MyAsus
  Norton Anti-virus software (Free Trial version)
  ProArt Creator Hub
  WinRAR
• UEFI BIOS
  ASUS EZ DIY
  – ASUS CrashFree BIOS 3
  – ASUS EZ Flash 3
  – ASUS UEFI BIOS EZ Mode
  FlexKey

BIOS

Manageability

Accessories

• Cables
  1 x DisplayPort cable
  4 x SATA 6Gb/s cables
• Miscellaneous
  1 x ASUS Wi-Fi moving antennas
  1 x Q-connector
  1 x M.2 Q-Latch package for M.2 backplate
  2 x Rubber Packages for M.2
  1 x Rubber Package for M.2 backplate
  1 x Screw packages for M.2 SSD
  1 x ProArt ruler
• Documentation
  1 x ACC Express Activation Key Card
  1 x User guide

Operating System

Form Factor
