CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. |
Chipset | AMD X670 |
Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory ArchitectureSupports AMD EXTended Profiles for Overclocking (EXPO™)OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function |
Graphics | 1 x DisplayPort* 1 x HDMI® port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. **Supports max. 4K@60Hz as specified in HDMI 2.1. |
Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slots (supports x16 mode) AMD X670 Chipset** 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). |
Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD X670 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
Ethernet | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
Wireless & Bluetooth | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries. |
USB | Rear USB (Total 12 ports) – 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) – 9 x USB 3.2 Gen 2 ports (7 x Type-A + 2 x USB Type-C®) – 2 x USB 2.0 ports Front USB (Total 7 ports) – 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®) – 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports – 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/384 kHz playback” Audio Features – Audio Shielding – Savitech SV3H712 AMP – Gold-plated audio jacks – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover |

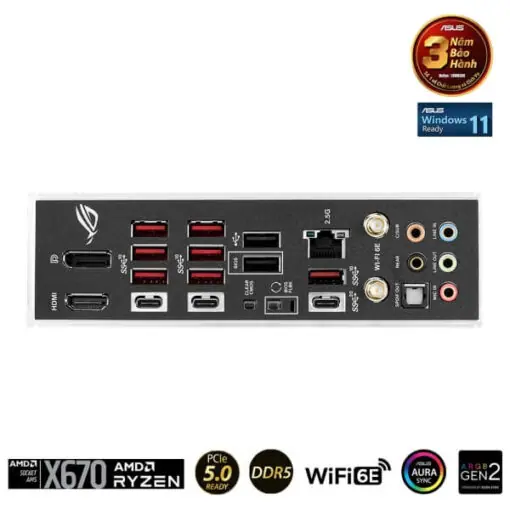

Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x Type-C®) 9 x USB 3.2 Gen 2 ports (7 x Type-A, 2 xUSB Type-C®) 2 x USB 2.0 ports 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Gold-plated audio jacks* 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. |
Internal I/O Connectors |
|
Special Features |
|
Software Features |
|
BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |
Accessories |
|
Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
