GIGABYTE Mainboard

-20%
GIGABYTE H470I AORUS PRO AX Mainboard 1
GIGABYTE H470I AORUS PRO AX Mainboard 2
GIGABYTE H470I AORUS PRO AX Mainboard 3
GIGABYTE H470I AORUS PRO AX Mainboard 2
GIGABYTE H470I AORUS PRO AX Mainboard 3

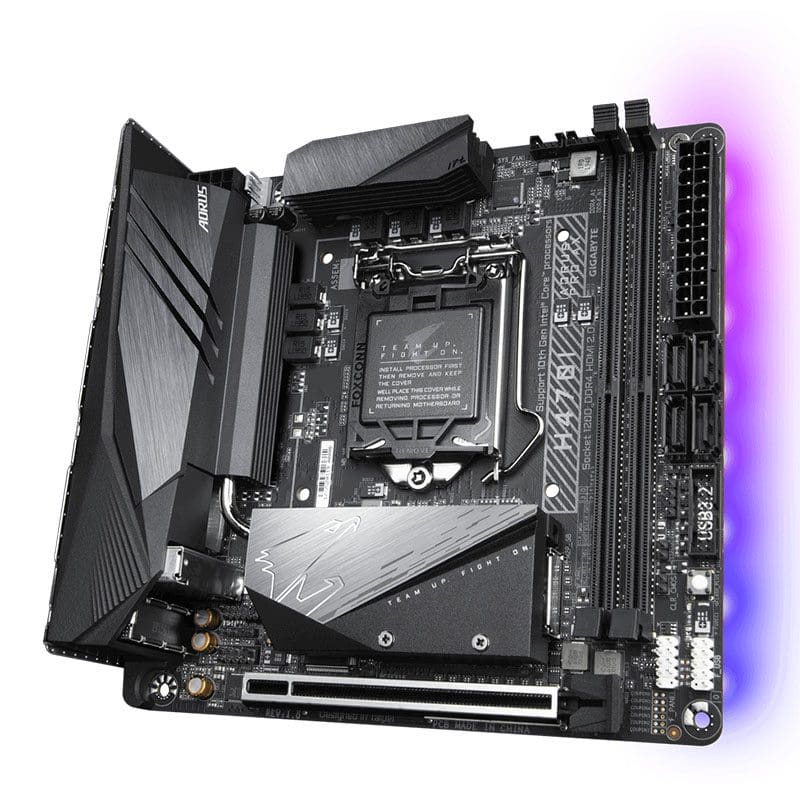

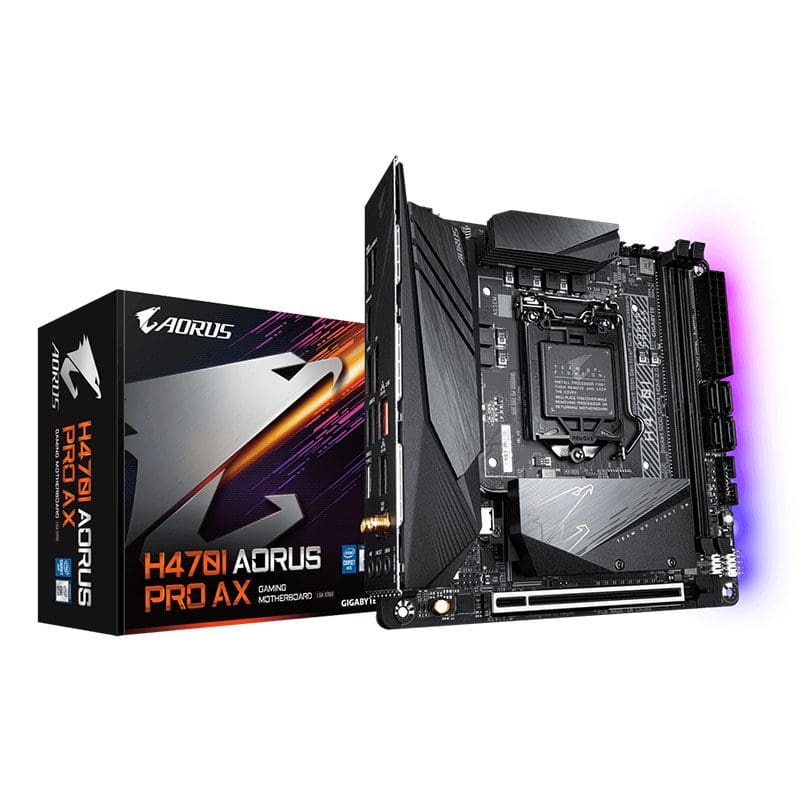

GIGABYTE H470I AORUS PRO AX Mainboard

Giá: 3.990.000 VNĐ

Intel® H470 Mini-ITX AORUS Motherboard with Direct 5+1 Phase Digital VRM Design solution with DrMOS, Thermal Baseplate, Intel® WiFi 6 802.11ax, Dual Intel® LAN, HDMI 2.0, RGB FUSION 2.0
  • Supports 10th Gen Intel® Core™ Series Processors
  • Direct 5+1 Phase Digital VRM Design solution with DrMOS
  • Dual Channel Non-ECC Unbuffered DDR4, 2DIMMs
  • Extended MOSFET Heatsink and Multi-layered PCH M.2 heatsink with heatpipes and thermal baseplate
  • Supreme flexibility with Intel® Optane memory ready
  • Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • Blazing Fast Dual LAN Intel® 2.5GbE LAN and Intel® GbE LAN with cFosSpeed
  • HDMI 2.0 supports premium 4K resolution
  • Smart Fan 5 Features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Pre-installed IO Shield for easy and quick installation
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Cho phép đặt hàng trước

CPU hỗ trợ
  1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
  2. L3 cache varies with CPU
Chipset Intel® H470 Express Chipset
Bộ nhớ trong
  1. Intel® Core™ i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
  2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
  3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules
Hiển thị đồ họa Integrated Graphics Processor+PARADE PS175 chip:

  1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.0 version, HDCP 2.3, and HDR.

Integrated Graphics Processor-Intel® HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
  2. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

Maximum shared memory of 512 MB
Hỗ trợ Multi-GPU
Khe mở rộng 1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
Chuẩn lưu trữ
  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_SB)
  2. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 PCIe x4/x2 SSD support) (M2Q_SB)
  3. 4 x SATA 6Gb/s connectors
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

Intel® Optane™ Memory Ready
Mạng
  1. 1 x Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2)
  2. 1 x Intel® GbE LAN chip (1 Gbit/100 Mbit) (LAN1)

Intel® Wi-Fi 6 AX201

  1. WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5.1
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Âm Thanh
  1. Realtek® ALC1220-VB codec
    * The back panel line out jack supports DSD audio.
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

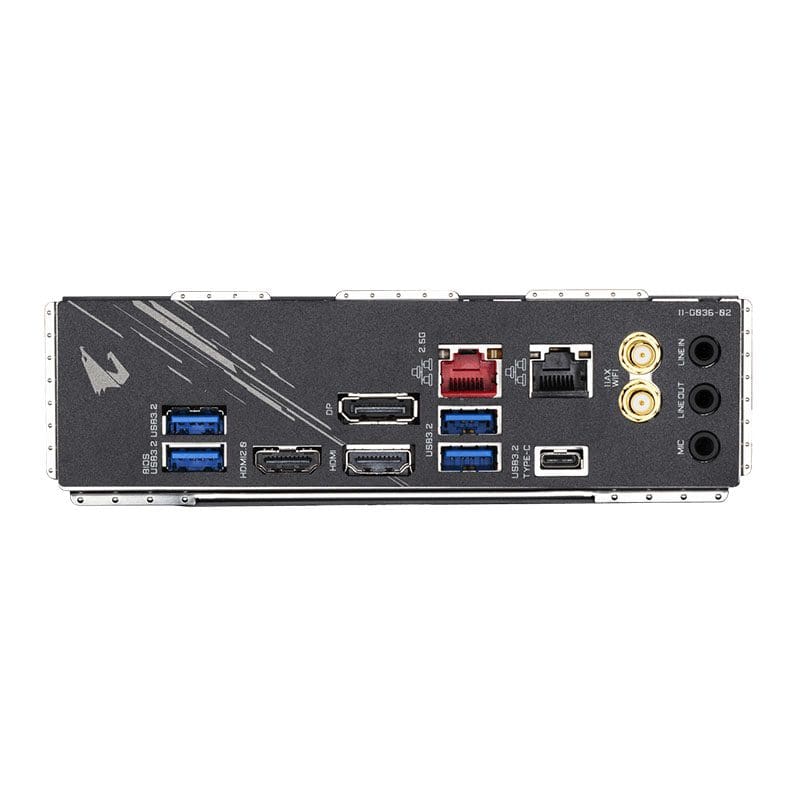

Kết nối ngoài
  1. 1 x DisplayPortv
  2. 2 x HDMI ports
  3. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
  4. 4 x USB 3.2 Gen 1 ports
  5. 2 x RJ-45 ports
  6. 2 x SMA antenna connectors (2T2R)
  7. 3 x audio jacks
Kết nối trong
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 2 x system fan headers
  5. 1 x addressable LED strip header
  6. 1 x RGB LED strip header
  7. 4 x SATA 6Gb/s connectors
  8. 2 x M.2 Socket 3 connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x speaker header
  12. 1 x USB 3.2 Gen 1 header
  13. 1 x USB 2.0/1.1 header
  14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)v
  15. 1 x Clear CMOS jumper
  16. 1 x chassis intrusion header
  17. 1 x Q-Flash Plus button
Kích thước Mini-ITX Form Factor; 17.0cm x 17.0cm



  • Bảo hành 3 năm
Mainboard Socket

Intel Socket 1200
Mainboard M.2 SSD Slots

2 x M.2
Mainboard Memory Slot

2
Mainboard Networking

2.5GbE LAN, Wi-Fi 6E/6
Mainboard USB

USB 2.0, USB 3.2 GEN 1, USB Type-C
Mainboard Graphics Interface

PCIe 3.0
Mainboard Form Factor

mITX (Mini-ITX)
Mainboard Memory Type

DDR4
Mainboard Chipset
