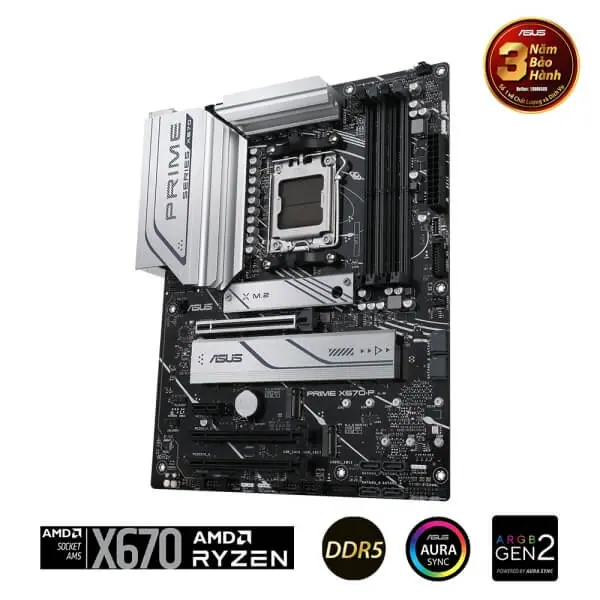

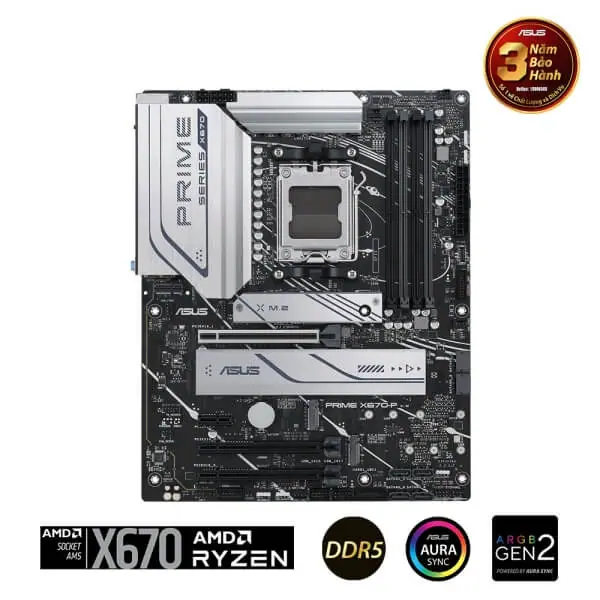

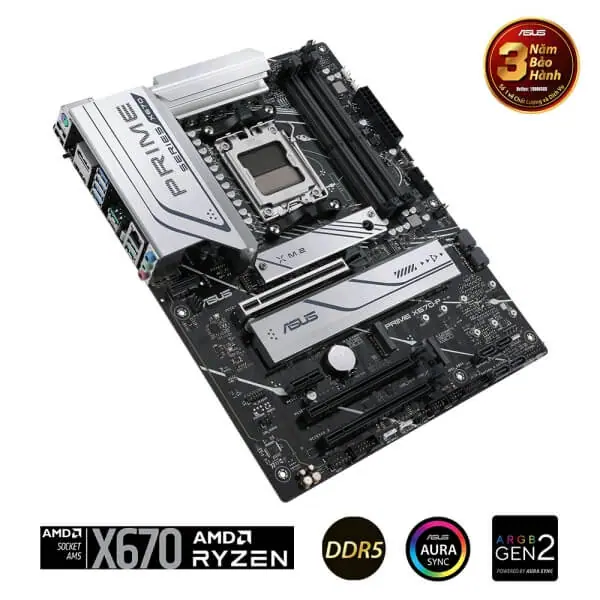

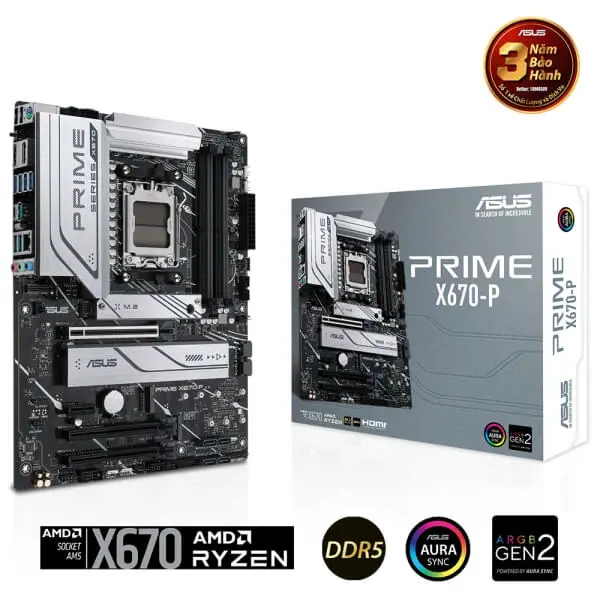

ASUS PRIME X670-P-CSM Mainboard

Giá: 8.200.000 VNĐ

  • PRIME X670E-PRO WIFI
  • Socket AM5
  • Processor AMD Ryzen™ 7000 Series Desktop Processors
  • Chipset AMD X670
  • Memory 4 x DIMM, Max. 128GB, DDR5
  • Wireless WiFi 6E
  • LAN 1 x Realtek 2.5 Gb
  • Dimension 12” x 9.6” (30.5 cm x 24.4 cm )

Còn hàng (có thể đặt hàng trước)

Screenshot 1

ASUS PRIME X670 P image 01 ASUS PRIME X670 P image 02 ASUS PRIME X670 P image 03 ASUS PRIME X670 P image 04 ASUS PRIME X670 P image 05

CPU

 AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.

Chipset

 AMD X670

Memory

 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

Graphics

 1 x DisplayPort**
1 x HDMI® port***
* Graphics specifications may vary between CPU types.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI® 2.1.

Expansion Slots

 AMD Ryzen™ 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD X670 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot**
* Please check the PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/.
** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.

Storage

 Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s ports**
* AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.

Ethernet

 1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

 V-M.2 slot only (Key E, PCIe)*
* Wi-Fi module is sold separately.

USB

 Rear USB (Total 10 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (3 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

 Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

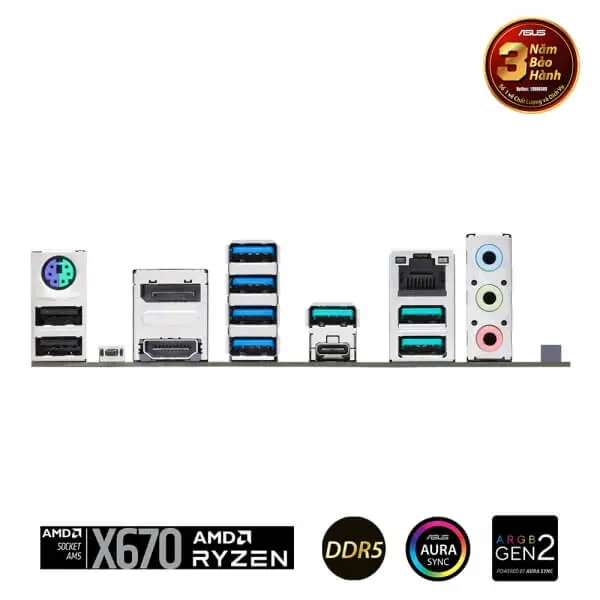

Back Panel I/O Ports

 Fan and Cooling related

  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers

Power related

  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector

Storage related

  • 3 x M.2 slots (Key M)
  • 6 x SATA 6Gb/s ports

USB

  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

  • 3 x Addressable Gen 2 headers
  • 2 x Aura RGB headers
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-5 pin System Panel header
  • 1 x Thunderbolt™ (USB4®) header

Internal I/O Connectors

 Fan and Cooling related

  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers

Power related

  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector

Storage related

  • 3 x M.2 slots (Key M)
  • 6 x SATA 6Gb/s ports

USB

  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

  • 3 x Addressable Gen 2 headers
  • 2 x Aura RGB headers
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-5 pin System Panel header
  • 1 x Thunderbolt™ (USB4®) header

Special Features

 ASUS 5X PROTECTION III

  •  DIGI+ VRM (- Digital power design with DrMOS)
  •  ESD Guards
  •  LANGuard
  •  Overvoltage Protection
  •  Safeslot Core+
  •  Stainless-Steel Back I/O

ASUS Q-Design

  •  M.2 Q-Latch
  •  Q-DIMM
  •  Q-LED Core
  •  Q-Slot

ASUS Thermal Solution

  •  M.2 heatsink
  •  VRM heatsink design

ASUS EZ DIY

  •  BIOS FlashBack™ button
  •  BIOS FlashBack™ LED
  •  ProCool

Aura Sync

  •  Aura RGB headers
  •  Addressable Gen 2 headers

Software Features

 ASUS Exclusive Software

  • Armoury Crate
    •  Aura Creator
    •  Aura Sync
    •  Fan Xpert 4 with AI Cooling II
    •  Power Saving
  • AI Suite 3
    •  TurboV EVO
    •  DIGI+ VRM
    •  PC Cleaner
  • ASUS CPU-Z
  • IT Management software supported
    •  ASUS Control Center Express(ACCE)
  • Norton Anti-virus software (Free Trial version)
  • WinRAR

UEFI BIOS

  • ASUS EZ DIY
    •  ASUS CrashFree BIOS 3
    •  ASUS EZ Flash 3
    •  ASUS UEFI BIOS EZ Mode

BIOS

 256 Mb Flash ROM, UEFI AMI BIOS

Manageability

 WOL by PME, PXE

Accessories

 Cables: 2 x SATA 6Gb/s cables
Miscellaneous

  • 1 x I/O Shield
  • 1 x Rubber Package for M.2
  • 2 x Screw Packages for M.2 SSD

Documentation

  • 1 x ACC Express Activation Key Card
  • 1 x User guide

Operating System

 Windows® 11 64-bit, Windows® 10 64-bit

Form Factor

 ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Bảo hành 36 tháng
Mainboard Socket

AMD Socket AM5
Mainboard Chipset

Mainboard Form Factor

ATX
Mainboard Memory Type

DDR5
Mainboard Memory Slot

4
Mainboard Graphics Interface

PCIe 3.0, PCIe 4.0
Mainboard M.2 SSD Slots

3 x M.2
Mainboard USB

Front USB Type-C, USB 2.0, USB 3.2 GEN 1, USB 3.2 GEN 2, USB 3.2 GEN 2×2, USB Type-C
Mainboard Networking

2.5GbE LAN
