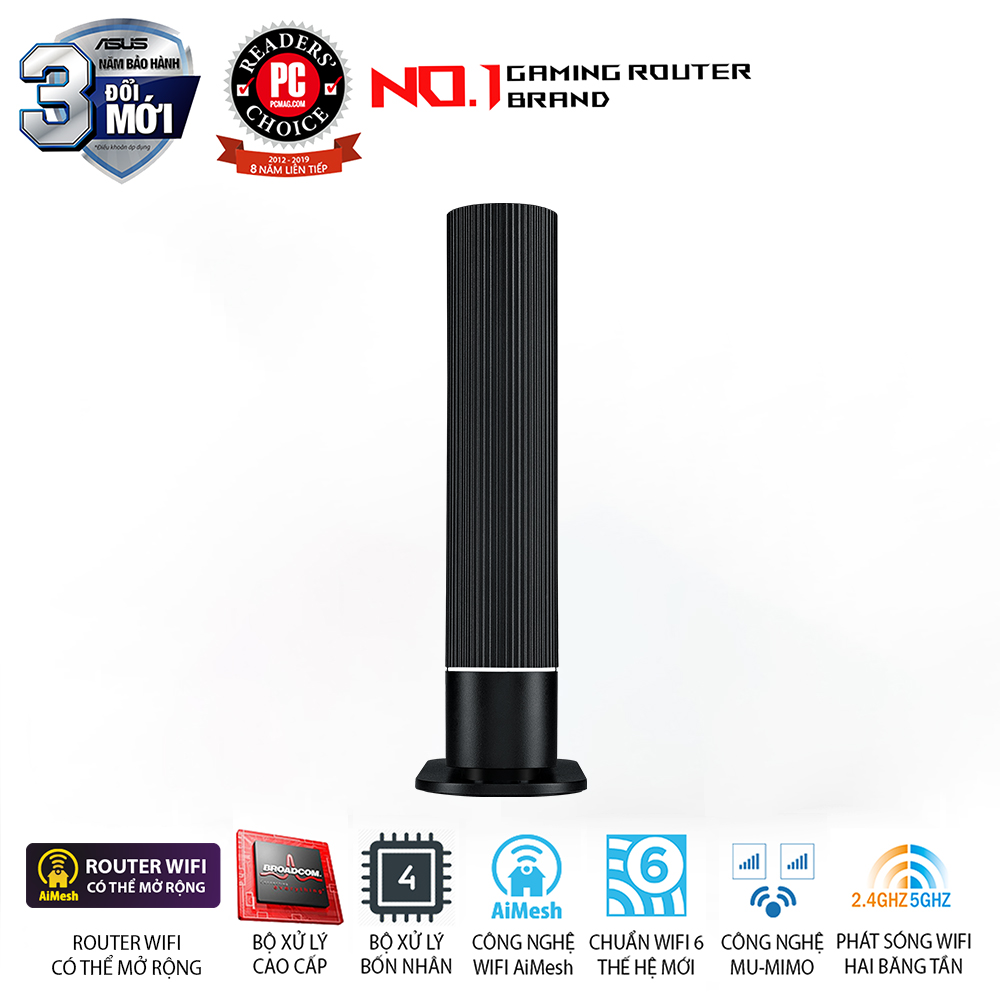

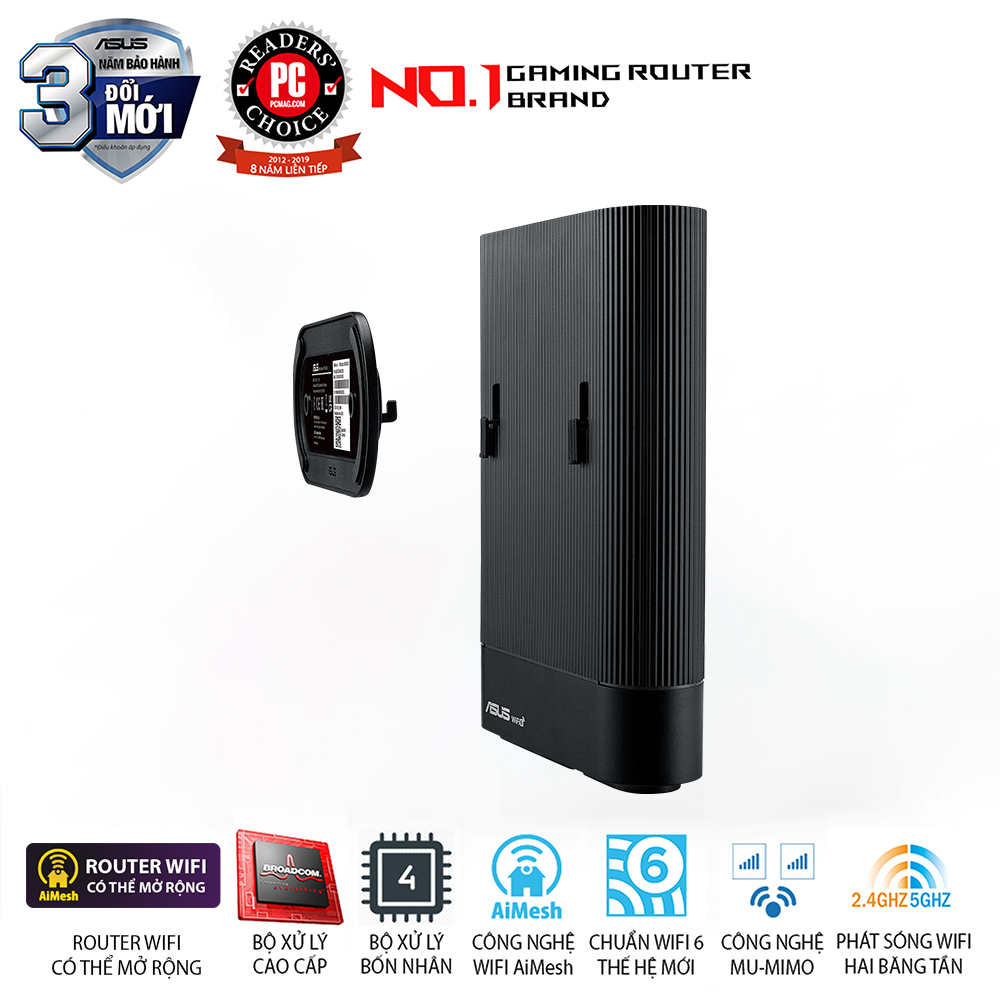

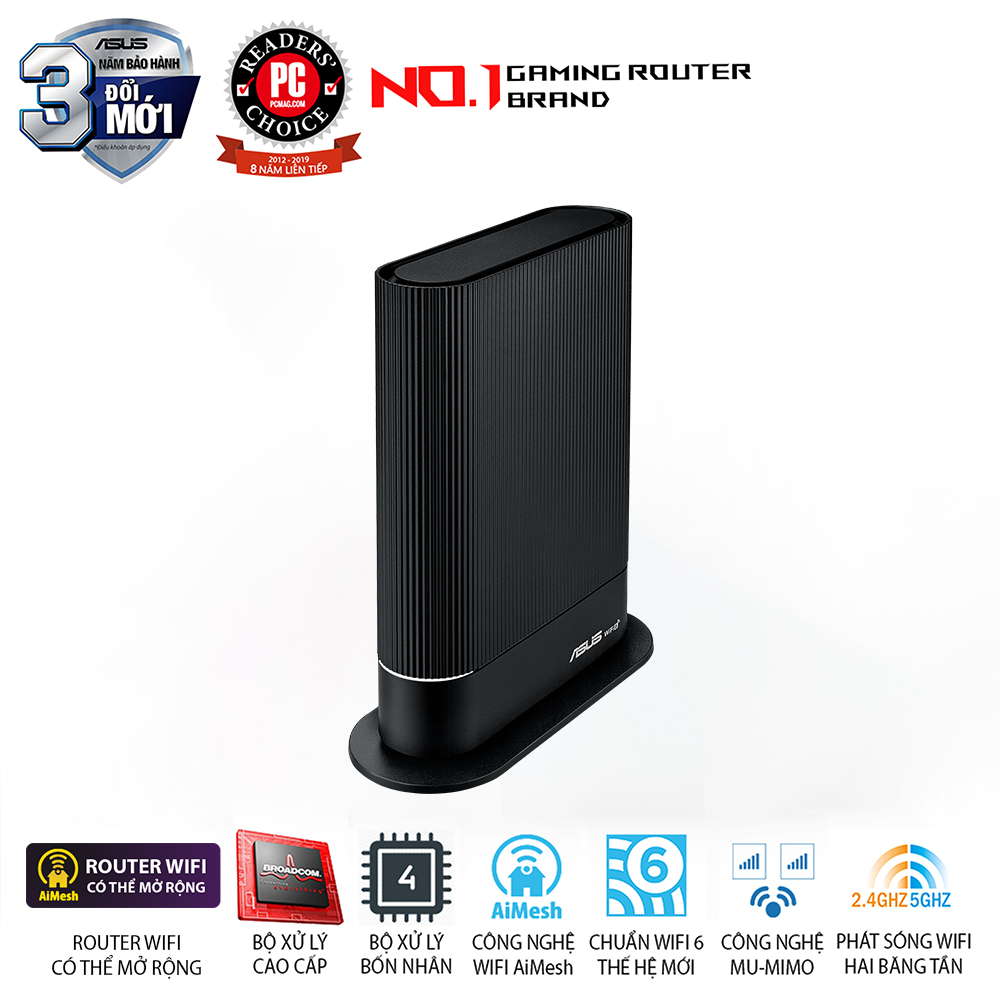

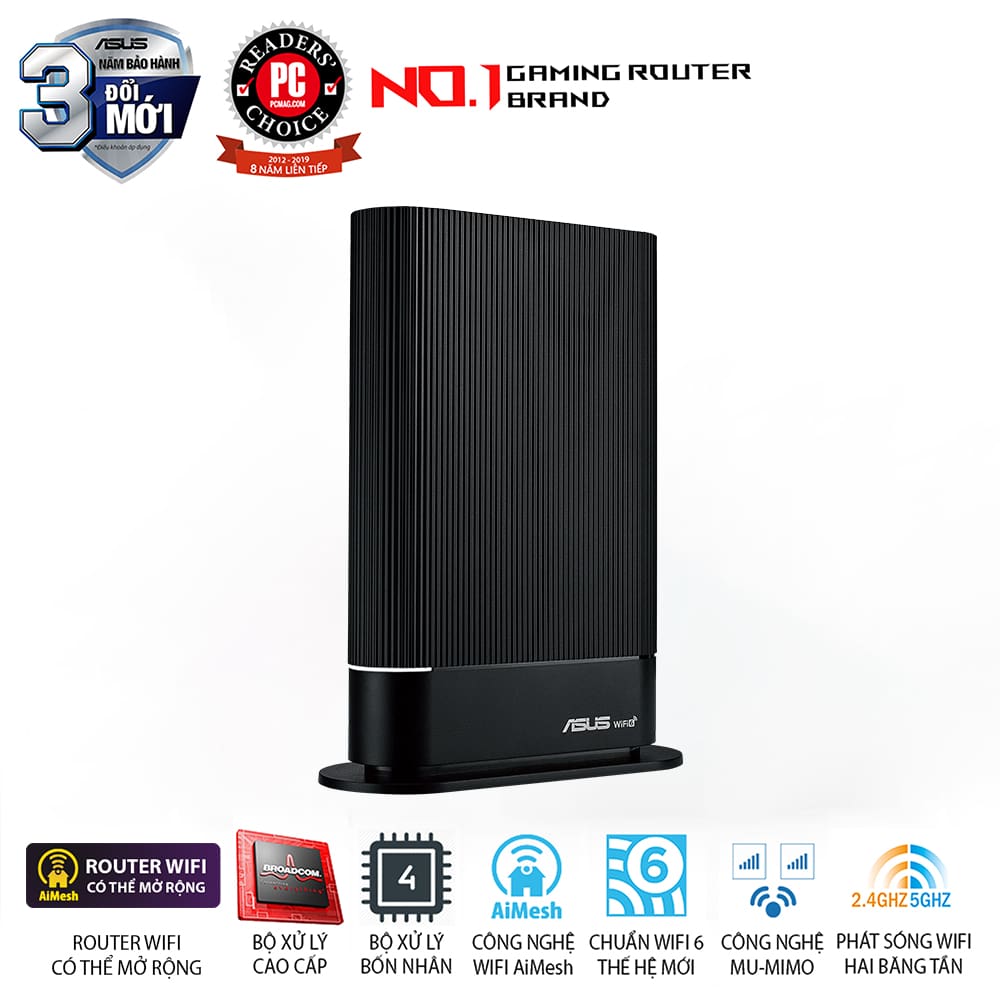

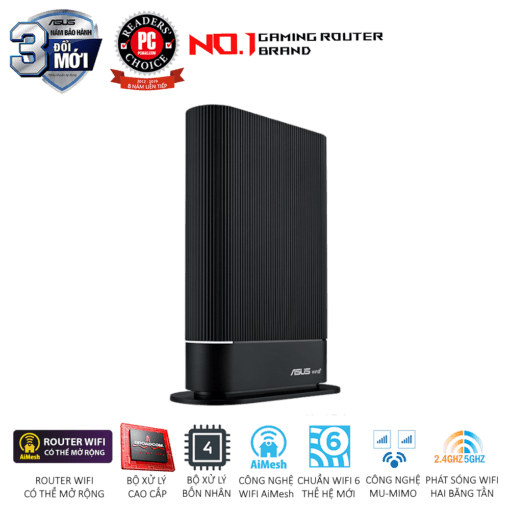

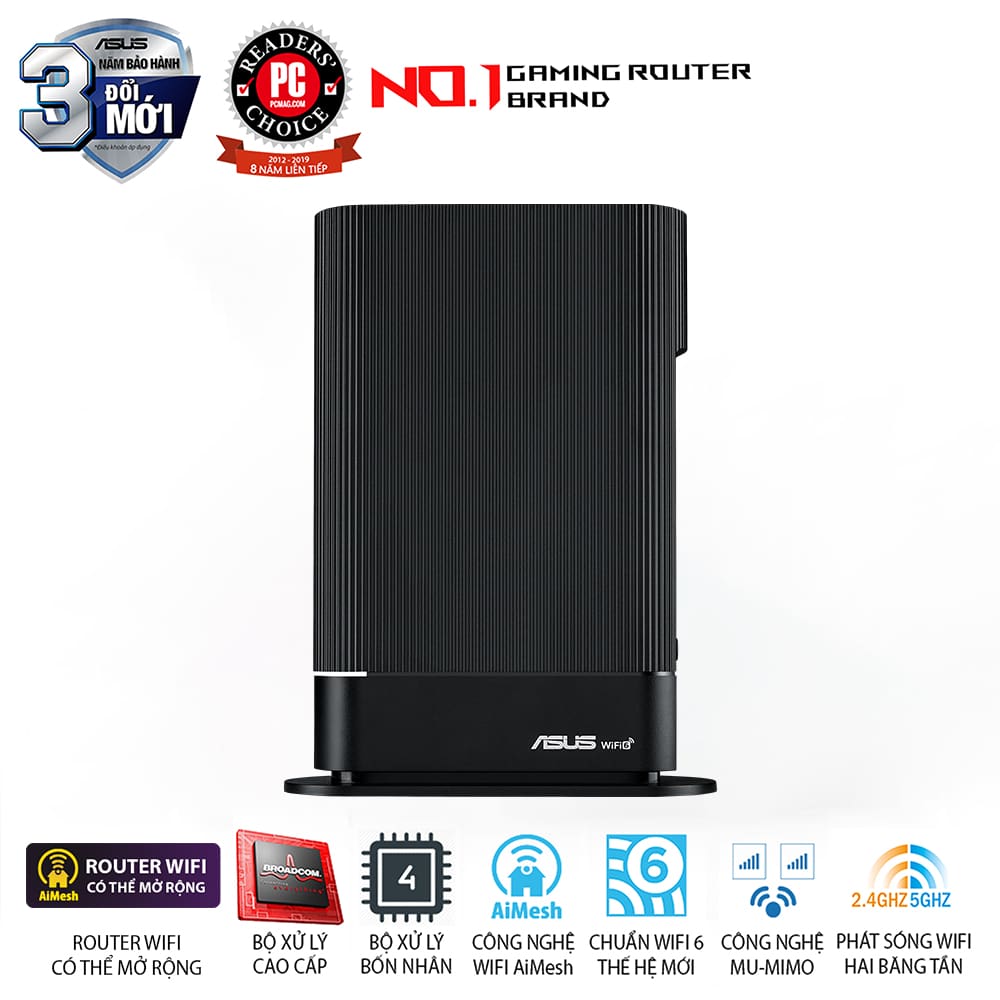

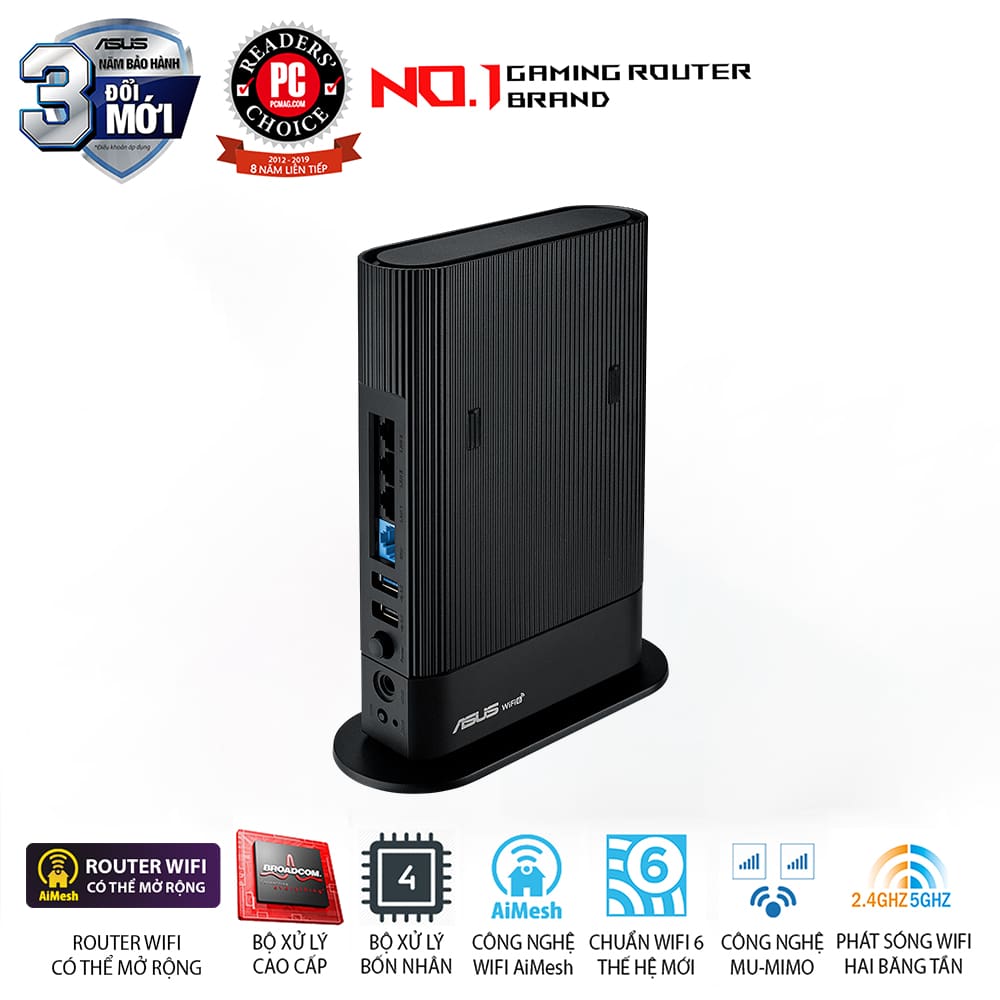

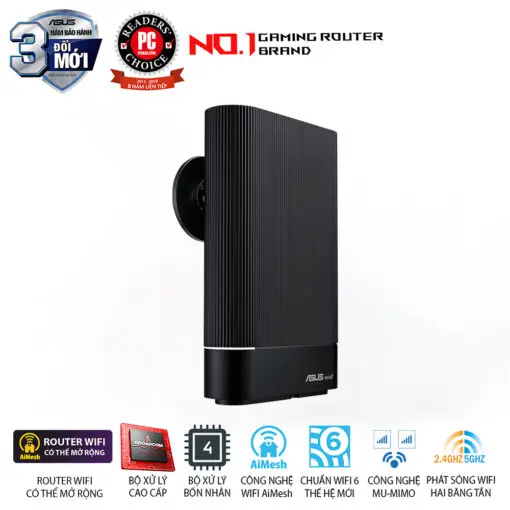

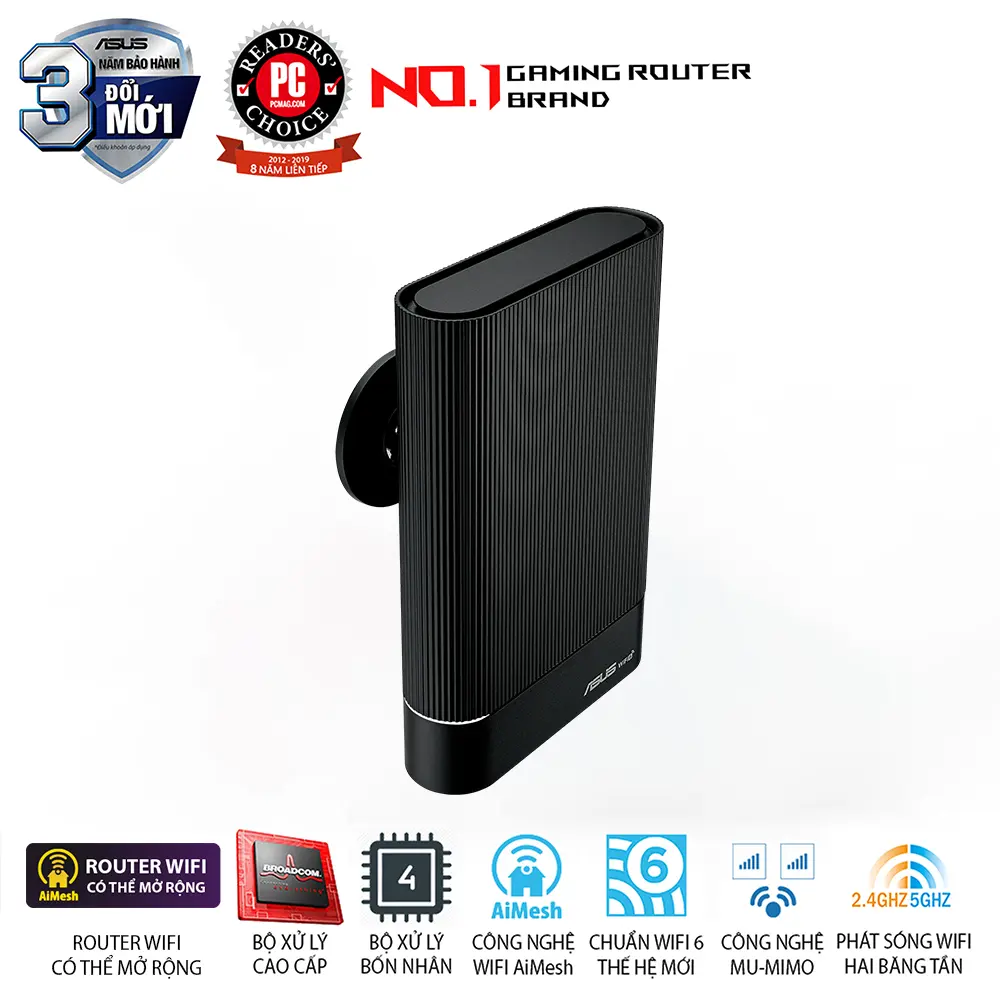

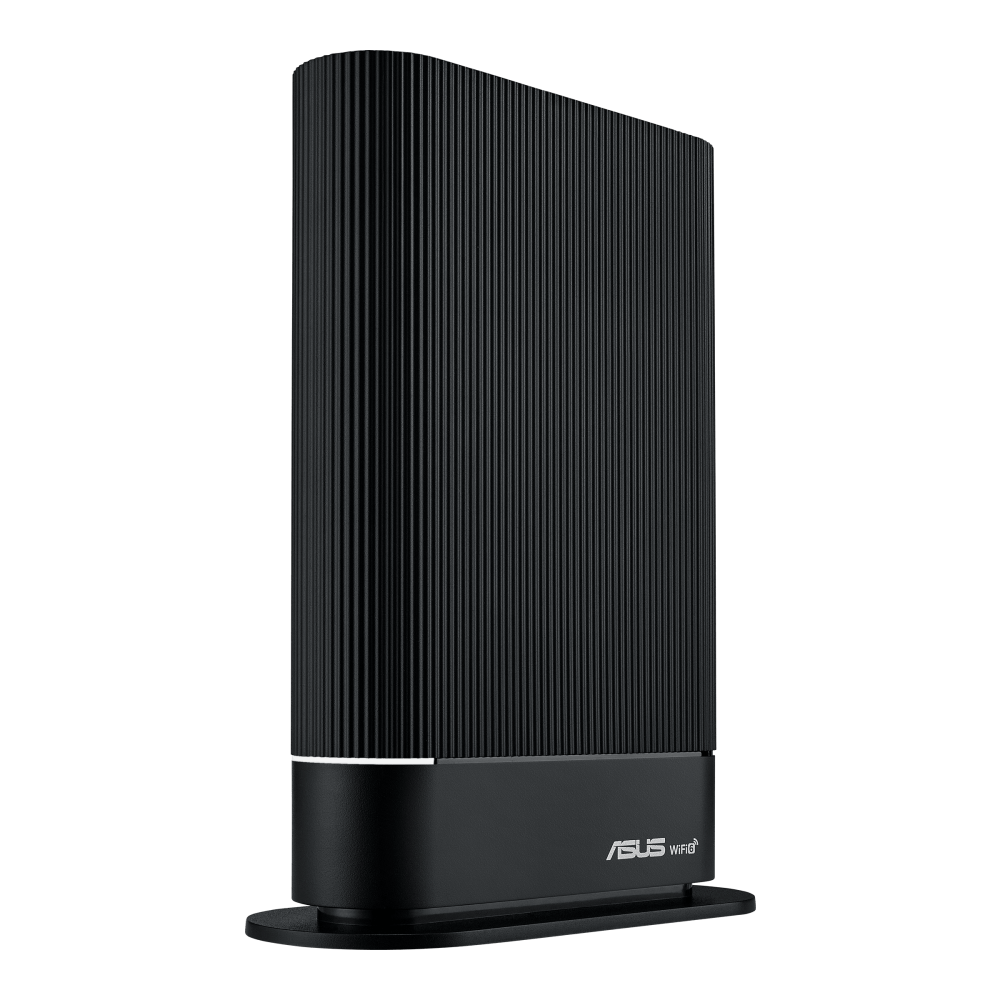

ASUS RT-AX59U WiFi Router – AX4200 (802.11ax) AiMesh, AiProtection Pro, Safe Browsing, Instant Guard, VPN

Model

RT-AX59U

Network Standard

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6

Product Segment

AX4200 – hiệu suất AX tột đỉnh : 574+3603 Mbps

WIFI Data Rate

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 450 Mbps
WiFi 4 (802.11n) (256QAM) : up to 600 Mbps
WiFi 5 (802.11ac) : up to 2600 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 3603 Mbps

Antenna

External antenna x 5

Transmit/Receive

MIMO technology
2.4GHz 2×2
5GHz 3×3

Processor

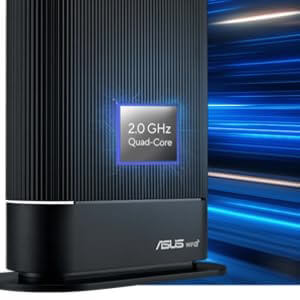

2.0GHz quad-core 64bit processor

Memory

128 MB Flash
512 MB RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency

2.4GHz / 5GHz

Operating Mode

Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge

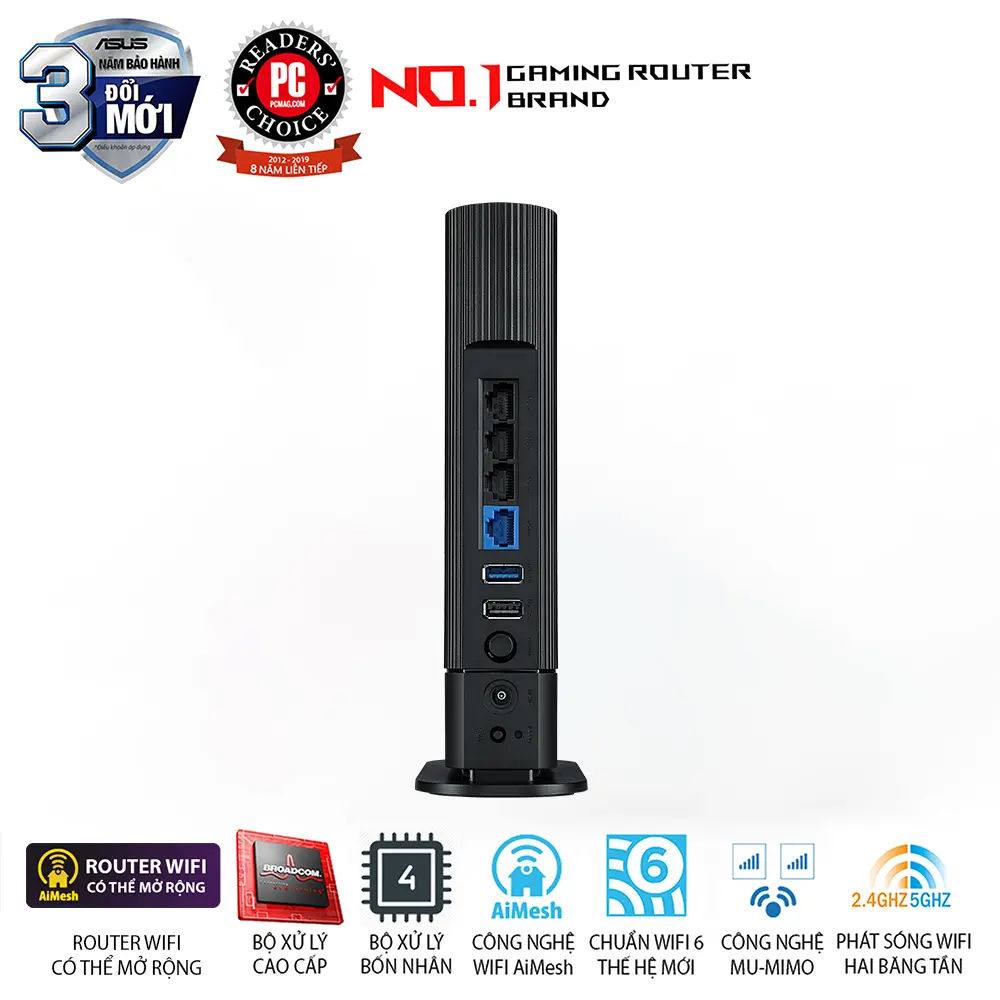

I/O Ports

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
USB 3.2 Gen 1 x 1, USB 2.0 x 1

Button

WPS Button, Reset Button, Power Switch

LED Indicator

Power & Status Combo LED x 1

Power Supply

AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 2.5 A current

Package content

RT-AX59U Router
RJ-45 cable
Power adapter
Warranty card
Quick start guide

Product Weight

476 g

Product Dimension

131 x 37.5 x 200 mm (WxDxH)

AiMesh

AiMesh
• Primary AiMesh Router
• AiMesh Node

Parental Control

“Cho phép bạn chặn truy cập vào các trang web và ứng dụng không mong muốn.” Safe Browsing
Customized Internet Schedule
• Maximum Parental Control Profile : 64
• Maximum Parental Control Content Cilter Rule : 64

Guest Network

“Guest Network cung cấp kết nối Internet cho khách nhưng hạn chế quyền truy cập vào mạng cục bộ của bạn.”
• Maximum Guest Network Rule : 2.4 GHz x 3, 5 GHz x 3
Guest Network Connection Time Limit
Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS

AiProtection

• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

Security

AiProtection
WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
WPS
Let’s Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64

Traffic Control

Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
— Maximum Bandwidth Limiter Rule : 32
Traditional QoS
— Maximum Traditional QoS Rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History

VPN

Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion

Traffic Control

Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter– Maximum Bandwidth Limiter Rule : 32
Traditional QoS– Maximum Traditional QoS Rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
3G / 4G LTE dongle
Port forwarding
• Maximum Port Forwarding Rule : 64
Port triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Passthrough, PPPoE relay

LAN

DHCP Server
IGMP Snooping
IPTV
LAN Link Aggregation
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)

Wireless

MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming

USB application

File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Samba Server
FTP Server
Shared Folder Privileges

Administration

Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
