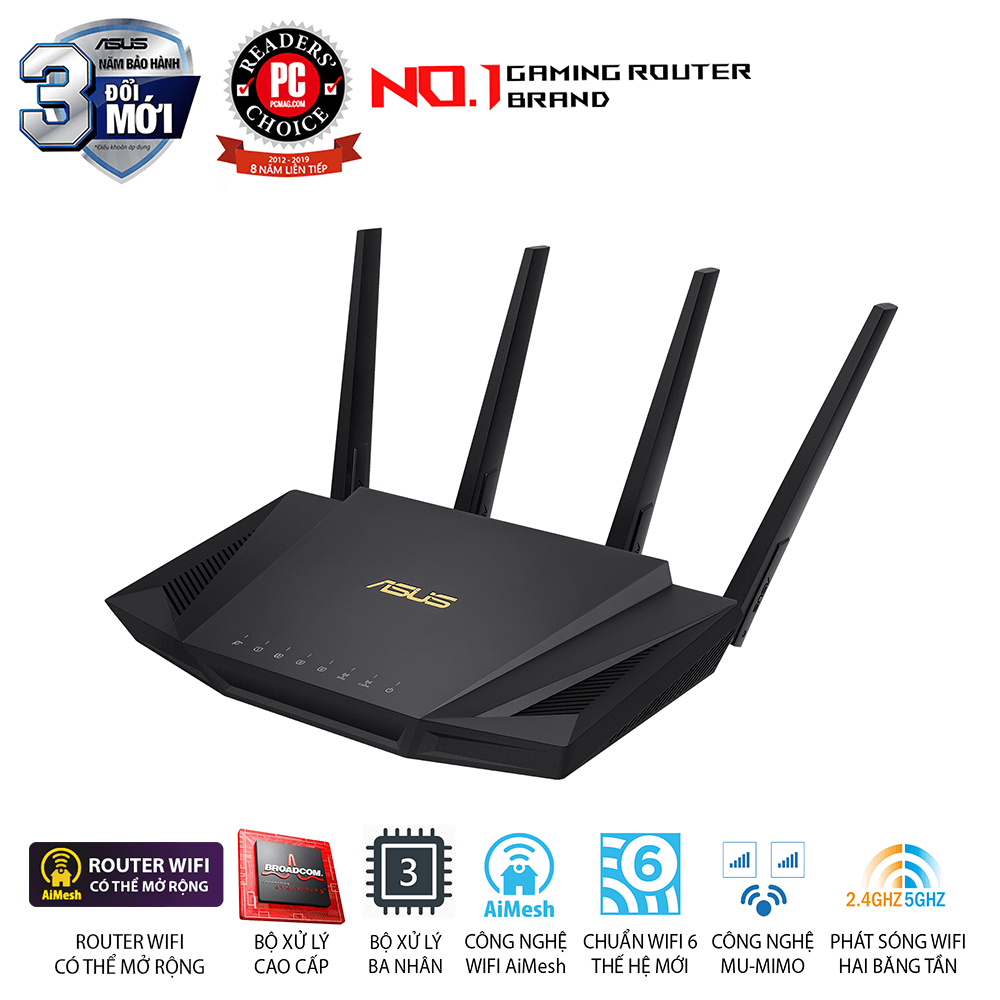

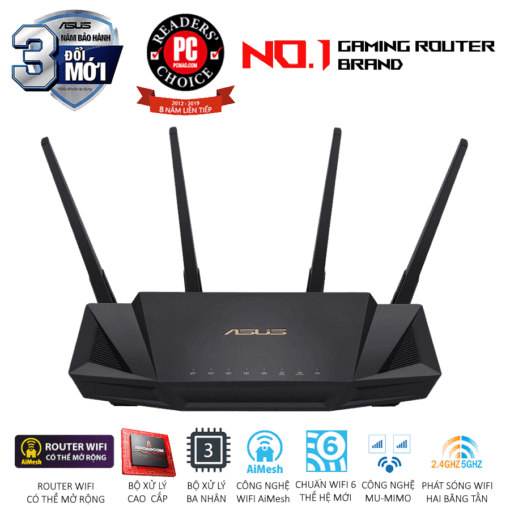

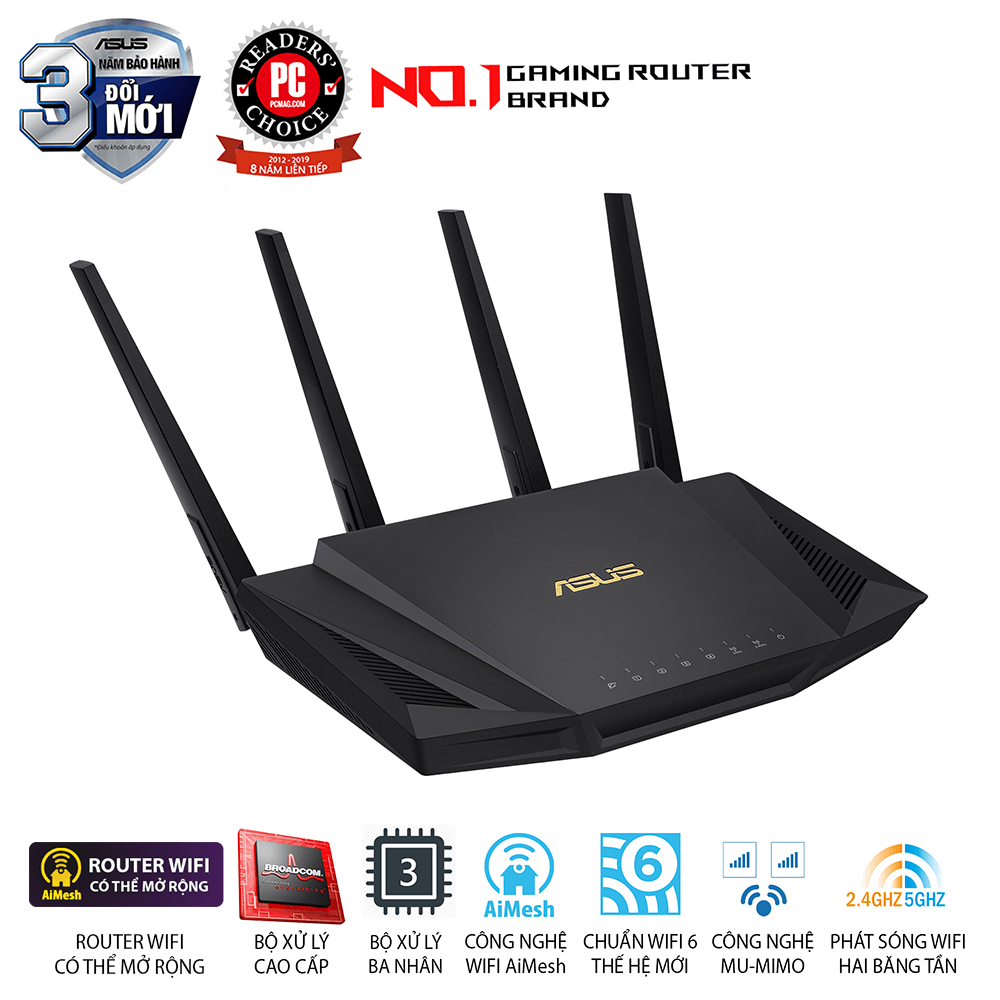

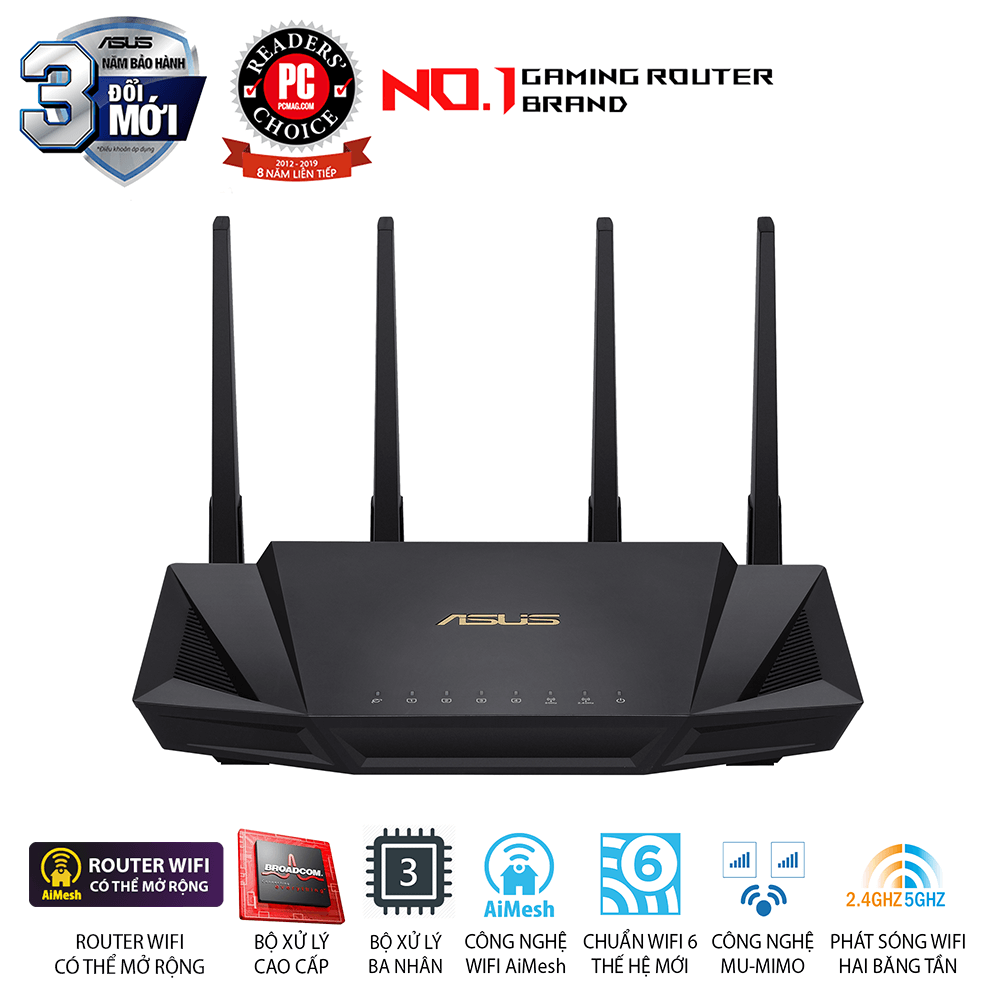

ASUS RT-AX58U V2 WiFi Router – AX3000 Dual Band, Wifi 6 802.11ax, AiMesh WiFi, MU-MIMO, OFDMA, 4 Antennas

Model

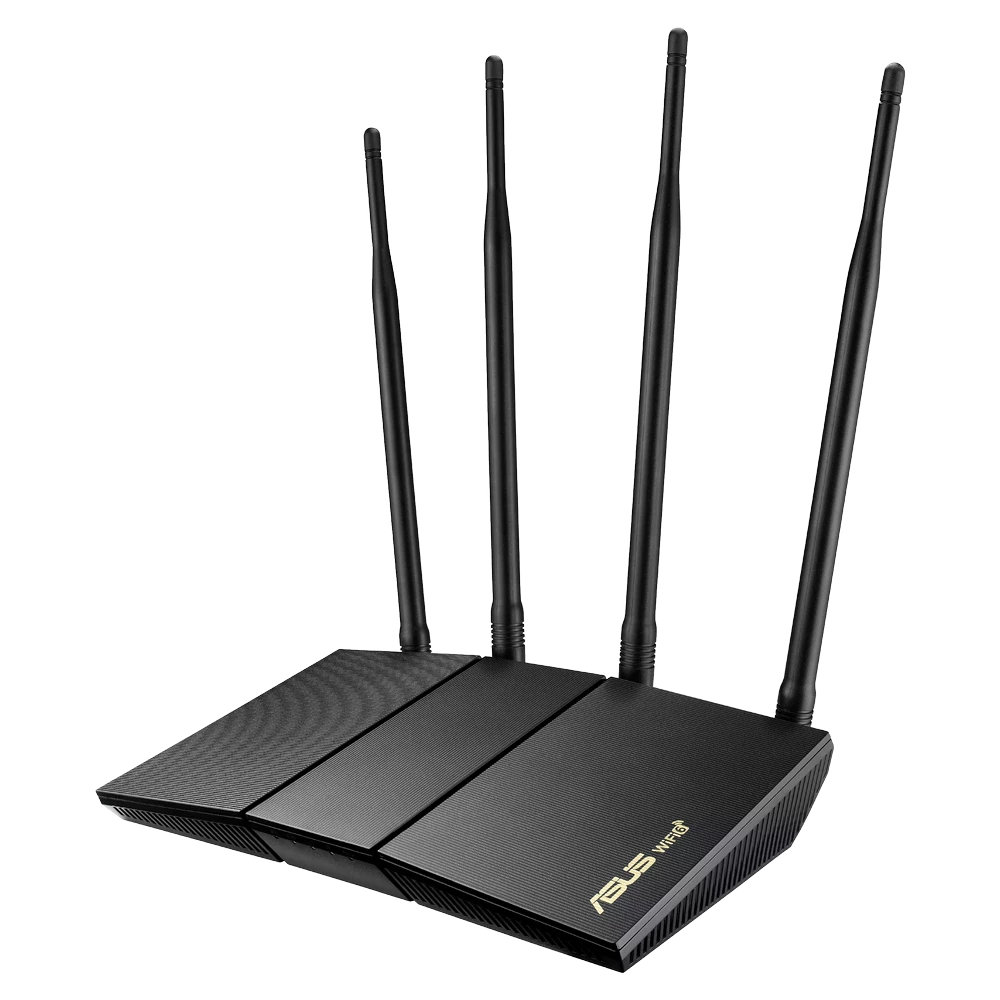

RT-AX1800HP V2

Network Standard

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6

WIFI Data Rate

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 867 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps

Antenna

External antenna x 4

Transmit/Receive

2,4 GHz 2 x 2
5 GHz 2 x 2

Processor

Dual-core (4 VPE)

Memory

128 MB Flash
256 MB RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple
Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80 MHz bandwidth

Operating Frequency

2.4GHz / 5GHz

Operating Mode

Access Point, Media Bridge, Repeater, Router

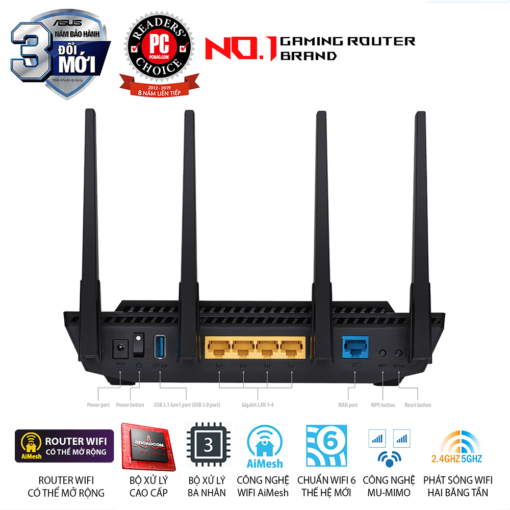

I/O Ports

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for

Button

WPS Button, Reset Button, Power Switch

LED Indicator

Power x 1
2.4G x 1
5G x 1
LAN x 1
WAN x 1

Power Supply

AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1.5A current

Package content

RT-AX1800HP
RJ45 x1
Adapter x1
QSG x1
Warranty Card x1

Product Weight

390g / 0.86lb

Product Dimension

230 x 134 x 56 mm
9.06 x 5.28 x 2.2 inch

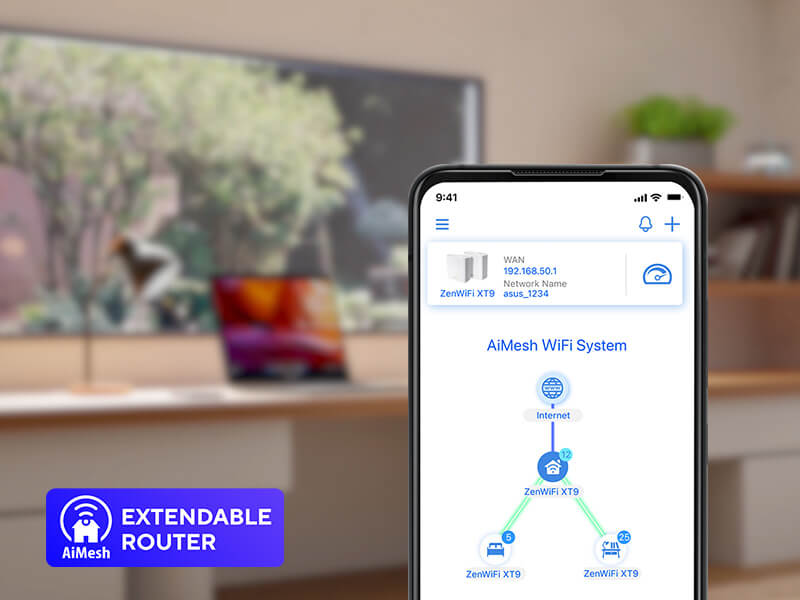

AiMesh

AiMesh
• Primary AiMesh Router
• AiMesh Node

Parental Control

“Allow you to block access to unwanted websites
and apps.”
Customized Internet Schedule

Guest Network

“The Guest Network provides Internet connection for guests but restricts access to your local network.”

AiProtection

• Malicious Site Blocking
• Infected Device Prevention and Blocking

Security

Open system, WPA/WPA2-Personal, WPA/WPA2
Enterprise, WPA3-Personal
WPS
Let’s Encrypt
SSH
Firewall

Traffic Control

Giới hạn băng thông
QoS truyền thống
Giám sát lưu lượng
Giám sát lưu lượng thời gian thực
Giám sát lưu lượng có dây
Giám sát lưu lượng không dây

VPN

VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP

Traffic Control

• Bandwidth Limiter
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor

WAN

Internet connection Type : PPPoE, PPTP, L2TP,
Automatic IP, Static IP
Dual WAN
Port forwarding
Port triggering
DMZ
DDNS

LAN

DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
Wake on LAN (WOL)

Wireless

UTF-8 SSID
WiFi MAC Address Filter
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming

Administration

Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
