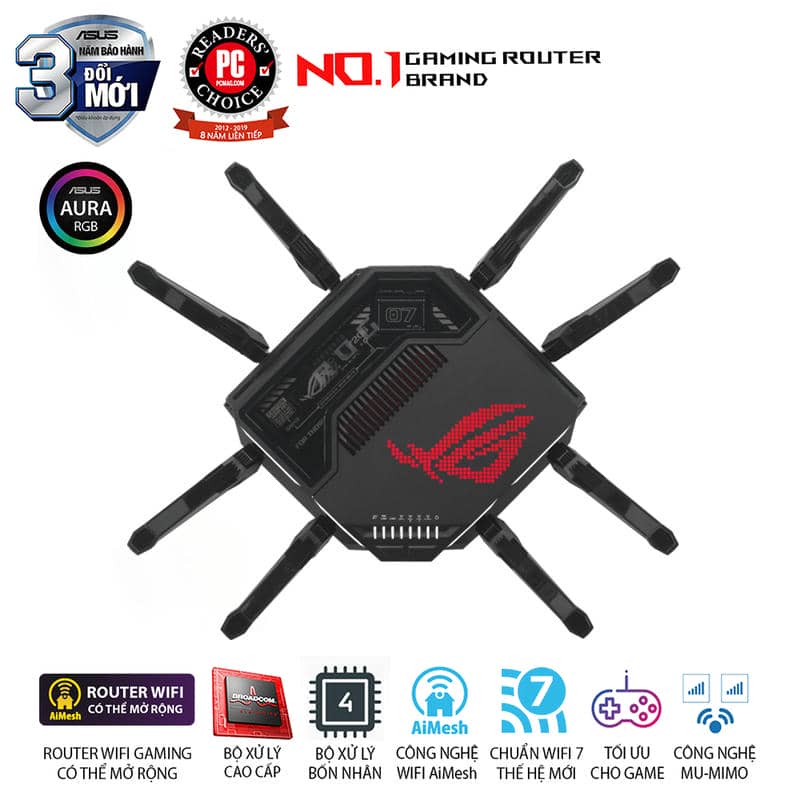

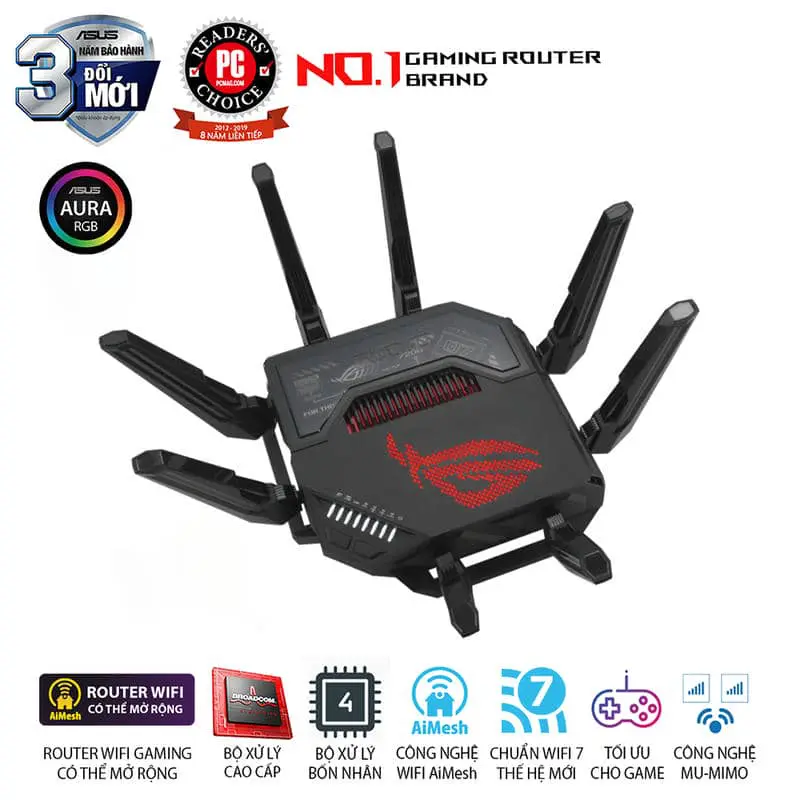

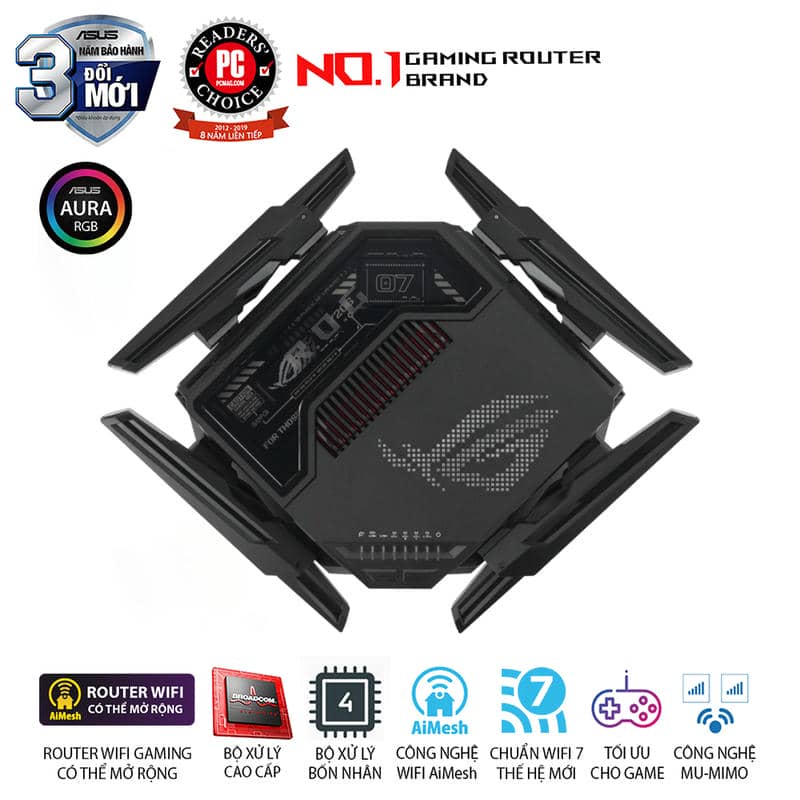

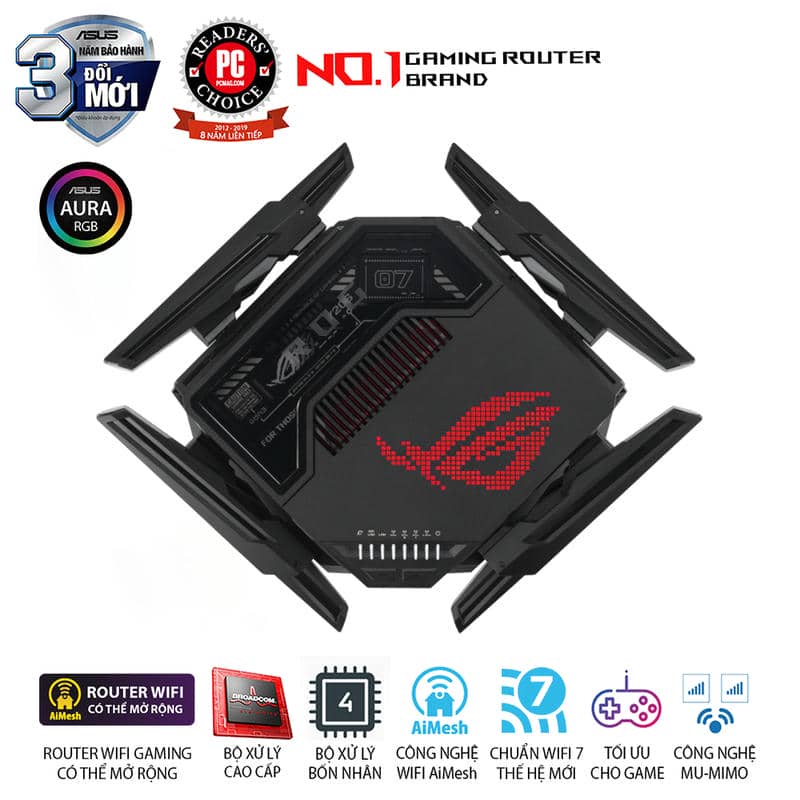

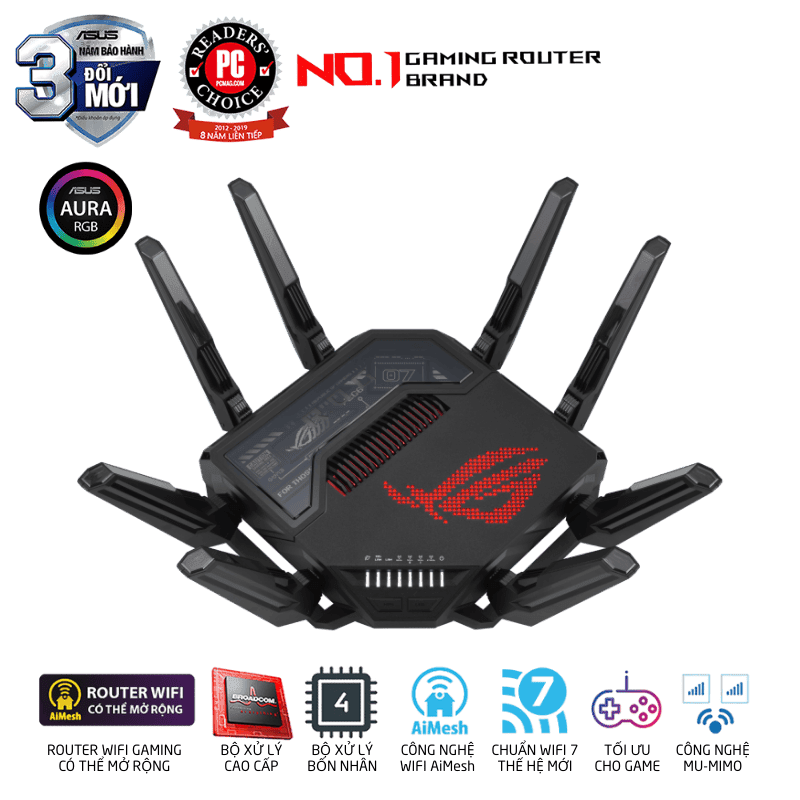

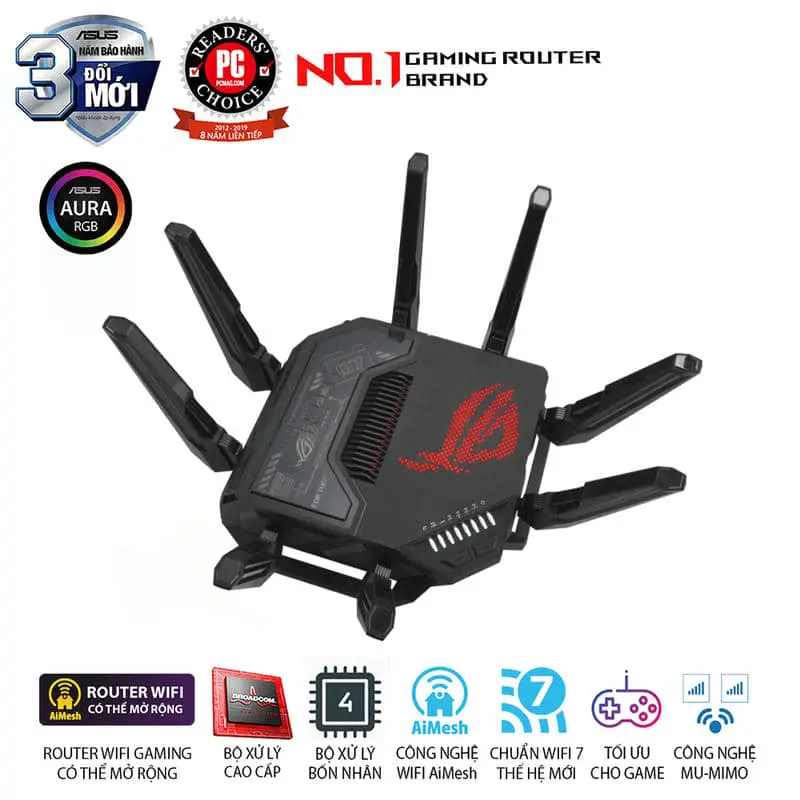

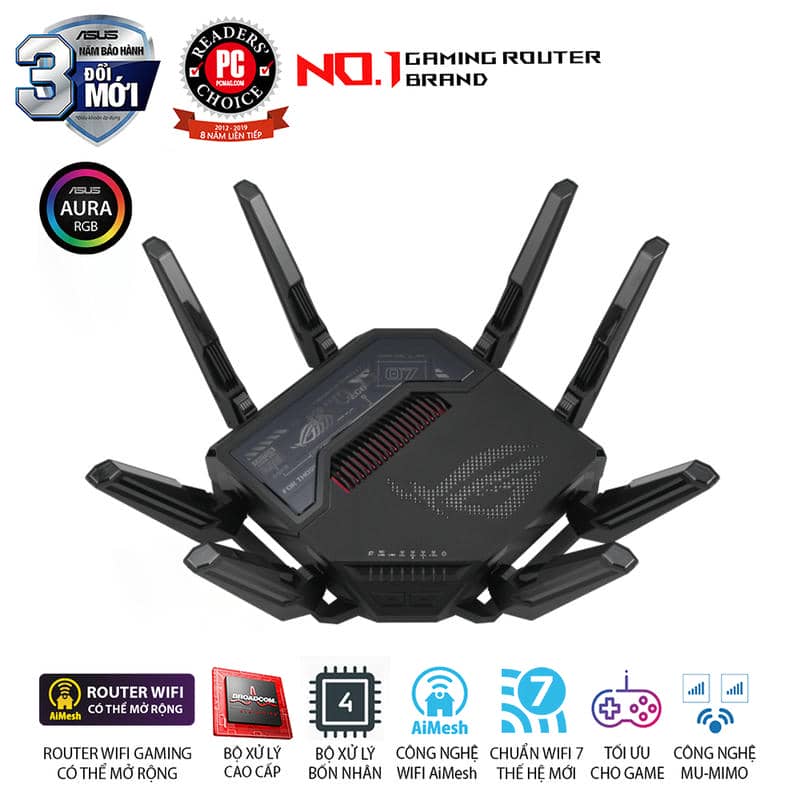

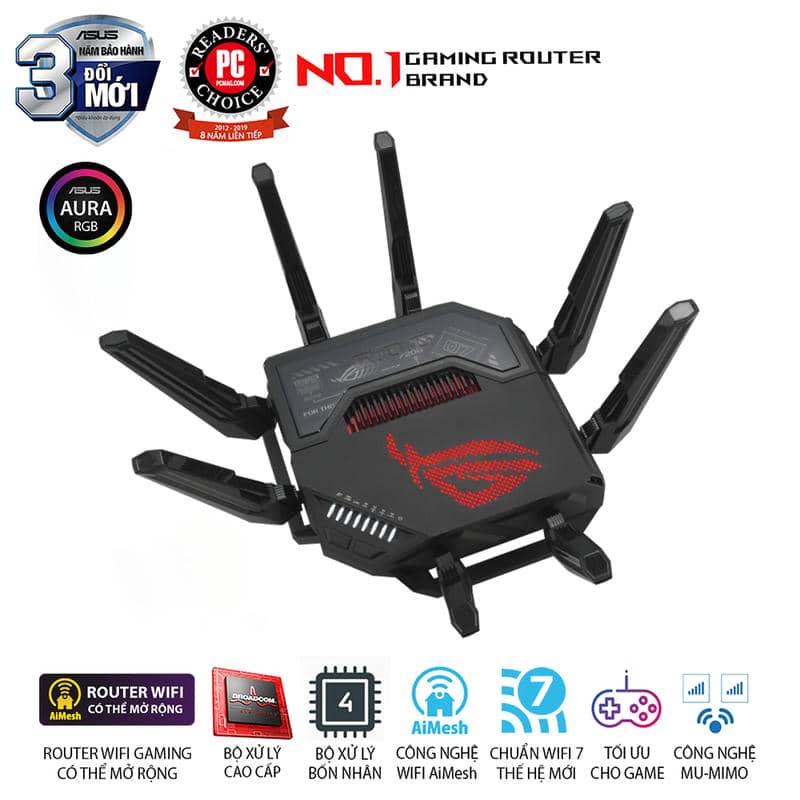

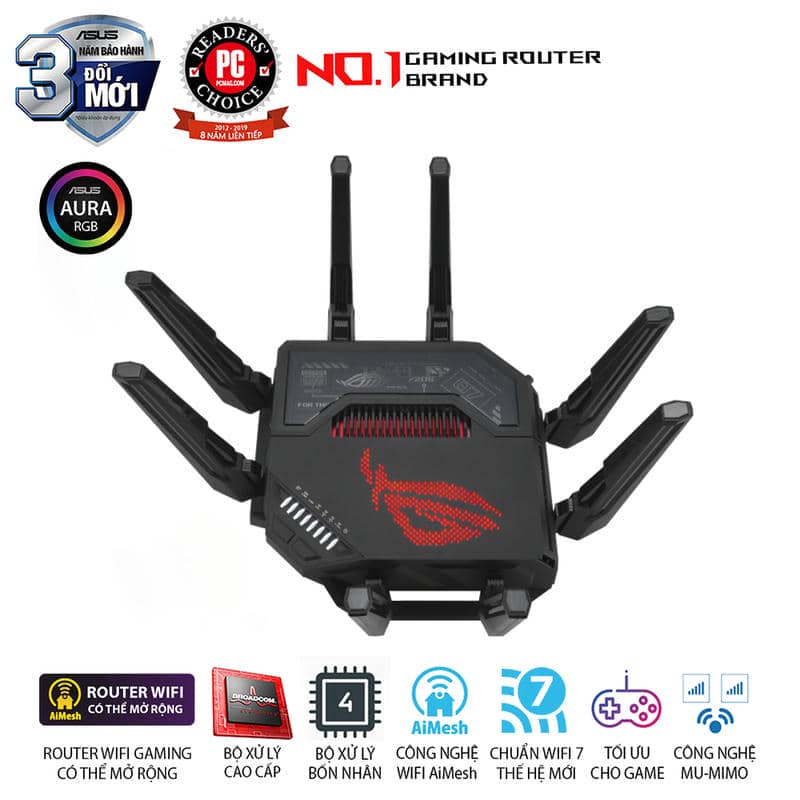

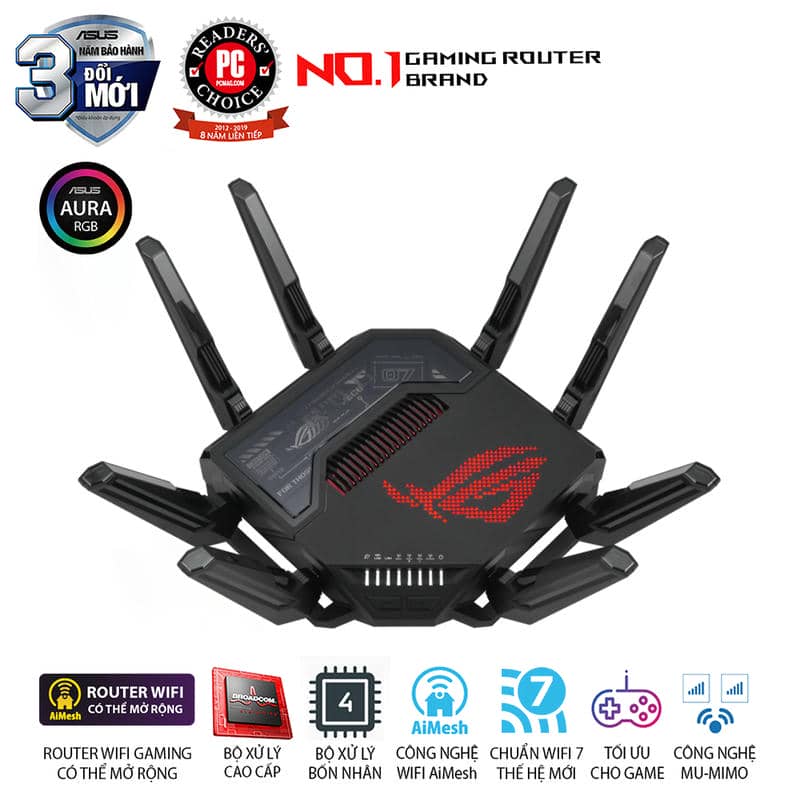

ASUS ROG Rapture GT-BE98 WiFi 7 Gaming Router – BE25000 Quad-band AiMesh, AURA RGB, 8x External antenna

Model

ROG Rapture GT-BE98

Model Name

GT-BE98

Network Standard

WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IPv4
IPv6

Product Segment

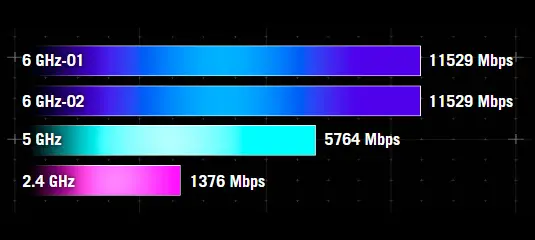

BE25000 ultimate BE performance : 1376+5764+5764+11529 Mbps

WIFI Data Rate

2.4GHz BE: 4×4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps
5G-1Hz BE: 4×4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp
5G-2Hz BE: 4×4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp
6GHz BE: 4×4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbp

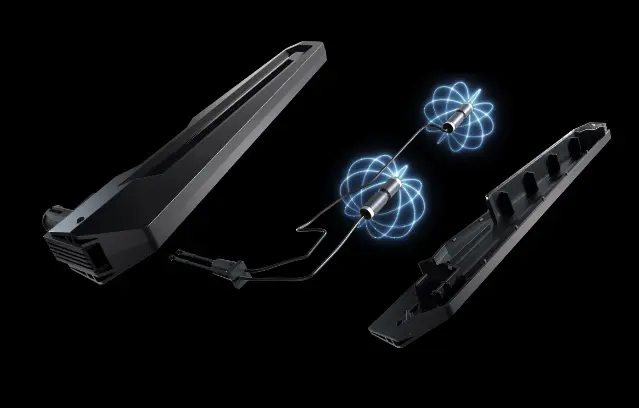

Antenna

External antenna x 8

Transmit/Receive

2.4GHz 4×4
5GHz-1 4×4
5GHz-2 4×4
6GHz 4×4

Processor

2.6GHz quad-core processor

Memory

256 MB Flash and 2 GB RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal

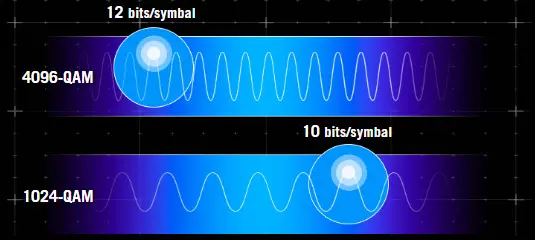

4096-QAM high data rate

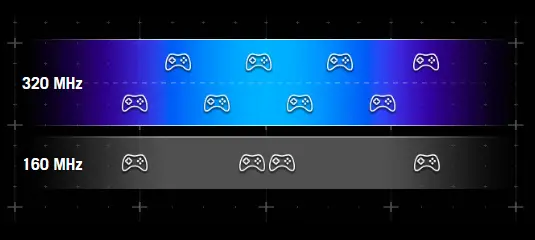

20/40/80/160/320 MHz bandwidth

Operating Frequency

2.4 GHz / 5 GHz / 6 GHz

Operating Mode

Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge

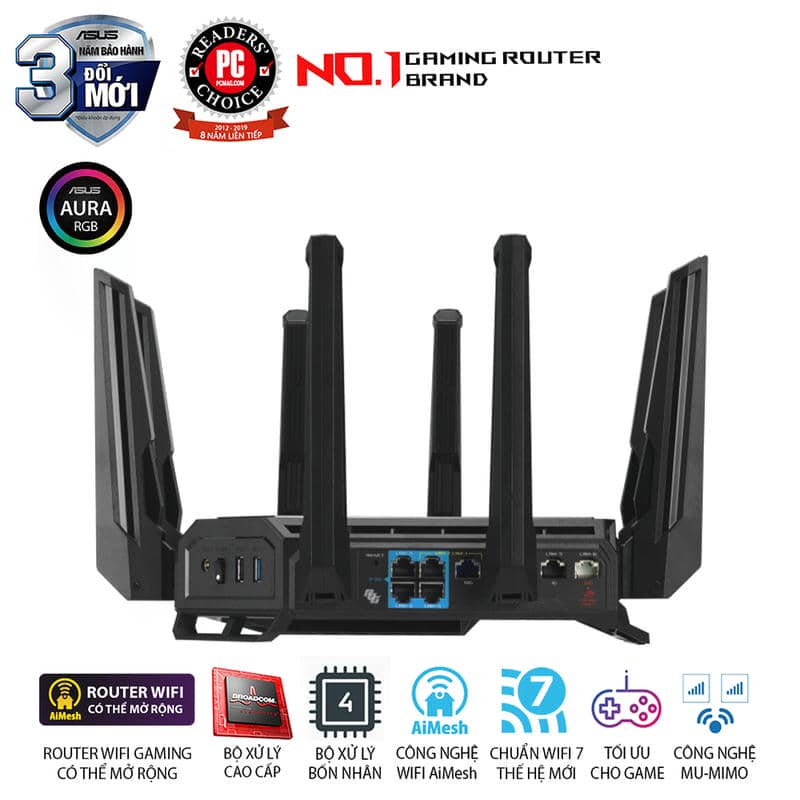

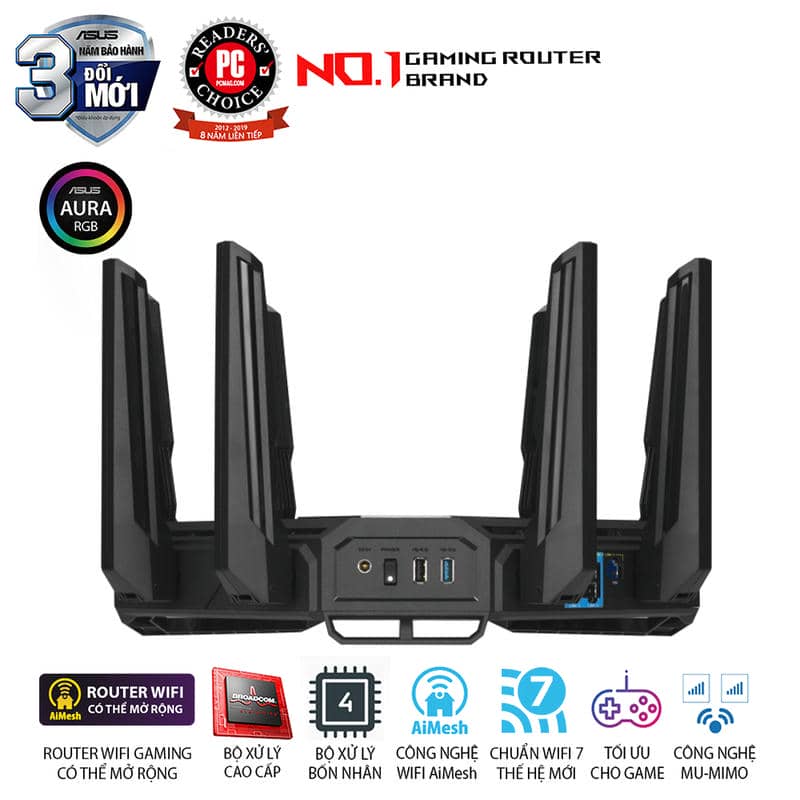

I/O Ports

1 x 10Gbps for WAN/LAN
1 x 2.5Gbps for WAN/LAN
1 x 10Gbps for LAN
3 x 2.5Gbps for LAN
1 x RJ45 10/100/1000Mbps for LAN
1 x USB 3.2 Gen1
1 x USB 2.0

Buttons

WPS Button, Reset Button, Power Switch, LED control Button

LED Indicator

WAN(Internet) x1
10G LAN x1
1G/2.5G LAN x1
6GHz x1
5GHz-1 x 1
5GHz-2 x 1
2.4GHz x1
Power x1

Power Supply

AC Input : 110V~240V(50~60Hz)
DC Output : 19.5 V with max. 3.33 A current

Package content

GT-BE98 quad-band gaming router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

Product Weight

2000 g

Product Dimension

350.41 x 350.41 x 220.6 mm

AiMesh

AiMesh
• Primary AiMesh Router
• AiMesh Node

Game

Game Boost / Acceleration
WTFast
ROG_First
OpenNAT (Game Profile)
Gaming Port

Parental Control

“Allow you to block access to unwanted websites and apps.”
Parental Control Customized Internet Schedule
• Maximum Parental Control profile : 64
• Maximum Parental Control content filter rule : 64

Guest Network

“The Guest Network provides Internet connection for guests but restricts access to your local network.”
• Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5
Guest Network Connection time limit
Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal

AiProtection

AiProtection Pro
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

Security

Traffic Control

Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
— Maximum Bandwidth Limiter Rule : 32
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History

VPN

Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion

Traffic Control

• Bandwidth Limiter
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor

WAN

Internet Connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP
Dual WAN
3G / 4G LTE Dongle
4G / 5G Auto Mobile Tethering
Port Forwarding
• Maximum Port Forwarding Rule : 64
Port Triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

LAN

DHCP Server
IPTV
LAN Link Aggregation
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule :
128
Wake on LAN (WOL)

Wireless

MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming

USB application

4G / 5G Auto Mobile Tethering
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges

User Interface

Operating system : ASUSWRT

Administration

Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
