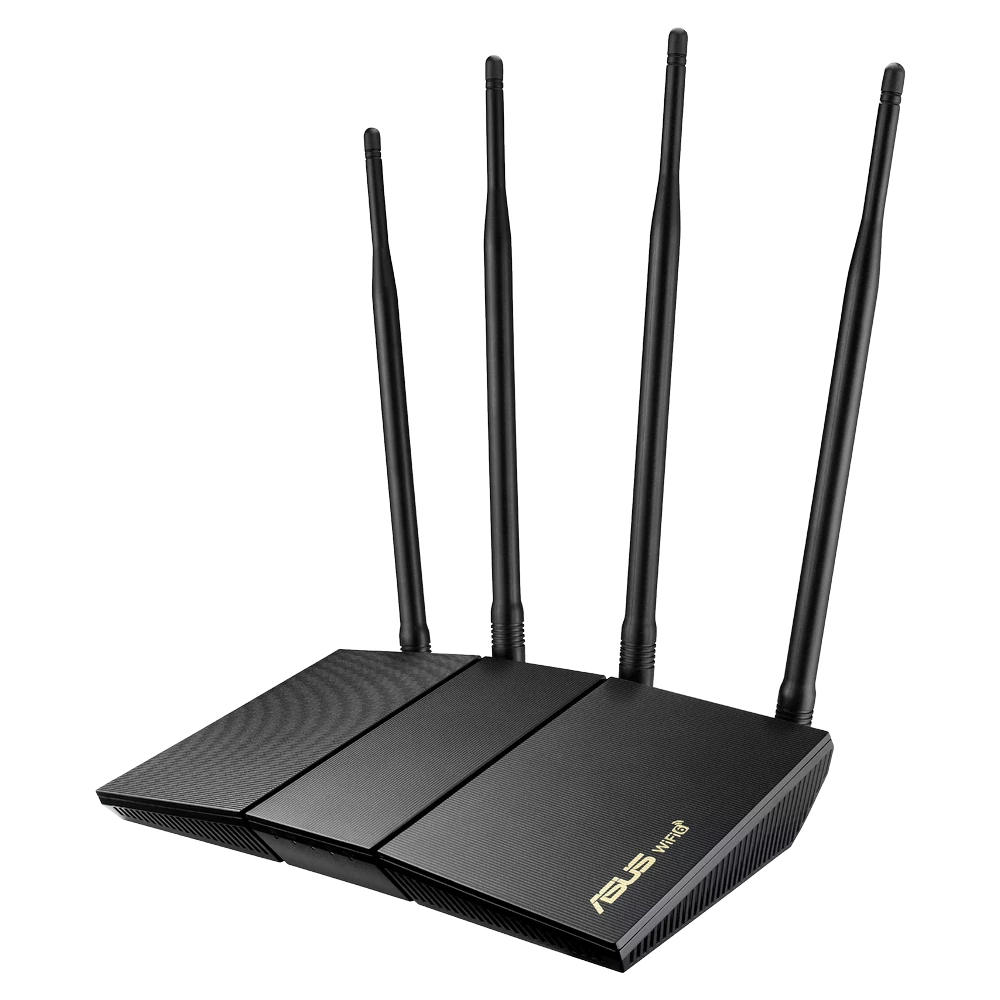

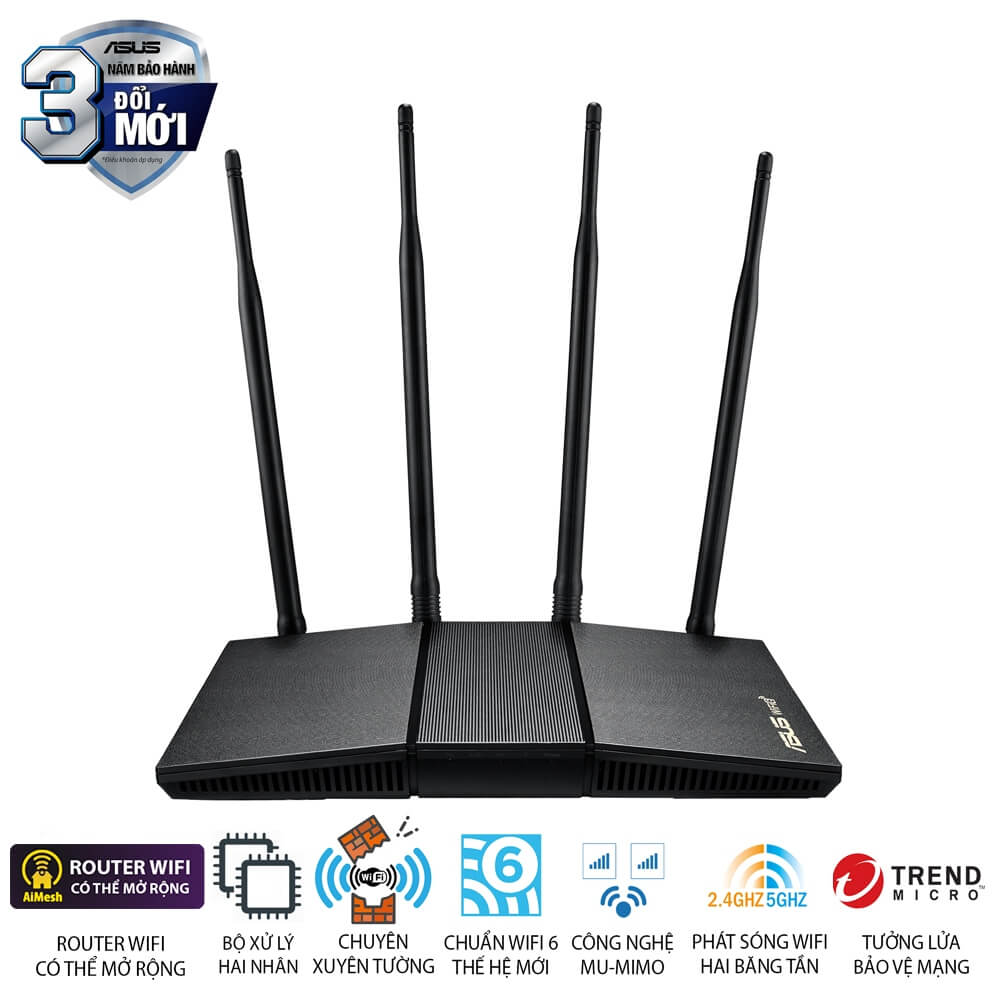

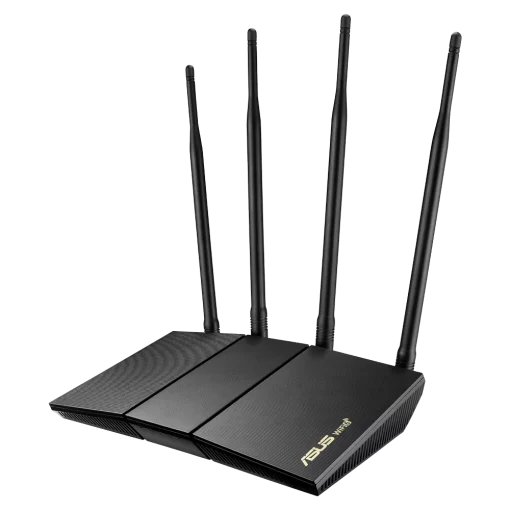

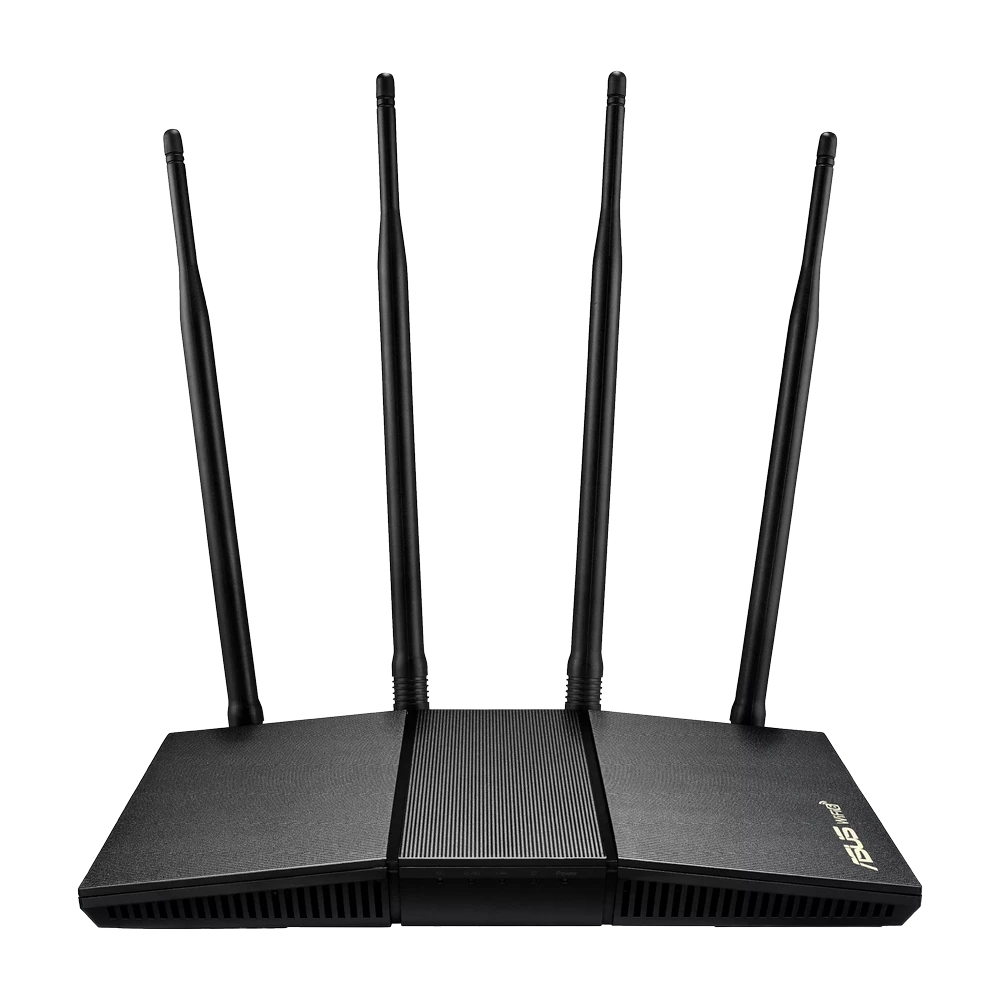

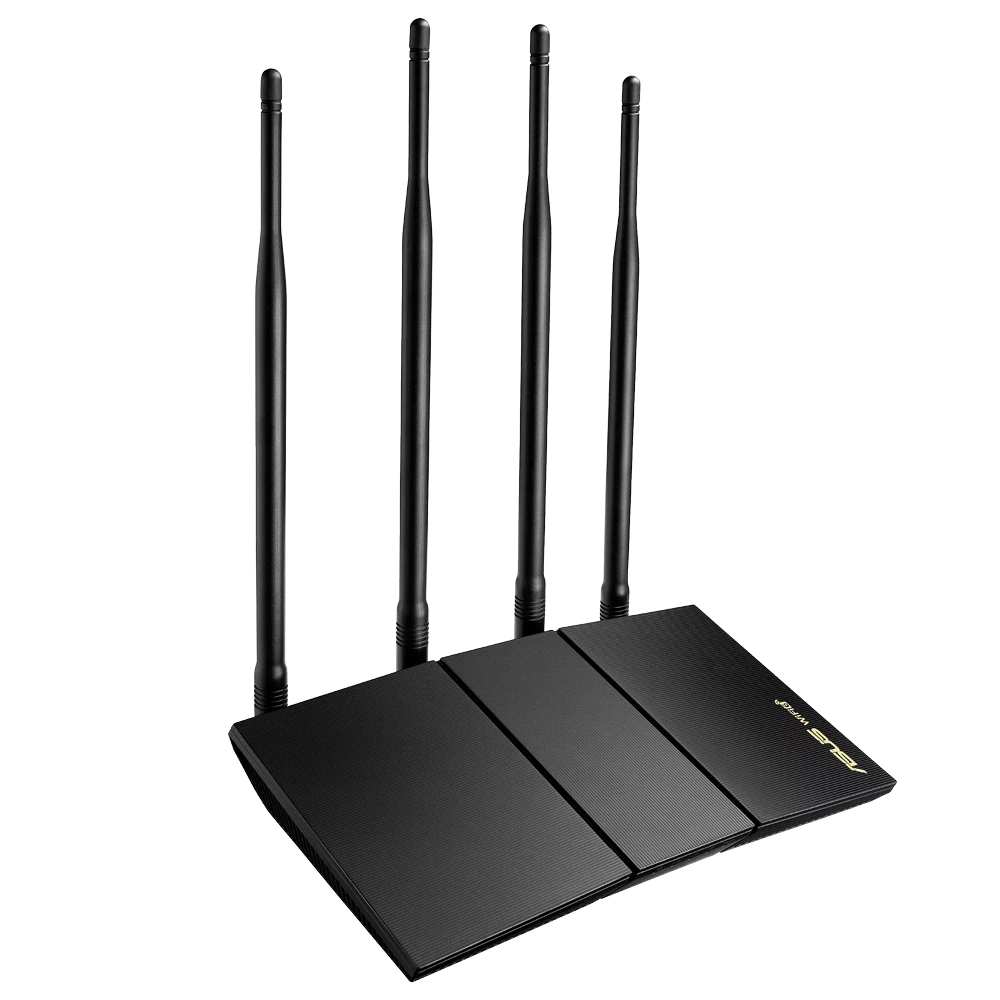

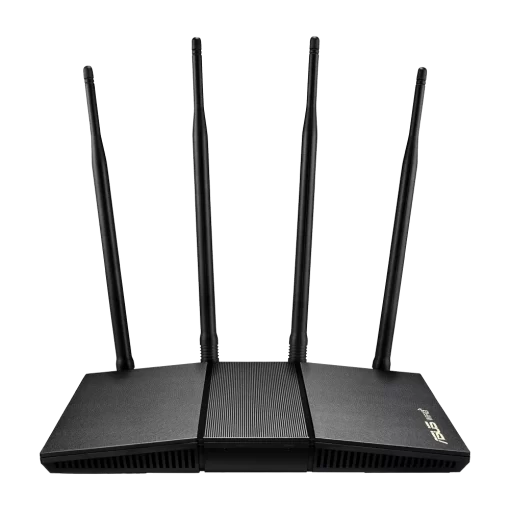

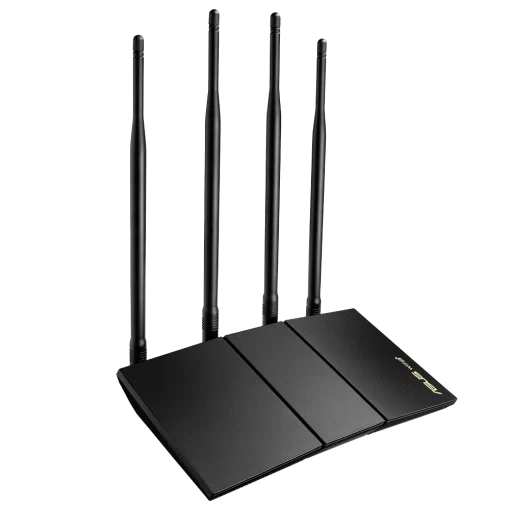

ASUS AX1800HP V2 (RT-AX1800HP V2) Router – Black, WiFi 6(802.11ax) MU-MIMO OFDMA, AiMesh

Network Standard IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
WiFi Data Rate 802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 867 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps
Antenna External antenna x 4
Transmit/Receive 2.4GHz 2×2
5GHz 2×2
Processor Dual-core (4 VPE)
Memory 128 MB Flash
256 MB RAM
Boosts speed OFDMA (Orthogonal Frequency Division Multiple
Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80 MHz bandwidth
Operating Frequency 2.4G Hz / 5 GHz
Operating Mode Access Point, Media Bridge, Repeater, Router

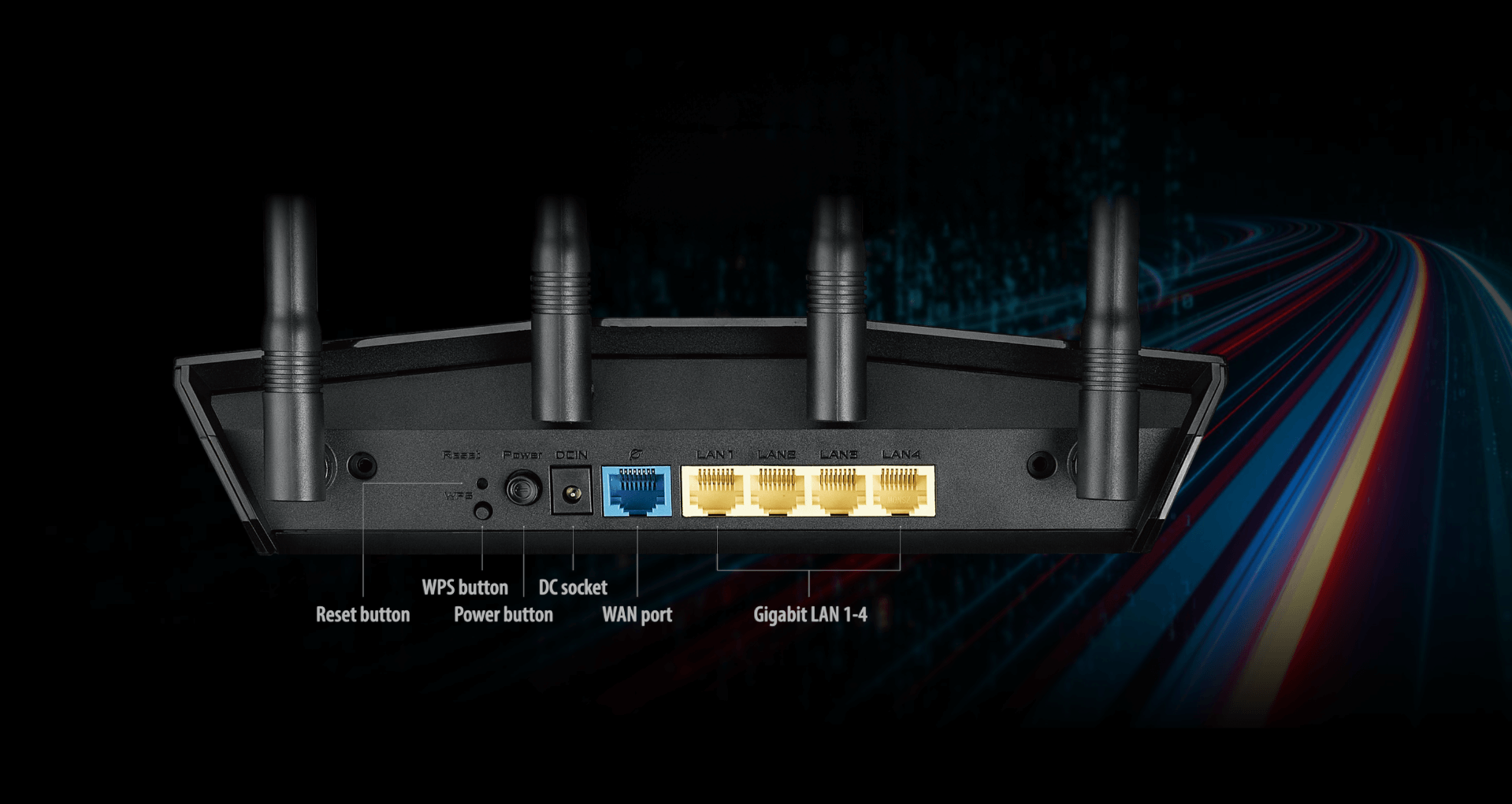

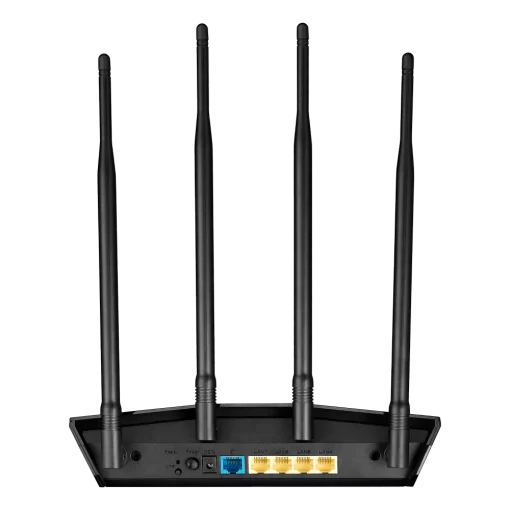

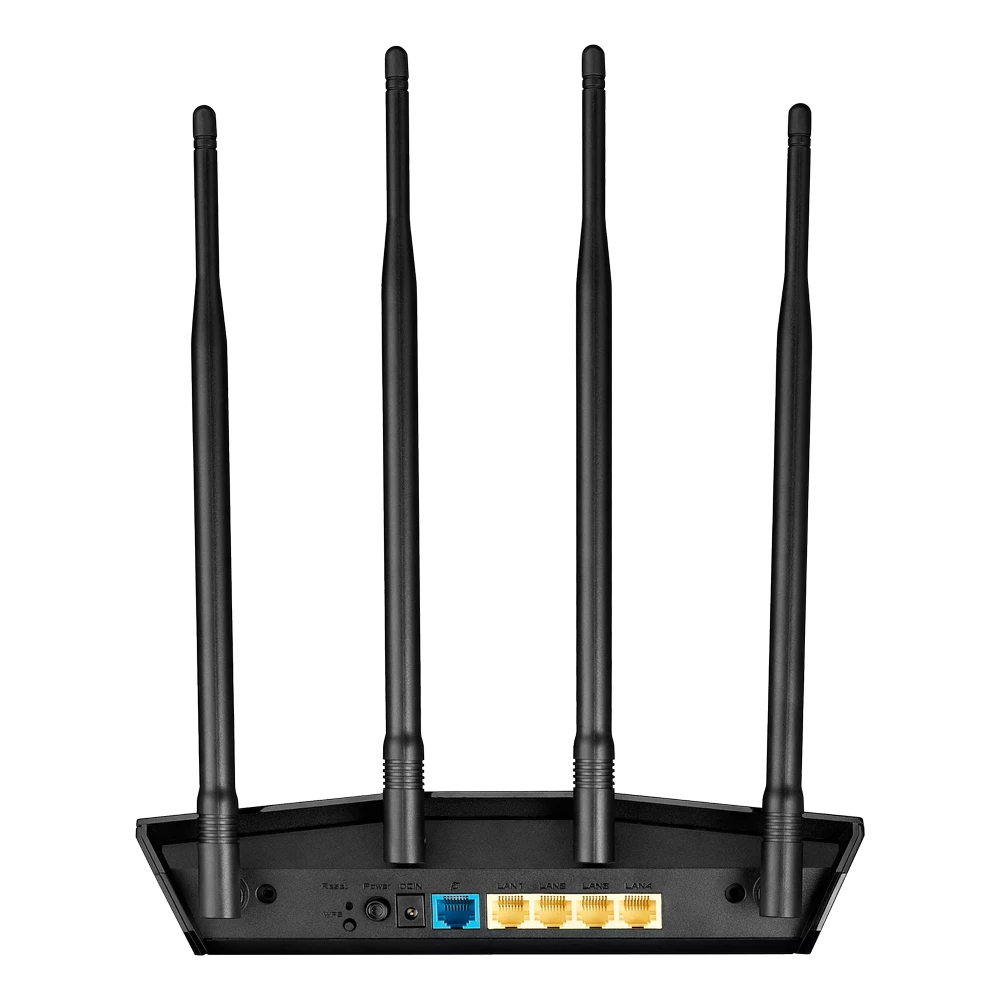

I/O Ports RJ45 for Gigabits BaseT for WAN x 1, RJ45 for
Gigabits BaseT for LAN x 4
Button WPS Button, Reset Button, Power Switch
LED Indicator Power x 1
2.4G x 1
5G x 1
LAN x 1
WAN x 1
Power Supply AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1.5A current
Package content RT-AX1800HP
RJ45 x1
Adapter x1
QSG x1
Warranty Card x1
Product Weight (g) 390g / 0.86lb
Product Dimensions 230 x 134 x 56 mm
9.06 x 5.28 x 2.2 inch
AiMesh AiMesh
• Primary AiMesh Router
• AiMesh Node
Parental Control “Allow you to block access to unwanted websites
and apps.”
Customized Internet Schedule
Guest Network “The Guest Network provides Internet connection for guests but restricts access to your local network.”
Security Open system, WPA/WPA2-Personal, WPA/WPA2
Enterprise, WPA3-Personal
WPS
Let’s Encrypt
SSH
Firewall
AiProtection • Malicious Site Blocking
• Infected Device Prevention and Blocking
Better Partner with Mesh System – Compatible with ASUS AiMesh WiFi system for seamless whole-home coverage.
RT-AX1800HP V2
AX1800 Dual Band WiFi 6 (802.11ax) Router supporting MU-MIMO and OFDMA technology, with AiProtection
Classic network security powered by Trend Micro™, compatible with ASUS AiMesh WiFi system
New-Gen WiFi Standard — WiFi 6(802.11ax) standard supporting MU-MIMO and OFDMA technology for better efficiency and throughput.

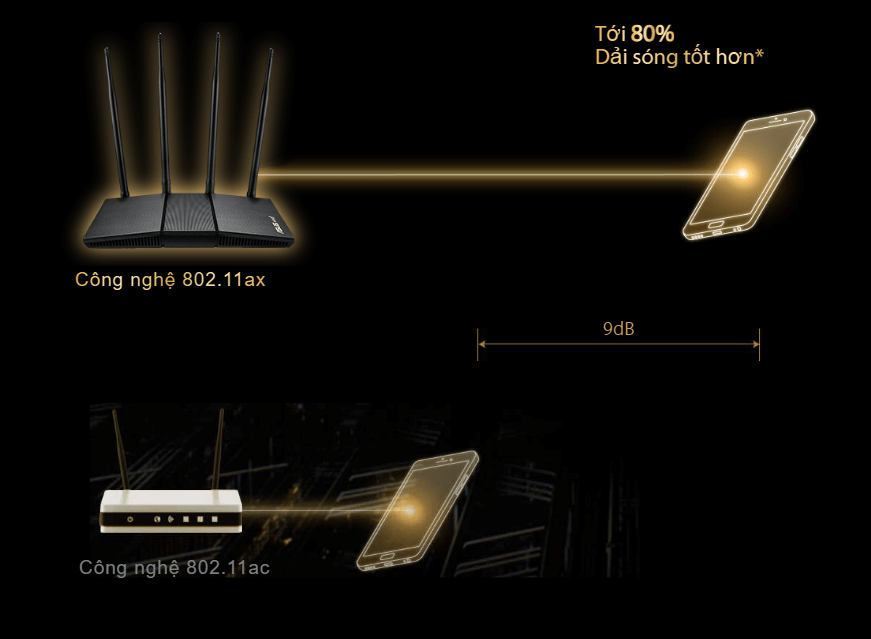

Ultra-fast WiFi Speed — RT-AX1800HP supports 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps — 574 Mbps on the 2.4GHz band and 1201 Mbps on the
5GHz band.

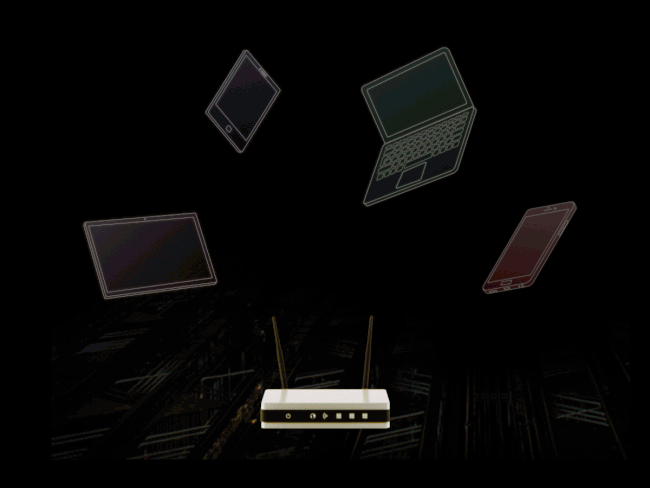

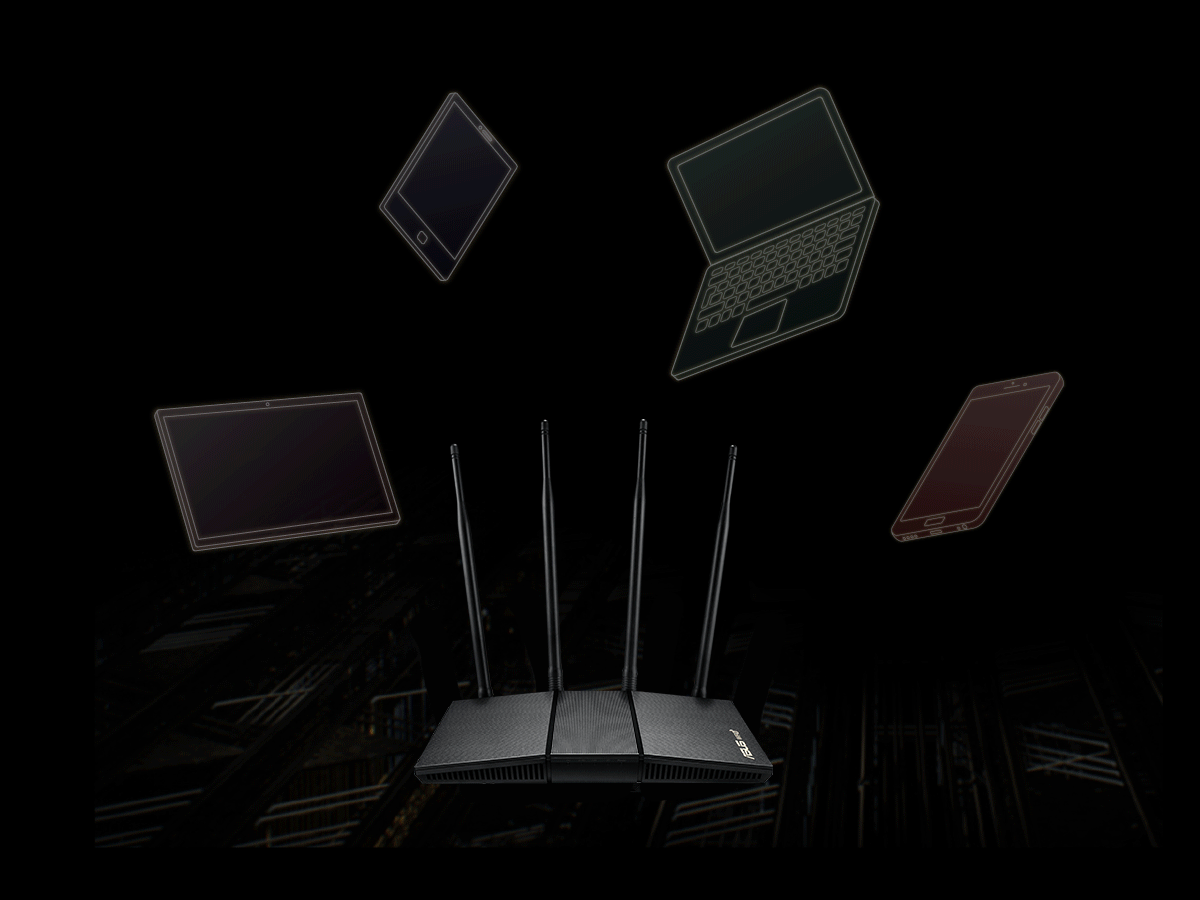

Increase Capacity and Efficiency — Supporting not only MU-MIMO but also OFDMA technique to efficiently allocate channels, communicate with multiple devices simultaneously
Protection for Your Home Network – Aiprotection powered by Trend Micro™, blocks internet security threats for all your connected smart devices
VPN
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
Traffic Control
WAN
LAN
Wireless

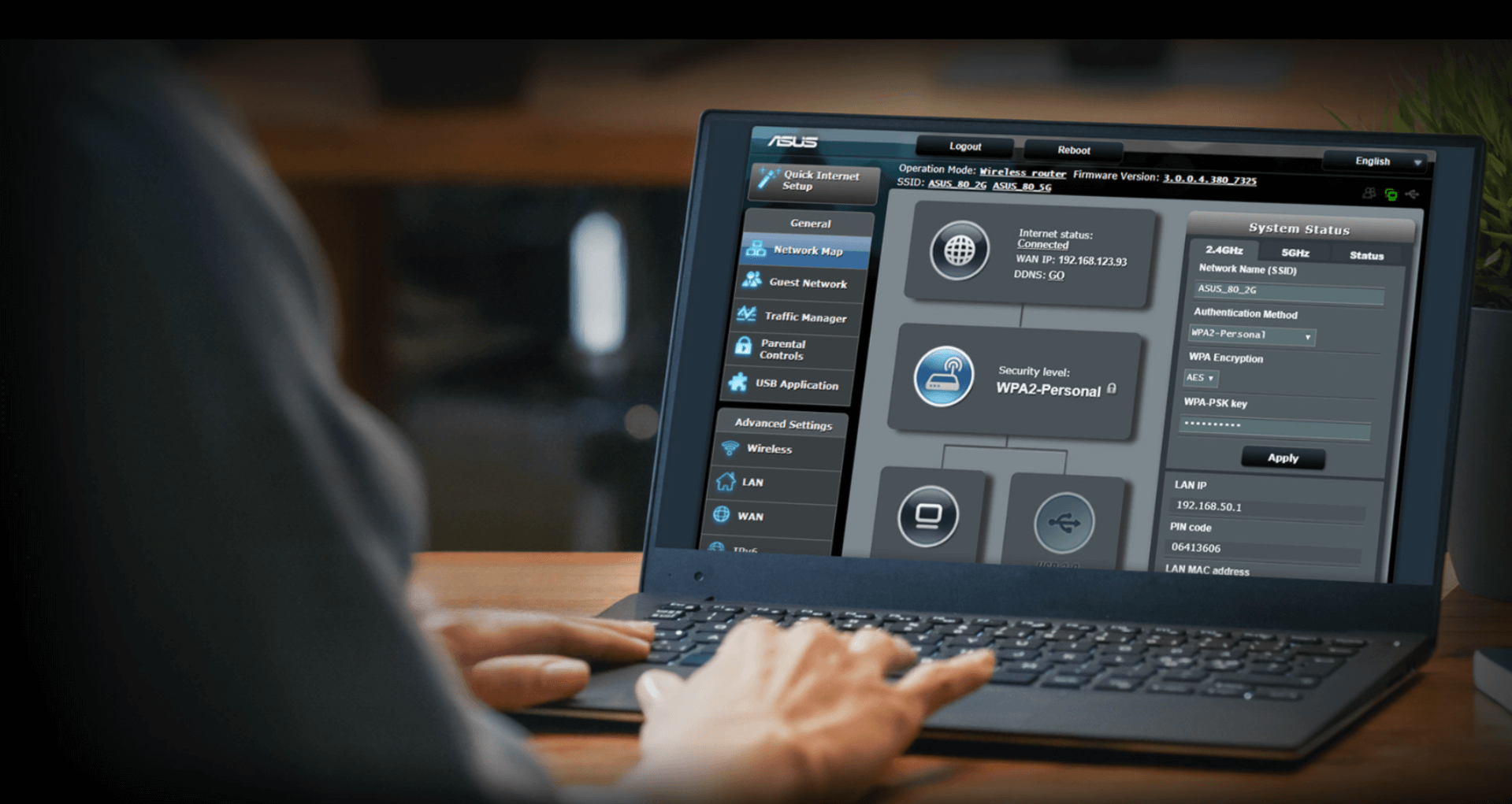

Administration
• Bandwidth Limiter
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Internet connection Type : PPPoE, PPTP, L2TP,
Automatic IP, Static IP
Dual WAN
Port forwarding
Port triggering
DMZ
DDNS
DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
Wake on LAN (WOL)
UTF-8 SSID
WiFi MAC Address Filter
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log

• Bảo hành 36 tháng
