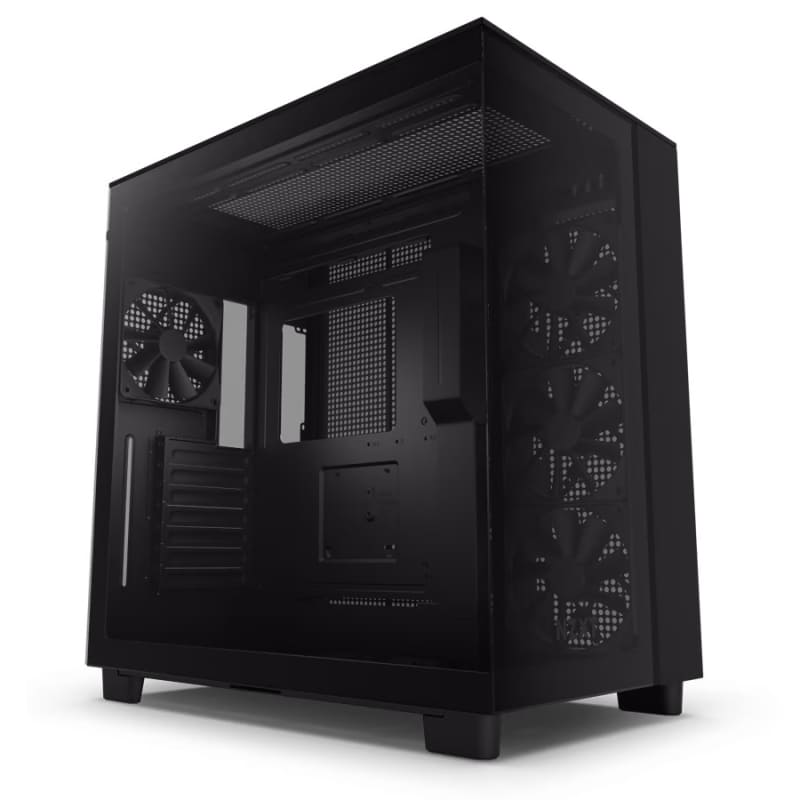

NZXT H9 Flow All Black Case – Mattle Black

Details

The H9 Flow is designed to cool off powerful GPUs with its expansive thermal capabilities, featuring the capacity for ten fans and numerous 360mm radiator mounting options and the perforated top panel takes cooling even further.

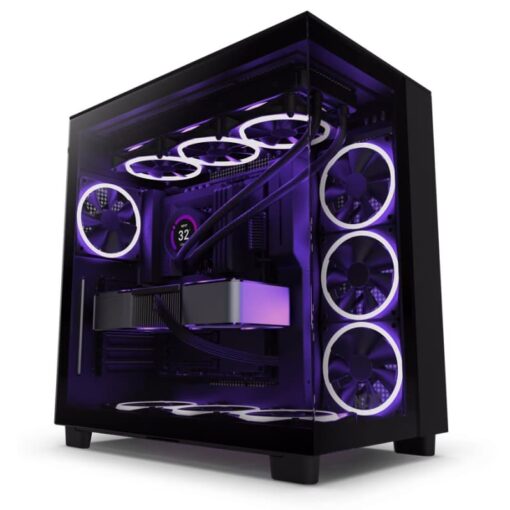

• • Unique uninterrupted glass panel for a clear view of the interior

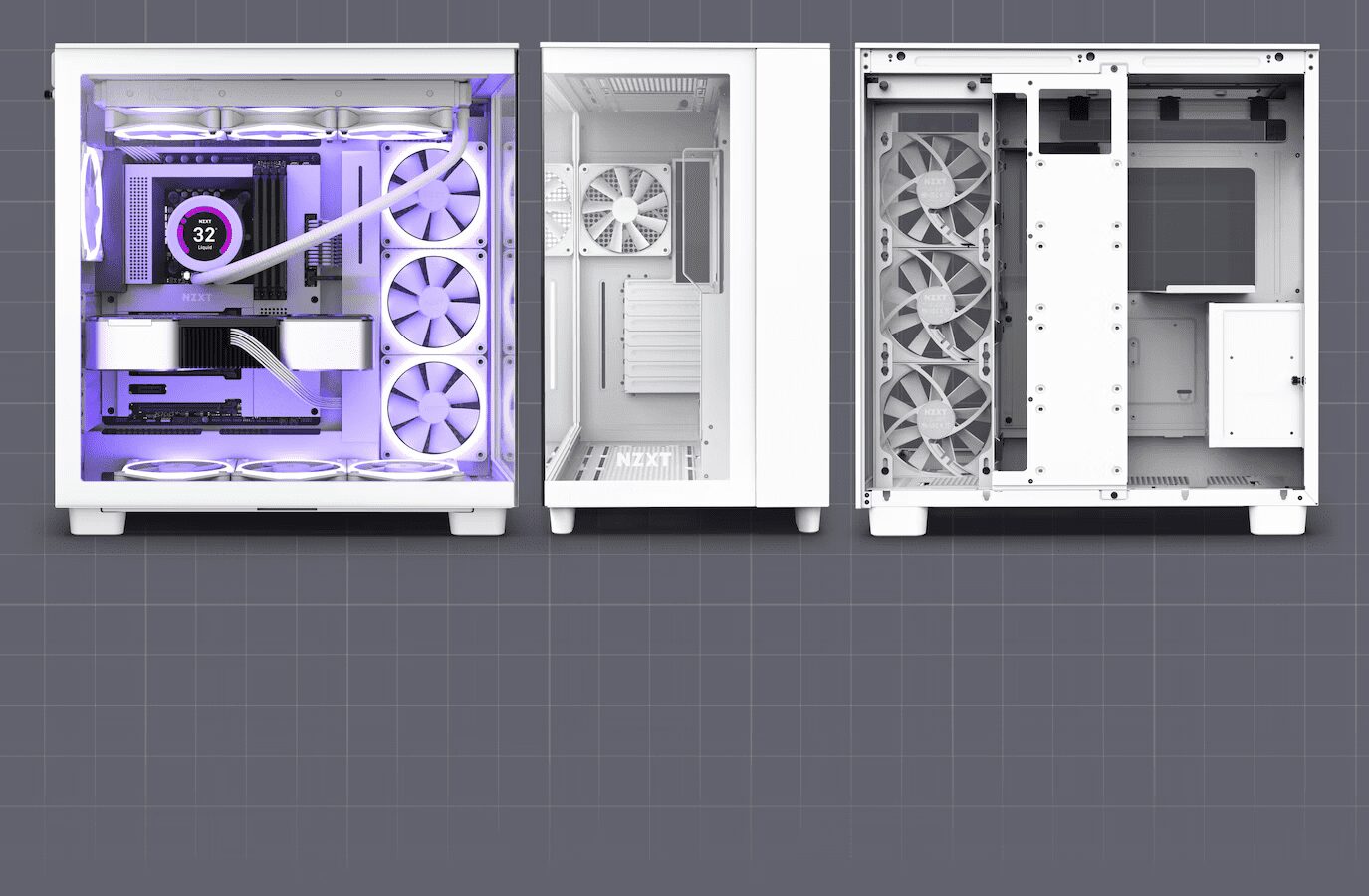

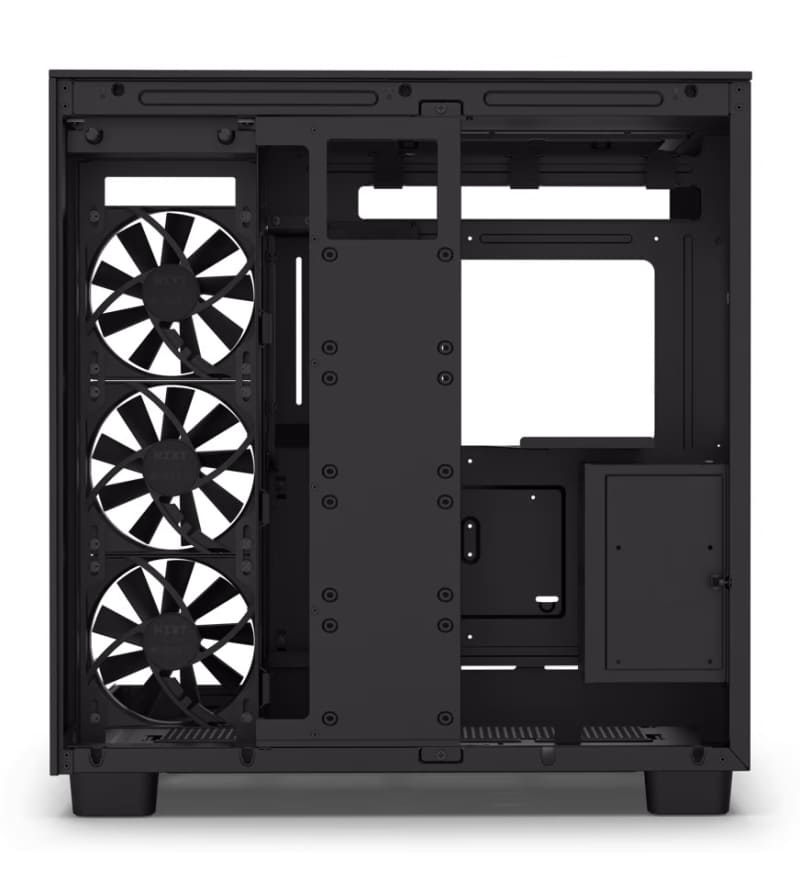

  • Intuitive cable management and dual chamber design
  • Room for ten fans or three 360mm Radiators

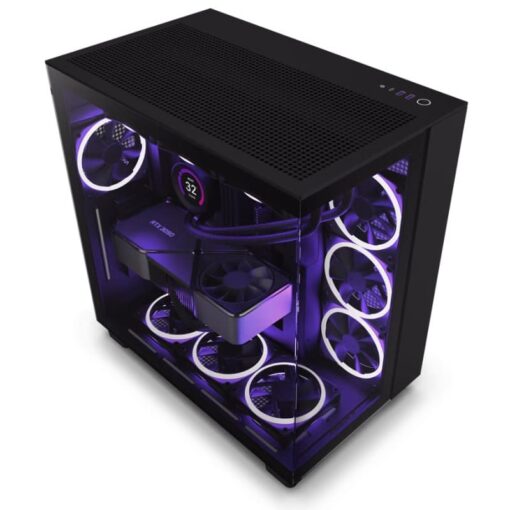

  • Perforated top panel for enhanced cooling

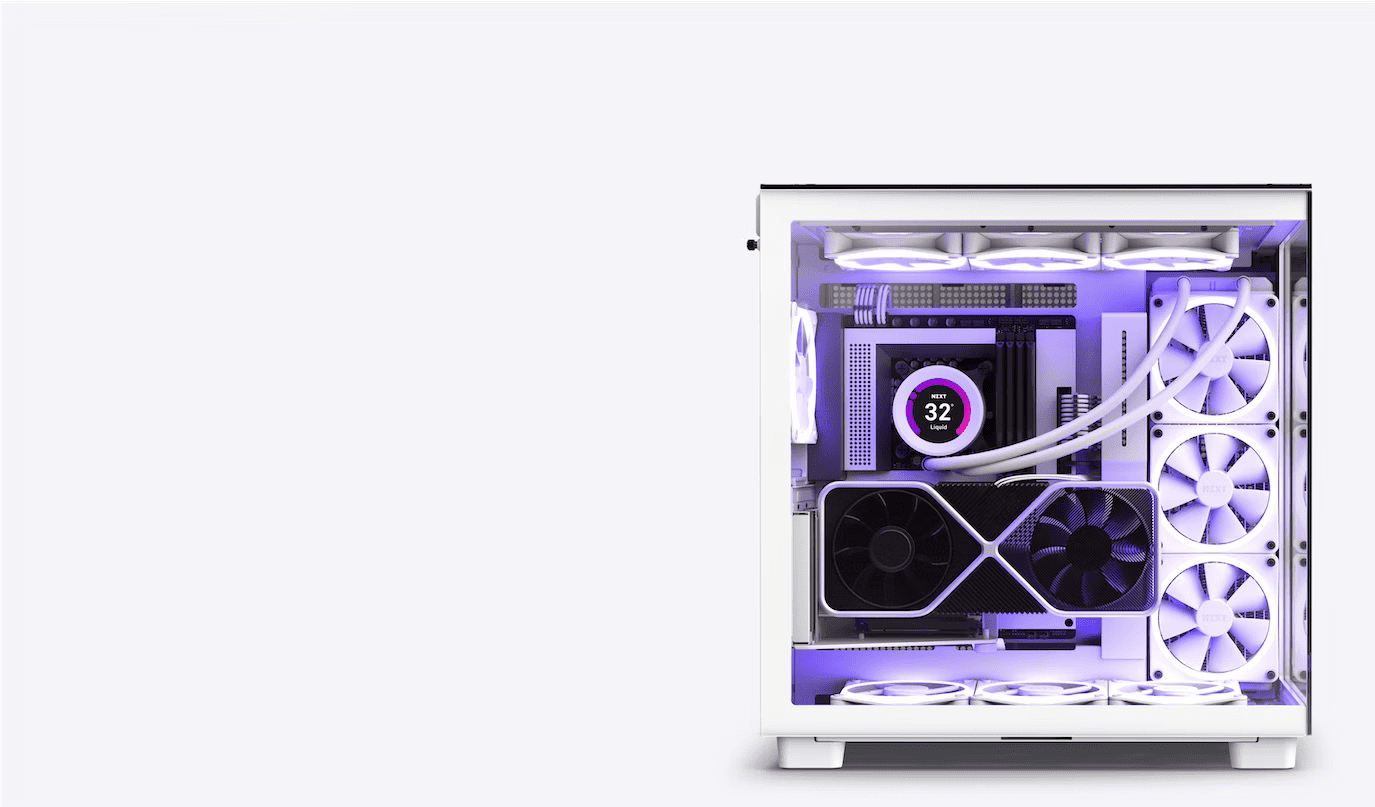

  • Direct airflow to the GPU for handling high-powered components
  • Enhanced experience with other products from the NZXT ecosystem
  • Includes four F Series 120mm Quiet Airflow fans

Inside the Box

• H9 Flow Case x1

• Front I/O split cables x1

• 120mm Quiet Airflow Fan (Case Version) x4

• Installation Accessories x1

• Manual x1

KEY SPECS

• Motherboard Support:Mini-ITX, Micro-ATX, ATX

• Enclosure Type:Mid-Tower

• Case Material:SGCC Steel, Tempered Glass

DIMENSIONS

• Height:495mm (With Feet)

• Width:290mm

• Depth:466mm

• Weight:12.1 kg

COMPATIBILITY & CLEARANCE

• Max CPU Cooler Clearance:Up to 165mm

• Max GPU Clearance:Up to 435mm

• PSU Clearance:200mm

• Cable Management:91mm

FRONT I/O PORTS

• USB 3.2 Gen 1 Type-A:2

• USB 3.2 Gen 2 Type-C:1

• Headset Audio Jack:1

EXPANSION SLOTS

• Standard:7

• Vertical:0

DRIVE BAYS

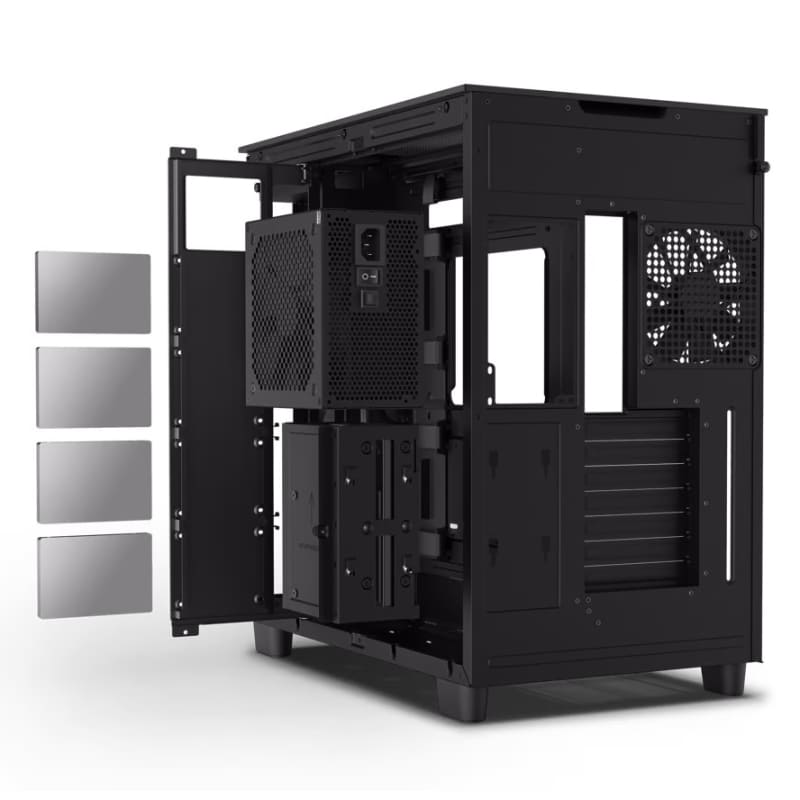

• 2.5″:4+2

• 3.5″:2

FAN SUPPORT

• Side: 3 x 120mm

• Top: 3 x 120mm / 2 x 140mm

• Bottom: 3 x 120mm / 2 x 140mm

• Rear: 1 x 120mm

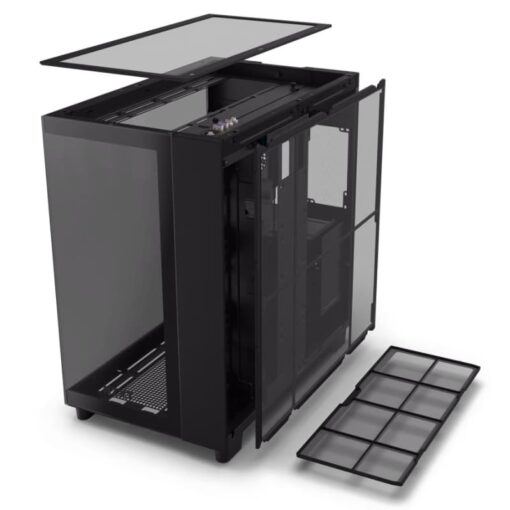

• Filters:All Air Intakes

RADIATOR SUPPORT

• Side: Up to 360mm with Push/Pull

• Top: Up to 360mm

• Bottom: Up to 360mm

• Rear: Up to 120mm

FAN SPECS

• Model: F120Q (Case Version)

• Speed: 1200 ± 240RPM

• Airflow: 62.18 CFM

• Static: 1.05 mm – H2O

• Noise: 25.1 dBA

• Fan Connector: 3-pin

GENERAL

• Model Number:CM-H91FW-01 (White) / CM-H91FB-01 (Black)

• UPC:810074842495 (White) / 810074842488 (Black)

• EAN:5056547202419 (White) / 5056547202402 (Black)
