Meet the H9 Series
The H9 keeps things clean and simple while supporting powerful builds. Two versions are available, the H9 Flow and the H9 Elite.
Simplified Building
The H9 is easy to build in, with cable routing, a unique SSD hinge, and a dual-chamber design with plenty of space for premium components.
Focus Your Cooling
Configure the H9 for optimized CPU or GPU cooling depending on fan and radiator placement.
Join the Elite
Show off stunning RGB from any angle.
Suit Your Space
The H9 Flow and Elite are available in All-White and All-Black.
Enhance Your H9
Get the most out of the H9 with these NZXT components and accessories.
Details

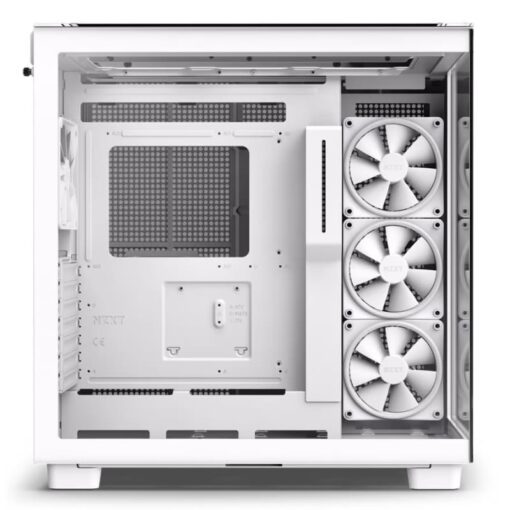

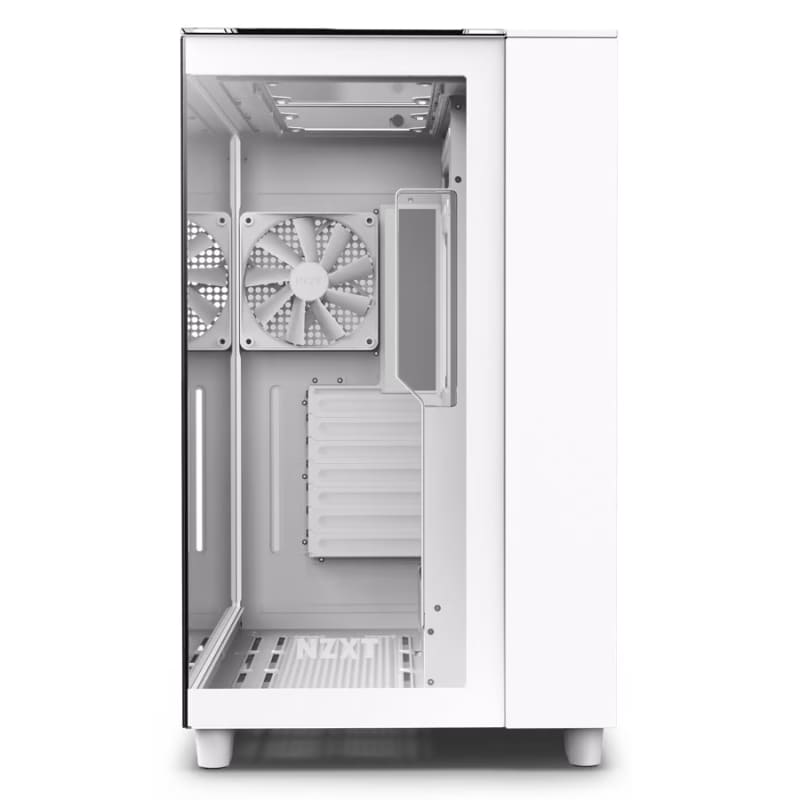

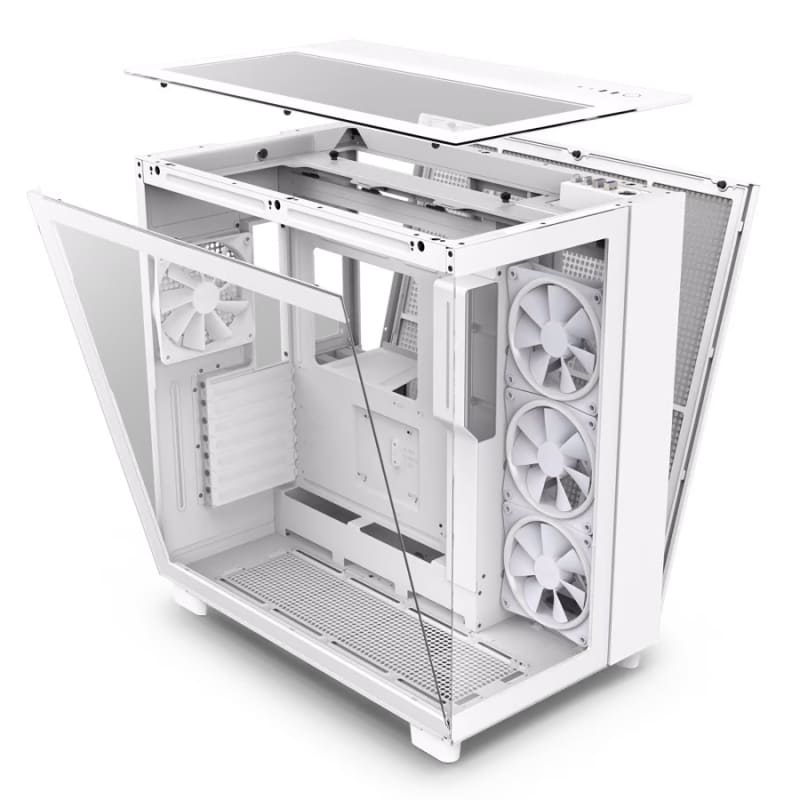

The H9 Elite is designed to show off every angle of your build with a tempered glass top panel and a built-in RGB & Fan Controller. The unique wraparound glass design with a dual-chamber layout is the perfect showcase for premium components.
-
- Unique uninterrupted glass panel for a clear view of the interior
- Intuitive cable management and dual chamber design
- Room for ten fans or three 360mm Radiators

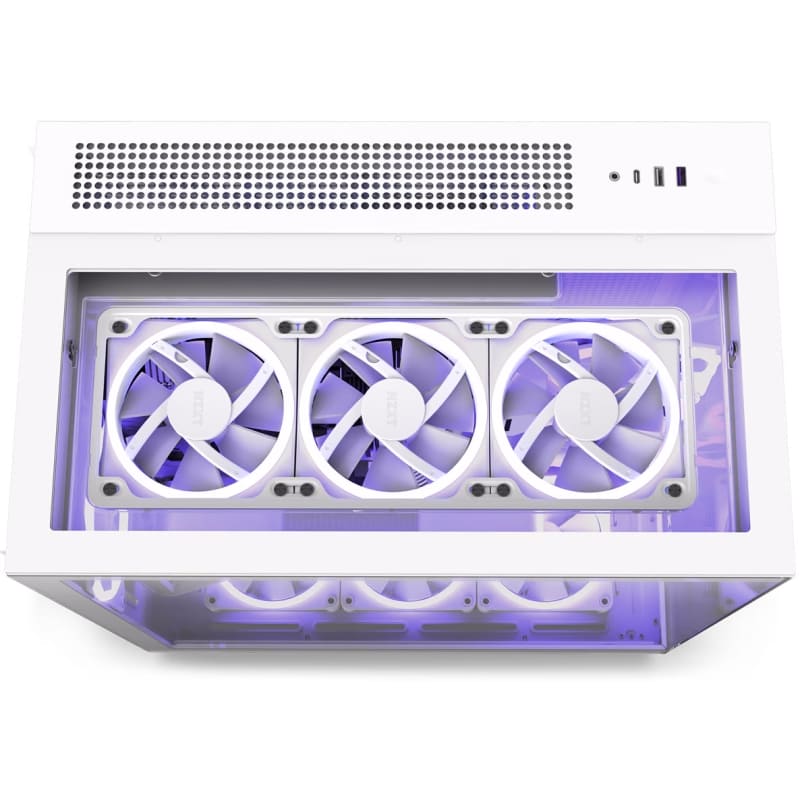

- Tempered glass top panel and included RGB & Fan Controller
- Direct airflow to the GPU for handling high-powered components
- Enhanced experience with other products from the NZXT ecosystem
- Includes three F Series 120mm RGB Duo Fans and one F120Q Fan
Inside the Box
- H9 Elite Case1
- Front I/O split cables1
- 120mm RGB Duo Fan3
- 120mm Quiet Airflow Fan (Case Version)1
- RGB and Fan Controller1
- Installation Accessories1
- Manual
KEY SPECS
- Motherboard Support:Mini-ITX, Micro-ATX, ATX
- Enclosure Type:Mid-Tower
- Case Material:SGCC Steel, Tempered Glass
DIMENSIONS
- Height:495mm (With Feet)
- Width:290mm
- Depth:466mm
- Weight:13.1 kg
COMPATIBILITY & CLEARANCE
- CPU Cooler Clearance:Up to 165mm
- GPU Clearance:Up to 435mm
- PSU Clearance:200mm
- Cable Management:91mm
FRONT I/O PORTS
- USB 3.2 Gen 1 Type-A:2
- USB 3.2 Gen 2 Type-C:1
- Headset Audio Jack:1
EXPANSION SLOTS
- Standard:7
- Vertical:0
DRIVE BAYS
- 2.5″:4+2
- 3.5″:2
FAN SUPPORT
- Side:3 x 120mm
- Top:3 x 120mm / 2 x 140mm
- Bottom:3 x 120mm / 2 x 140mm
- Rear:1 x 120mm
- Filters:All Air Intakes
RADIATOR SUPPORT
- Side:Up to 360mm
- Top:Up to 360mm
- Bottom:Up to 360mm
- Rear:Up to 120mm
FAN SPECS
- Model:F120Q (Case Version)
- Speed:1200 ± 240RPM
- Airflow:62.18 CFM
- Static:1.05 mm – H2O
- Noise:25.1 dBA
- Fan Connector:3-pin
FAN SPECS
- Model:F120RGB Duo
- Speed:500 ± 1800RPM
- Airflow:48.58 CFM
- Static:2.42mm – H2O
- Noise:29 dBA
- Fan Connector:4-pin
GENERAL
- Model Number:CM-H91EW-01 (White) / CM-H91EB-01 (Black)
- UPC:810074842525 (White) / 810074842518 (Black)
- EAN:5056547202440 (White) / 5056547202433 (Black)
- Bảo hành 12 tháng
