Model

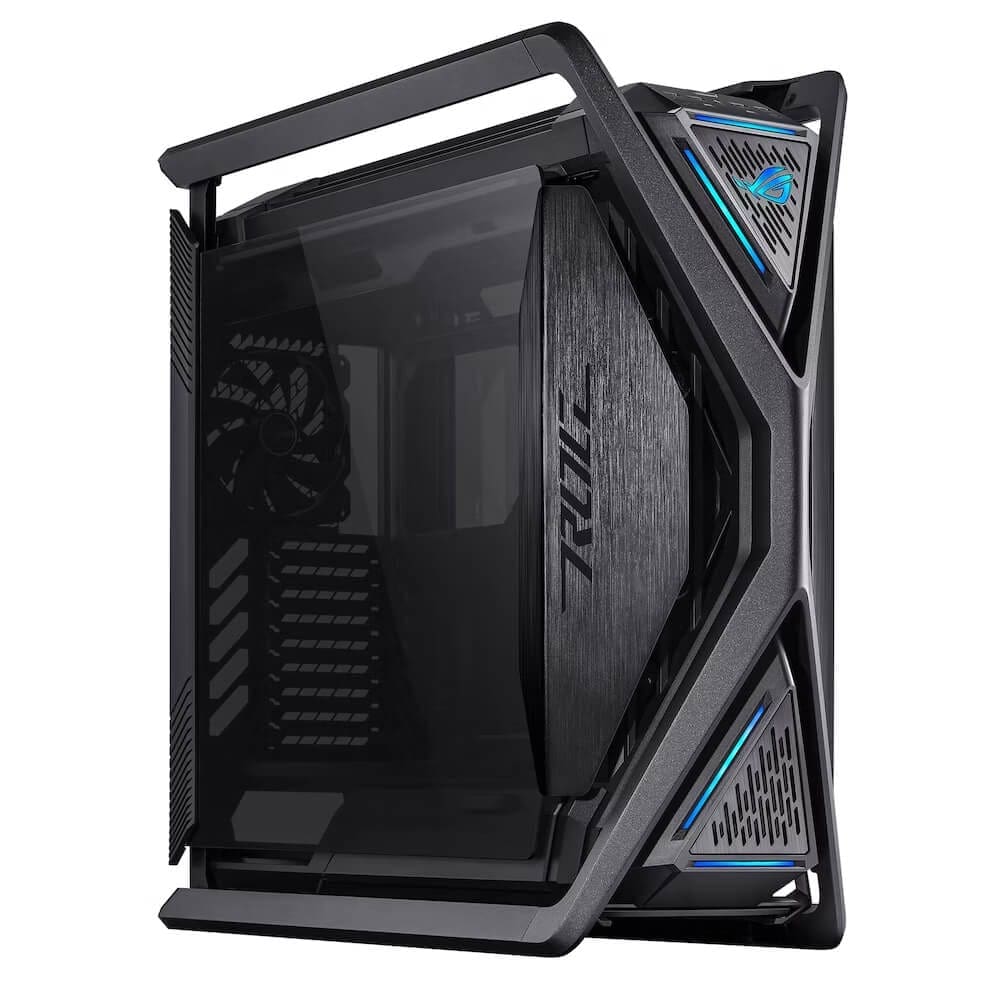

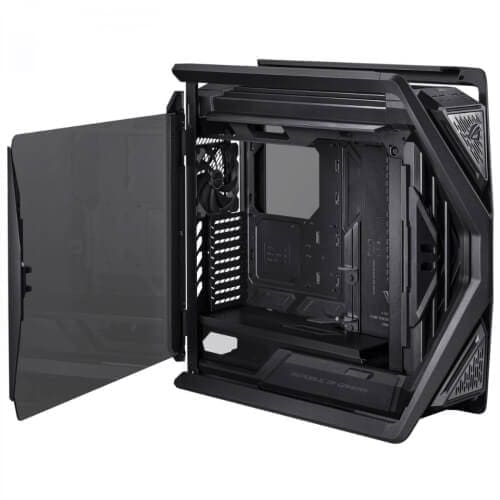

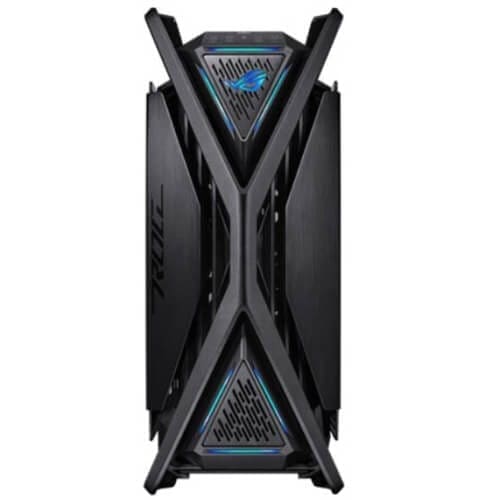

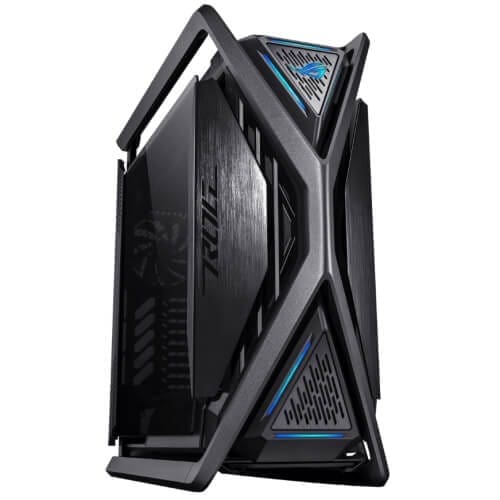

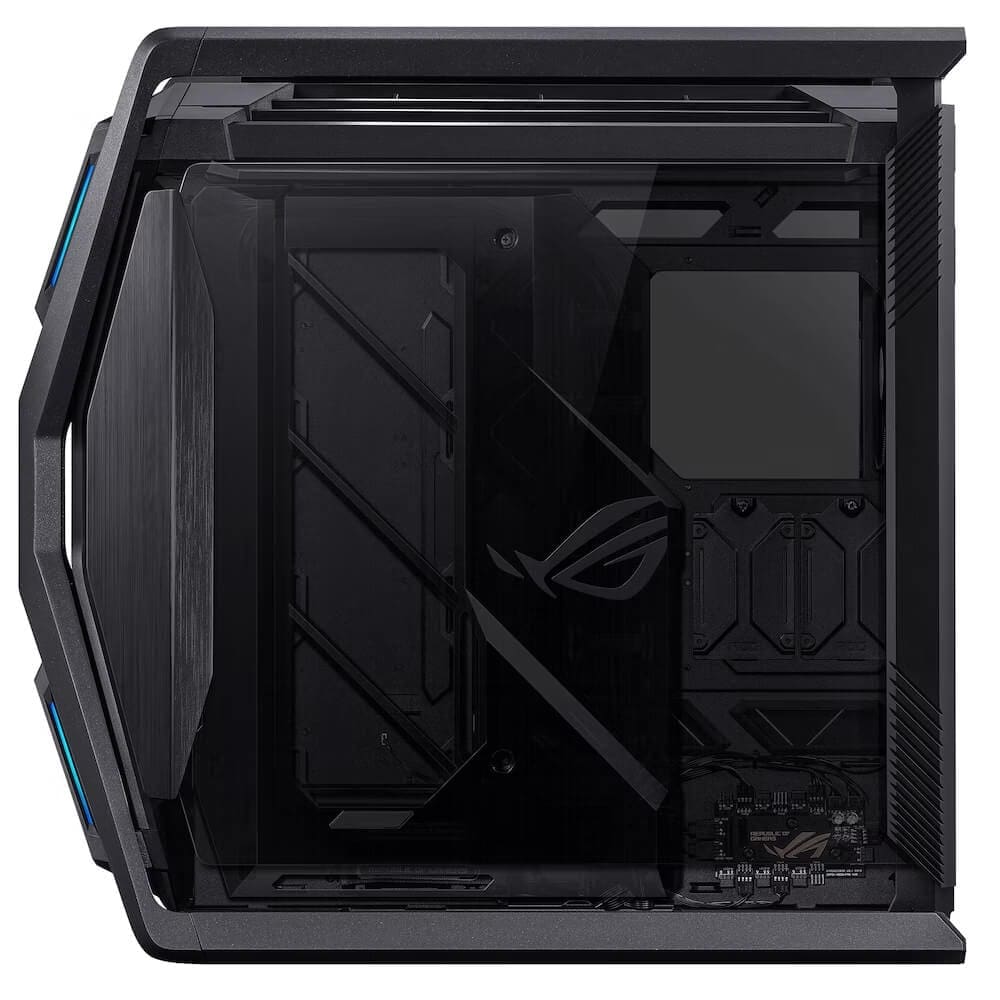

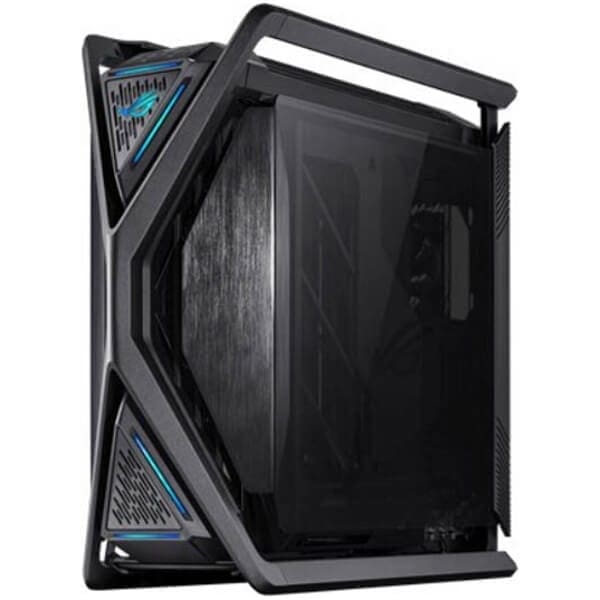

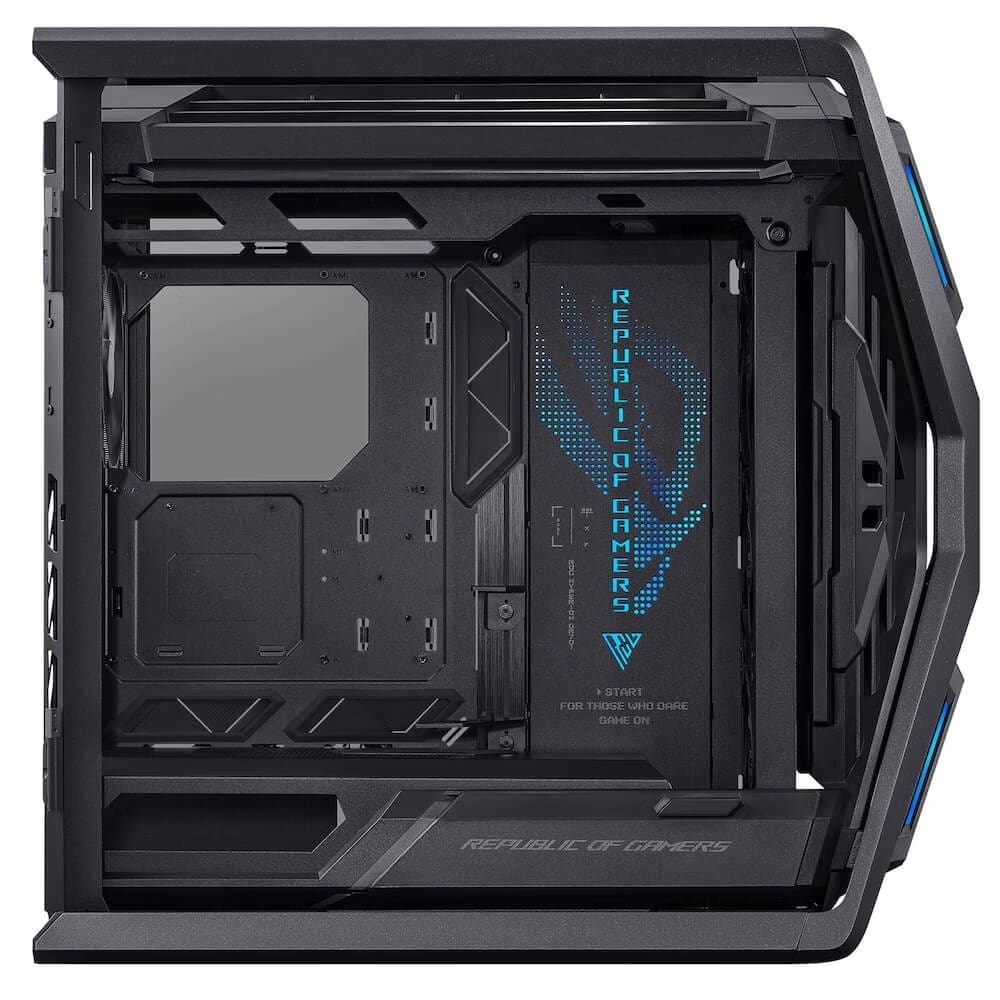

ASUS ROG Hyperion GR701

Motherboard Compatibility

E-ATX (up to 12″ x 10.9″), ATX, Micro-ATX, Mini-ITX

Dimensions

268 x 639 x 659 mm

Weight

20.8 kg

Materials

Aluminum, Steel, Tempered Glass, ABS Plastic

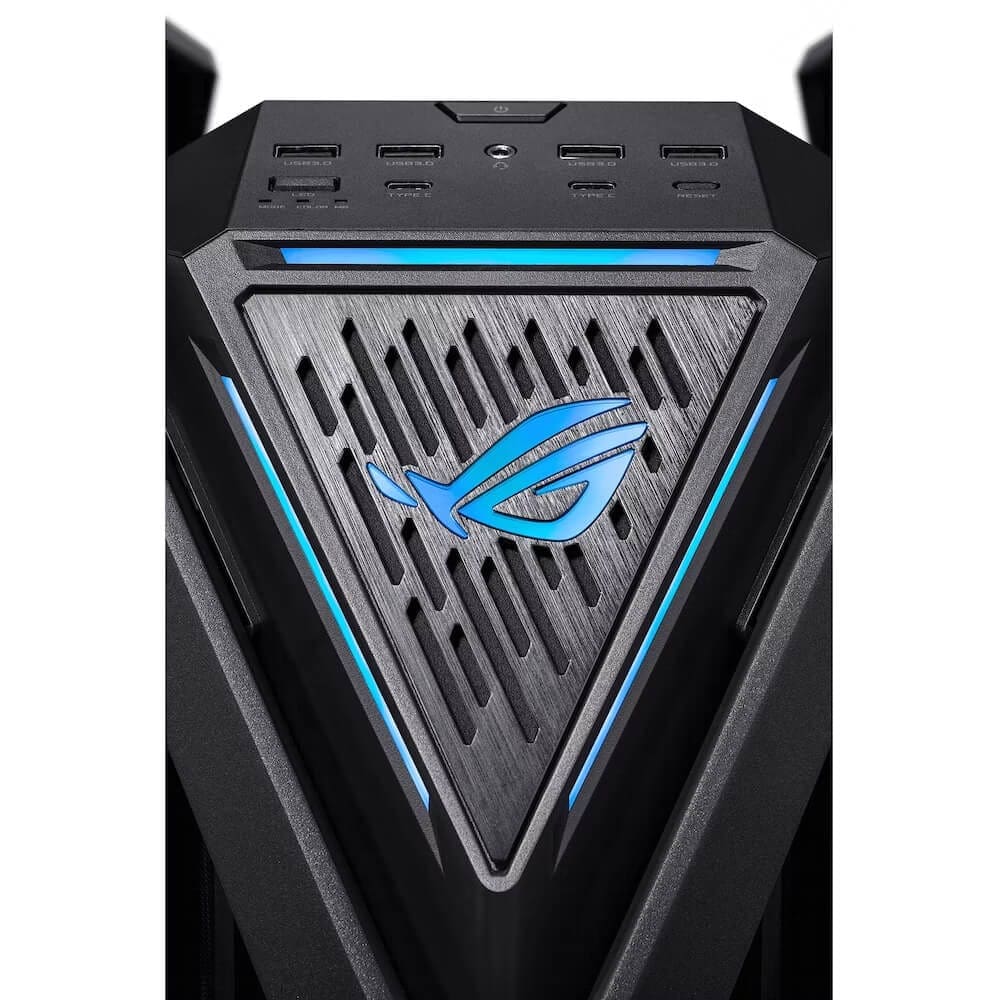

I/O Ports

4 x USB 3.2 Gen1
2 x USB 3.2 Gen 2×2 (Type-C^®)
1 x Headphone + Microphone

3.5″/2.5″ Drive Bays

2

2.5″ Drive Bays

5

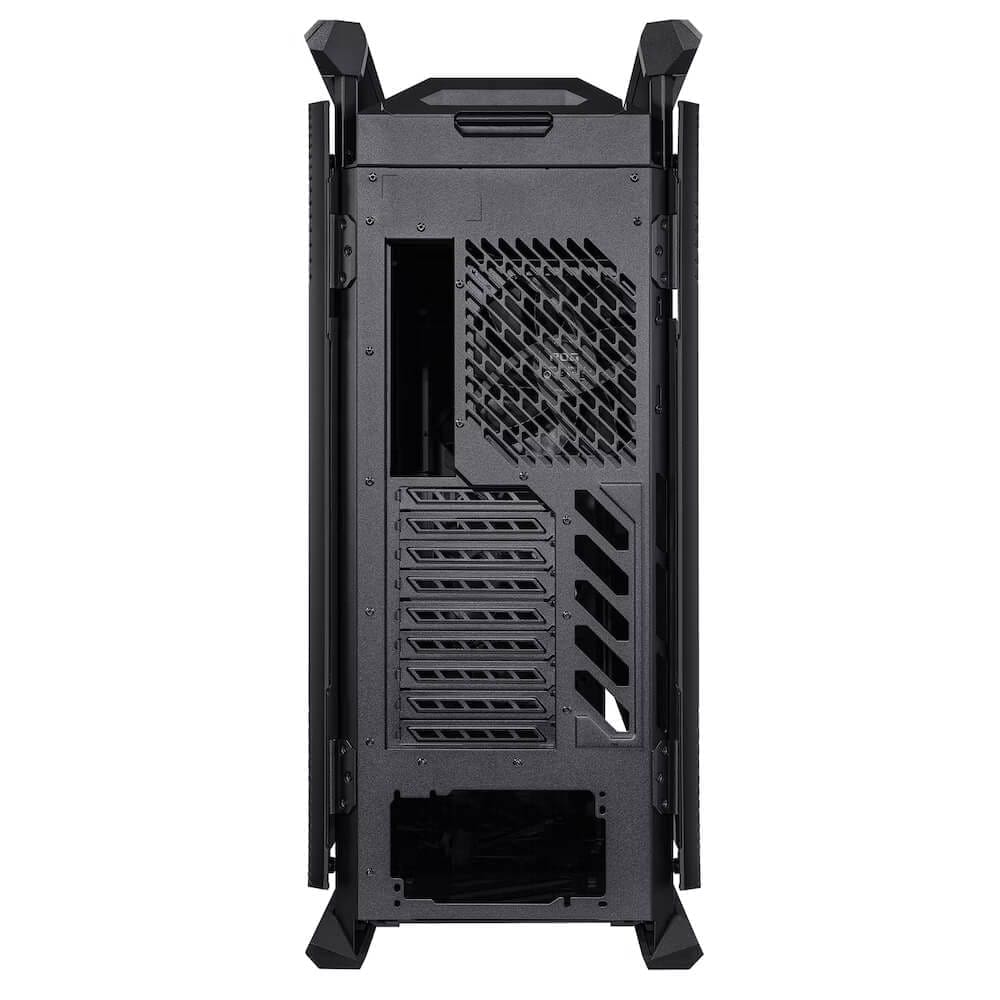

Expansion Slots

9

Vertical Expansion Slots

3

Maximum GPU Length

460 mm

Maximum CPU Cooler Height

190 mm

Maximum PSU Length

240 mm

Radiator Compatibility

Front: 120/140/240/280/360/420 mm
Top: 120/140/240/280/360/420 mm
Side: 120/240/360 mm
Rear: 120/140 mm

Cooling Support

Front: 3 x 140 mm / 3 x 120 mm
Top: 3 x 140 mm / 3 x 120 mm
Side: 3 x 120 mm
Rear: 1 x 140 mm / 1 x 120 mm

Pre-installed Fans

Front: 3 x 140 mm PWM
Rear: 1 x 140 mm PWM

Removable Dust Filters

Front/Top/Bottom

Cable Routing

34 mm

Extension Hub

Supports PWM Fan x 6, ARGB LED Component x 8
