Dimensions

384 x 200 x 451mm (DWH)

Form Factor

Mini Tower

Materials

Steel + Plastic

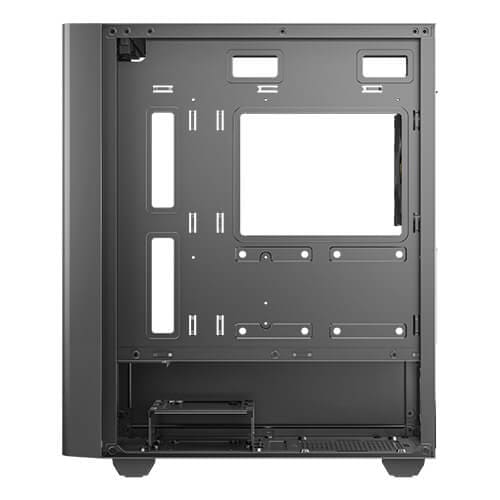

Mainboard Support

Micro-ATX, ITX

Front Access & Controls

Power, Reset (NX500M), Type-C 3.2 Gen 2 x 1, USB3.0 x 1, USB2.0 x 2 , MIC/HD-AUDIO
Power, LED control button (NX500M ARGB), Type-C 3.2 Gen 2 x 1, USB3.0 x 1, USB2.0 x 2 , MIC/HD-AUDIO

Side Panel

Tempered Glass Side Panel

Expansion Slots

5

3.5″ /2.5″

2/3 (with HDD cage)
2/2 (without HDD cage)

2.5″

2

Front

3 x 120mm / 2 x 140mm

Top

2 x 120mm / 2 x 140mm

Rear

1 x 120mm

Included Fan(s)

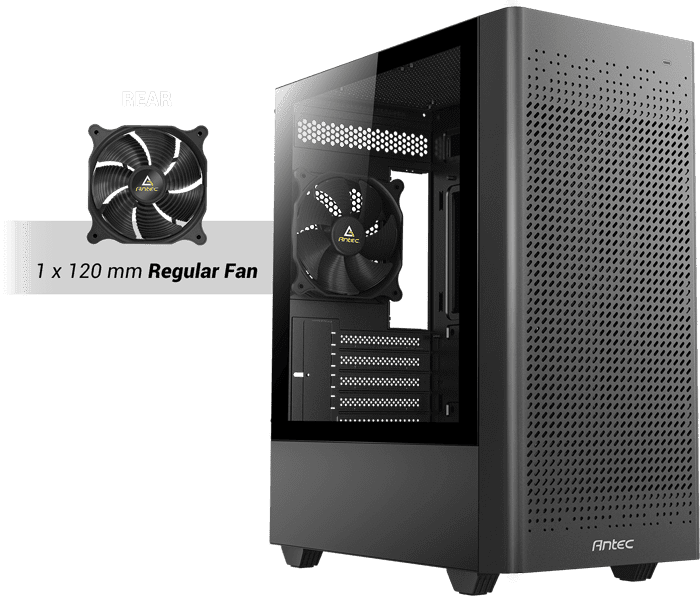

1 x 120mm regular fan in rear (NX500M)
2 x 120mm ARGB fans in front & 1 x 120mm ARGB fan in rear (NX500M ARGB)
3 x 120mm ARGB fans in front & 1 x 120mm ARGB fan in rear (NX500M ARGB Elite)

Front

120 / 140 / 240 / 280 / 360 (Length≤397mm)mm

Top

120 / 240mm

Rear

120mm

Max GPU Length

≤ 300mm(with front fan)
≤ 320mm(without front fan)

Max CPU Cooler Height

≤ 155mm

Max PSU Length

≤ 165mm(with HDD)
≤ 325mm(without HDD)

Dust Filter

Top / Bottom

Net Weight

3.7 Kg (NX500M) / 4 Kg (NX500M AGB) / 4.25 Kg (NX500M ARGB Elite)

Gross Weight

4.45 Kg (NX500M) / 4.7 Kg (NX500M AGB) / 5 Kg (NX500M ARGB Elite)

Warranty

1 Year

UPC#

0-761345-81056-2 (NX500M)
0-761345-81057-9 (NX500M ARGB)
0-761345-10000-7 (NX500M ARGB Elite)
