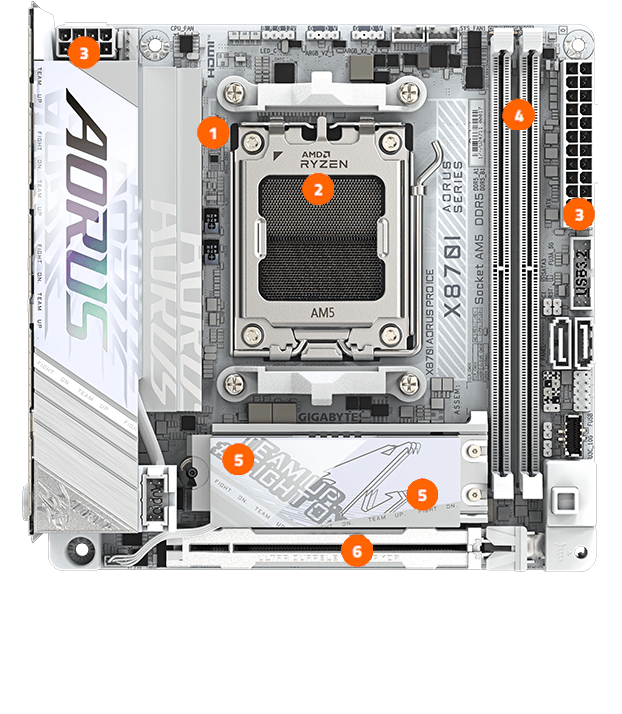

Performance

❶
8+2+1 Digital VRM Design
- 110A Smart Power Stage
- 10-Layer PCB
- Low-Loss PCB
- 2X Copper PCB
- Premium Choke and Capacitor
❷
Socket AM5 Supports AMD Ryzen™ Series Processors
❸
UD Power Connector
- 24 pin ATX Power Connector
- 8 pin CPU with UD Solid Pin
❹
2 x DIMMs, Dual Channel DDR5
❺
2 x M.2 Slots
- 1 x PCIe 5.0 M.2 UD Slot (Front)
- 1 x PCIe 4.0 M.2 Slot (Back)
❻
Full-length PCIe slot X
- 1 x PCIe 5.0 x16 with PCIe UD Slot
Thermal

❶
VRM Thermal Armor Advanced
- 12 W/mk Thermal Pad
- Integrated IO Shield
❷
M.2 Thermal Guard Ext.
❸
Smart Fan 6
- Total 3*PWM/DC Fan Headers
- Dual Fan Curve Mode

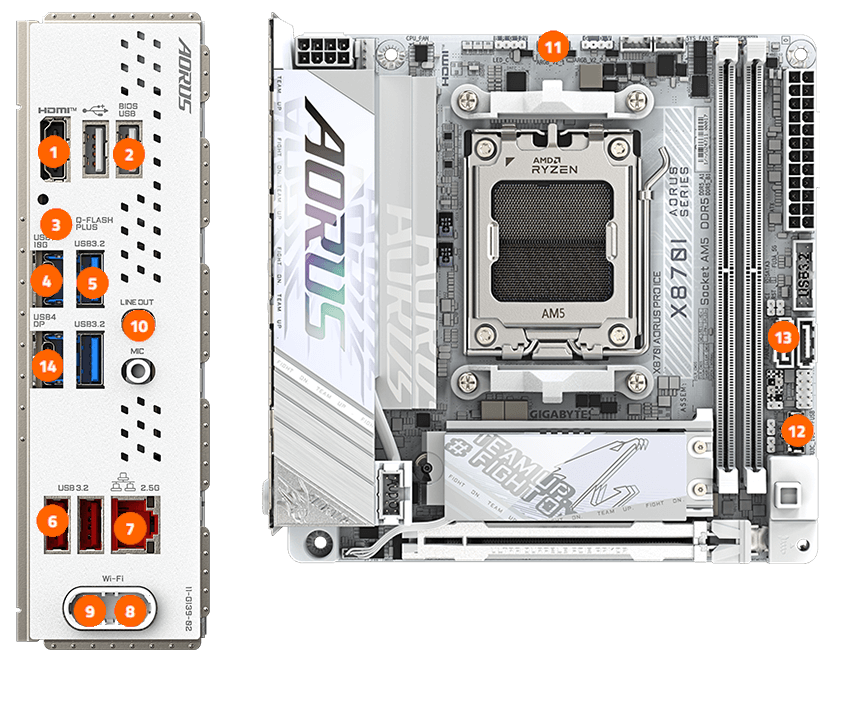

Connectivity

❶
1 x HDMI
❷
2 x USB 2.0
❸
Q-FLASH Button
❹
USB 3.2 Gen 2 Type-C®
❺
2 x USB 3.2 Gen 1
❻
2 x USB 3.2 Gen 2
❼
2.5 GbE LAN
❽

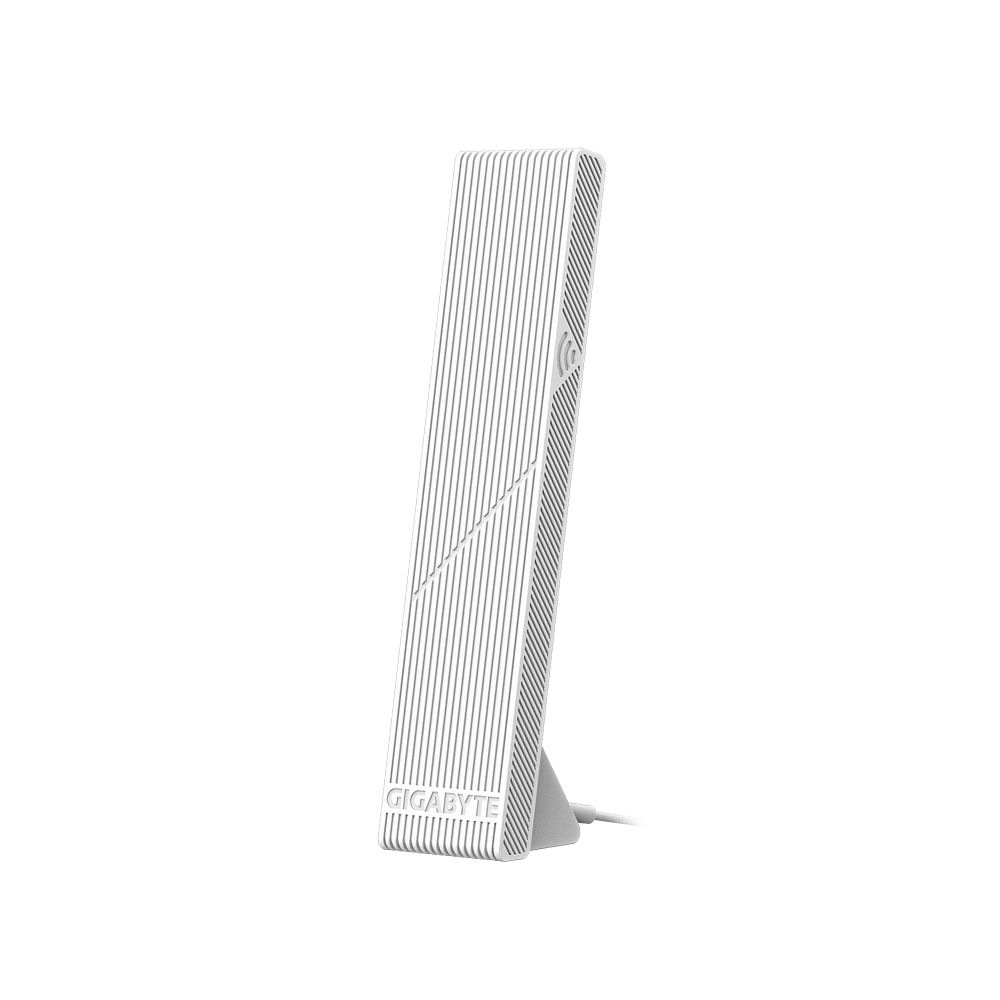

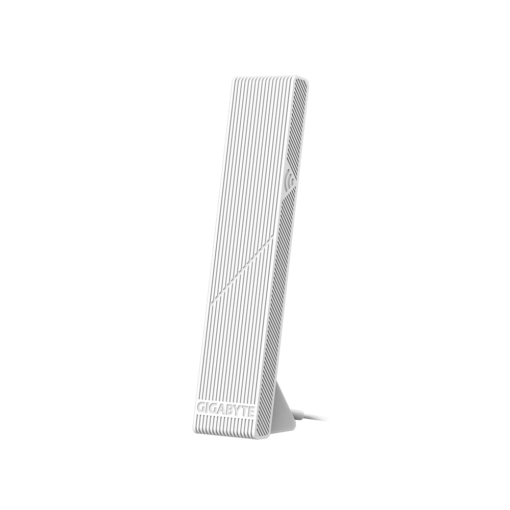

Wi-Fi 7 with Ultra-high gain Antenna
❾
WIFI EZ-Plug
❿
Unleash precision in gaming audio
- ALC4080 HD Audio
- Audiophile Grade Capacitors
⓫
RGB FUSION
- 1 x RGB LED Header
- 2 x ARGB LED Headers
⓬
1 x Front USB-C 10Gb/s
- 24 pin ATX Power Connector
- 8 pin CPU with UD Solid Pin
⓭
2 x SATA3(6Gb/s
- 110A Smart Power Stage
- 10-Layer PCB
- Low-Loss PCB
- 2X Copper PCB
- Premium Choke and Capacitor
⓮
USB4 Type-C® up to
40Gb/s with DP-Alt

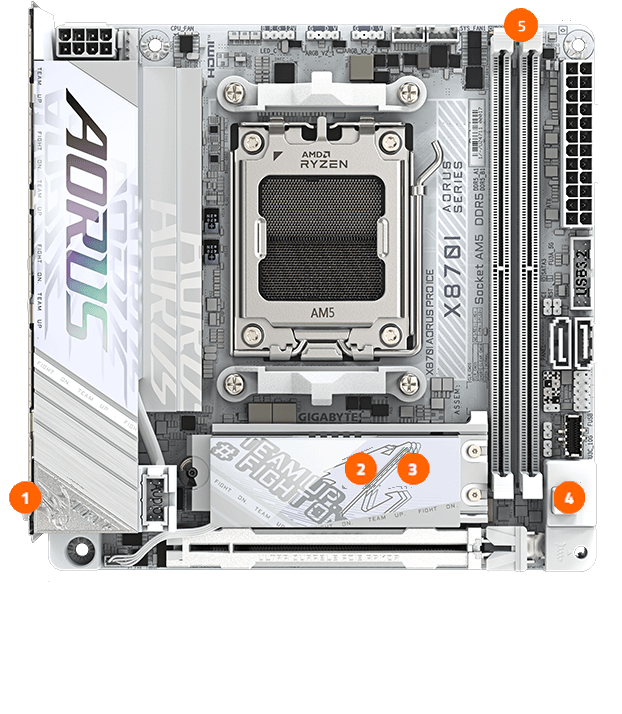

DIY Friendly

❶
WIFI EZ-Plug
❷
M.2 EZ-Latch Plus
M.2 EZ-Latch Click
❸
EZ-Latch Un-Install Angle
❹
PCIe EZ-Latch Plus
❺
EZ-Debug Zone
- Debug LEDs
SPECIFICATION

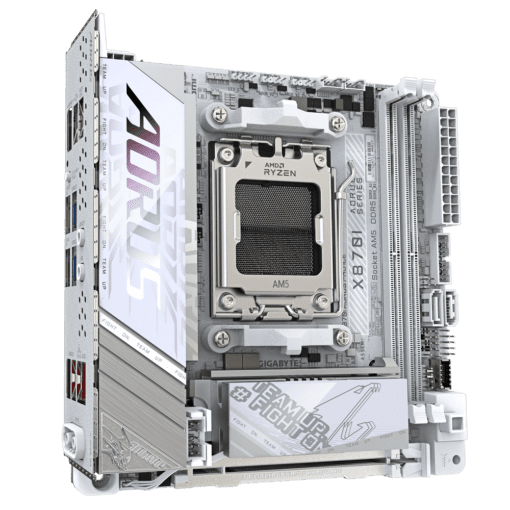

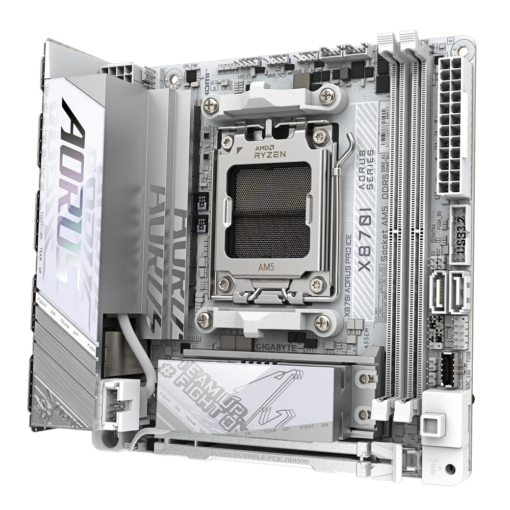

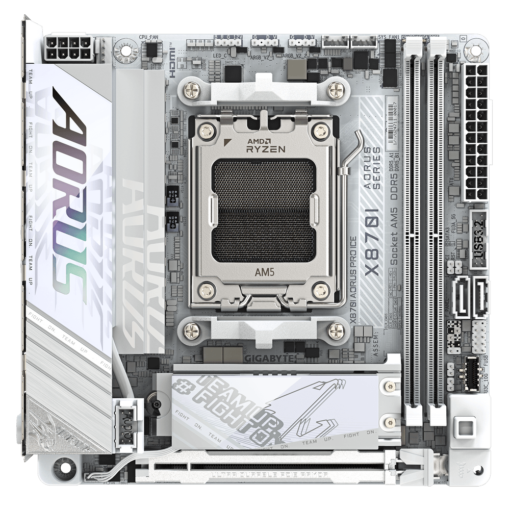

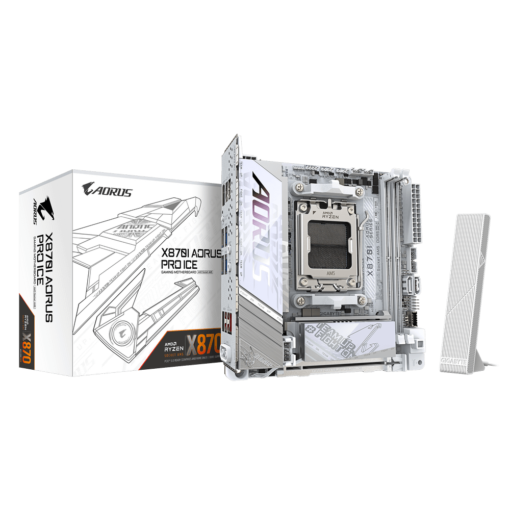

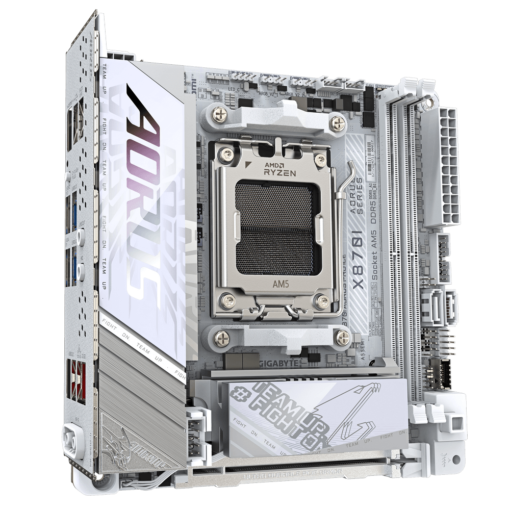

Model
X870I AORUS PRO ICE
CPU
AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE’s website for the latest CPU support list.)
Chipset
AMD X870
Memory
Support for DDR5 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
– 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz
* Support for DisplayPort 1.4 version and HDR.
Integrated Graphics Processor with AMD Radeon™ Graphics support:
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® ALC4080 CODEC
High Definition Audio
2-channel
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Realtek® Wi-Fi 7 RTL8922AE
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.4
– Support for 11be 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no supportdriver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations.
Expansion Slots
1 x PCI Express x16 slot, integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs
2 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0 and RAID 1 support for SATA storage devices
USB
CPU+ASMedia USB4® controller:
– 1 x USB4® USB Type-C® port on the back panel
CPU:
– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset:
– 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
– 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
– 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
2 x SATA 6Gb/s connectors
1 x front panel header
1 x speaker header
1 x front panel audio header (routed from the adapter card on the rear panel)
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x reset jumper
1 x Clear CMOS jumper
1 x chassis intrusion header

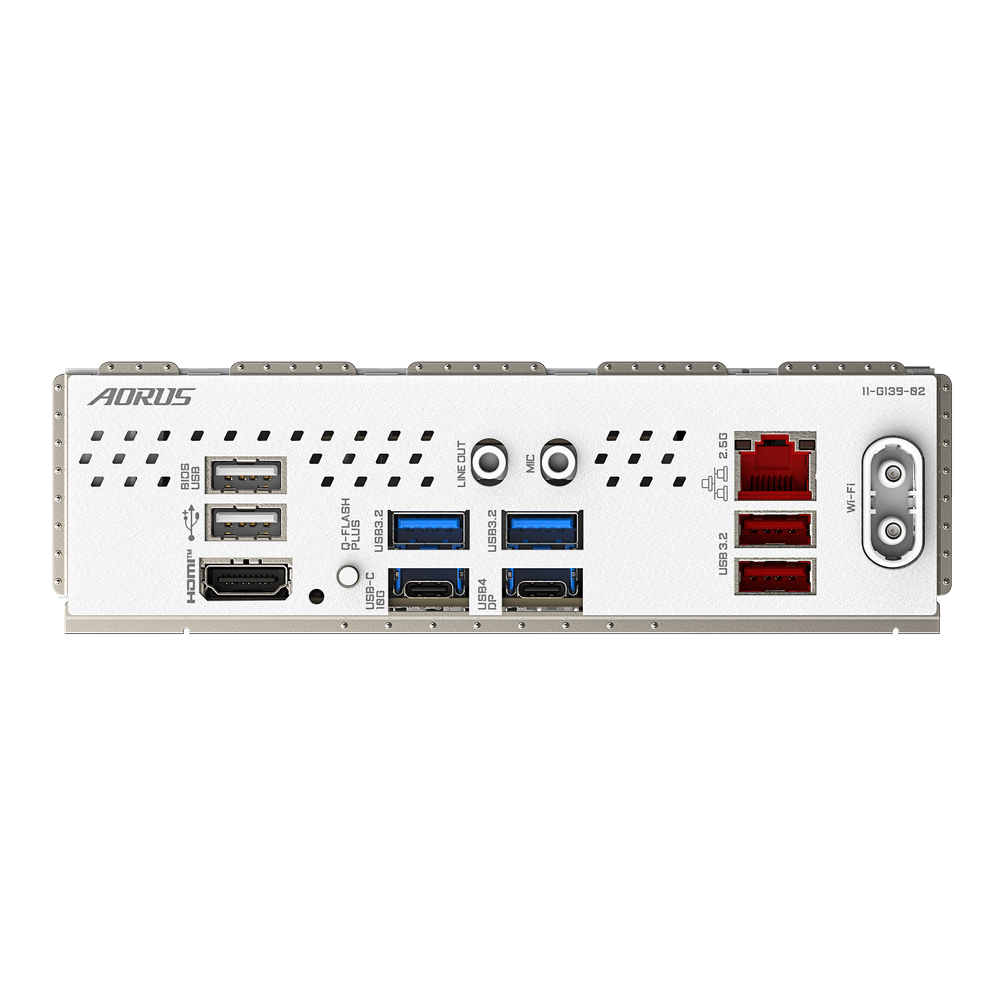

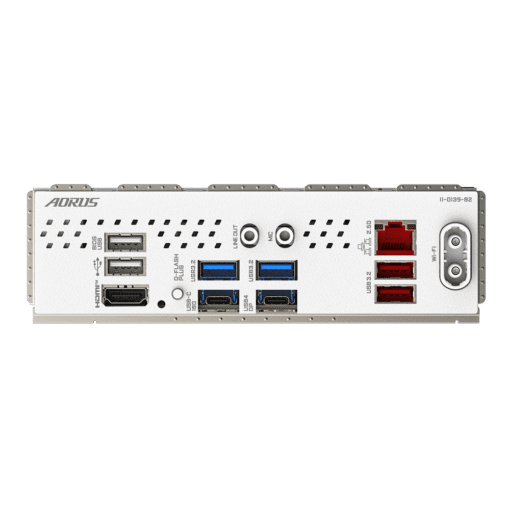

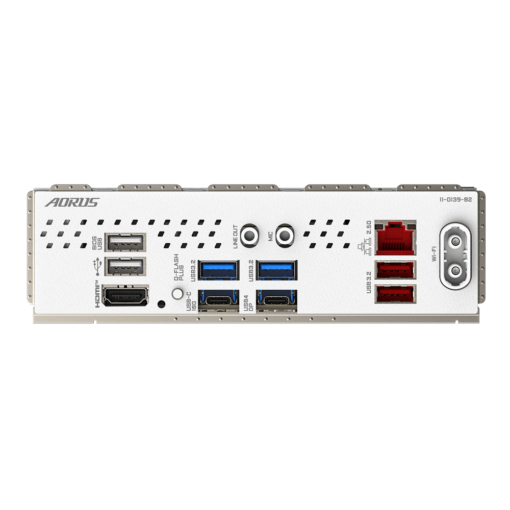

Back Panel I/O Ports
1 x Q-Flash Plus button
1 x HDMI port (Note)
2 x antenna connectors (2T2R)
1 x USB4® USB Type-C® port (DisplayPort (Note))
1 x USB Type-C® port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x audio jacks
(Note) Actual support may vary by CPU.
I/O Controller Chip
iTE® I/O Controller Chip
Theo dõi phần cứng
Phát hiện điện áp
Phát hiện nhiệt độ Phát
hiện tốc độ quạt Phát
hiện lưu lượng nước làm mát Cảnh
báo lỗi quạt
Kiểm soát tốc độ quạt
* Chức năng điều khiển tốc độ quạt có được hỗ trợ hay không sẽ tùy thuộc vào quạt bạn lắp đặt.
BIOS
1 x 256 Mbit flash
Sử dụng AMI UEFI BIOS được cấp phép
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Tính năng duy nhất
Hỗ trợ cho Trung tâm điều khiển GIGABYTE (GCC)
* Các ứng dụng có sẵn trong GCC có thể khác nhau tùy theo kiểu bo mạch chủ. Các chức năng được hỗ trợ của từng ứng dụng cũng có thể khác nhau tùy thuộc vào thông số kỹ thuật của bo mạch chủ.
Hỗ trợ Q-Flash
Hỗ trợ Q-Flash Plus
Hỗ trợ Smart Backup
Gói phần mềm
Phần mềm quản lý băng thông LAN Norton® Internet Security (phiên bản OEM)
Operating System
Hỗ trợ cho Windows 11 64-bit
Form Factor
Mini-ITX; 17,0cm x 17,0cm
- Bảo hành 3 năm
