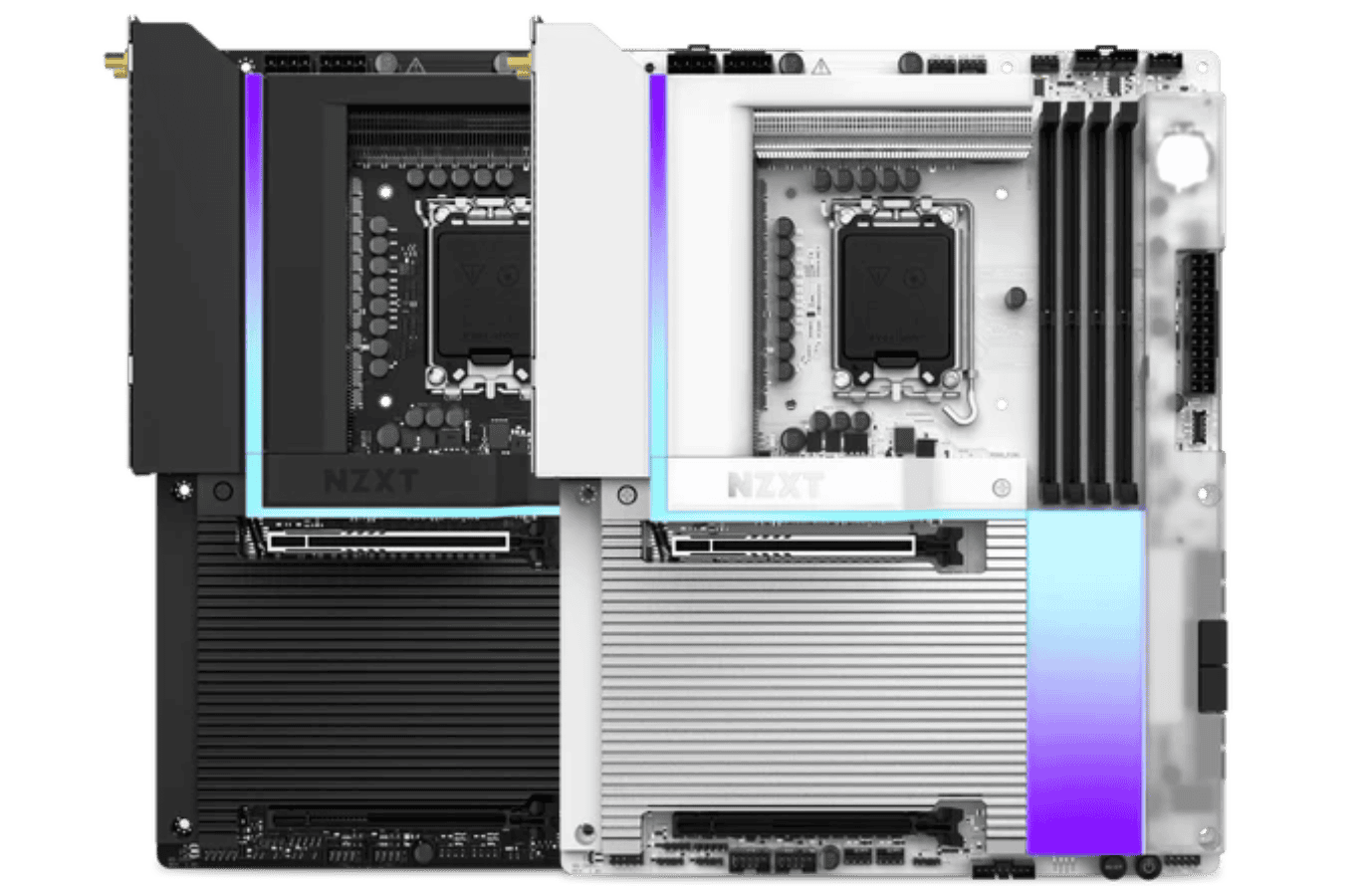

Đánh bóng & Mạnh mẽ

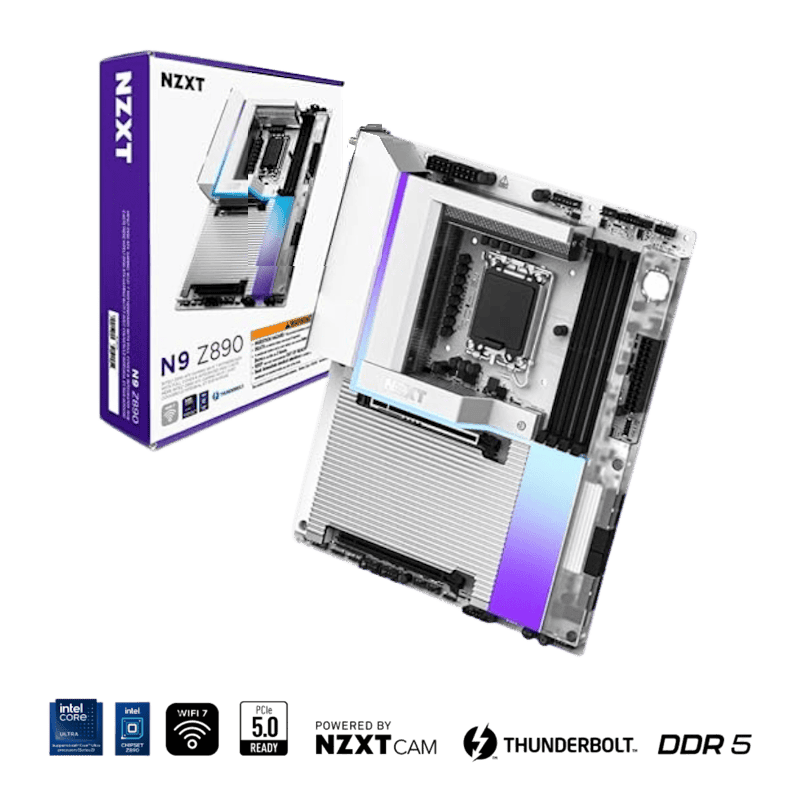

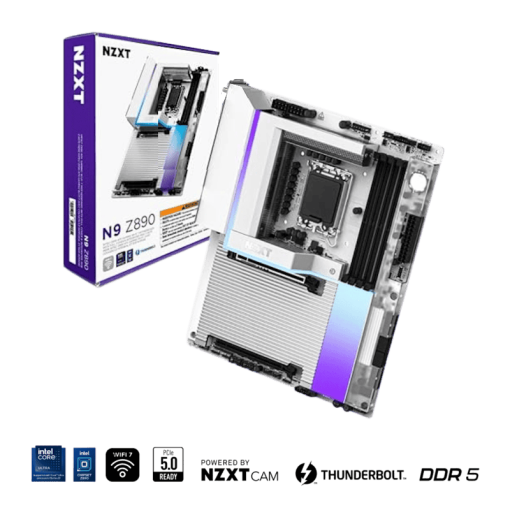

N9 Z890 kết hợp hiệu suất chơi game thế hệ tiếp theo với thiết kế hiện đại, đẹp mắt. Được chế tạo cho bộ xử lý Intel® Core™ Ultra (Series 2), sản phẩm này cung cấp sức mạnh sẵn sàng ép xung, nhiệt độ được tối ưu hóa và kết nối tiên tiến với PCIe 5.0, Wi-Fi 7, 5GbE và Thunderbolt™ 4.
Vỏ máy hoàn toàn bằng kim loại với đèn RGB tùy chỉnh mang đến nét tinh tế, cá nhân hóa cho mọi bản dựng.


❶
❷

➌
➍
RGB HEADERS
- 1 x NZXT RGB LED
- 2 x 5V ARGB LED
- 2 x NZXT 8-pin (RGB + PWM)
6 X USB 3.2 GEN 2
❶

ONBOARD RGB LIGHTING
❷

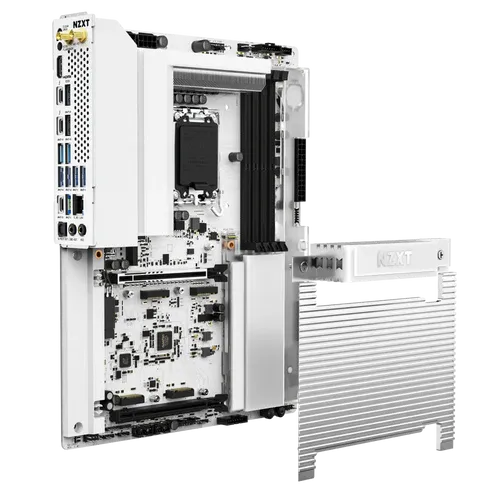

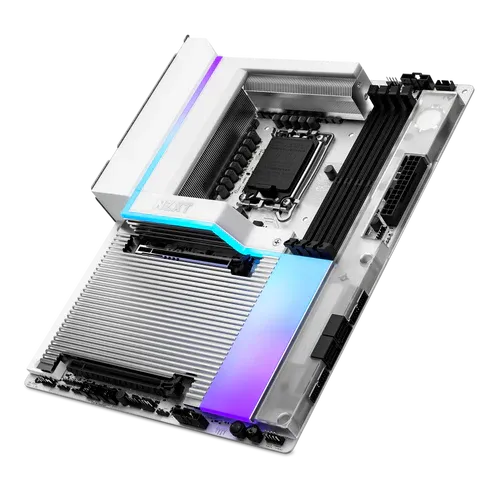

FULL-METAL COVER WITH MATCHING PCB
❸
RGB HEADERS
- 1 x NZXT RGB LED
- 2 x 5V ARGB LED
- 2 x NZXT 8-pin (RGB + PWM)
❹
DIGITAL DEBUG LED
SPECIFICATION
Bên trong hộp
N9 Z890 Motherboard
1
SATA cables (2 x 90°, 2 x 180°)
4
M.2 screws
5
Wireless antenna
2
User Manual
1
NZXT 8-pin splitter
2
Tech Specs
CPU
CPU | Intel® Socket LGA 1851 for Intel® Core™ Ultra Processors (Series 2) |
Chipset
Chipset | Intel® Z890 |
Memory
DIMM Slots | 4 x DDR5 only |
Memory Architecture | Dual-Channel |
Intel® Extreme Memory Profile (XMP) 3.0 | Supported |
OC Frequency | Please refer to Memory QVL on NZXT’s website (www.nzxt.com) for more information. |
Expansion Slots
PCIe 5.0 ×16 slot (PCIEX16_1) | 1 (×16 mode) |
PCIe 4.0 ×16 slot (PCIEX16_2) | 1 (×2 mode) |
M.2 Socket (Key E) | 1 (Type 2230 Wi-Fi/BT PCIe Wi-Fi module and Intel® CNVio/CNVio2) |
Storage
M.2_1 | Type 2280 (PCIe 5.0 ×4 mode) |
M.2_2 | Type 2280 (PCIe 4.0 ×4 mode) |
M.2_3 | Type 2280 (PCIe 4.0 ×4 mode) |
M.2_4 | Type 2280 (PCIe 4.0 ×4 mode) |
M.2_5 | Type 2280 (PCIe 4.0 ×4 mode) |
SATA 6Gb/s ports | 4 |
LAN
LAN | Realtek® 5.0G LAN |
Wireless
Tri-Band Wi-Fi 7 | Supported (320MHz) |
Bluetooth | v5.4 |
Audio
Audio | Realtek® ALC4082 Audio Codec |

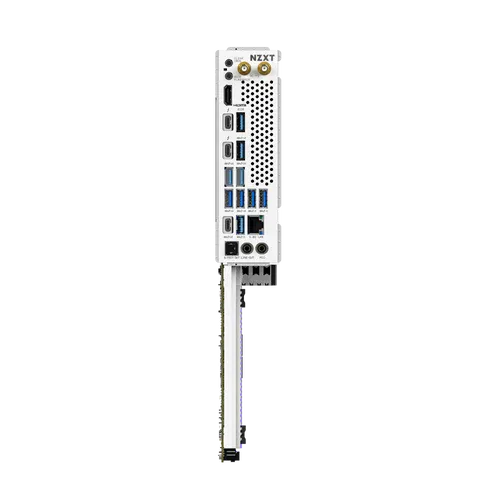

Rear I/O
Wireless antenna SMA connectors | 2 |
HDMI™ port | 1 |
Thunderbolt™ 4 ports | 2 |
USB 3.2 Gen 2×2 Type-C® port | 1 |
USB 3.2 Gen 2 ports | 6 |
USB 3.2 Gen 1 Type-A® ports | 3 |
Clear CMOS button | 1 |
LAN (RJ45) port | 1 |
Audio jacks | 2 |
Optical S/PDIF out port | 1 |
Internal I/O
24-pin ATX power connector | 1 |
8-pin ATX 12V power connector | 2 |
4-pin CPU_FAN connector | 1 |
4-pin AIO_PUMP connector | 1 |
4-pin SYS_FAN connectors | 3 |
NZXT RGB LED connector | 1 |
5V ARGB LED connectors | 2 |
NZXT 8-pin PWM connectors | 2 |
USB 2.0 header | 2 (Up to 4 USB 2.0 ports) |
USB 3.2 Gen1 header | 2 (Up to 4 USB 3.2 Gen 1 ports) |
USB 3.2 Gen2x2 front panel header | 1 (For USB Type-C) |
Front panel audio connector | 1 |
Power button | 1 |
Reset button | 1 |
Post LEDs | 1 |
Digital Debug LED | 1 |
General
Operating System | Windows® 11/10 64-bit |
Form Factor | ATX |
Warranty | 3 years |
Model Number | N9-Z89XT-W1 (White) / N9-Z89XT-B1 (Black) |
UPC | 810074846240 (White) / 810074846257 (Black) |
EAN | 5056547206189 (White) / 5056547206196 (Black) |
Bảo hành
Bảo hành | 2 năm |
