Details

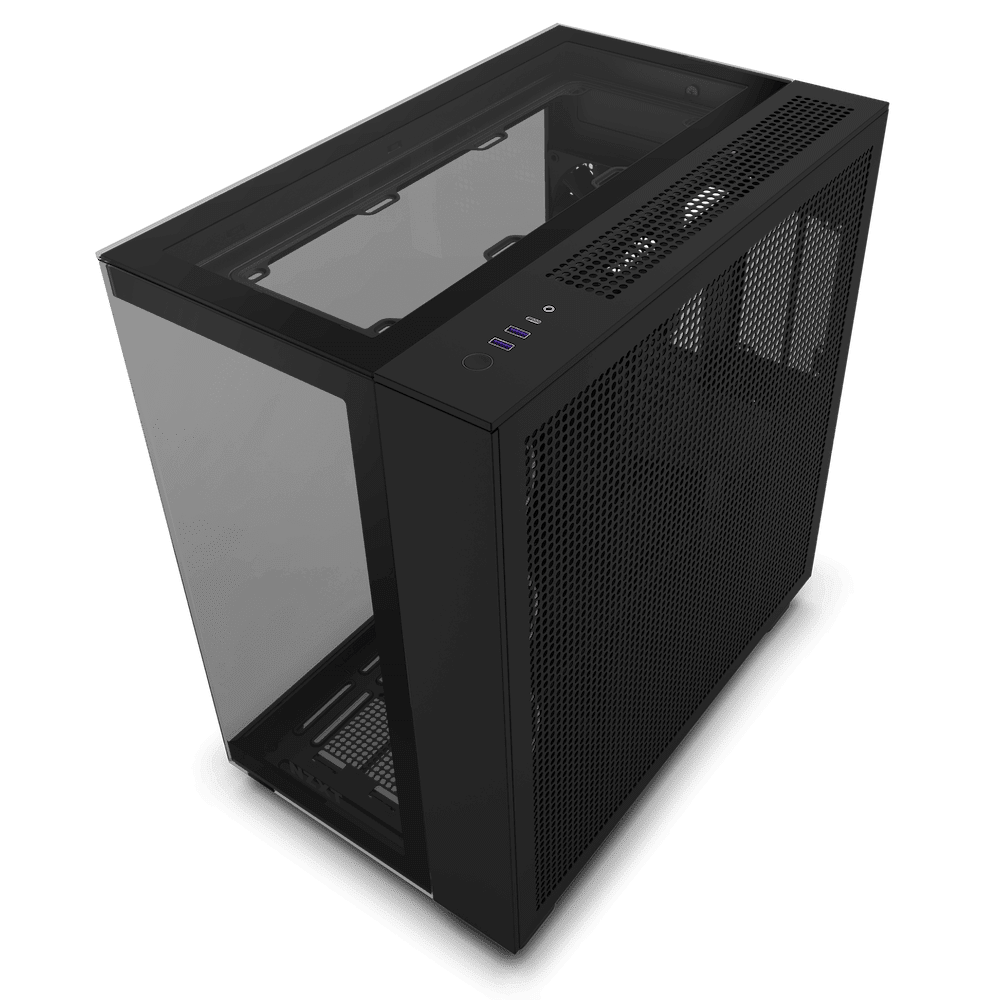

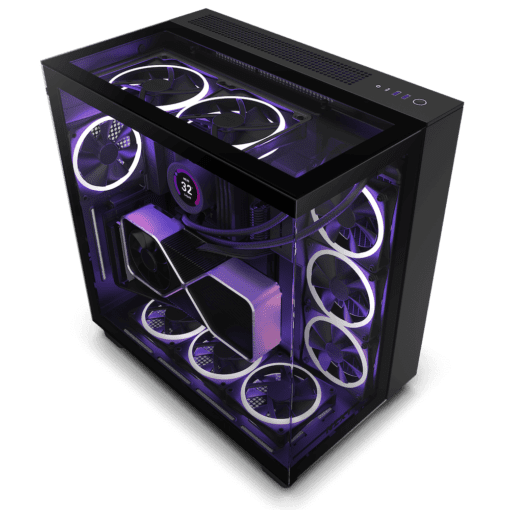

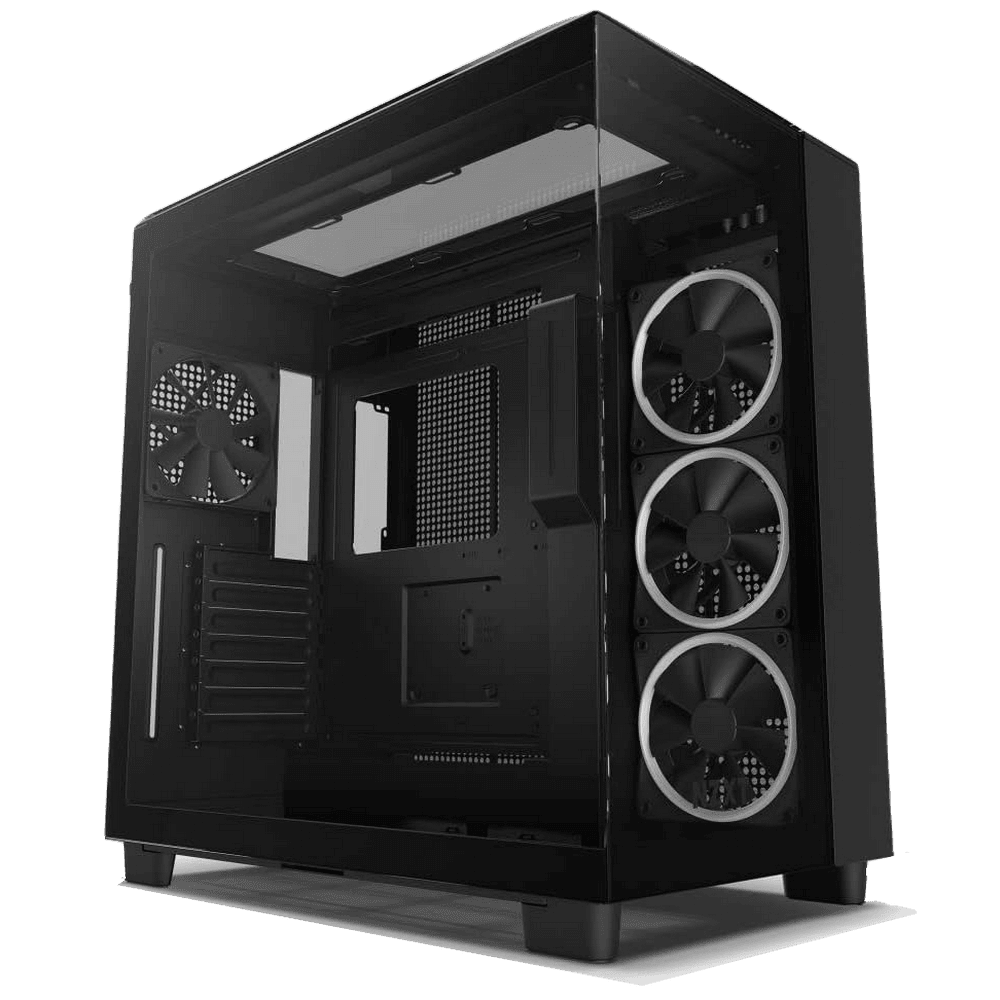

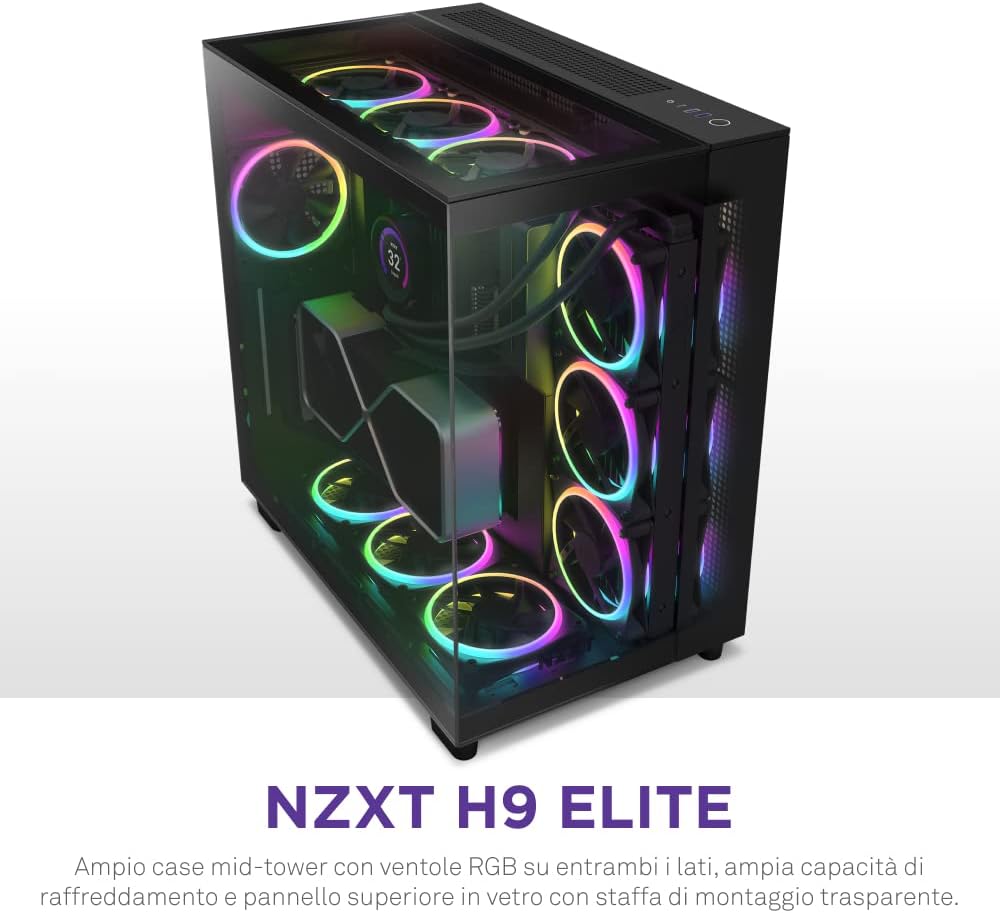

The H9 Elite is designed to show off every angle of your build with a tempered glass top panel and a built-in RGB & Fan Controller. The unique wraparound glass design with a dual-chamber layout is the perfect showcase for premium components.
-
- Unique uninterrupted glass panel for a clear view of the interior
- Intuitive cable management and dual chamber design
- Room for ten fans or three 360mm Radiators
- Tempered glass top panel and included RGB & Fan Controller
- Direct airflow to the GPU for handling high-powered components
- Enhanced experience with other products from the NZXT ecosystem
- Includes three F Series 120mm RGB Duo Fans and one F120Q Fan
Inside the Box
- H9 Elite Case1
- Front I/O split cables1
- 120mm RGB Duo Fan3
- 120mm Quiet Airflow Fan (Case Version)1
- RGB and Fan Controller1
- Installation Accessories1
- Manual
KEY SPECS
- Motherboard Support:Mini-ITX, Micro-ATX, ATX
- Enclosure Type:Mid-Tower
- Case Material:SGCC Steel, Tempered Glass
DIMENSIONS
- Height:495mm (With Feet)
- Width:290mm
- Depth:466mm
- Weight:13.1 kg
COMPATIBILITY & CLEARANCE
- CPU Cooler Clearance:Up to 165mm
- GPU Clearance:Up to 435mm
- PSU Clearance:200mm
- Cable Management:91mm
FRONT I/O PORTS
- USB 3.2 Gen 1 Type-A:2
- USB 3.2 Gen 2 Type-C:1
- Headset Audio Jack:1
EXPANSION SLOTS
- Standard:7
- Vertical:0
DRIVE BAYS
- 2.5″:4+2
- 3.5″:2

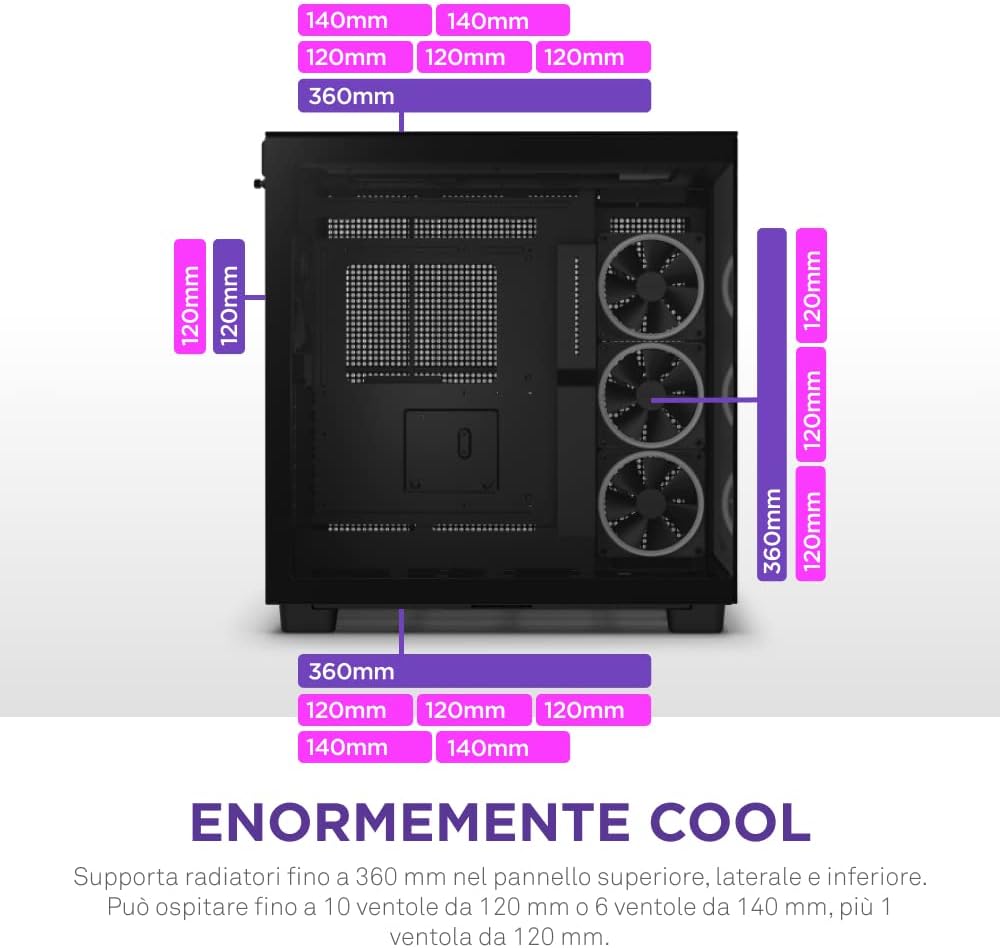

FAN SUPPORT
- Side:3 x 120mm
- Top:3 x 120mm / 2 x 140mm
- Bottom:3 x 120mm / 2 x 140mm
- Rear:1 x 120mm
- Filters:All Air Intakes
RADIATOR SUPPORT
- Side:Up to 360mm
- Top:Up to 360mm
- Bottom:Up to 360mm
- Rear:Up to 120mm
FAN SPECS
- Model:F120Q (Case Version)
- Speed:1200 ± 240RPM
- Airflow:62.18 CFM
- Static:1.05 mm – H2O
- Noise:25.1 dBA
- Fan Connector:3-pin
FAN SPECS
- Model:F120RGB Duo
- Speed:500 ± 1800RPM
- Airflow:48.58 CFM
- Static:2.42mm – H2O
- Noise:29 dBA
- Fan Connector:4-pin
GENERAL
- Model Number:CM-H91EW-01 (White) / CM-H91EB-01 (Black)
- UPC:810074842525 (White) / 810074842518 (Black)
- EAN:5056547202440 (White) / 5056547202433 (Black)
- Bảo hành 12 tháng
