Bo mạch chủ GIGABYTE X570S có giải pháp năng lượng được nâng cấp, thiết kế tản nhiệt thụ động và im lặng cũng như các thành phần PCIe 4.0 để giúp hệ thống chơi game của bạn luôn hoạt động nhanh và mạnh mẽ, ngay cả khi khối lượng công việc nặng.


OVERVIEW

① Thiết kế tản nhiệt tiên tiến
• Tản nhiệt mở rộng với Heatpipe
• Tản nhiệt nhiều lớp cho Chipset & M.2 Thermal Guard III
• Tấm đế nhiệt
• 2x đồng PCB
• Tấm dẫn nhiệt 9 W/mK
② Cổng hiển thị + 2*HDMI
③ Nút Q-Flash Plus
④ Mạng LAN Intel® 2.5GbE
⑤ AMD Wi-Fi 6E 802.11ax & BT 5.2
⑥ Đầu nối 2*M.2 với Bộ bảo vệ nhiệtNVMe PCIe 4.0/3.0 x4
⑦ Thiết kế nguồn kỹ thuật số 8+2 pha đôi
- Giai đoạn năng lượng thông minh 90A
- PCB 10 lớp
- PCB sẵn sàng cho PCIe 4.0
⑧ Đầu nối nguồn chân rắn
- Đầu nối nguồn ATX 24 chân
- Đầu nối nguồn CPU 8 chân
⑨ Hỗ trợ bộ vi xử lý dòng AMD Ryzen™
⑩ DDR4 Kênh đôi, 2 DIMM với Bộ nhớ siêu bền
⑪ RGB TỔNG HỢP 2.0
- Đầu đèn LED định địa chỉ*1
- Đầu đèn LED RGB * 1
⑫ USB 3.2 Gen1 Type-C™ phía trước
⑬ Giáp PCIe siêu bền
- Chạy băng thông 1 x16
- Khe cắm PCIe 4.0

PERFORMANCE


Bo mạch chủ GIGABYTE X570S được trang bị giải pháp năng lượng tốt nhất trong phân khúc để giải phóng toàn bộ tiềm năng của CPU AMD Ryzen™ 5000 Series mới nhất. Thiết kế nguồn VRM bao gồm MOSFET mà Vcore và SOC đi kèm với PWM kỹ thuật số, cuộn cảm cao cấp và tụ điện chất lượng cao để mang lại độ ổn định và độ chính xác phi thường cho CPU hiệu năng cao. Ngoài ra, PCB mười lớp và giải pháp tản nhiệt toàn diện cho phép những người đam mê tận hưởng hiệu suất ép xung cực cao mà không ảnh hưởng.

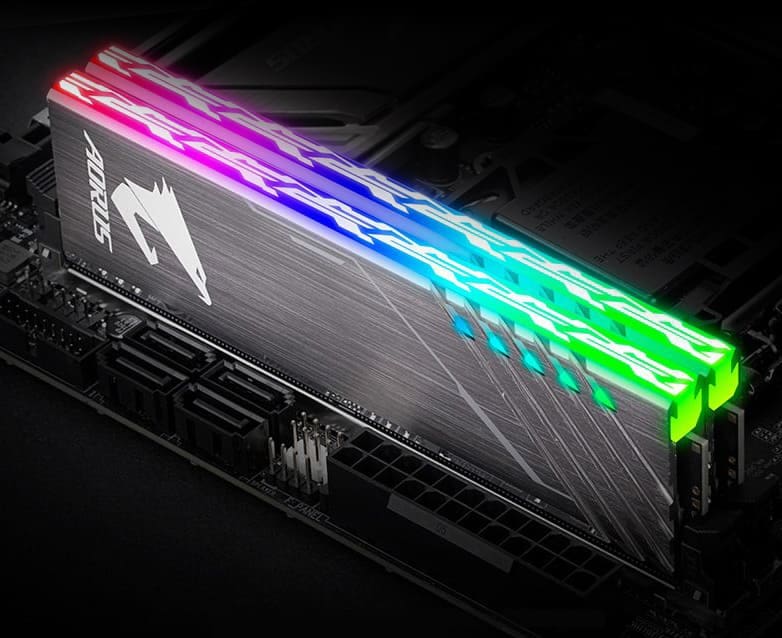

Support for DDR4 XMP Up to 5300MHz and Beyond*
Với 1 DIMMs per channel trên bo mạch chủ X570SI AORUS PRO AX, hỗ trợ dung lượng bộ nhớ tối đa là 64GB. Đối với những người dùng luôn hết dung lượng bộ nhớ, giờ đây họ có thể tận hưởng nhiều băng thông hơn cho các ứng dụng sử dụng nhiều bộ nhớ như kết xuất và chỉnh sửa video.



THERMAL



Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Headers & Sensors

3 PWM/DC Fan Headers

4 Internal Temperature Sensors
Cooling Feature
• Dual Curve Mode
Slope/Stair dual mode for different user scenario

CONNECTIVITY


RGB FUSION


ULTRA DURABLE

GIGABYTE nổi tiếng về độ bền sản phẩm và quy trình sản xuất chất lượng cao. Không cần phải nói, chúng tôi sử dụng những linh kiện tốt nhất có thể tìm được cho Bo mạch chủ GIGABYTE và gia cố mọi khe cắm để làm cho mỗi khe cắm chắc chắn và bền bỉ.

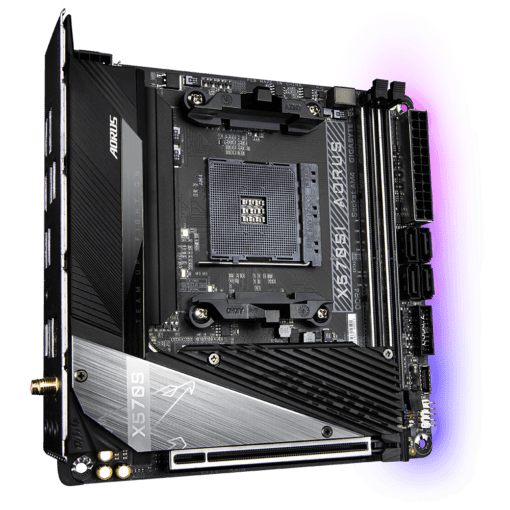

X570SI AORUS PRO AX (rev. 1.x)
AMD X570 Chipset
CPU
- AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ AMD Ryzen™ 4000 G-Series/ AMD Ryzen™ 3000 Series/ AMD Ryzen™ 3000 G-Series/ AMD Ryzen™ 2000 Series/ AMD Ryzen™ 2000 G-Series Processors
(Please refer “CPU Support List” for more information.)
Chipset
- AMD X570
Bộ nhớ
- 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for DDR4 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
Card đồ họa tích hợp
Integrated Graphics Processor:
- 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
* Support for DisplayPort 1.4 version. - 2 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Support for up to 3 displays at the same time
Maximum shared memory of 16 GB
Âm thanh
Realtek® ALC1220-VB Audio CODEC
* The back panel line out jack supports DSD audio.
Support for DTS:X® Ultra
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.2
- Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)
Khe cắm mở rộng
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 5000 Series/3000 Series Processors
support PCIe 4.0 x16 mode - AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors
support PCIe 3.0 x16 mode - AMD Ryzen™ 3000 G-Series/2000 G-Series Processors
support PCIe 3.0 x8 mode
1 x M.2 Socket 1 connector, integrated in the CPU, for the wireless communication module (M2_WIFI)
Giao diện lưu trữ
1 x M.2 connector (M2A_SOCKET), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
- AMD Ryzen™ 5000 Series/3000 Series Processors
support SATA and PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/ 2000 G-Series Processors
support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SOCKET), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs:
- Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
- Support for RAID 0, RAID 1, and RAID 10
* Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
(Note) For AMD Ryzen™ 5000 Series/3000 Series Processors only.
USB
CPU:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
- 1 x USB Type-C® port, with USB 3.2 Gen 2 support on the back panel
- 1 x USB Type-C® port, with USB 3.2 Gen 1 support available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 2 x USB 2.0/1.1 ports available through the internal USB header
Kết nối I/O bên trong
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 1 x addressable LED strip header
- 1 x RGB LED strip header
- 4 x SATA 6Gb/s connectors
- 2 x M.2 Socket 3 connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x speaker header
- 1 x USB Type-C® header, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
- 1 x Clear CMOS jumper
*All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

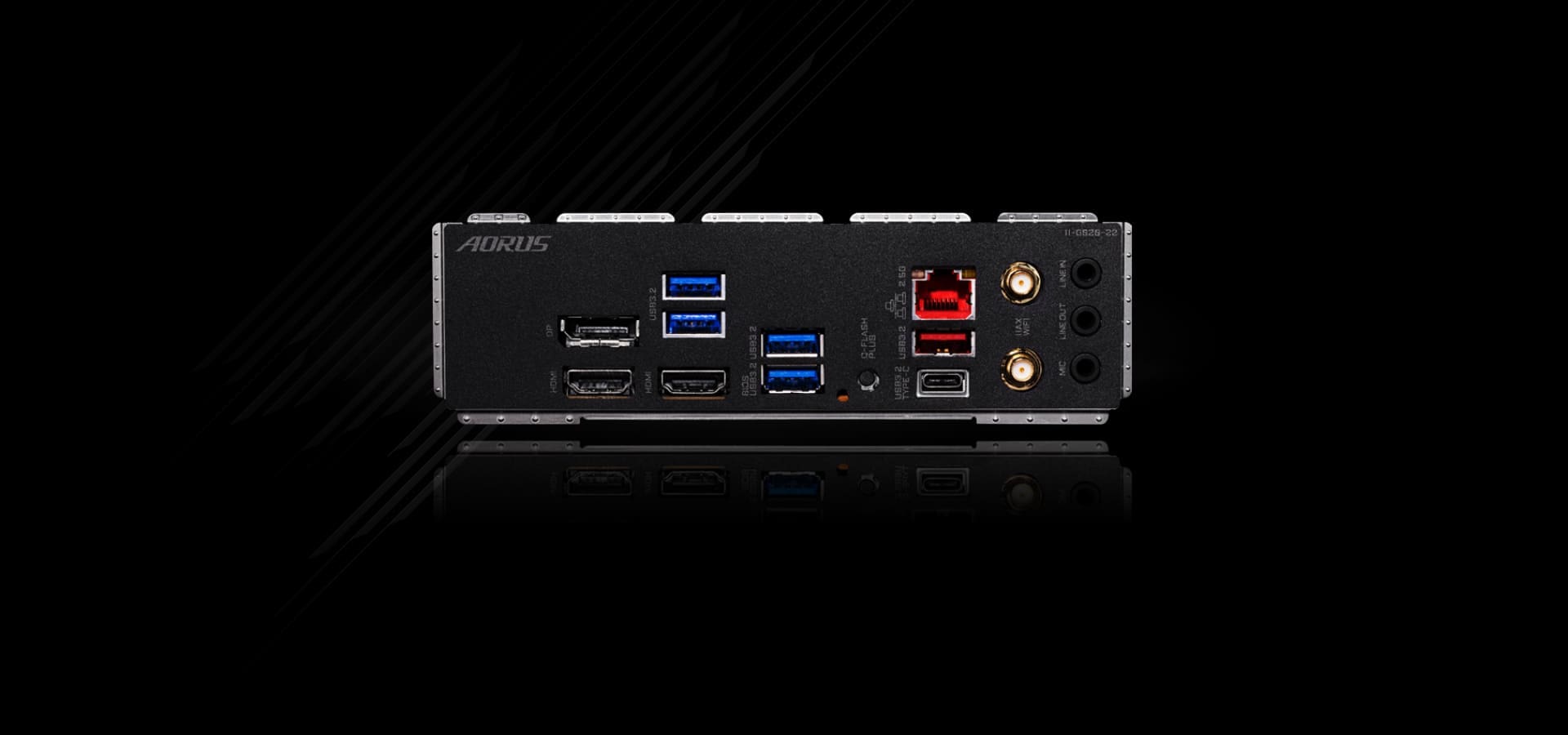

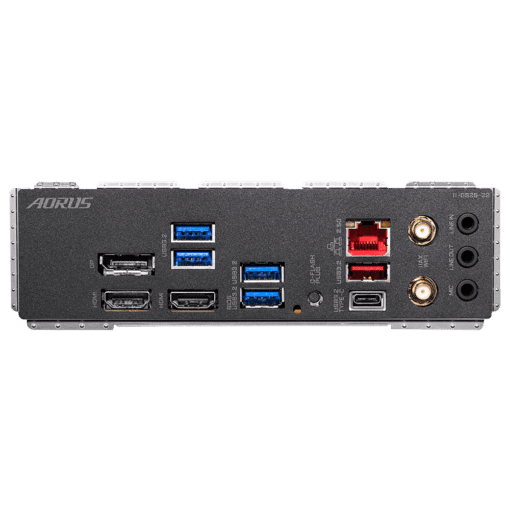

Kết nối bảng phía sau
- 1 x DisplayPort
- 2 x HDMI ports
- 1 x USB 3.2 Gen 2 Type-A port (red)
- 4 x USB 3.2 Gen 1 ports
- 1 x USB Type-C® port, with USB 3.2 Gen 2 support
- 1 x Q-Flash Plus button
- 1 x RJ-45 port
- 2 x SMA antenna connectors (2T2R)
- 3 x audio jacks
Điều khiển I/O
- iTE® I/O Controller Chip
Theo dõi phần cứng
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Tính năng duy nhất
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer - Support for Q-Flash Plus
- Support for Q-Flash
- Support for Xpress Install
Gói phần mềm
- Norton® Internet Security (OEM version)
- cFosSpeed
Hệ điều hành
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
Hệ số khuôn
Mini-ITX Form Factor; 17.0cm x 17.0cm

* Các thuật ngữ HDMI, HDMI High-Definition Multimedia Interface, Nhận diện thương mại HDMI và Logo HDMI là các nhãn hiệu thương mại hoặc nhãn hiệu thương mại đã đăng ký của HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
- Bảo hành 36 tháng
