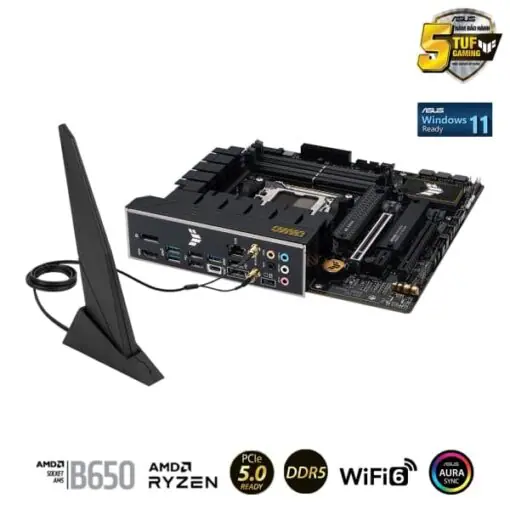

ASUS TUF GAMING B650M-PLUS WIFI Mainboard

Giá: Giá gốc là: 6.090.000 VNĐ.Giá hiện tại là: 4.890.000 VNĐ.

Socket AM5, B650 Chipset, Supports 7000 series AMD Ryzen
4x DIMM Slots, DDR5 6400MHz
PCIe Gen 4, 4x SATA 6Gb/s connectors
2xM.2 Slot
2.5GB LAN, USB Type-C, WIFI6
Micro-ATX

Cho phép đặt hàng trước

Mô tả
Thông tin bổ sung

TUF B650M PLUS WIFI TTD page TUF B650M PLUS WIFI TTD spec 3 TUF B650M PLUS WIFI TTD spec 4 TUF B650M PLUS WIFI TTD spec 5 TUF B650M PLUS WIFI TTD spec 1 TUF B650M PLUS WIFI TTD spec 2


CPU	AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
Chipset	AMD B650
Memory	4 x DIMM, Max. 128GB, DDR5 5200MHz upto 6400MHz (OC) Supports AMD EXTended Profiles for Overclocking (EXPO)
Onboard Graphics Outputs	1 x HDMI port 1 x DisplayPort
PCI Slots	AMD Ryzen™ 7000 Series Desktop Processors: 1 x PCIe 4.0/3.0 x16 slot(s) AMD B650 Chipset: 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 1 x PCIe 4.0/3.0 x1 slots
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Networking	1 x 2.5Gb Ethernet WIFI6 Bluetooth
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC
Connectivity	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI®port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button
Internal Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB Gen 1 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header
Form Factor	micro-ATX Form Factor -9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Bảo hành 36 tháng

Mainboard Socket	AMD Socket AM5
Mainboard Chipset	AMD B650
Mainboard Form Factor	mATX ( Micro-ATX)
Mainboard Memory Type	DDR5
Mainboard Memory Slot	4
Mainboard Graphics Interface	PCIe 4.0
Mainboard Graphics Output	DisplayPort, HDMI
Mainboard M.2 SSD Slots	2 x M.2
Mainboard USB	USB 2.0, USB 3.2 GEN 1, USB 3.2 GEN 2, USB 3.2 GEN 2×2, USB Type-C
Mainboard Networking	2.5GbE LAN, Wi-Fi 6E/6
