Model

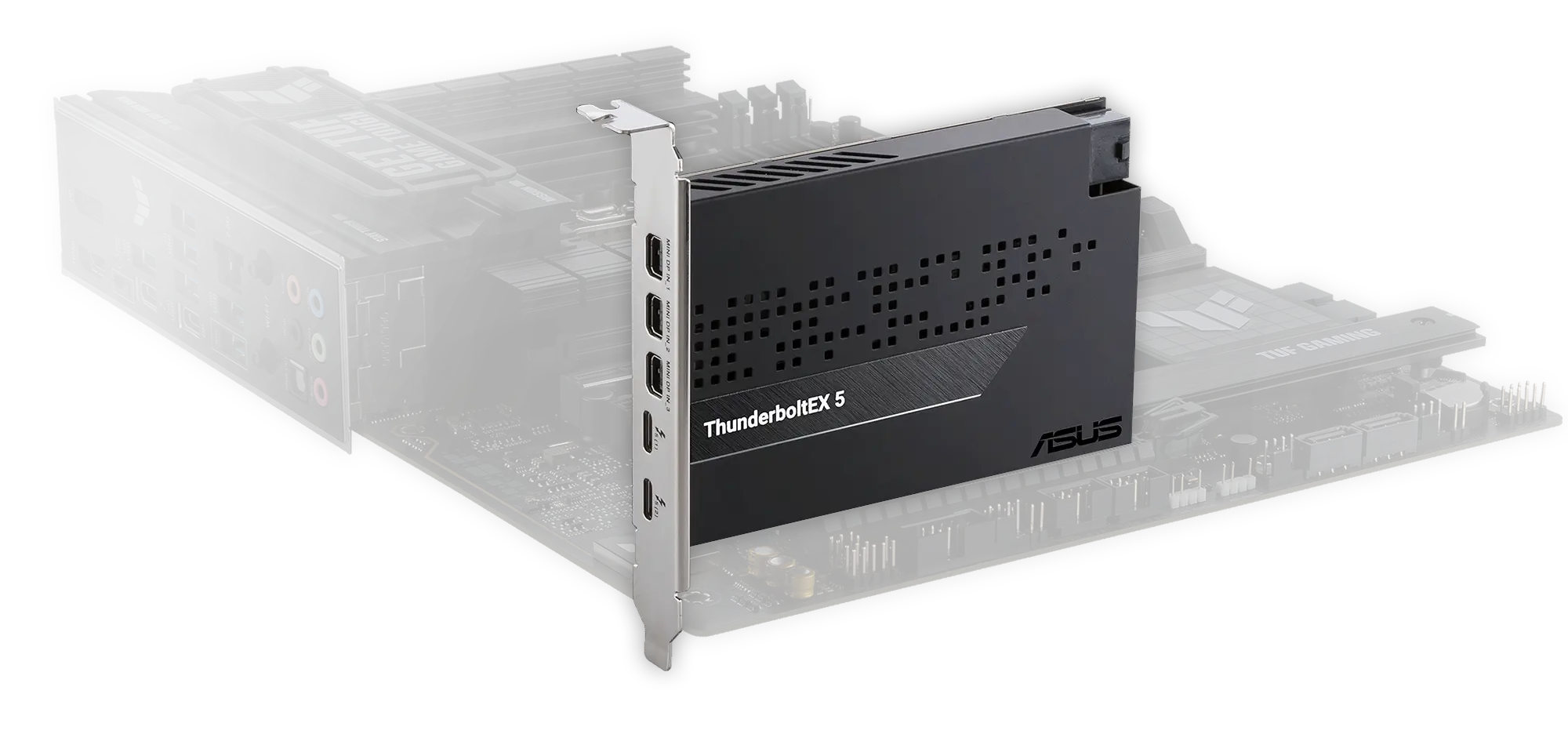

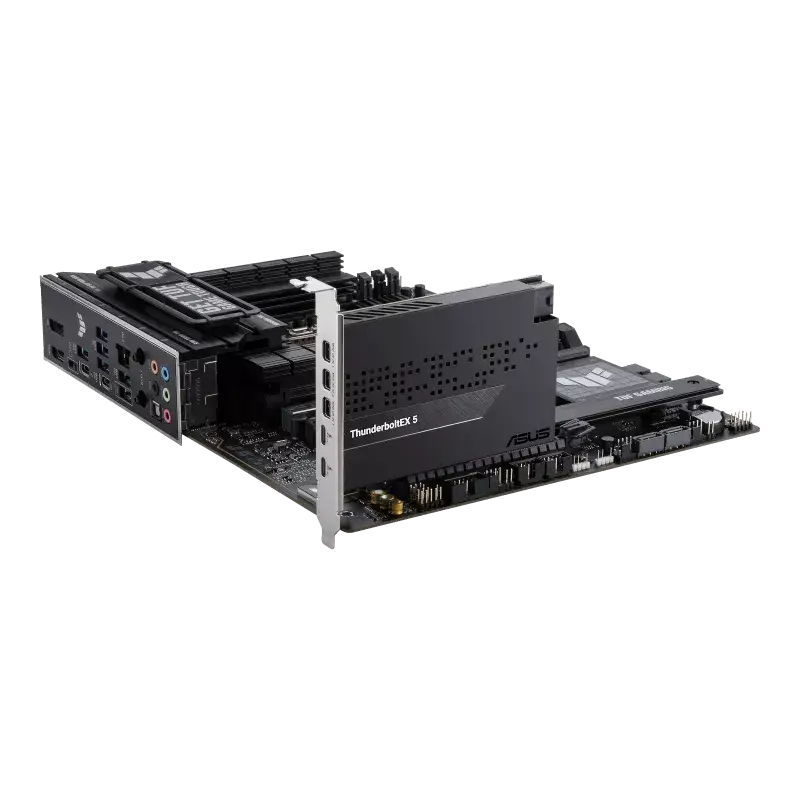

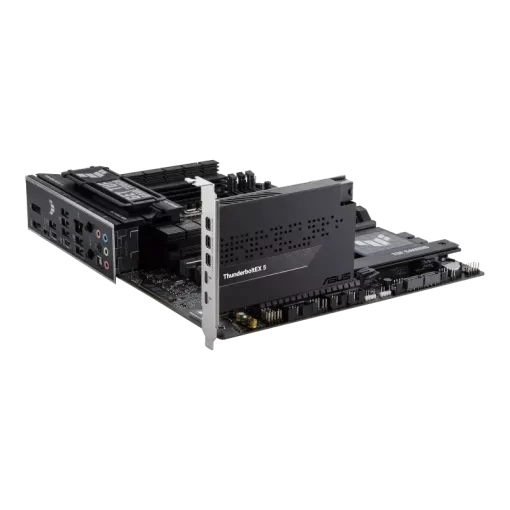

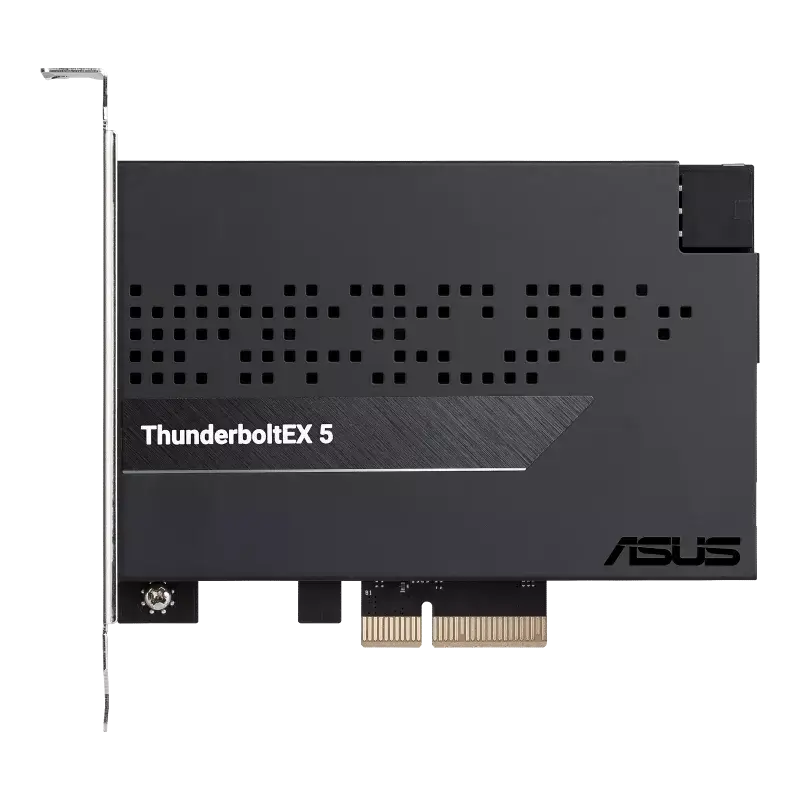

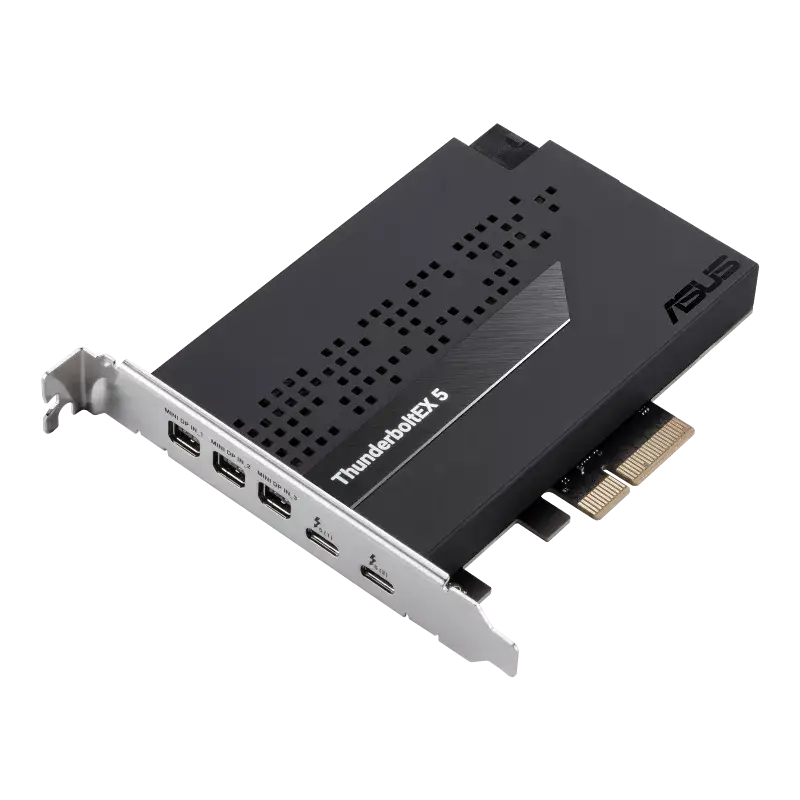

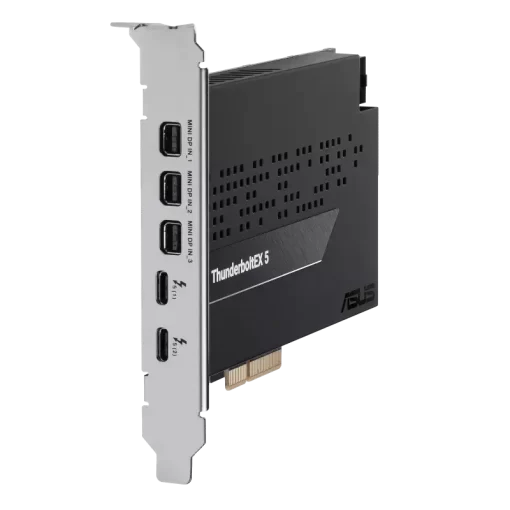

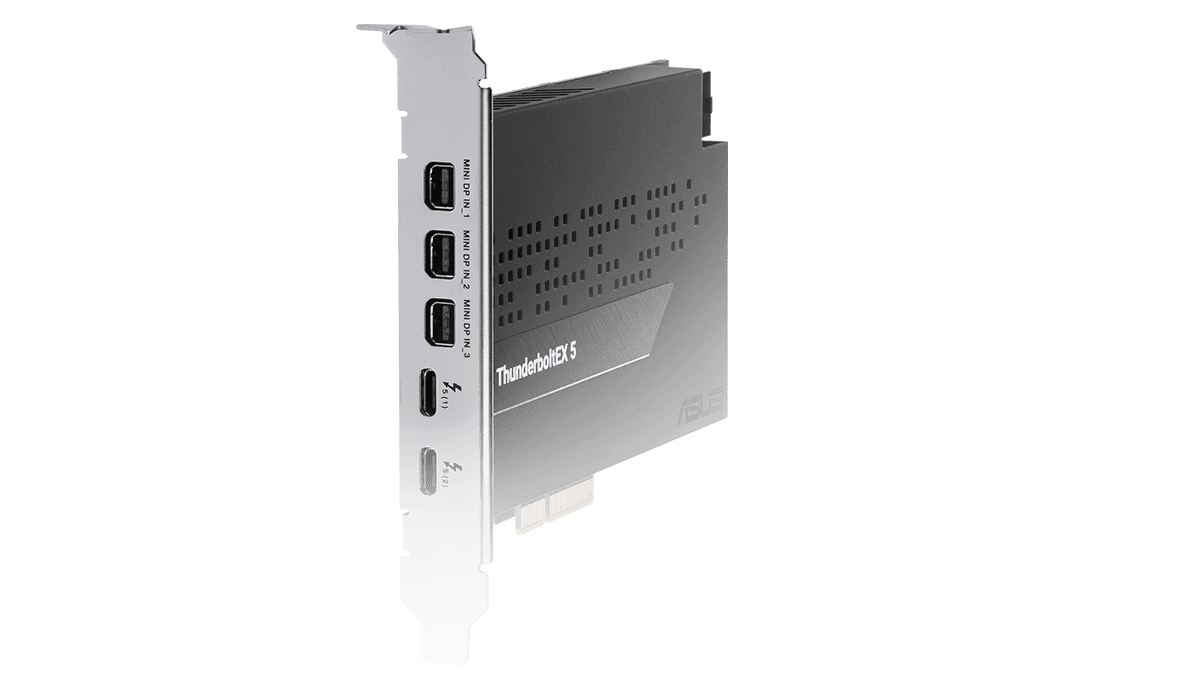

ThunderboltEX 5

News Update

Please visit our GLOBAL website to check and download the latest updates.
Please visit our GLOBAL website to check and download the latest updates.

Spec

Chipset
Intel® JHL9580 Thunderbolt 5 Controller

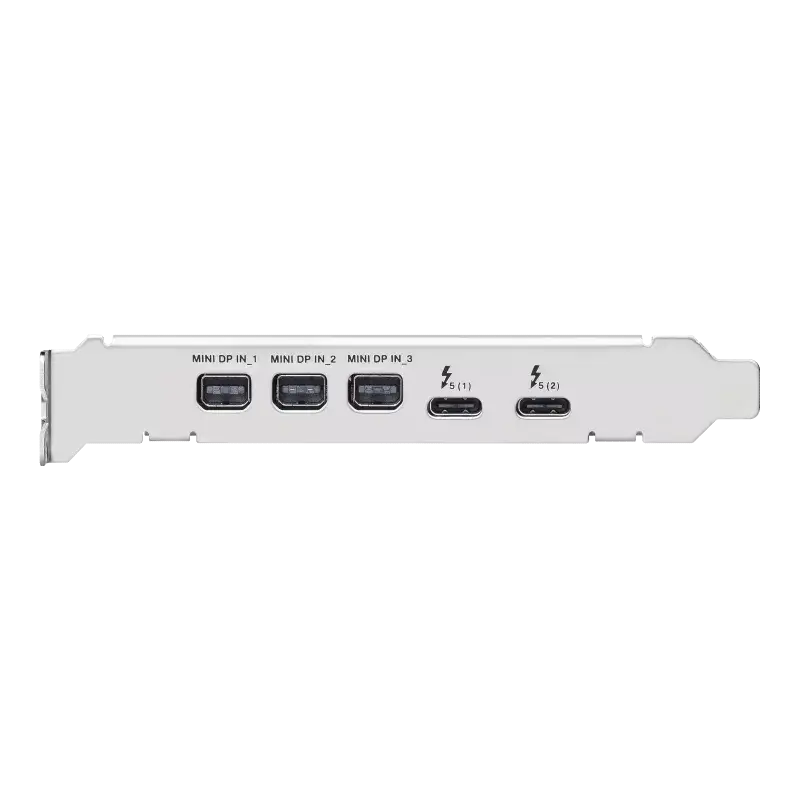

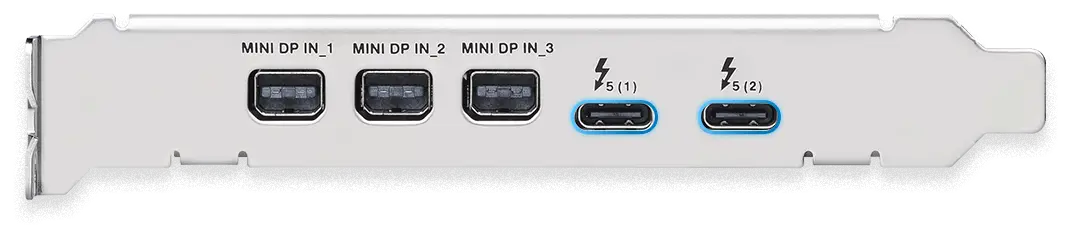

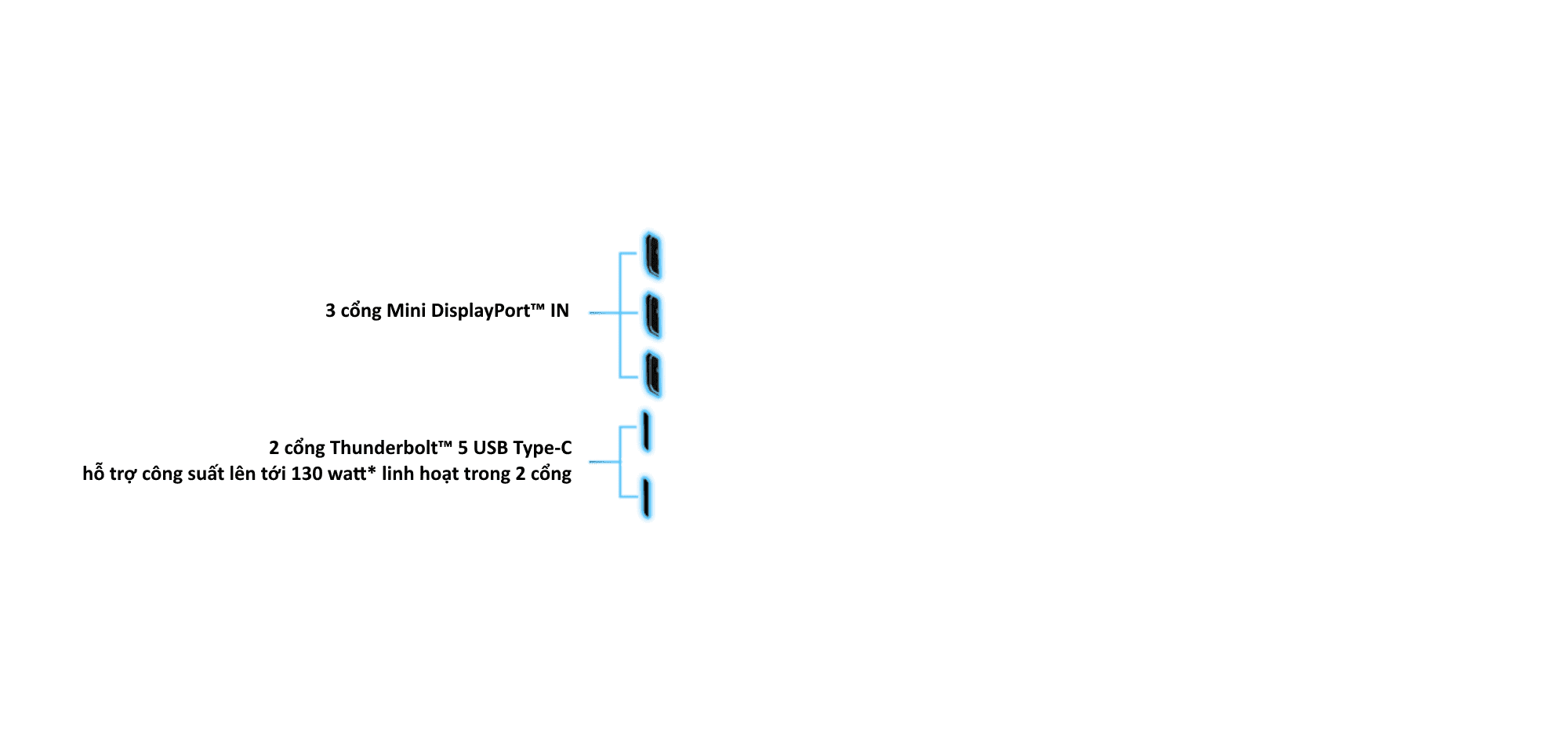

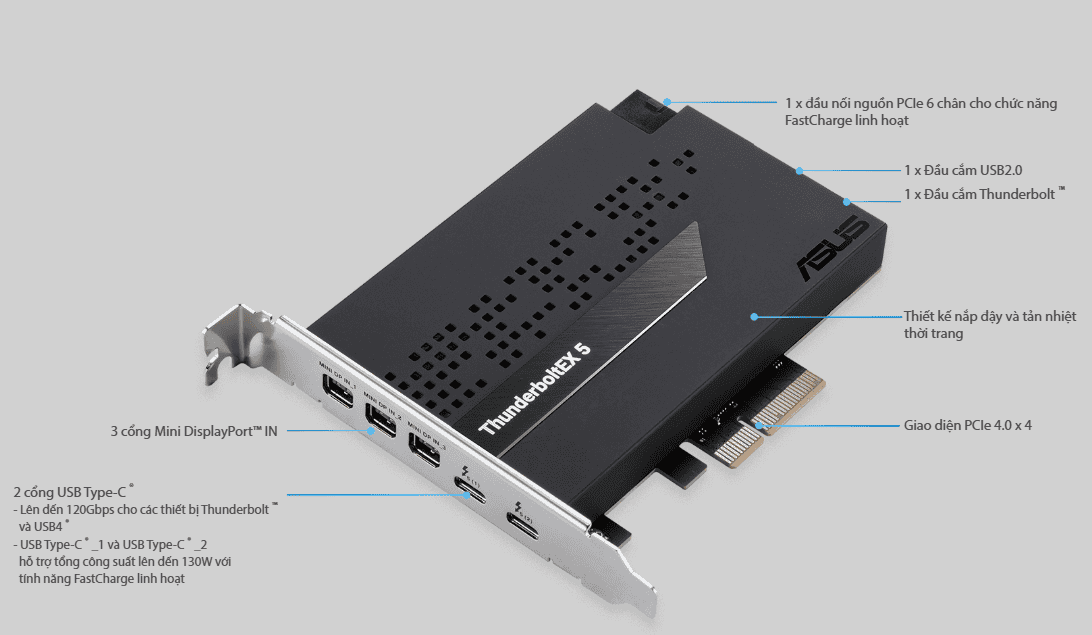

External Connectors
2 x USB Type-C® ports

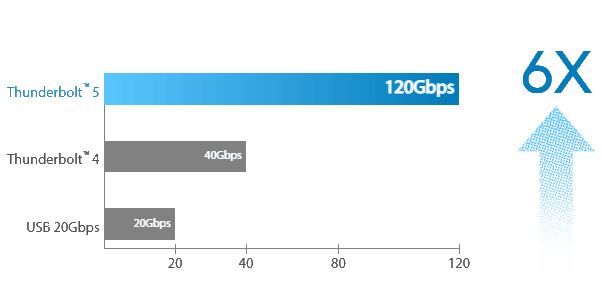

– Up to 120Gbps for Thunderbolt™ and USB4® devices
– USB Type-C® _1 and USB Type-C® _2 support up to a total of 130W with Flexible FastCharge feature
– USB Type-C® power delivery output: max. 20V/4.8A
3 x mini DisplayPort IN ports
1 x 6-pin PCIe power connector for Flexible FastCharge function
1 x USB 2.0 header
1 x Thunderbolt™ header

Interface
PCIe 4.0 x4 interface

VGA
Supports up to 3 x 8K@60Hz with DSC as specified in DisplayPort 2.1*
* Max resolution support will depend on your VGA source

Operating System
Windows 11 64-bit (with inbox driver)

Dimensions
3.5 inch x 4.7 inch (8.89 cm*11.95 cm)
