Enable blisteringly fast speeds and any-way-up connectivity
ASUS ThunderboltEX 4 is a Thunderbolt™ 4 add-on card that offers 40 Gbps bi-directional bandwidth, USB4™ device compatibility, and DisplayPort™ 1.4. It supports up to five Thunderbolt devices in a daisy chain and enables up to 100-watt USB-C® charging for laptops.

➊ Thunderbolt™ (USB-C®) port Up to 100-watt* quick charging
➋ Thunderbolt™ (USB-C®) port Up to 27‑watt quick charge
➌ Mini DisplayPort™ input
ThunderboltEX 4

*Actual charging performance may vary in real world conditions.
Daisy-Chain up to 5
Thunderbolt devices per port
3 devices + 2 Thunderbolt monitors

Or
Daisy-Chain up to 5
Thunderbolt devices per port
4 devices + 1 Thunderbolt monitor

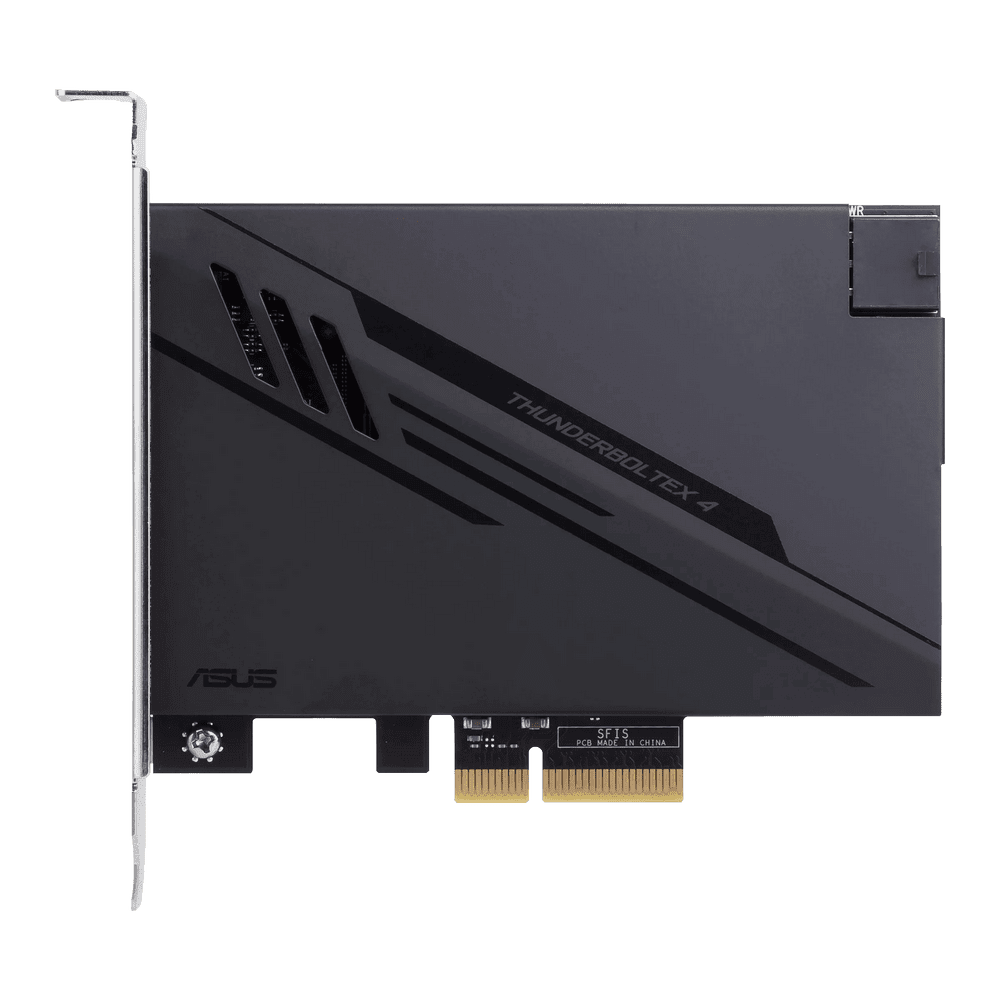

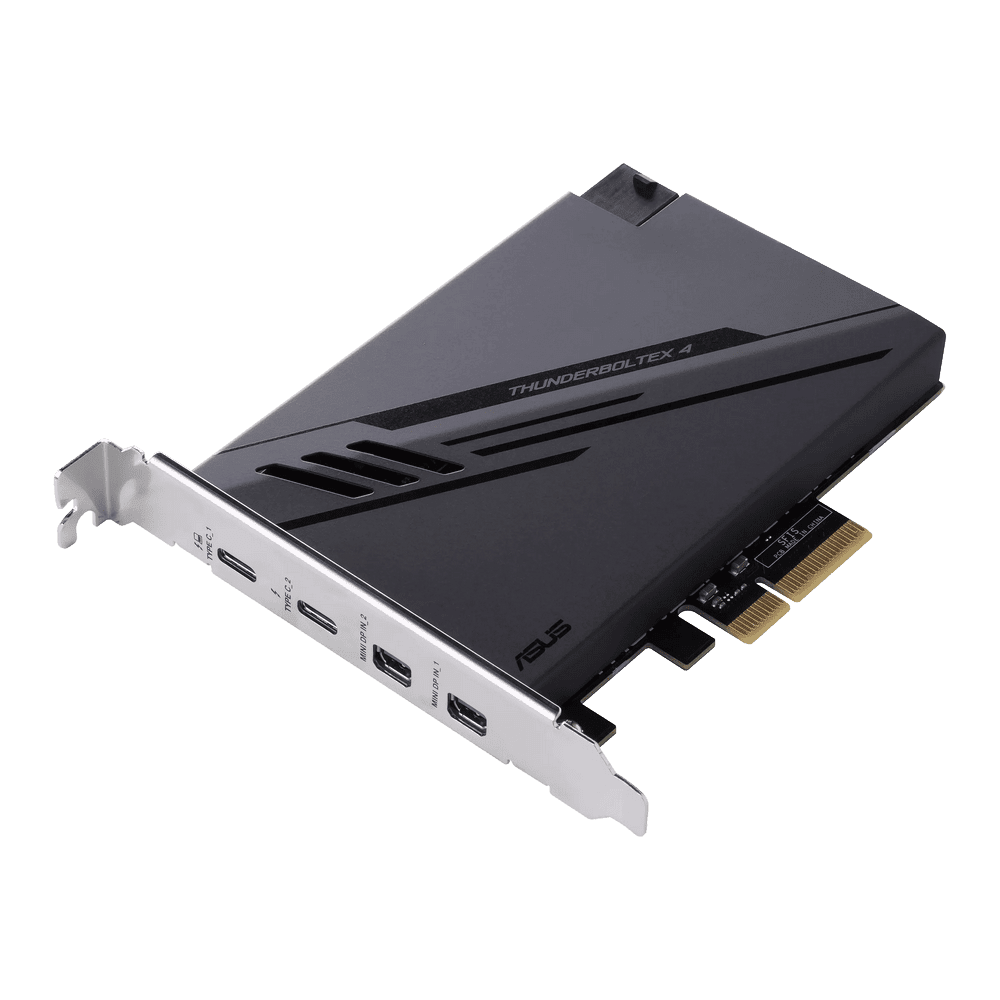

ASUS ThunderboltEX 4
with Intel® Thunderbolt™ 4 JHL 8540 Controller, 2 USB Type-C Ports, up to 40Gb/s bi-Directional Bandwidth, DisplayPort 1.4 Support, up to 100W Quick Charge.
Model
ThunderboltEX 4
Spec
Chipset
Intel® Thunderbolt™ 4 JHL8540 Controller

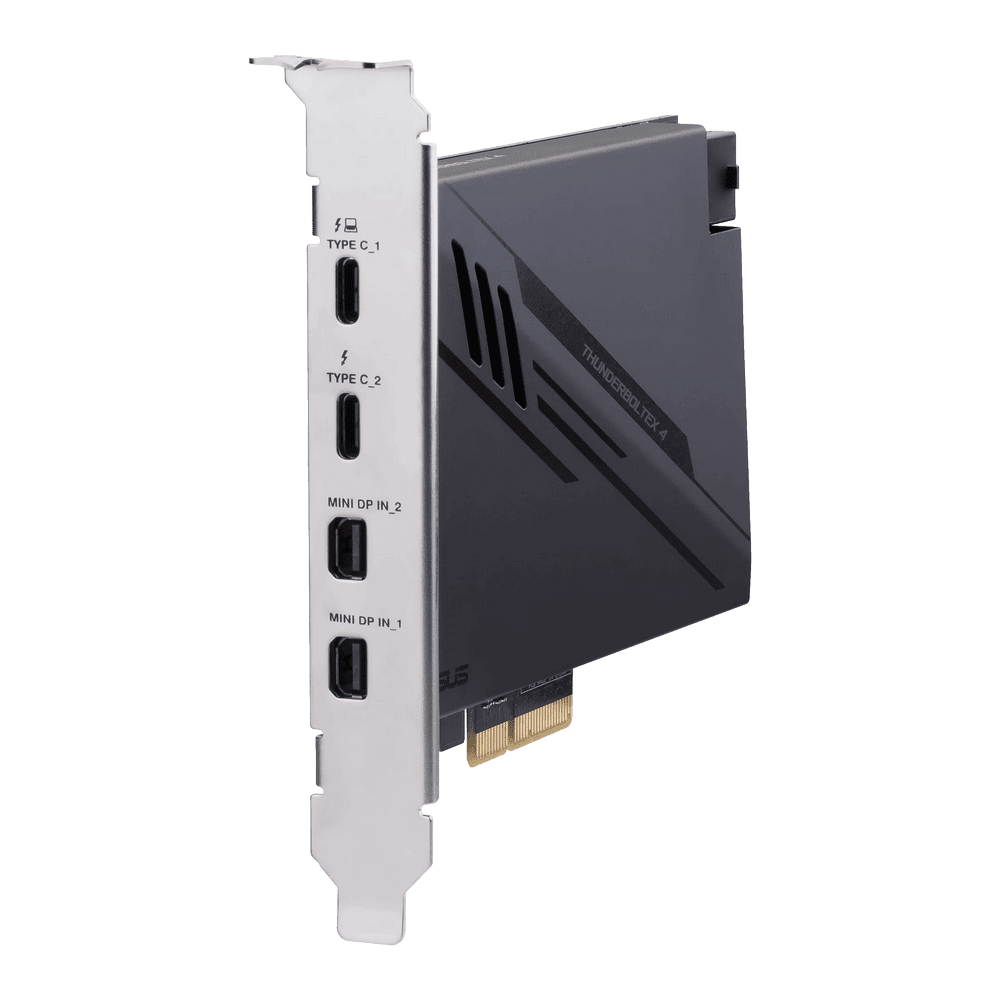

External Connectors
2 x USB Type-C® ports (Support Thunderbolt™ 4 and USB 4 technology)
– up to 40Gbps for Thunderbolt devices
– The Type-C_1 supports up to 20V/5A, 100W quick charge feature, Type-C_2 support up to 9V/3A, 27W quick charge feature.
2 x mini DisplayPort IN ports
1 x 6-pin PCIe power connector for quick charge function
1 x USB 2.0 header
1 x Thunderbolt header
Interface
PCIe 3.0 x4 interface
VGA
Supports DisplayPort 1.4 with max. resolution 7680 x 4320@60Hz*
* Max resolution support will depend on your VGA source

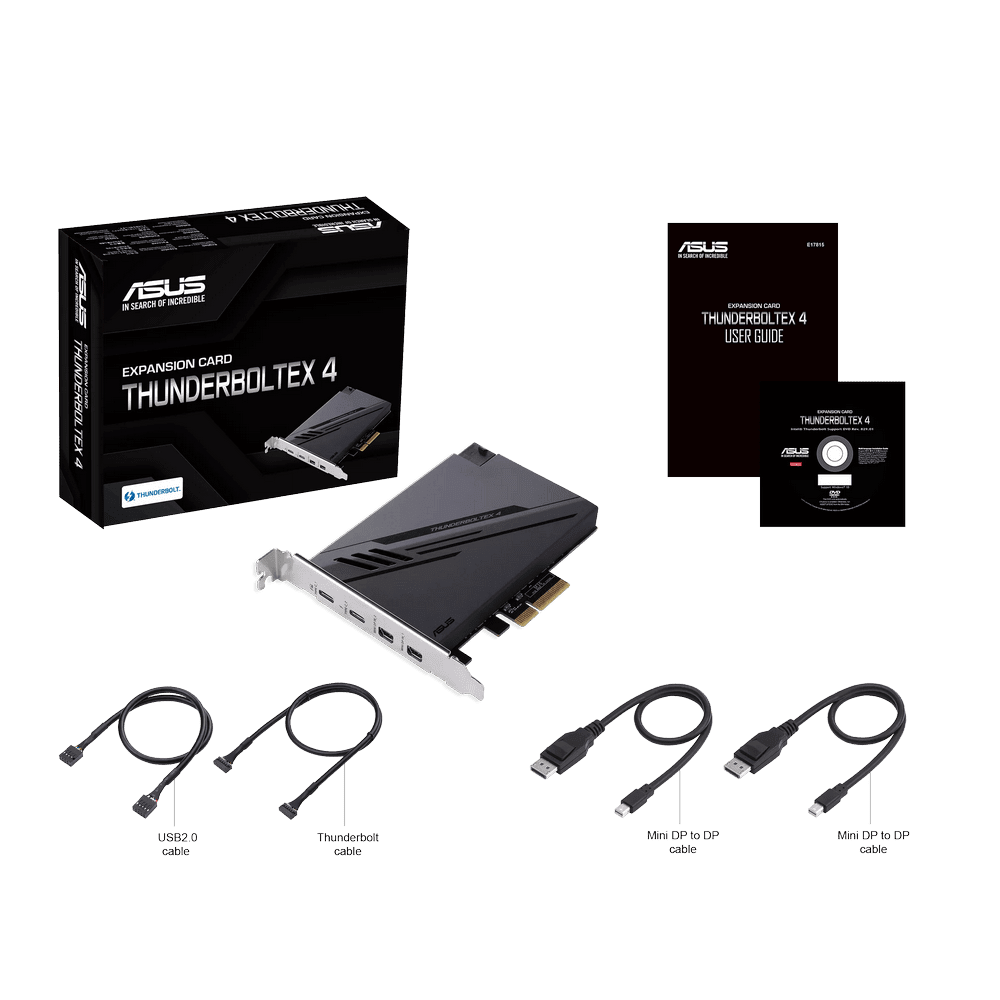

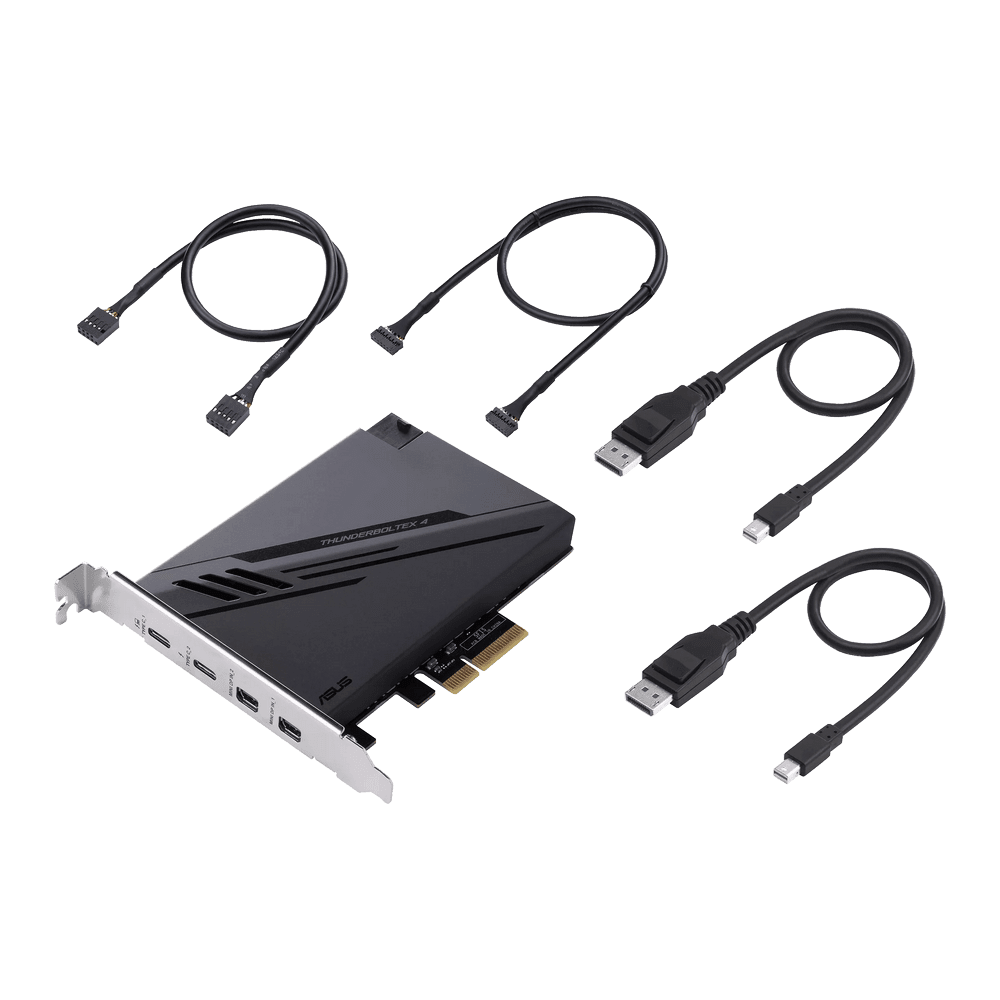

Accessories
2 x mini DisplayPort cables (links graphics output from motherboard’s or discrete graphics card’s DisplayPort to the mini DisplayPort IN port on the ThunderboltEX 4 card)
1 x USB 2.0 cable
1 x 14-1 pin Thunderbolt header cable
1 x User manual
1 x Support DVD with Thunderbolt™ driver

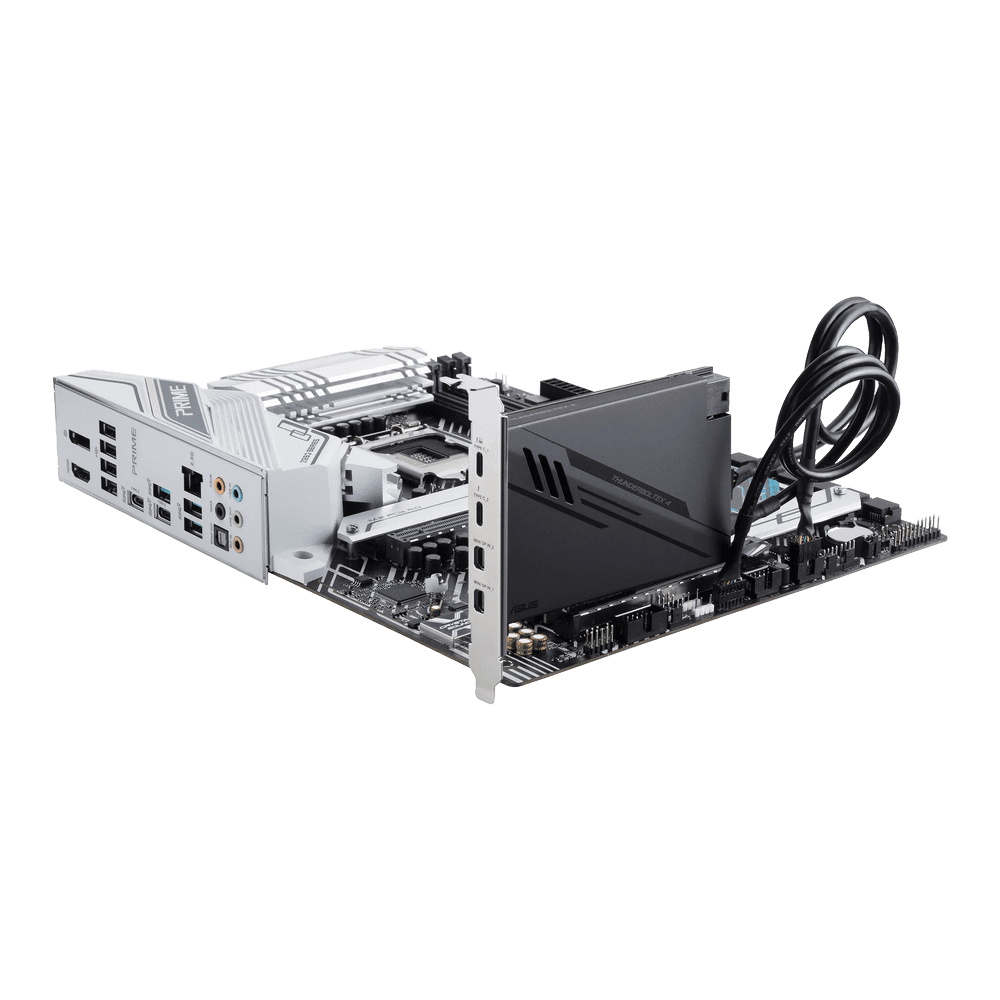

Compatible Models
Please note that only ASUS Intel 500 series and later motherboards with a 14-1 pin Thunderbolt header can support ThunderboltEX 4 card.
*Refer to the following link for an up-to-date list of compatible models:
Operating System
Windows® 10 – 64 bit
Product Segment
4.6 inch x 7.1 inch (11.77 cm*18.05 cm)
