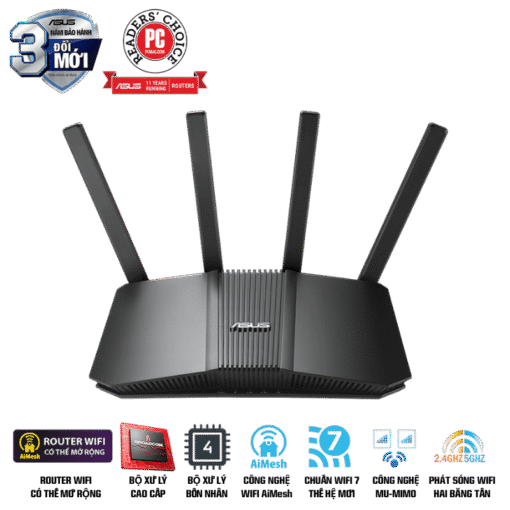

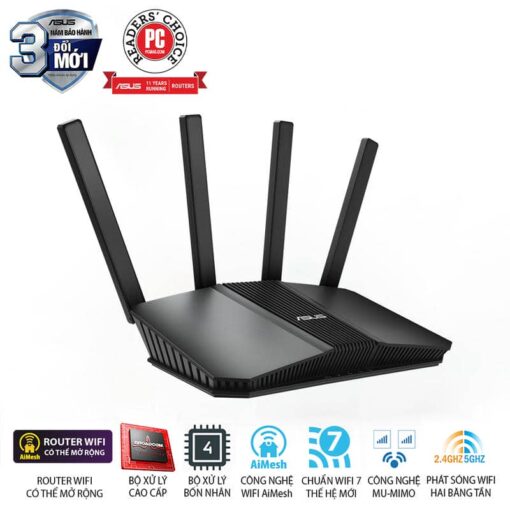

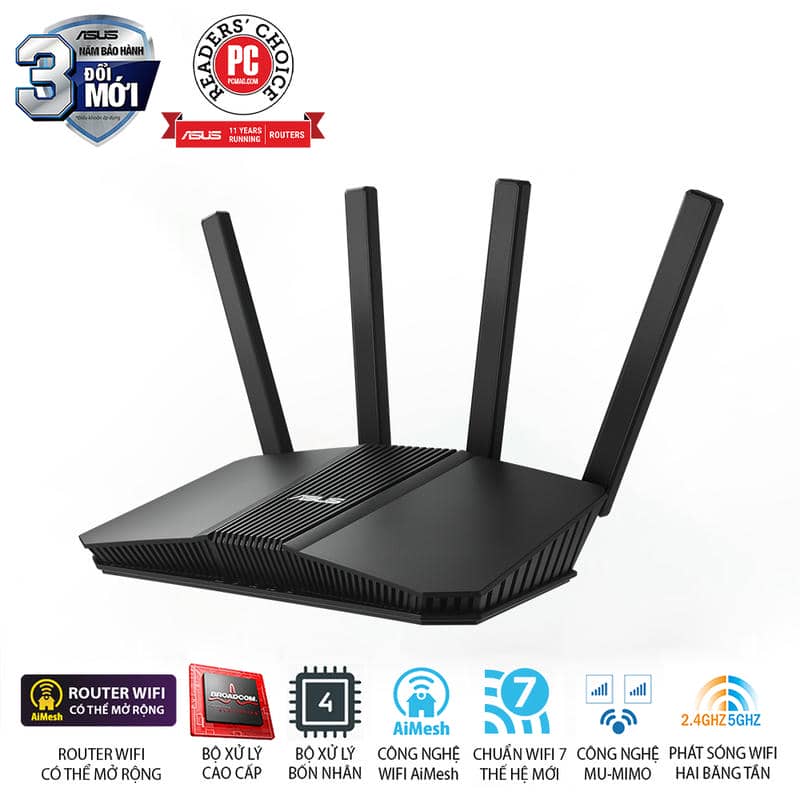

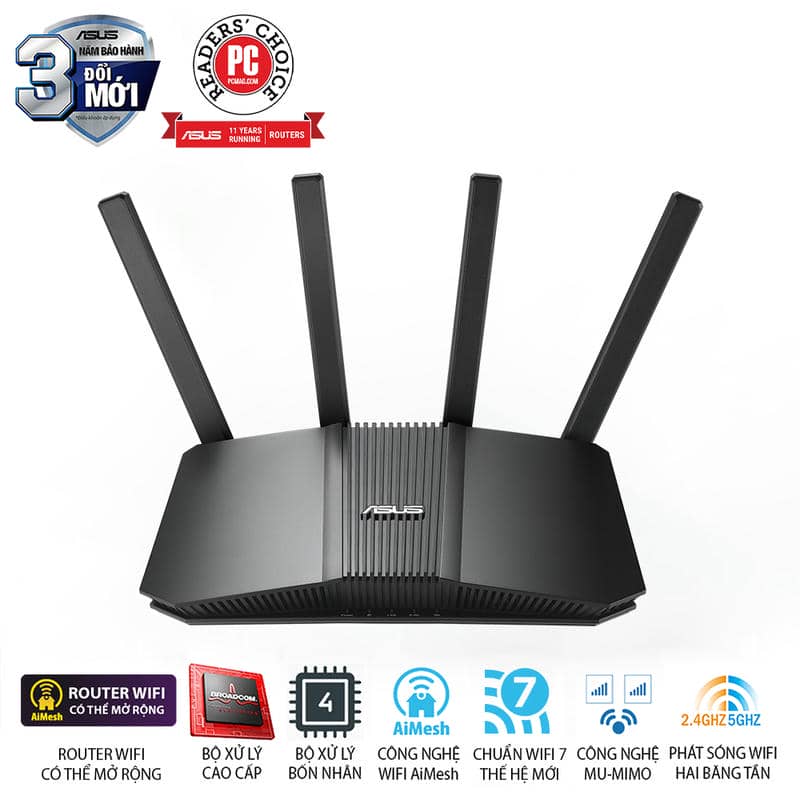

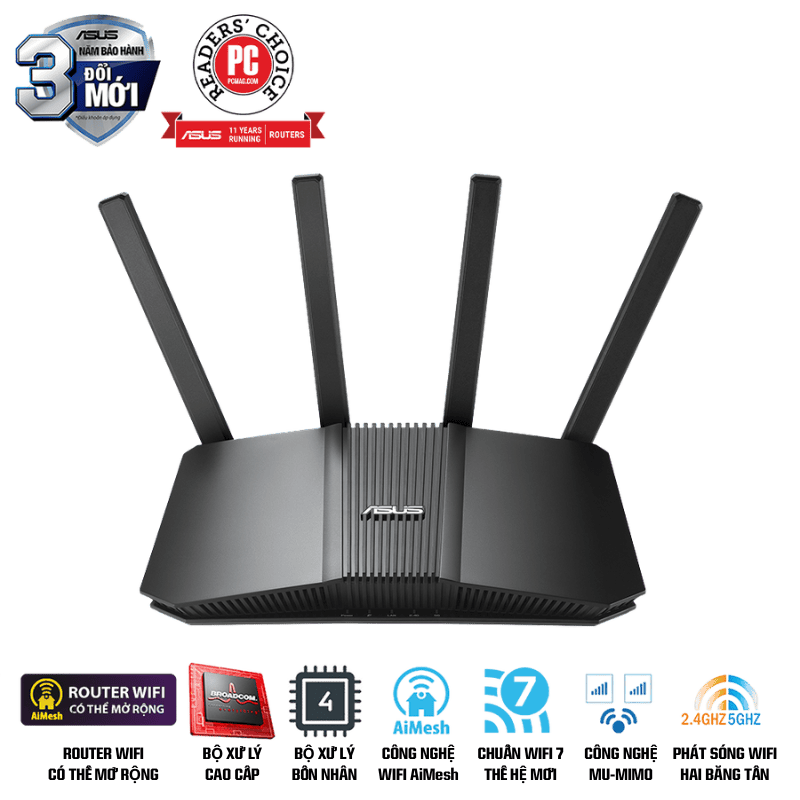

ASUS RT-BE58U WiFi 7 AiMesh Extendable Router – 688+2882 Mbps, 4x External antenna

Model

RT-BE58U

Network Standard

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6

Product Segment

BE3600 ultimate BE performance : 688+2882 Mbps

WIFI Data Rate

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
WiFi 7 (802.11be) (5GHz): up to 2882 Mbps

Antenna

External antenna x 4

Transmit/Receive

2,4 GHz 2 x 2
5 GHz 2 x 2

Processor

Dual-core (4 VPE)

Memory

256 MB Flash
1 GB RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency

2.4GHz / 5GHz

Operating Mode

Wireless router mode
Access point mode
Media bridge mode

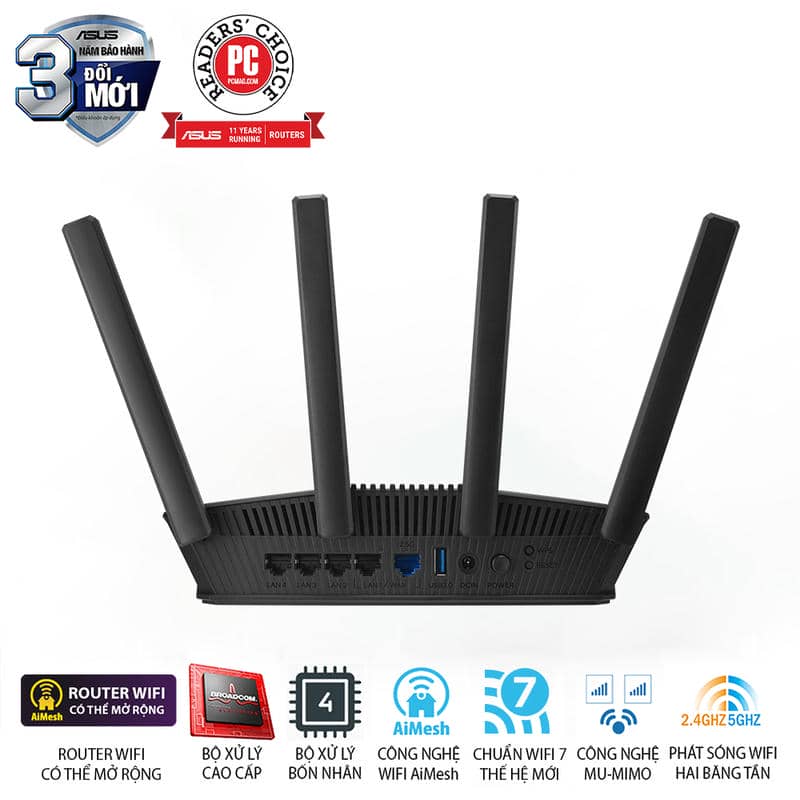

I/O Ports

1x 2.5G for WAN/LAN,
1x 1G for WAN/LAN,
3 x 1G LAN,
USB 3.2 Gen 1 x 1

Button

WPS Button, Reset Button, Power Button

LED Indicator

Power x 1
WAN x 1
LAN x 1
2.4GHz WiFi x 1
5GHz WiFi x 1

Power Supply

AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 2 A current

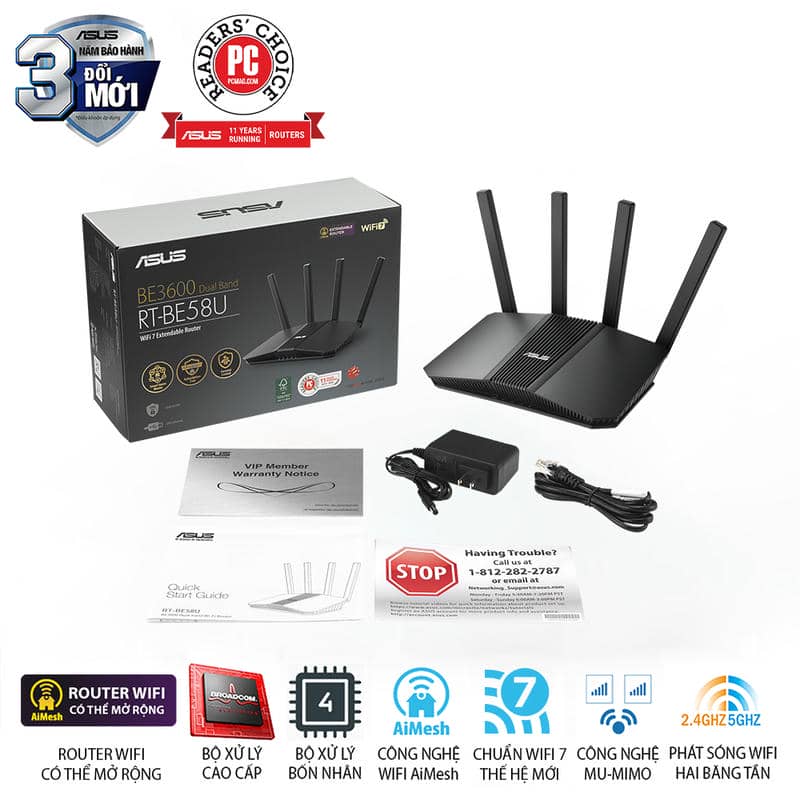

Package content

RT-BE58U
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

Product Weight

461g

Product Dimension

238 x 193 x 59 mm

AiMesh

AiMesh
• Primary AiMesh Router
• AiMesh Node

Parental Control

Time Scheduling
Safe Browsing
Customized Internet Schedule

Guest Network

“The Guest Network provides Internet connection for guests but restricts access to your local network.”
Support Guest Network
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection Time Limit

AiProtection

AiProtection
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

Security

AiProtection
VPN
WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
Let’s Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64

Traffic Control

Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
— Maximum Bandwidth Limiter Rule : 32
Traditional QoS
— Maximum Traditional QoS Rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History

VPN

Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard

Traffic Control

• Bandwidth Limiter
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
3G / 4G LTE dongle
4G / 5G Auto Mobile Tethering
Port forwarding
• Maximum Port Forwarding Rule : 64
Port triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay

LAN

DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)

Wireless

MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming

USB application

4G / 5G Auto Mobile Tethering
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
Download Master
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges

User Interface

WEB: ASUSWRT
APP: ASUS Router APP

Administration

Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
