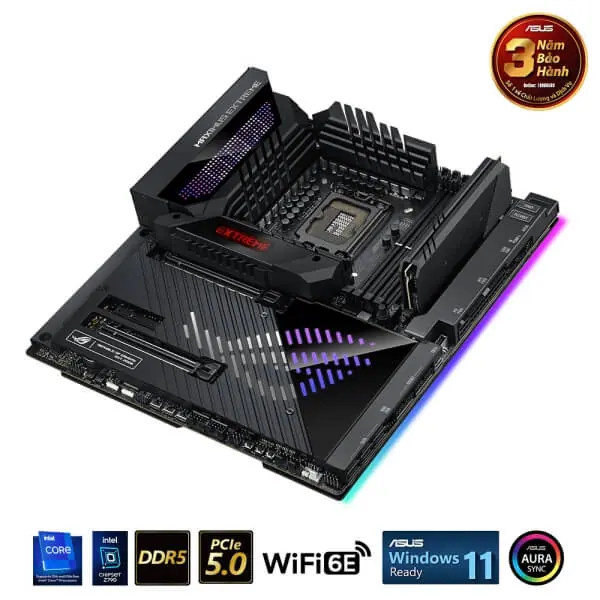

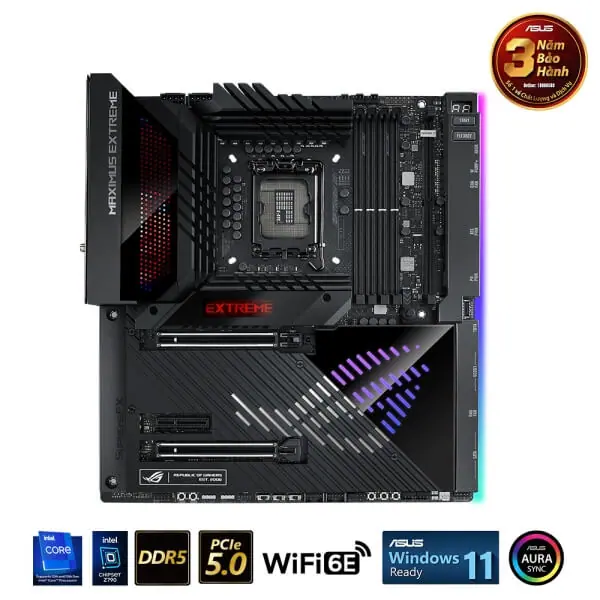

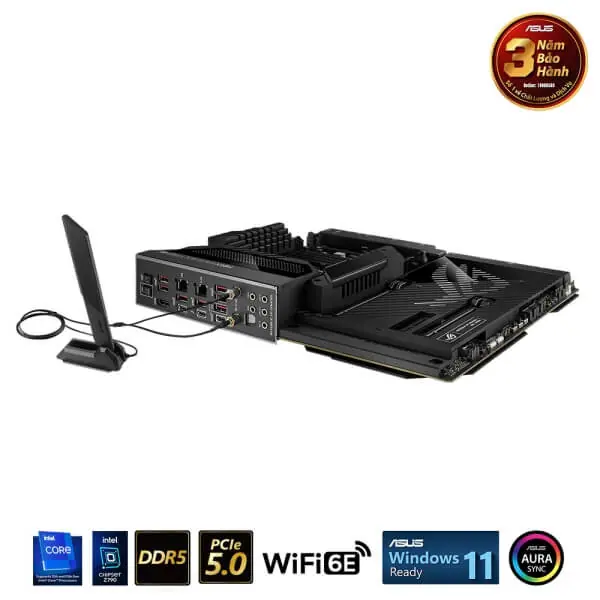

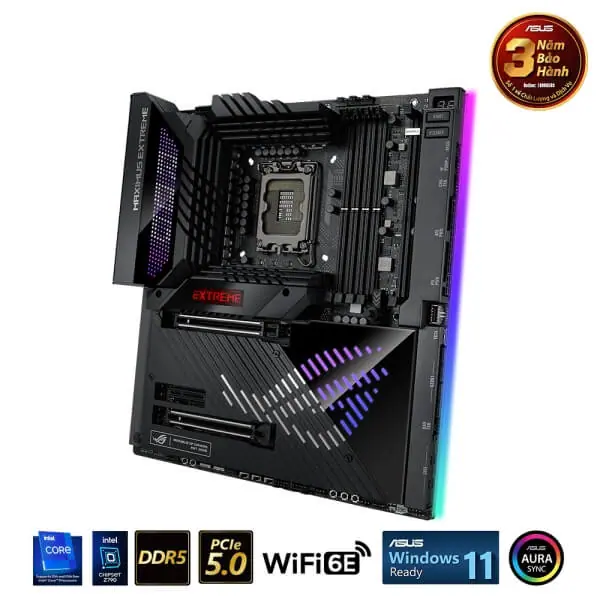

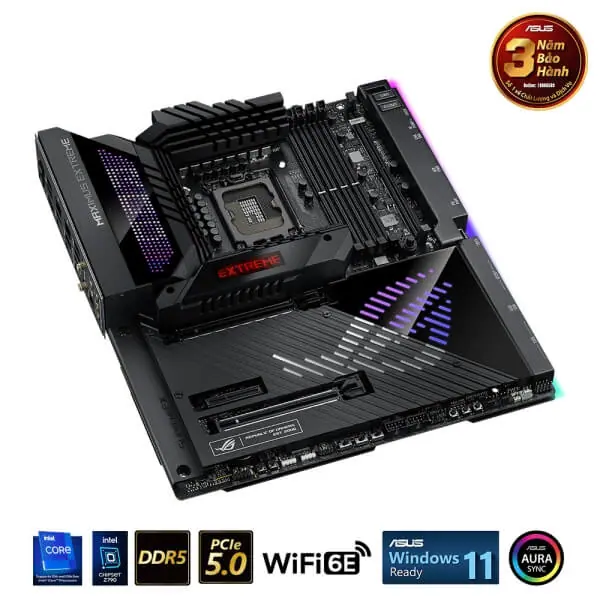

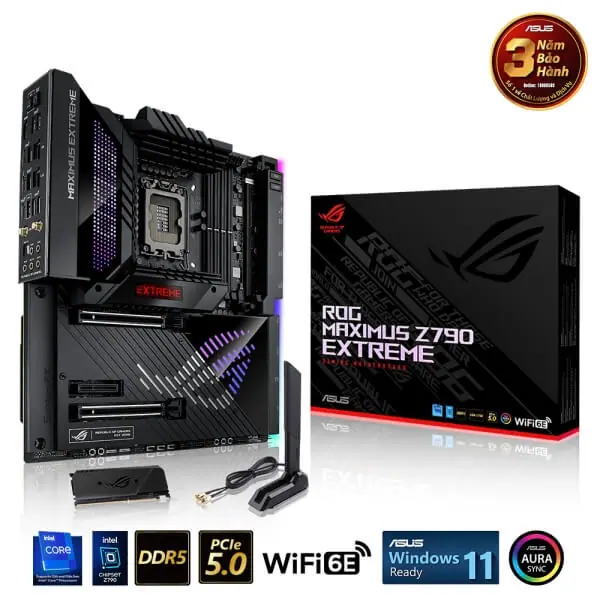

ASUS ROG MAXIMUS Z790 EXTREME Mainboard

Name: ASUS ROG MAXIMUS Z790 EXTREME Mainboard
SKU: SKU
Rating: 5 (20 reviews)

Giá: Original price was: 28.990.000 VNĐ.Current price is: 27.290.000 VNĐ.

Intel^® LGA 1700 socket: Sẵn sàng cho CPU thế hệ 12 và 13
Enhanced power solution: 16+1 DrMOS, PCB 6 lớp, khe cắm ProCool, cuộn cảm hợp kim chất lượng cao cùng tụ điện bền cho nguồn điện cung cấp ổn định hơn.
Next-gen connectivity: PCIe^® 5.0, USB 3.2 Gen2x2 Type-C^®, USB 3.2 Gen 2 Type-C phía trước, hỗ trợ cổng cắm Thunderbolt™ 4.
Made for online gaming: Intel 2.5 Gb Ethernet
Two-Way AI Noise Cancelation: giảm thiểu độ ồn Reduces background noise for crystal-clear communication in games or video conferences
AI Cooling II: Cân bằng nhiệt và âm thanh chỉ bằng một click
Comprehensive cooling: Tản nhiệt VRM lớn và tản nhiệt PCH, đầu hybrid fan và Fan Xpert 4 ở Amoury Crate.
Aura Sync RGB effects: Thiết kế góc cạnh thời thượng, đầu addressable RGB, RGB strip header.
PC DIY design: PCIe Slot Q-Release, M.2 Q-Latch, Q-LED and SafeSlot

Cho phép đặt hàng trước

Mô tả
Thông tin bổ sung

ASUS ROG MAXIMUS Z790 EXTREME image 01

CPU	Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Chipset	Intel Z790
Memory	4 x DIMM, Max. 128GB, DDR5 4800MHz upto 7200MHz (OC) Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics Outputs	1 x HDMI port 2 x Intel Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs VGA resolution support depends on processors’ or graphic cards’ resolution.
PCI Slots	Intel® 13th & 12th Gen Processors2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)Intel® Z790 Chipset1 x PCIe 4.0×4 slot
Storage	Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes) DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Networking	1 x Intel 2.5Gb Ethernet 1 x Marvell AQtion 10Gb Ethernet Wi-Fi 6E Bluetooth v5.2
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 – ESS® ES9218 QUAD DAC

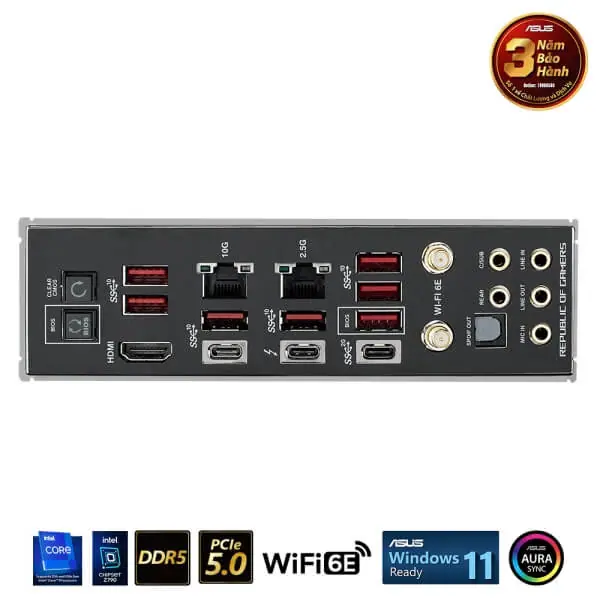

Connectivity	1 x Thunderbolt™ 4 USB Type-C® port 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®) 1 x HDMI® port 1 x Intel® 2.5Gb Ethernet port 1 x Marvell® AQtion 10Gb Ethernet port 5 x LED-illuminated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Internal Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers 2 x 4-pin Radiator Fan headers 2 x W_PUMP+ headers 1 x WB_SENSOR header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x Thunderbolt™ 4 USB Type-C® port 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® ) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers 1 x Addressable Gen 2 header 1 x Aura RGB header 2 x BCLK button 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x LN2 Mode jumper 1 x Osc sence header 12 x ProbeIt Measurement Points 1 x ReTry button 1 x RSVD switch 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x V_Latch switch 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
Form Factor	EATX Form Factor – 12 inch x 10.9 inch ( 30.5 cm x 27.7 cm )

Bảo hành 3 năm

Mainboard Socket	Intel Socket 1700
Mainboard Chipset	Intel Z790
Mainboard Form Factor	E-ATX
Mainboard Memory Type	DDR5
Mainboard Memory Slot	4
Mainboard Graphics Interface	PCIe 4.0, PCIe 5.0
Mainboard M.2 SSD Slots	5 x M.2
Mainboard USB	Front USB Type-C, USB 2.0, USB 3.2 GEN 1, USB 3.2 GEN 2, USB 3.2 GEN 2×2, USB Type-C, Thunderbolt
Mainboard Networking	10GbE LAN, 2.5GbE LAN, Wi-Fi 6E/6
