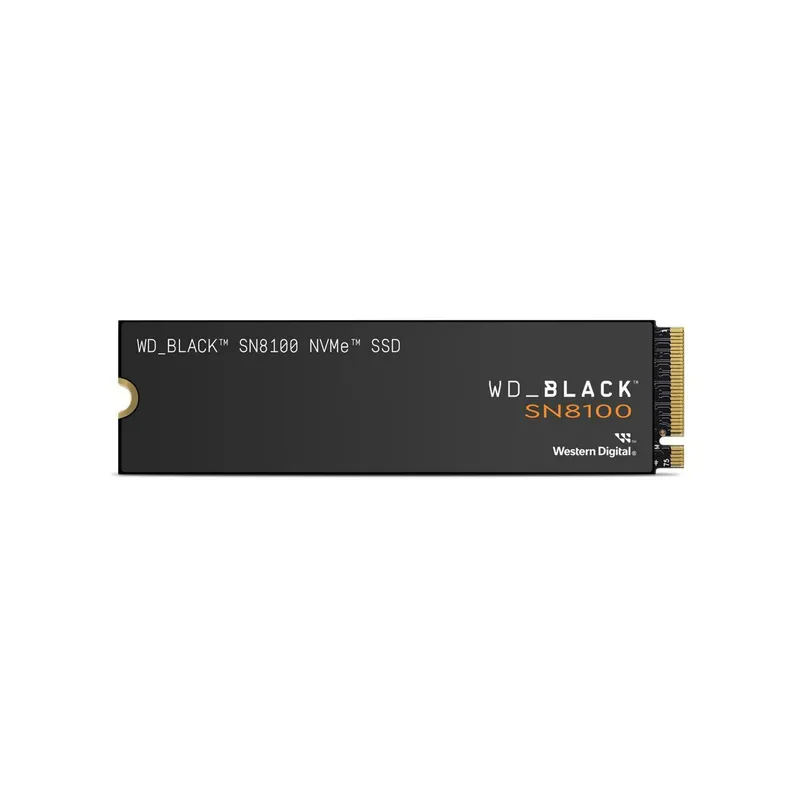

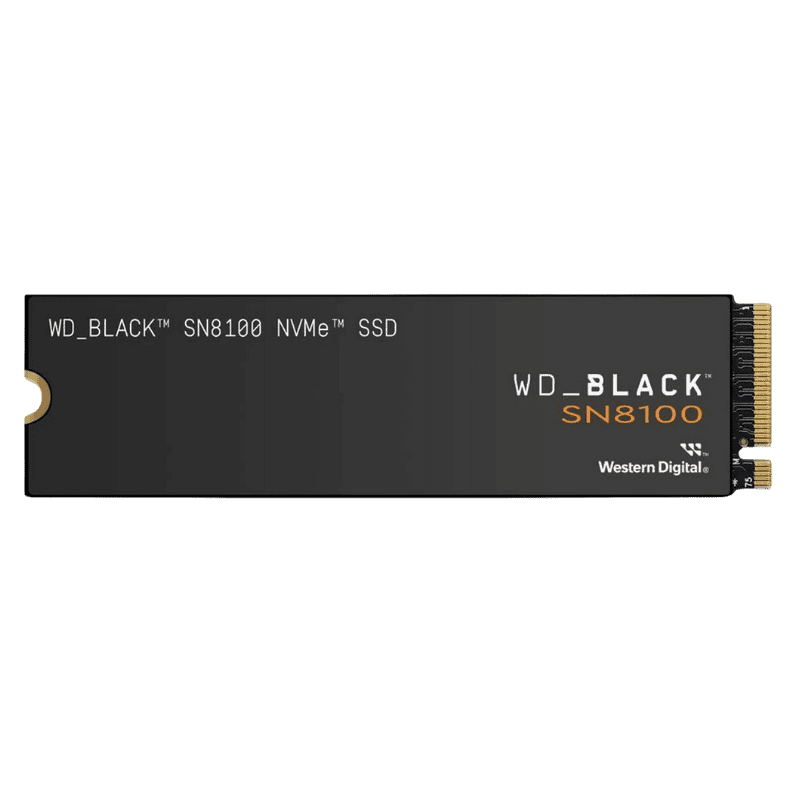

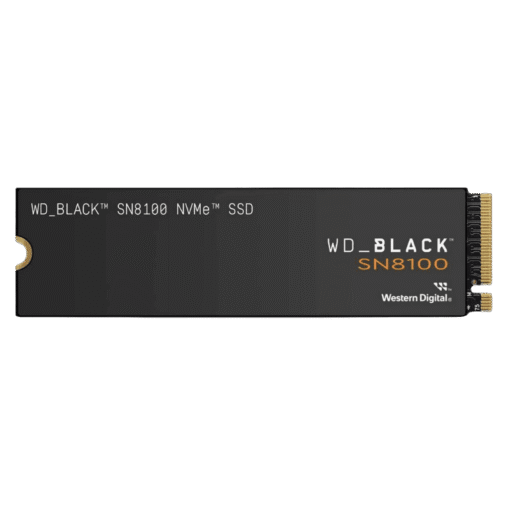

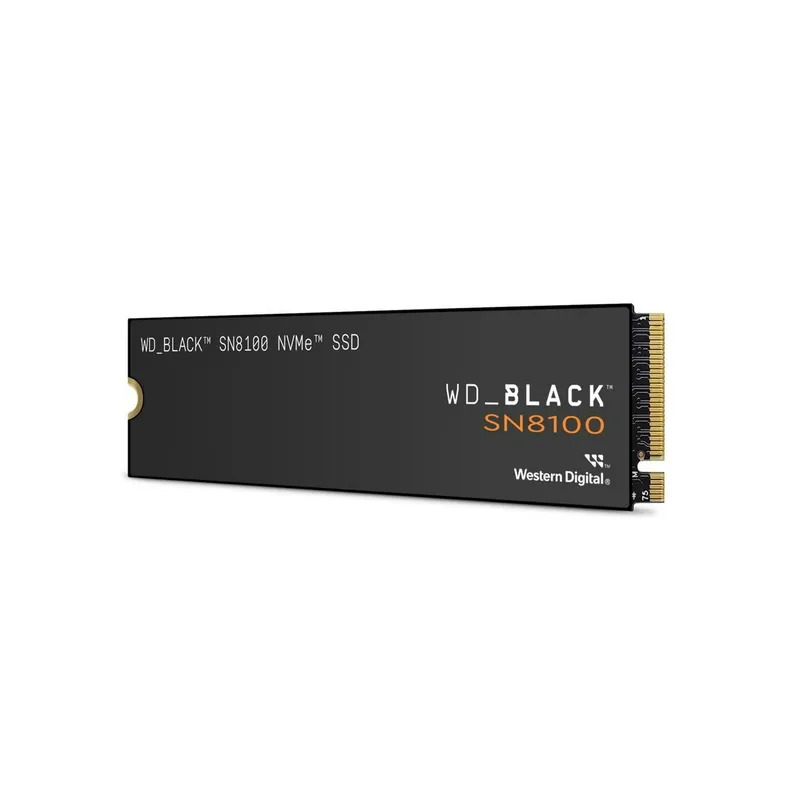

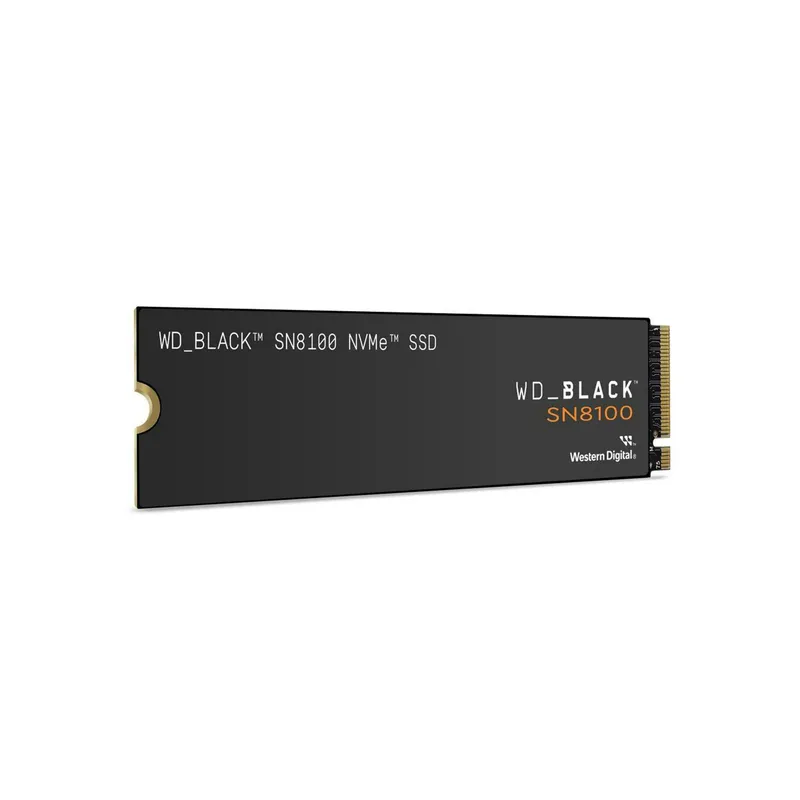

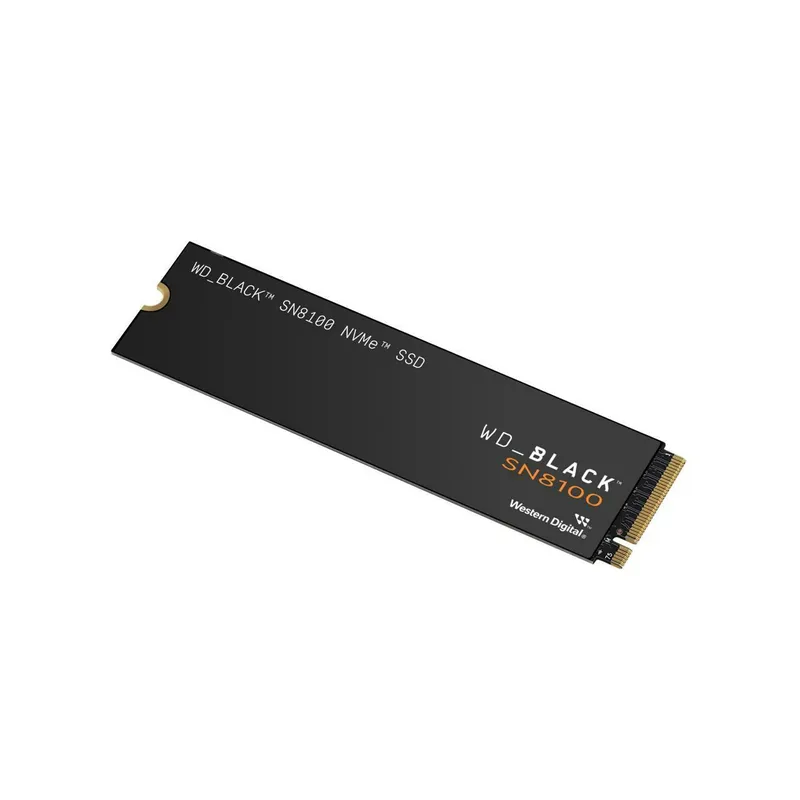

WD_BLACK SN8100 NVMe SSD

TỐC ĐỘ ĐỌC- GHI
Lên đến 14.900 – 14.000 MB/s
[mẫu 2-4TB]

HIỆU NĂNG
Công nghệ
PCIe Gen 5

DUNG LƯỢNG
lên đến 4TB

BỀN BỈ
Lên đến 2400TBW
[mẫu 4TB]
Legal Disclaimers
(1) 1GB = 1 tỷ byte và 1TB = 1 nghìn tỷ byte. Dung lượng người dùng thực tế có thể ít hơn tùy thuộc vào môi trường hoạt động.
(2) 1MB/giây = 1 triệu byte mỗi giây. IOPS = số thao tác nhập/xuất mỗi giây. Dựa trên thử nghiệm nội bộ; hiệu suất có thể thay đổi tùy thuộc vào thiết bị chủ, điều kiện sử dụng, dung lượng ổ đĩa và các yếu tố khác.
(3) Giá trị TBW (terabyte đã ghi) được tính toán bằng khối lượng công việc của máy khách JEDEC (JESD219) và thay đổi tùy theo dung lượng sản phẩm.
(4) Tiết kiệm điện năng hơn 100% so với ổ SSD NVMe WD_BLACK SN850X 2TB.
Sandisk và logo Sandisk là nhãn hiệu đã đăng ký hoặc nhãn hiệu của Tập đoàn Sandisk hoặc các chi nhánh tại Hoa Kỳ và/hoặc các quốc gia khác. Nhãn hiệu NVMe là nhãn hiệu của NVM Express, Inc. PCIe là nhãn hiệu đã đăng ký của PCI-SIG. Windows và Microsoft là nhãn hiệu đã đăng ký của tập đoàn Microsoft. Tất cả các nhãn hiệu khác là tài sản của chủ sở hữu tương ứng. Thông số kỹ thuật sản phẩm có thể thay đổi mà không cần báo trước. Hình ảnh minh họa có thể khác so với sản phẩm thực tế.
2025 Tập đoàn SanDisk hoặc các chi nhánh. Bảo lưu mọi quyền.

PRODUCT SPECIFICATIONS
CAPACITIES2:
MODEL NUMBERS:
4TB
WDS400T1X0M-00CMT0
2TB
WDS200T1X0M-00CMT0
1TB
WDS100T1X0M-00CMT0
MODEL NUMBERS:
M.2 2280
INTERFACE
PCIe® GEN 5X4 NVMe™ 2.0
NAND
TLC 3D CBA NAND
DRAM
Yes
PERFORMANCE1
Sequential Read [up to]
Sequential Write [up to]
Random Read [up to]
Random Write [up to]
4TB:
14,900MB/s
14,000MB/s
2.3M IOPS
2.4M IOPS
2TB:
14,900MB/s
14,000MB/s
2.3M IOPS
2.4M IOPS
1TB:
14,900MB/s
11,000MB/s
1.6M IOPS
2.4M IOPS
POWER5
Average Active Power Read
4TB
6.5W
2TB
6.5W
1TB
6.2W
Average Active Power Write
4TB
7.0W
2TB
7.0W
1TB
6.2W
Sleep (PS4)
5 mW
RELIABLITY
Endurance3 (TBW)
4TB
2,400
2TB
1,200
1TB
600
MTTF up to (hours)
1.75M Hours
STANDARDS
Compatibility
Tương thích ngược với PCIe® Gen4 x4, PCIe® Gen4 x2, PCIe® Gen4 x1,
PCIe® Gen3 x4, PCIe® Gen3 x2, PCIe® Gen3 x1, PCIe® Gen2 x4, PCIe® Gen2 x2
and PCIe® Gen2 x1, Windows® 10+
RoHS COMPLIANCE
YES
SECURITY
TCG OPAL 2.02
ENVIRONMENTAL
Operating Temperature5
32ºF to 185ºF (0ºC to 85ºC)
Non-Operating Temperature9
-40ºF to 185ºF (-40ºC to 85ºC)
DIMENSIONS7
Length: 80mm
Width: 22mm
Height: 2.38mm
Weight: 7.5g
1. Based upon read speed, unless otherwise stated. 1MB/s = 1 million bytes per second. IOPS = input/output operations per second. Based on internal
testing; performance may vary depending upon host device, usage conditions, drive capacity, and other factors.
2. 1TB = 1 trillion bytes. Actual user capacity may be less depending on operating environment.
3. TBW (terabytes written) values calculated using JEDEC client workload (JESD219) and vary by product capacity.
4. Over 100% more power efficient than 2TB WD_BLACK™ SN850X NVMe™ SSD.
5. Power consumption is measured with IOmeter1.1.0 version with AMD Ryzen 9 9950X 16-Core Processor CPU@4.30GHz, DDR5 5600MT/s 16GBx2, OS-Windows 11
Pro 64bit, Chipset-Gigabyte-X870E. Based on internal testing; performance may vary depending upon host device, usage conditions, drive capacity and
other factors.
6. Physical product dimensions for length and width may vary by ± 0.15mm and product weight may vary by ± 1g.
7. 5 years or Max Endurance (TBW) limit, whichever occurs first. See support.sandisk.com for region-specific warranty details.
8. Operational temperature is defined as temperature reported by the drive. Note that drive temperature readings are expected to be higher than
ambient temperature when the SSD is placed inside a system. The SSD box package is rated up to 60°C.
9. Non-operational storage temperature does not guarantee data retention.
