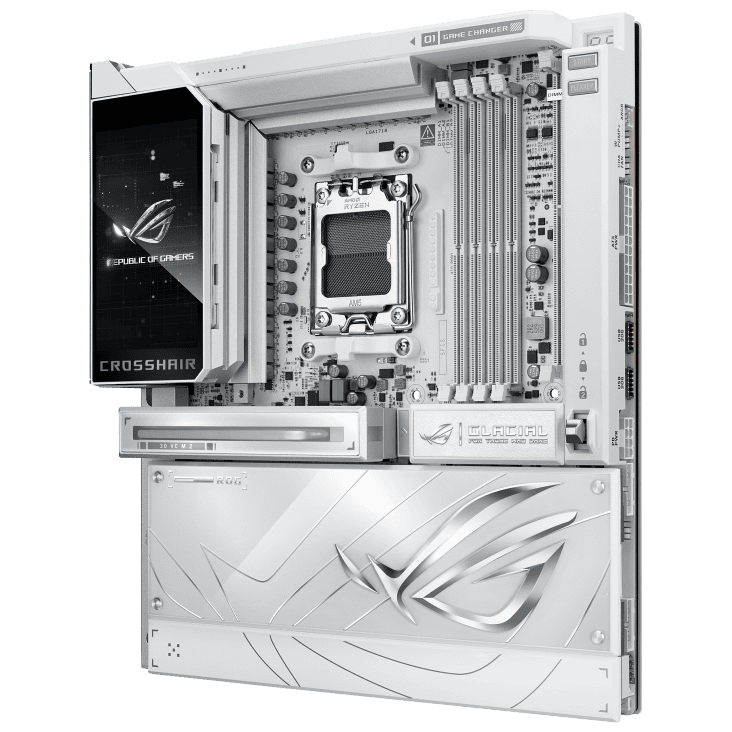

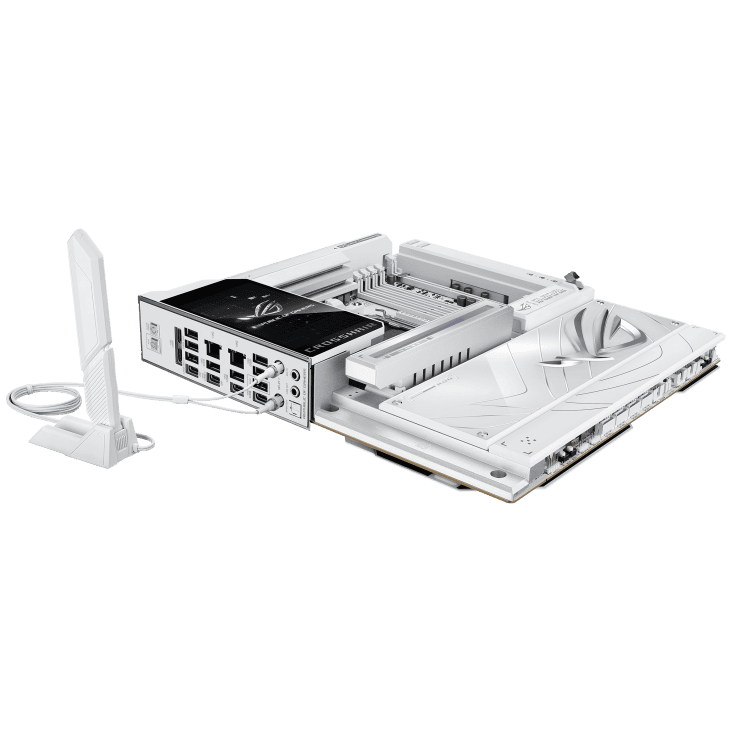

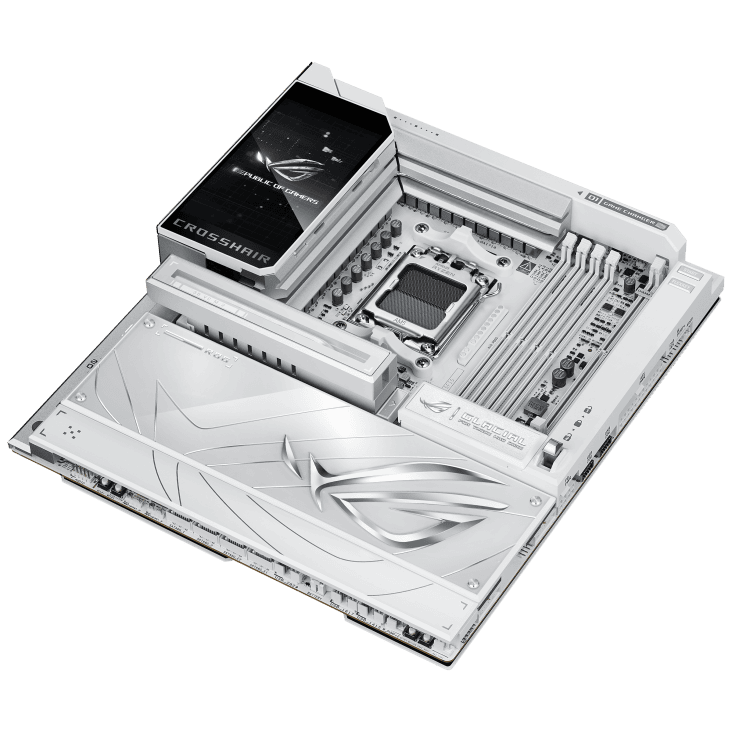

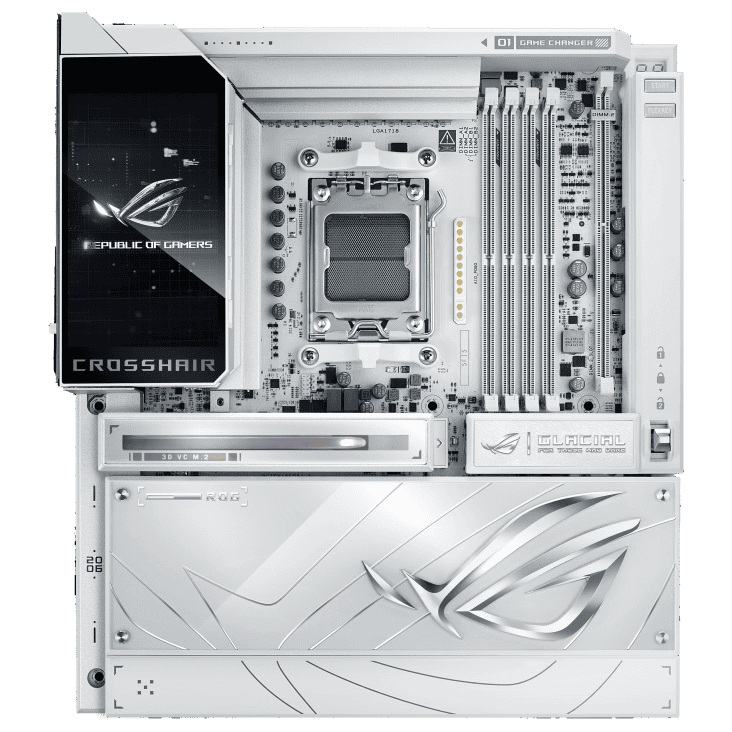

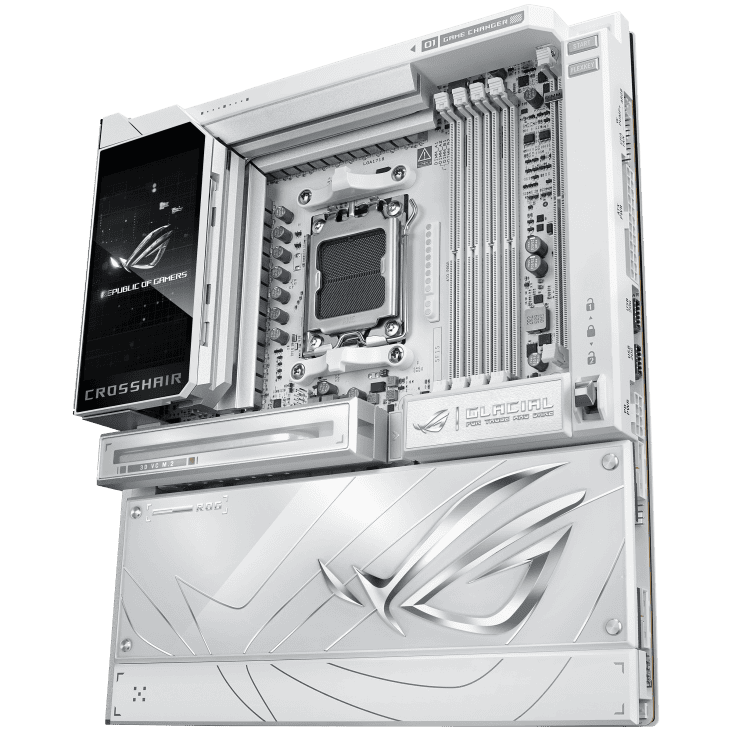

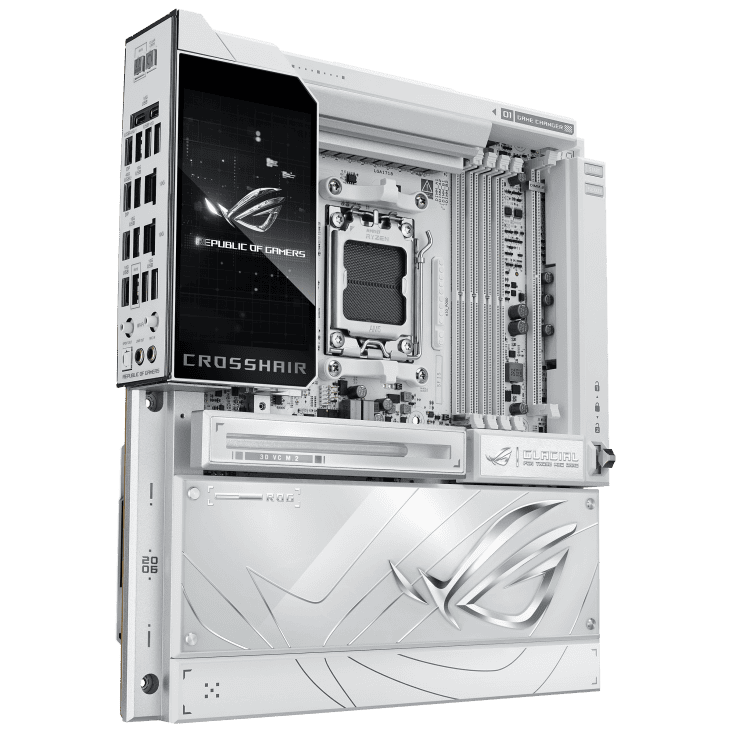

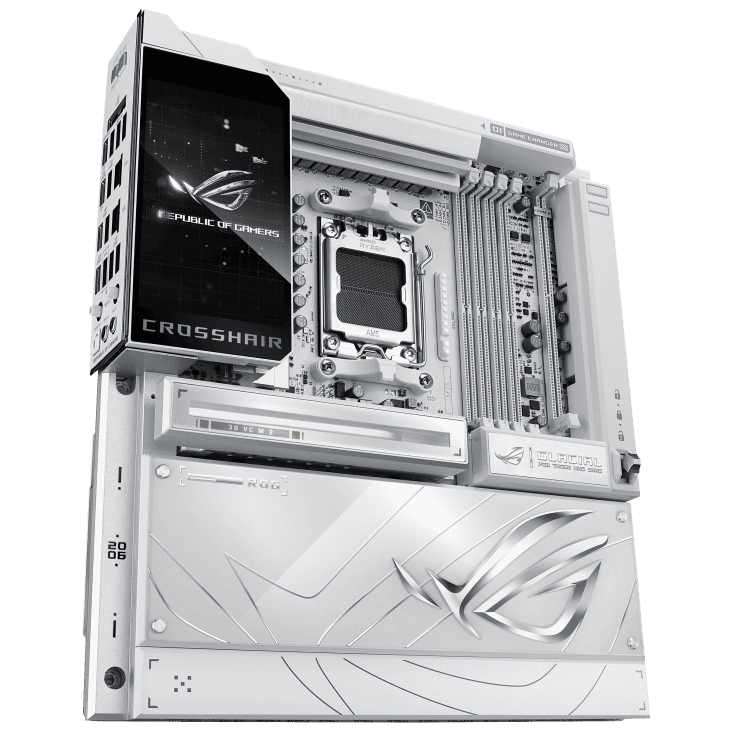

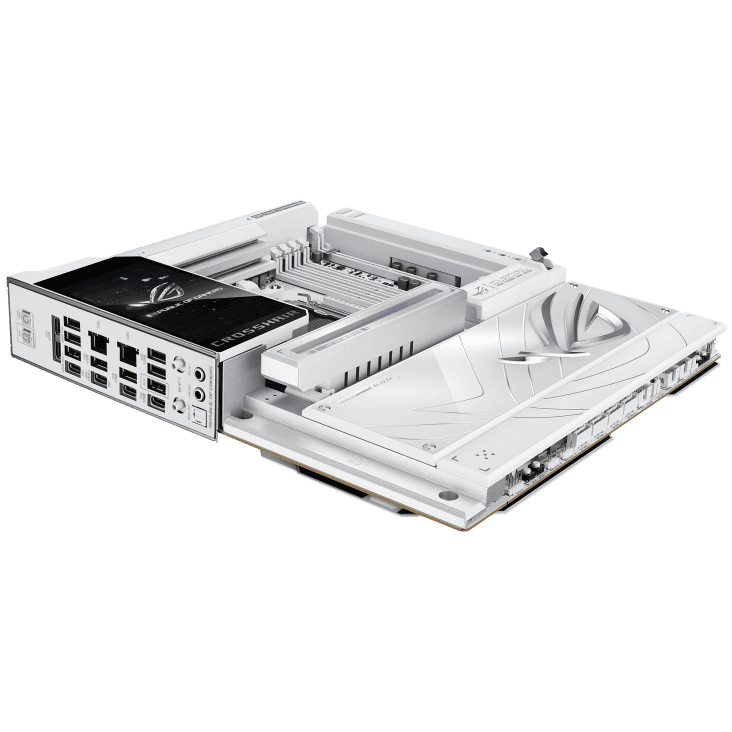

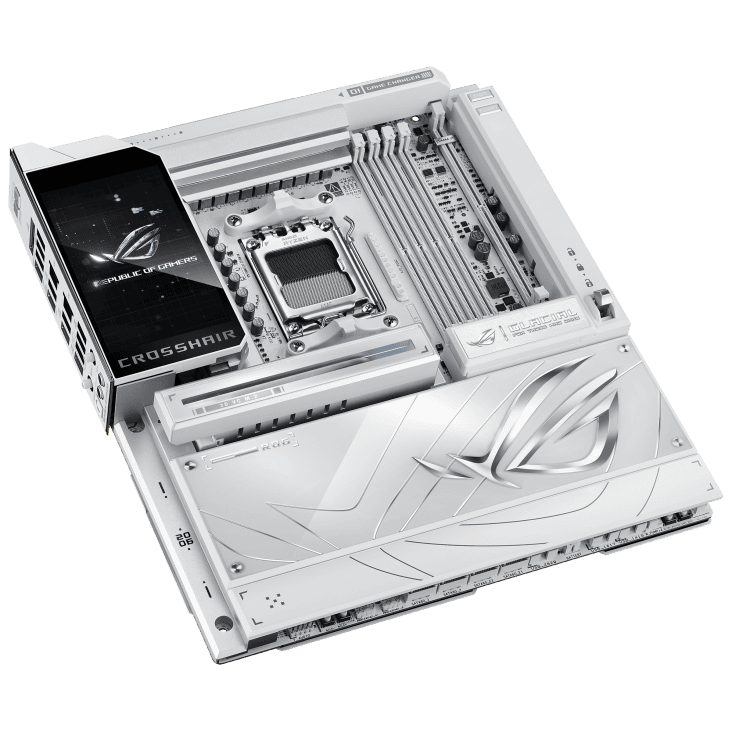

ASUS ROG CROSSHAIR X870E GLACIAL WHITE Mainboard

ASUS ROG CROSSHAIR X870E GLACIAL WHITE Mainboard

Giá: Giá gốc là: 39.990.000 VNĐ.Giá hiện tại là: 29.990.000 VNĐ.

ASUS ROG Crosshair X870E Glacial – Flagship Mainboard AM5

Mainboard AM5 cao cấp với thiết kế sang trọng, USB4, dual 10G LAN, 7 khe M.2, tối ưu ép xung và kết nối hiện đại.

Hiệu năng & Overclocking: 24+2+2 (110A) cấp điện ổn định, ép xung tối ưu; Dynamic OC Switcher ép xung thông minh; NitroPath DRAM hỗ trợ DDR5 đến 9600 MHz.

Lưu trữ: 7 khe M.2 PCIe 5.0 cho SSD tốc độ cao; 3D VC heatsink tản nhiệt hiệu quả.

Kết nối: Dual 10G LAN mạng siêu nhanh; 2 USB4 (40Gbps) hỗ trợ Thunderbolt; 2 USB-C 20Gbps front tiện lợi; USB 3.2 Gen 2 cho ngoại vi tốc độ cao.

Thiết kế & Trải nghiệm: LCD 5 inch hiển thị hệ thống; Glacial trắng bạc sang trọng; AI Advisor tối ưu cấu hình.

Khả năng mở rộng: 2 PCIe 5.0 x16 cho GPU thế hệ mới; hỗ trợ tối đa 256GB DDR5 dung lượng lớn.

Cho phép đặt hàng trước

Mô tả
Thông tin bổ sung

OVERVIEW

TECHSPEC

WARRANTY

OVERVIEW

TECHSPEC

WARRANTY

ROG X870E Glacial là bo mạch chủ cao cấp được thiết kế để mang lại hiệu năng vượt trội và trí tuệ nhân tạo (AI) tiên tiến. Nó sở hữu thiết kế nguồn 24+2+2 mạnh mẽ, Dynamic OC Switcher và Core Flex cho khả năng điều khiển ép xung thế hệ mới. Trong khi đó, khả năng tinh chỉnh bộ nhớ nâng cao được mở khóa thông qua công nghệ tăng cường DRAM cấp máy chủ và công nghệ NitroPath DRAM, và khả năng lưu trữ được mở rộng với hỗ trợ tối đa bảy ổ M.2. Khả năng kết nối hàng đầu bao gồm hai cổng Ethernet 10G, hai cổng USB4^® và hai đầu nối USB Type-C^® 20Gbps ở mặt trước. Bo mạch chủ này cũng có tản nhiệt 3D VC M.2 và màn hình LCD 5 inch, cùng với AI Cache Boost và AI Advisor để tinh chỉnh hệ thống thông minh hơn, trực quan hơn.

Teamed Power Solution

AI Cache Boost

ASUS AI Advisor

Ép xung
Tăng hiệu năng dễ dàng

AI Cooling II
Tinh chỉnh quạt chỉ với một cú nhấp

DDR5
Hỗ trợ tối đa 256 GB, Tăng cường DRAM cấp máy chủ, Công nghệ NitroPath DRAM, AEMP.

ROG Memory Q-Fan

Hỗ trợ toàn diện Gen 5
2 khe M.2 tích hợp và 2 khe PCIe 5.0 x16

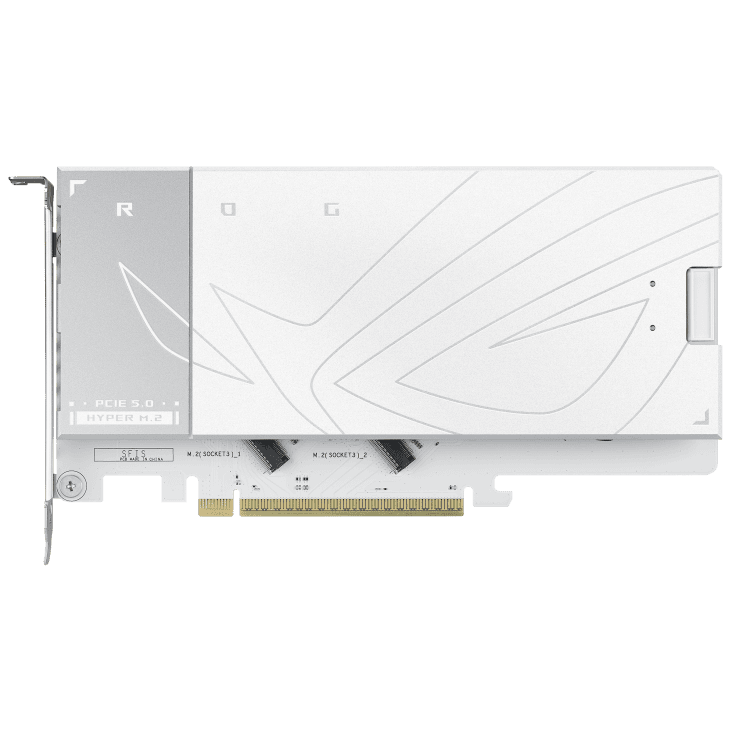

ROG Hyper M.2 Card

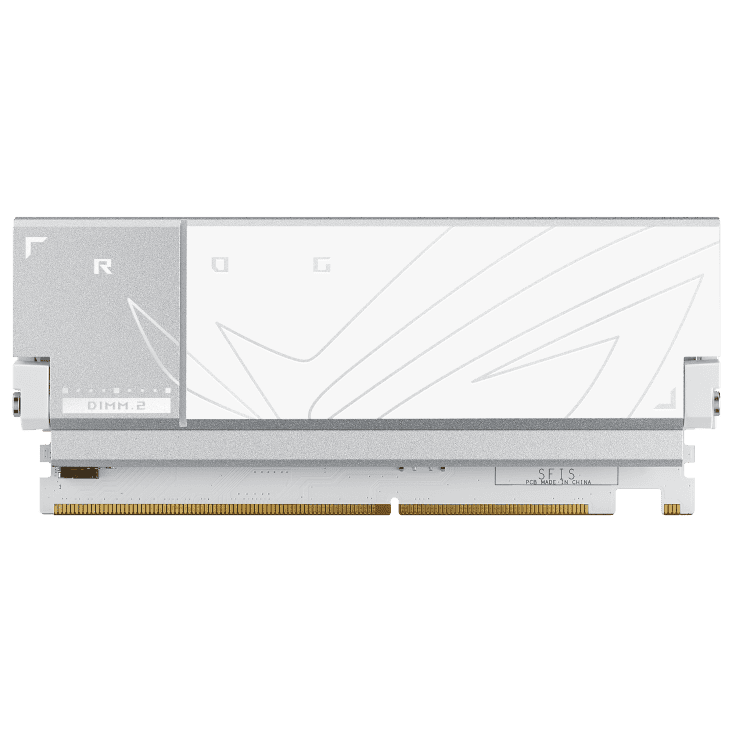

ROG Q-DIMM.2
x4 M.2 Slots

WIFI 7

3D VC M.2 Heatsink

EZ PC DIY

Màn hình LCD 5” hiển thị đầy đủ

USB4^®

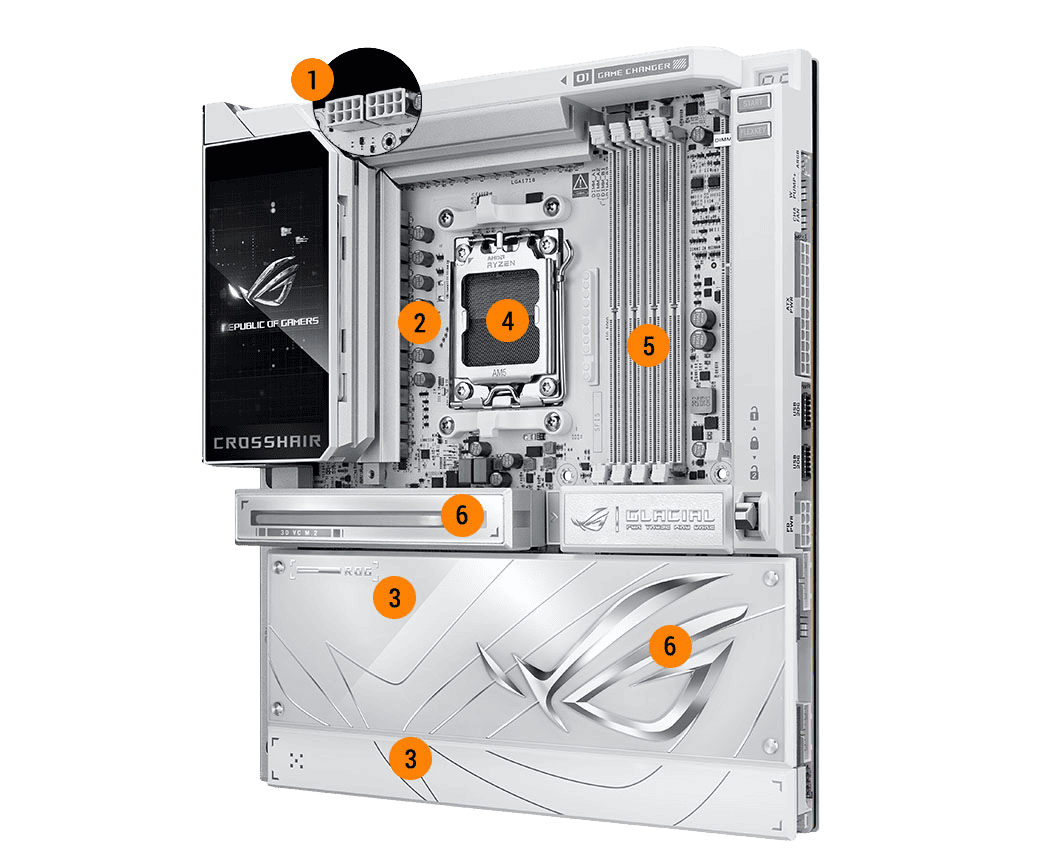

Sức mạnh & hiệu năng cực đỉnh

DUAL PROCOOL II POWER CONNECTORS

24(110A)+2(110A)+2(80A) POWER STAGES

EXPANSION SLOTS
・ 2 x PCIe 5.0 x16 Slots

AMD AM5 SOCKET
Hỗ trợ CPU AMD Ryzen™ 9000/8000/7000 Series

DDR5, 4 X DIMM
・ Tối đa 256GB
・ Kênh đôi

7 x M.2 SLOTS
・ 1 x M.2 2280 (PCIe 5.0 x4)
・ 1 x M.2 2280 (PCIe 4.0 x4)
・ 2 x M.2 22110 (PCIe 5.0 x4) (thông qua ROG Hyper M.2 Card)
・ 2 x M.2 22110 (PCIe 4.0 x4/x2) (thông qua ROG Q-DIMM.2)

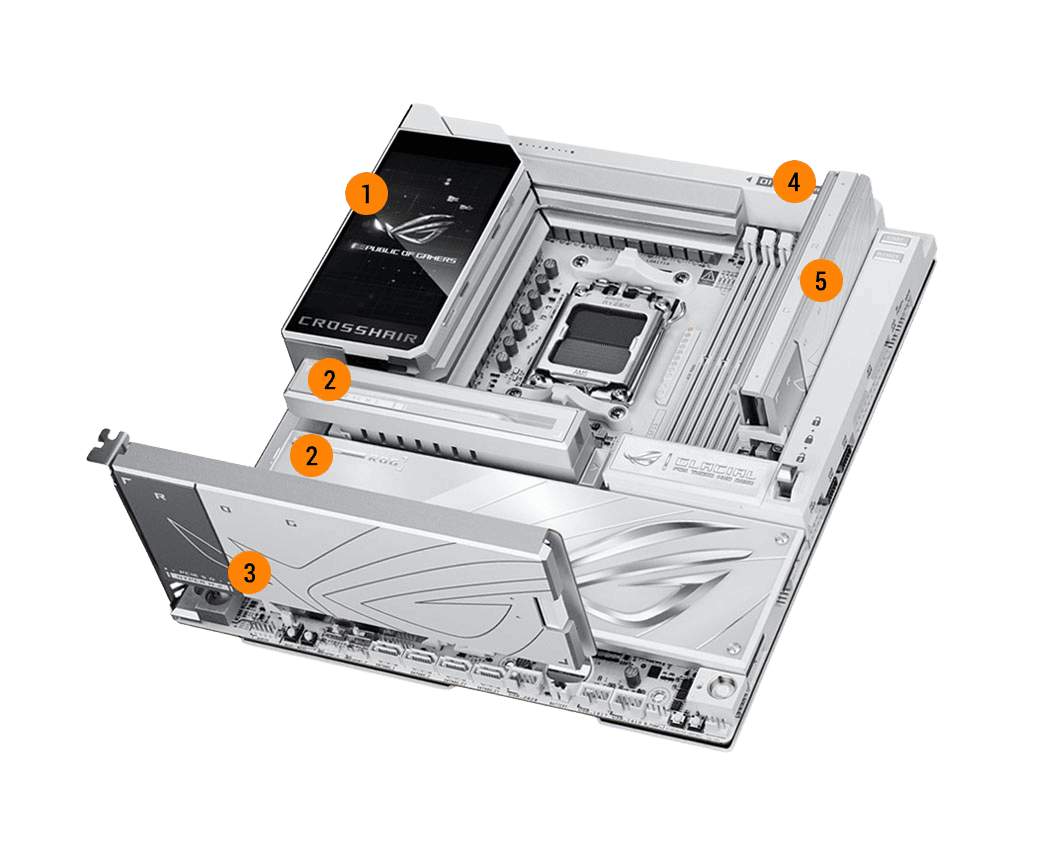

Giải pháp tản nhiệt toàn diện

Nắp che I/O tích hợp & tản nhiệt VRM

Tản nhiệt cho 3 khe M.2

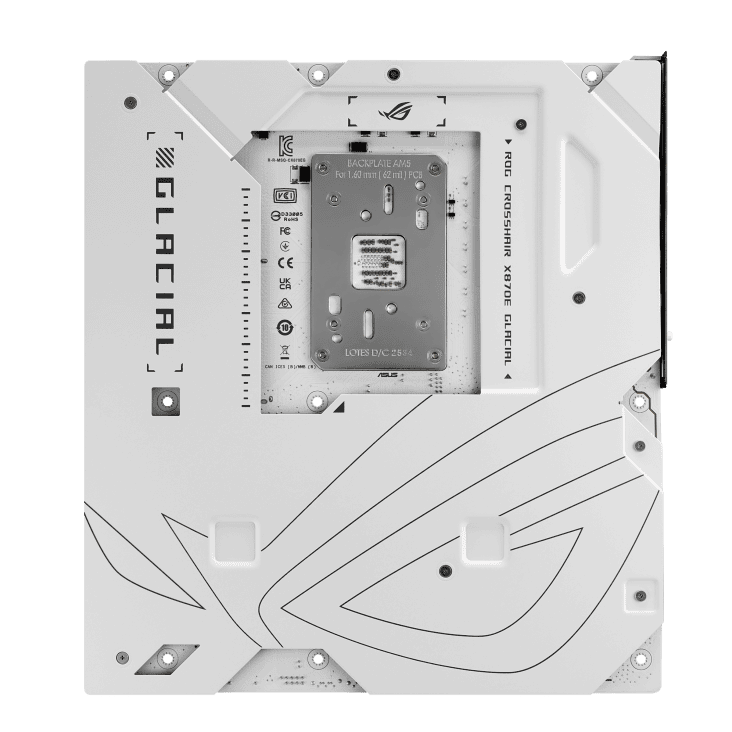

Kèm theo backplate và miếng tản nhiệt

Tản nhiệt ROG Hyper M.2

Hỗ trợ nhiều đầu quạt PWM 4-pin

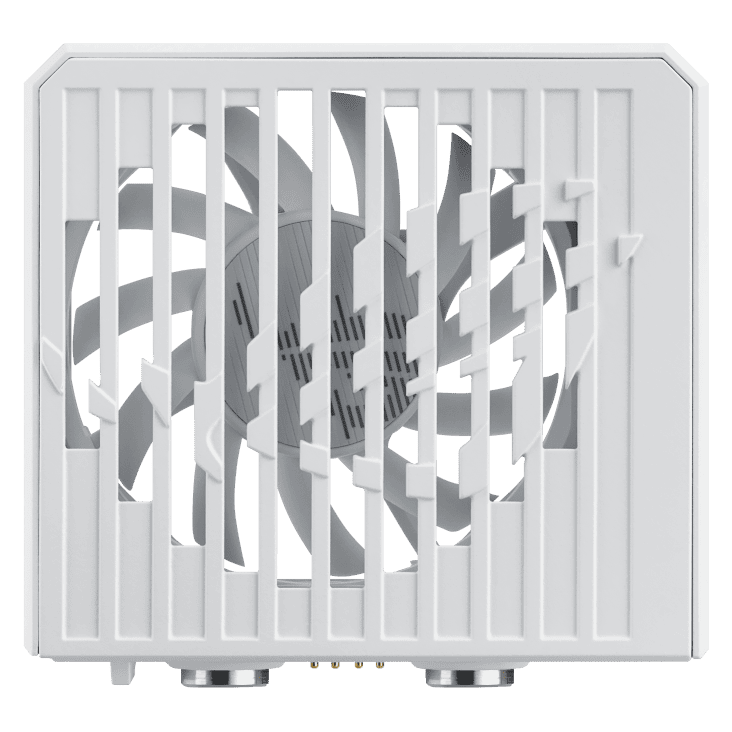

Tản nhiệt ROG Q-DIMM.2

Đắm chìm trọn vẹn trong game

immersion m

Màn hình LCD 5” hiển thị màu toàn phần

SUPREMEFX 7.1 ALC4082 AUDIO CODEC
・ Bộ DAC ESS® ES9219 Quad
・ Ngõ ra stereo với SNR 120 dB
・ Ngõ vào ghi âm với SNR 110 dB
・ Cổng âm thanh có đèn LED
Dolby Atmos

1 đầu cắm ARGB Gen2 6-pin hỗ trợ 2 đầu ARGB Gen2

2 đầu ARGB Gen2 (3-pin)

Giải pháp tản nhiệt toàn diện

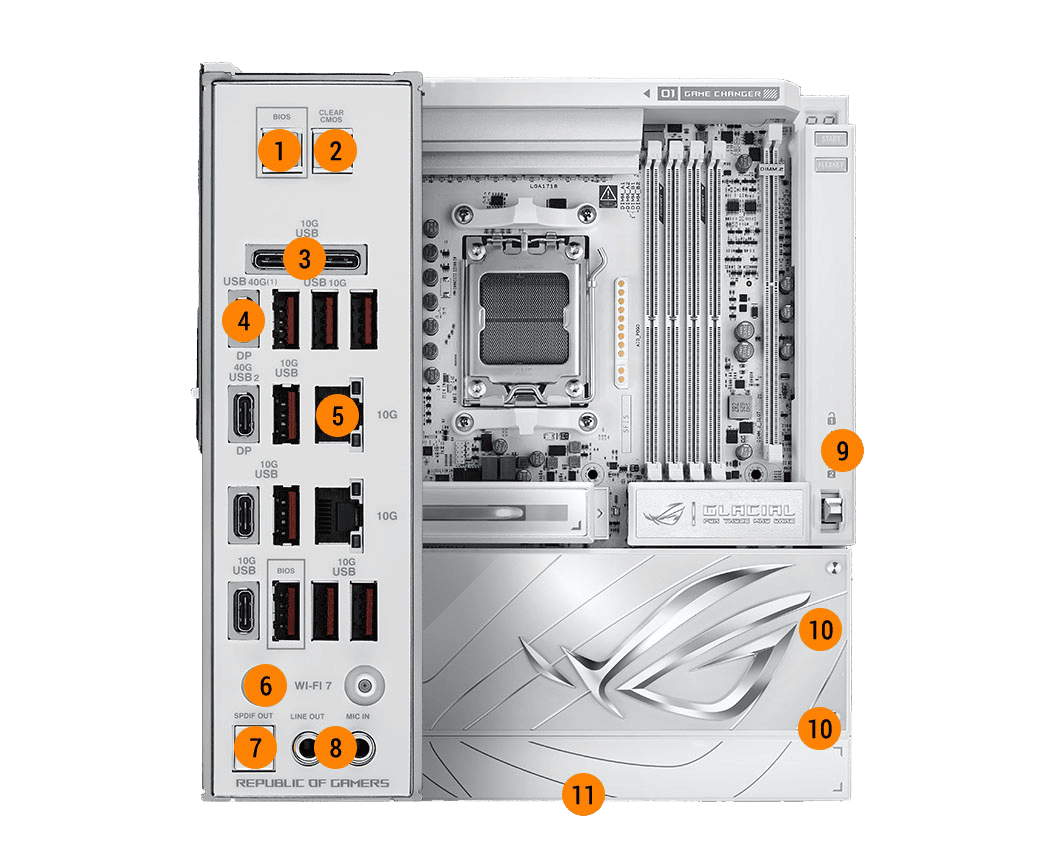

BIOS FLASHBACK™ BUTTON

CLEAR CMOS BUTTON

CỔNG 12 X USB 10Gbps
(4 x USB Type-C + 8 x Type-A)

2 CỔNG USB4 (40Gbps)

2 CỔNG Realtek 10G Ethernet

WI-FI 7

OPTICAL S/PDIF OUT

2 cổng âm thanh có đèn LED

2 CỔNG USB 20Gbps
cổng USB Type‑C® mặt trước hỗ trợ QC4+

2 ĐẦU USB 5Gbps
hỗ trợ thêm 4 cổng USB 5Gbps

4 CỔNG SATA 6Gb/s

Sức mạnh & hiệu năng cực đỉnh

DUAL PROCOOL II POWER CONNECTORS

24(110A)+2(110A)+2(80A) POWER STAGES

EXPANSION SLOTS
・ 2 x PCIe 5.0 x16 Slots

AMD AM5 SOCKET
Hỗ trợ CPU AMD Ryzen™ 9000/8000/7000 Series

DDR5, 4 X DIMM
・ Tối đa 256GB
・ Kênh đôi

Giải pháp tản nhiệt toàn diện

Nắp che I/O tích hợp & tản nhiệt VRM

Tản nhiệt cho 3 khe M.2
Kèm theo backplate và miếng tản nhiệt

Tản nhiệt ROG Hyper M.2

Hỗ trợ nhiều đầu quạt PWM 4-pin

Tản nhiệt ROG Q-DIMM.2

Đắm chìm trọn vẹn trong game

immersion m

Màn hình LCD 5” hiển thị màu toàn phần

SUPREMEFX 7.1 ALC4082 AUDIO CODEC
・ Bộ DAC ESS® ES9219 Quad
・ Ngõ ra stereo với SNR 120 dB
・ Ngõ vào ghi âm với SNR 110 dB
・ Cổng âm thanh có đèn LED
Dolby Atmos

1 đầu cắm ARGB Gen2 6-pin hỗ trợ 2 đầu ARGB Gen2

2 đầu ARGB Gen2 (3-pin)

Giải pháp tản nhiệt toàn diện

BIOS FLASHBACK™ BUTTON

CLEAR CMOS BUTTON

CỔNG 12 X USB 10Gbps
(4 x USB Type-C + 8 x Type-A)

2 CỔNG USB4 (40Gbps)

2 CỔNG Realtek 10G Ethernet

WI-FI 7

OPTICAL S/PDIF OUT

2 cổng âm thanh có đèn LED

2 CỔNG USB 20Gbps
cổng USB Type‑C® mặt trước hỗ trợ QC4+

2 ĐẦU USB 5Gbps
hỗ trợ thêm 4 cổng USB 5Gbps

4 CỔNG SATA 6Gb/s

SPECIFICATION

Model

ROG CROSSHAIR X870E GLACIAL

News & Updates

Please visit our GLOBAL website to check and download the latest updates.

CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.

Chipset

AMD X870 Chipset

Memory

4 x DIMM slots, max. 256GB, DDR5
Supports up to
8600+MT/s(OC)**/8200+MT/s(OC)*** with Ryzen™ 9000 Series Processors,
9600+MT/s(OC)**/9200+MT/s(OC)*** with Ryzen™ 8000 Series Processors,
8000+MT/s(OC)**/8000+MT/s(OC)*** with Ryzen™ 7000 Series Processors,
ECC and Non-ECC, Un-buffered DIMM*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
Supports DIMM Fit and DIMM Fit Pro
ASUS Enhanced Memory Profile (AEMP)
NitroPath DRAM Technology
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
** Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Passed AIDA64 memory benchmark at this frequency, verifying read/write bandwidth. Results may vary according to system components.
*** XMP/EXPO/AEMP Profiles: Rated memory module speeds require setting the BIOS perormance profile. Results may vary according to system components and can be impacted when four DIMM slots are used. For XMP/EXPO/AEMP profile settings, please visit https://rog.asus.com/support/faq/1042256/

Graphics

2 x USB4® (40Gbps) ports support USB Type-C® display outputs**
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
*** The display function of the Type-C® port depends on the resolution supported by your processor or graphics card. For more details, please refer to the product manual.

Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
2 x PCIe 5.0 x16 slots with PCIe Q-Release Switch (supports x16 or x8/x8 or x8/x4/x4 modes)**
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*
2 x PCIe 4.0 x16 slots with PCIe Q-Release Switch (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will run at PCIe 3.0 x4)
AMD Ryzen™ 8500 & 8300 Series Desktop Processors*
2 x PCIe 4.0 x16 slots with PCIe Q-Release Switch (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will run at PCIe 3.0 x4)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
* Specifications vary by CPU types.
** When PCIEX16_1 runs at PCIe 5.0 x16, PCIEX16_2 will run at PCIe 3.0 x4. The bandwidth can be altered in the BIOS.
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported

Storage

Supports up to 7 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2230/2242/2260/2280/22110 (suppports PCIe 5.0 x4 mode)
Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2230/2242/2260/2280/22110 (suppports PCIe 5.0 x4 mode)
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**
AMD Ryzen™ 8500 & 8300 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
AMD X870E Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x2 mode)
2 x SATA 6Gb/s ports
ASMedia ASM1162 Controller
2 x SATA 6Gb/s ports
* Specifications vary by CPU types.
** USB 40Gbps Type-C^® ports on the back panel and M.2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C^® ports.

RAID Support

AMD RAIDXpert2 Technology
Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10*
*SATA ports from ASM1162 cannot support RAID

Ethernet

2 x Realtek 10Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7 (MediaTek MT7927)
2×2 Wi-Fi 7* (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth
Bluetooth^® v5.4 (support LE Audio)***

*Wi-Fi features may vary depending on the operating system.
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor’s website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth^® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.

USB

Rear USB (Total 14 ports)
2 x USB4^® (40Gbps) ports (2 x USB Type-C^®)
12 x USB 10Gbps ports (8 x Type-A + 4 x USB Type-C^®)
Front USB (Total 12 ports)
1 x USB 20Gbps connector (supports USB Type-C^® with up to 60W PD/QC4+)*
1 x USB 20Gbps connector (supports USB Type-C^®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
USB Type-C^® power delivery output: max. 5V/3A
*USB Type-C^® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082**
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
– High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
– SupremeFX Shielding Technology
– ESS^® ES9219 QUAD DAC
– LED-illuminated audio jacks
– Rear optical S/PDIF out port- Premium audio capacitors
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

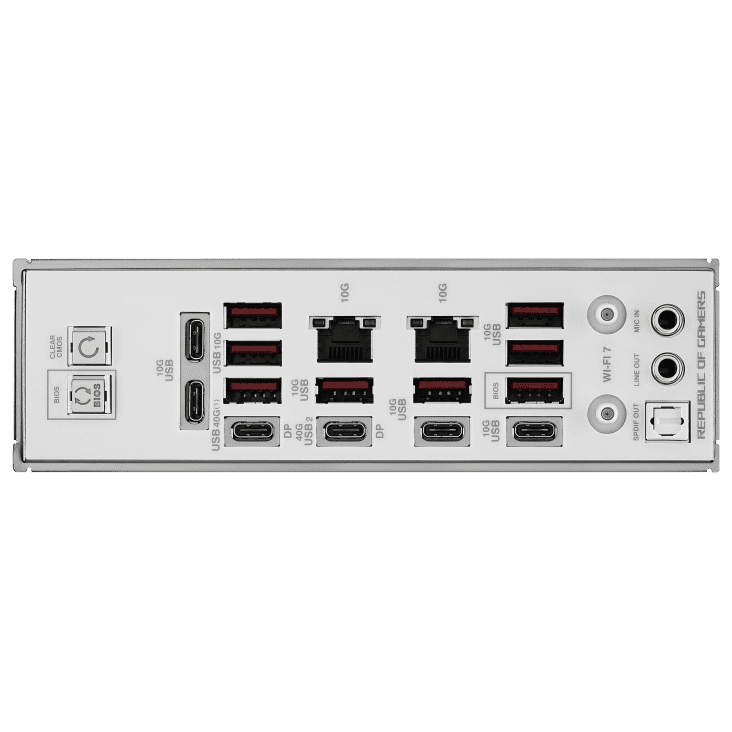

Back Panel I/O Ports

2 x USB4^® (40Gbps) ports (2 x USB Type-C^®)
12 x USB 10Gbps ports (8 x Type-A + 4 x USB Type-C^®)
1 x Wi-Fi Module2 x Realtek 10Gb Ethernet ports
2 x LED-illuminated audio jacks1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
2 x 4-pin Radiator Fan headers
2 x W_PUMP+ headers
1 x AIO Q-Connector
1 x Extra Flow Fan header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M)
1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 20Gbps connector (supports USB Type-C^®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Miscellaneous
1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
2 x Addressable Gen 2 header
1 x Alteration PCIe mode switch
2 x BCLK button
1 x BIOS Switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x LN2 Mode jumper
12 x ProbeIt Measurement Points
1 x ReTry button
1 x RSVD header
1 x Safe Boot button
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header

Special Features

Extreme OC Kit
– FlexKey button
– LN2 Mode
– ProbeIt
– ReTry button
– Safe boot button
– Start button
Extreme Engine Digi+
– 10K Black Metallic Capacitors
– MicroFine Alloy Choke
ASUS Q-Design
– M.2 Q-Latch
– M.2 Q-Release
– M.2 Q-Slide
– PCIe Q-Release Switch (with PCIe SafeSlot)
– Q-Antenna
– Q-Code
– Q-Connector
– Q-Dashboard
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-DIMM.2
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– Metal backplate
– VRM heatsink design
– 3D VC M.2 Heatsink
– ROG Memory Q-Fan
ASUS EZ DIY
– Backplate
– BIOS FlashBack™ button
– Clear CMOS button
– CPU Socket lever protector
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Addressable Gen 2 headers
Dual BIOS
Full Color 5″ LCD Display
Front Panel USB 20Gbps with Quick Charge 4+ Support
– Support: up to 60W fast charging and USB Wattage Watcher*
– Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
– Compatible with PD3.0 and PPS
* To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.

Software Features

ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos
– LCD Display
– Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– GameFirst
– WiFi Q-Antenna
– MLO Wizard
ASUS DriverHub
– ASUS MB Manage
– ASUS AI Advisor
– AIDA64 Extreme (1 year full version)
– HWiNFO
– Turbo Vcore
– ASUS GlideX
– USB Wattage Watcher
WinRAR (40 Days Free Trial)
Adobe Creative Cloud (Free Trial)
UEFI BIOS
Integrated WiFi Driver Support
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
FlexKey
* For more software features, please visit the asus support site or refer to www.asus.com/support for additional information.
** For detailed information on the supported models and restricted regions for this redemption offer, please refer to https://www.asus.com/content/asus-offers-adobe-creative-cloud/.

BIOS

2 x 512 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME

Accessories

Cables
1 x 1-to-4 ARGB splitter cable
1 x 1-to-2 ARGB splitter cable
2 x 1-to-3 fan splitter cable
2 x ROG weave SATA 6G cable packages
ROG Hyper M.2 Card with Heatsink
1 x ROG Hyper M.2 with heatsink
1 x M.2 pad package for ROG Q-DIMM.2
2 x Thermal pad for ROG Hyper M.2 Card
ROG Q-DIMM.2 with Heatsink
1 x ROG DIMM.2 with heatsink
1 x M.2 pad package for ROG Q-DIMM.2
2 x Thermal pad for ROG Q-DIMM.2
Additional Cooling Kit
1 x Thermal pad for M.2 22110
1 x ROG Memory Q-Fan
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x ROG logo plate sticker
1 x ROG stickers
1 x ROG VIP card
1 x M.2 Q-Slide package
7 x M.2 backplate rubber packages
1 x ROG Bottle Opener
Documentation
1 x Quick start guide

Operating System

Windows^® 11

Form Factor

E-ATX Form Factor
12 inch x 10.9 inch (30.5 cm x 27.7 cm)

Bảo Hành

Bảo hành chính hãng 36 Tháng

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
The use of trademark symbol (TM, ®) appears on this website means that the word text, trademarks, logos or slogans, is being used as trademark under common laws protection and/or registered as Trademark in U.S. and/or other country/region.
WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.
The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI
Trade dress and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
Learn more about battery usage, removal, replacement, and related safety guidelines
**Product specifications and battery design may vary depending on the model. For any questions, please contact ASUS official customer service.
Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada.
Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
Specifications and features vary by model, and all images are illustrative.
Please refer to specification pages for full details.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.
Unless otherwise stated, all performance claims are based on theoretical performance. Actual figures may vary in real-world situations.
The actual transfer speed of USB 3.0, 3.1, 3.2, and/or Type-C will vary depending on many factors including the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment.

SPECIFICATION

Model

ROG CROSSHAIR X870E HERO BTF

News & Updates

Please visit our GLOBAL website to check and download the latest updates.

CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.

Chipset

AMD X870 Chipset

Memory

4 x DIMM slots, max.256GB, DDR5
Supports up to
8200+MT/s(OC) with Ryzen™ 9000 Series Processors,
8600+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
Supports DIMM Fit and DIMM Fit Pro
NitroPath DRAM Technology
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x4/x4 modes**)
**When M.2_2 is enabled, PCIEX16_1 will run x8 mode, and M.2_3 will run x4.
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*
1 x PCIe 4.0 x16 slots with Q-Release Slim (Total bandwidth for x8)
AMD Ryzen™ 8500 & 8300 Series Desktop Processors*
1 x PCIe 4.0 x16 slot with Q-Release Slim (Total bandwidth for x4)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported
AMD X870E Chipset
1 x PCIe 4.0 x4 slot

Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8** or x8/x4/x4 modes***)
** When you use both PCIEX16_1 and PCIEX16_2, PCIEX16_1 and PCIEX16_2 will run x8.
***When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4.
AMD Ryzen™ 8700/8600 Series Desktop Processors*
2 x PCIe 4.0 x16 slots (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled)
AMD Ryzen™ 8500/8300 Series Desktop Processors*
2 x PCIe 4.0 x16 slots (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported

Storage

Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)
AMD X870E Chipset
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* When M.2_2 is enabled, PCIEX16_1 will run x8 mode, and M.2_3 will run x4.

RAID Support

AMD RAIDXpert2 Technology*
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
* Specifications vary by CPU types.

Ethernet

1 x Intel^® 2.5Gb Ethernet
1 x Realtek 5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7 (MediaTek MT7927)
2×2 Wi-Fi 7* (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth
Bluetooth^® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor’s website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth^® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.

USB

Rear USB (Total 10 ports)
2 x USB4^® (40Gbps) ports (2 x USB Type-C^®)
8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C^®)
Front USB (Total 10 ports)
2 x USB 20Gbps connector (supports USB Type-C^®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C^® power delivery output: max. 5V/3A

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
– High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
– SupremeFX Shielding Technology
– ESS^® ES9219 QUAD DAC
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Back Panel I/O Ports

2 x USB4^® (40Gbps) ports (2 x USB Type-C^®)
8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C^®)
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel^® 2.5Gb Ethernet port
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x Graphics card high power slot
1 x 12V-2X6 Auxiliary power connector
Storage Related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 20Gbps connectors (support USB Type-C^® )
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Alteration PCIe mode switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header

Special Features

Extreme OC Kit
– FlexKey button
– Start button
Extreme Engine Digi+
– 10K Black metallic capacitors
– MicroFine alloy choke
ASUS Q-Design
– M.2 Q-Latch
– M.2 Q-Release
– M.2 Q-Slide
– Q-Release Slim (with PCIe SafeSlot)
– Q-Antenna
– Q-Code
– Q-Connector
– Q-Dashboard
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– VRM heatsink design
– Metal backplate
ASUS EZ DIY
– Backplate
– BIOS FlashBack™ button
– Clear CMOS button
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Addressable Gen2 header(s)

Software Features

ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos
– Internet Security (1-year full version)
– Polymo Lighting II
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (1 year full version)
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– GameFirst
– HWiNFO
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
TurboV Core
WinRAR (40 Days Free Trial)
Adobe Creative Cloud (Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
FlexKey

BIOS

256Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME

Accessories

Cables
1 x ARGB RGB extension cable
4 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
2 x M.2 Q-Latch package
3 x M.2 Q-Slide package
5 x M.2 rubber package
1 x ROG stickers
1 x ROG thank you card
1 x ROG Bottle Opener
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x Quick start guide

Operating System

Windows^® 11

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Bảo Hành

Bảo hành chính hãng 36 Tháng

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
The use of trademark symbol (TM, ®) appears on this website means that the word text, trademarks, logos or slogans, is being used as trademark under common laws protection and/or registered as Trademark in U.S. and/or other country/region.
WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.
The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI
Trade dress and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
Learn more about battery usage, removal, replacement, and related safety guidelines
**Product specifications and battery design may vary depending on the model. For any questions, please contact ASUS official customer service.
Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada.
Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
Specifications and features vary by model, and all images are illustrative.
Please refer to specification pages for full details.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.
Unless otherwise stated, all performance claims are based on theoretical performance. Actual figures may vary in real-world situations.
The actual transfer speed of USB 3.0, 3.1, 3.2, and/or Type-C will vary depending on many factors including the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment.

Mainboard Socket	AMD Socket AM5
Mainboard Chipset	AMD X870
Mainboard Form Factor	E-ATX (12×10.9)
Mainboard Memory Type	DDR5
Mainboard Memory Slot	4
Mainboard Graphics Interface	PCIe 5.0
Mainboard M.2 SSD Slots	>5 x M.2
Mainboard USB	USB 4®, USB Type-A, Front USB Type-C, USB 2.0, USB 3.2 GEN 2, USB 3.2 GEN 2×2
Mainboard Networking	10GbE LAN, Wi-Fi 7
