Inside the Box
Active Speaker (Left)
1
Passive Speaker (Right)
1
Speaker Wire
1
3.5 mm Cable
2
L/R RCA Cable
1
Power Supply
1
DIMENSIONS
- Height: 7.32 in (186 mm)
- Width: 4.53 in (115 mm)
- Depth: 6.26 in (159 mm)
- Weight (Active / Left): 3.5 lb (1.6 kg)
- Weight (Passive / Right): 3.4 lb (1.5 kg)
GENERAL
- Speaker Type: Active (Powered)
- Enclosure Type: Rear Ported
- Enclosure Material: Medium-Density Fiberboard (MDF)

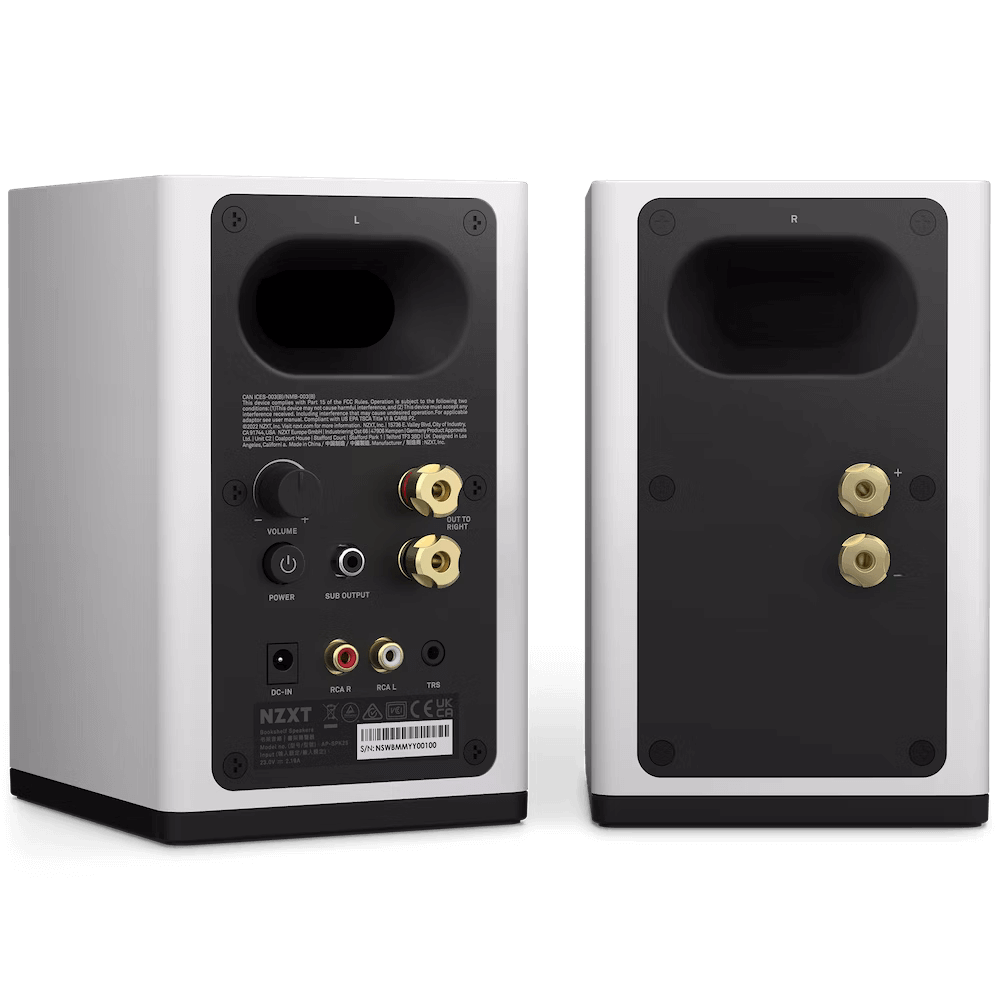

I/O
- Inputs: RCA, TRS
- Outputs: Subwoofer, speaker terminals
AUDIO
- Amplifier: Class D
- Signal-to-Noise Ratio (SNR): 110 dB
- Total Harmonic Distortion (THD): <1% @ 1 kHz
- Crossover Frequency: 1,600 Hz
- Frequency Response: 70 Hz – 20 kHz
- Nominal Impedance (Tweeter): 12 ohm ± 15%
- Nominal Impedance (Woofer): 8 ohm ± 15%
- Input Sensitvity: 20 W = 0.5 VRMS
POWER
- Power Output: 80 W peak (40 W per speaker)
- Standby Consumption: 0.3 W
- Input Voltages: 20W = 0.5VRMS
