MSI MEG Z590 GODLIKE Mainboard

Name: MSI MEG Z590 GODLIKE Mainboard
SKU: SKU
Rating: 5 (20 reviews)

Giá: Liên hệ

Supports 11th and 10th Gen Intel^® Core™ / Pentium^® Celeron^® processors for LGA 1200 socket
Supports DDR4 Memory, up to 5600(OC) MHz
Extreme Power Design: INTERSIL digital PWM, direct 20 phases with 90A Smart Power Stage, Titanium Choke III and dual CPU power connectors to unleash the maximum performance.
Premium Thermal Module: Wavy fin design, 8mm heatpipe, 7W/mK thermal pads, Frozr Heatsink and Aluminum Backplate ensure the extreme performance with low temperature.
Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with one Lightning Gen 4 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Dynamic Dashboard II: Built-in colorful OLED screen panel indicates the status of GODLIKE and shows off your own personality.
Latest Network Solution: Onboard 10G Super LAN, Intel 2.5G LAN and latest Wi-Fi 6E solution deliver the best online experience without lag.
Full Armor Design: The revolutionary magnetic cover allow you showing off your PC building without messy cable when installing great amount of devices.

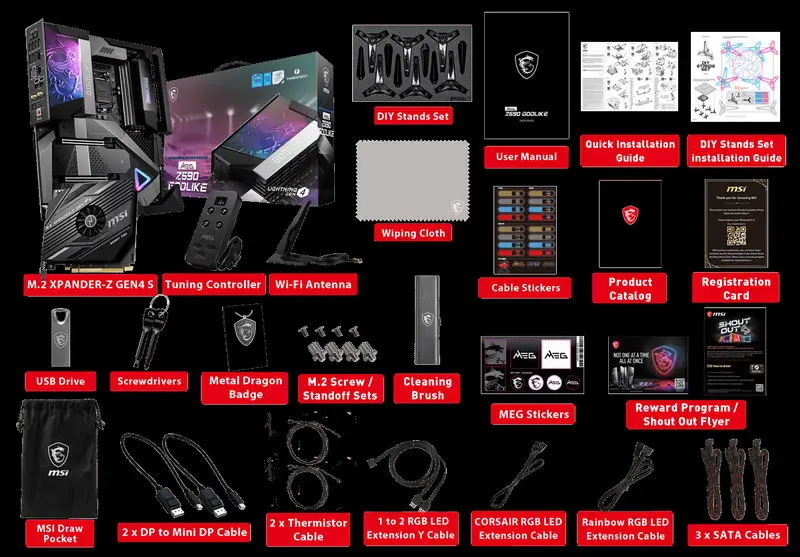

Special Accessory: Exclusive accessories boost the performance and user experience – M.2 XPANDER-Z GEN 4 S, Tuning Controller and DIY Stands set.

Mô tả
Thông tin bổ sung

Chi Tiết Kỹ Thuật
Chính sách bảo hành

CPU hỗ trợ	Supports 10th Gen Intel^® Core™ Processors, 11th Gen Intel^® Core™ Processors, Pentium^® Gold and Celeron^® processors ¹ Processor socket LGA1200
Chipset	Intel^® Z590 Chipset
Bộ nhớ trong	4x DDR4 memory slots, support up to 128GB ¹ Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel^® CPU (by JEDEC & POR) ¹ Max. overclocking frequency: 1DPC 1R Max speed up to 5600 MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC mode, un-buffered memory Supports Intel^® Extreme Memory Profile (XMP) Please refer www.msi.com for more information on compatible memory.
Thunderbolt 4	Intel^® JHL8540 Thunderbolt™ 4 Controller 2x Thunderbolt™ 4 (Type-C) ports on the back panel Support up to 40 Gbps transfer rate with Thunderbolt devices Support up to 20 Gbps transfer rate with USB4 devices Support up to 10Gbps transfer rate with USB 3.2 devices Support up to 5V/3A , 15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display (need to connect the DisplayPort of the motherboard or discrete graphics card to the Mini DisplayPort Input port on the back panel)
Hiển thị đồ họa
Hỗ trợ Multi-GPU	Supports 2-Way NVIDIA^® SLI™ Technology Supports 3-Way AMD^® CrossFire™ Technology
Khe mở rộng	3x PCIe x16 slots Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4, x8+x8/x0/x4, x8+(x4+x4)/x0/x4 PCI_E1 & PCI_E2 slots (From CPU) Support up to PCIe 4.0 for 11th Gen Intel^® CPU Support up to PCIe 3.0 for 10th Gen Intel^® CPU PCI_E3 slot (From Z590 chipset) ¹ Supports up to PCIe 3.0 PCI_E3 will run at x1 speed when installing device in M2_4 slot.
Chuẩn lưu trữ	6x SATA 6Gb/s ports (from Z590 chipset) 4x M.2 slots (Key M) M2_1 (from CPU) Available only on 11th Gen Intel^® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 ¹, M2_3 ² & M2_4 slots (from Z590 chipset) M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices M2_3 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_4 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices ³ Intel^® Optane™ Memory Ready Supports Intel^® Smart Response Technology for Intel Core™ processors ⁴ SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot. M2_4 will run at x2 speed when installing device in PCI_E3 slot. Before using Intel^® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
Mạng	1x Aquantia^® AQC107 10Gbps LAN controller 1x Intel^® I225-V 2.5Gbps LAN controller Intel^® WiFi-6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz ¹ (160MHz) up to 2.4Gbps Supports 802.11a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.2 ² , FIPS, FISMA Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1. Bluetooth 5.2 will be ready in WIN10 21H1.
Âm Thanh	Realtek^® ALC4082 Codec + ESS ES9218PQ Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output

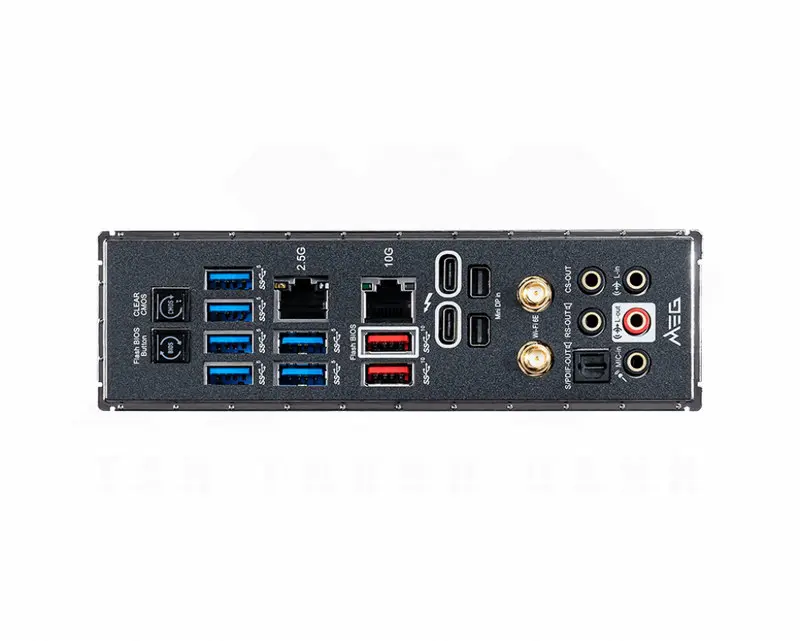

Kết nối ngoài	Clear CMOS Button 2.5G LAN 10G Super LAN Thunderbolt 4 40Gbps (Type-C) Wi-Fi / Bluetooth HD Audio Connectors Flash BIOS Button USB 3.2 Gen1 5Gbps (Type-A) USB 3.2 Gen2 10Gbps (Type-A) Mini DisplayPort Input (for Thunderbolt passthrough) Optical S/PDIF-Out
Kết nối trong	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin ATX PCIE power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 8x 4-pin system fan connectors 1x 3-pin Water Flow connector 1x Front panel audio connector 2x System panel connectors 1x Chassis intrusion connector 2x 2-pin Thermal sensors connectors 1x TPM module connector 1x Tuning controller connector
Kích thước	12 in. x 10.9 in. (30.5 cm x 27.7 cm) E-ATX Form Factor

Bảo hành 3 năm

Mainboard Socket	Intel Socket 1200
Mainboard Memory Slot	4
Mainboard Form Factor	E-ATX
Mainboard USB	USB 2.0, USB 3.2 GEN 1, USB 3.2 GEN 2
Mainboard Chipset	Intel Z590
Mainboard Graphics Interface	PCIe 3.0, PCIe 4.0
Mainboard M.2 SSD Slots	4 x M.2
Mainboard Networking	10GbE LAN, 2.5GbE LAN, Wi-Fi 6E/6
Mainboard Memory Type	DDR4
