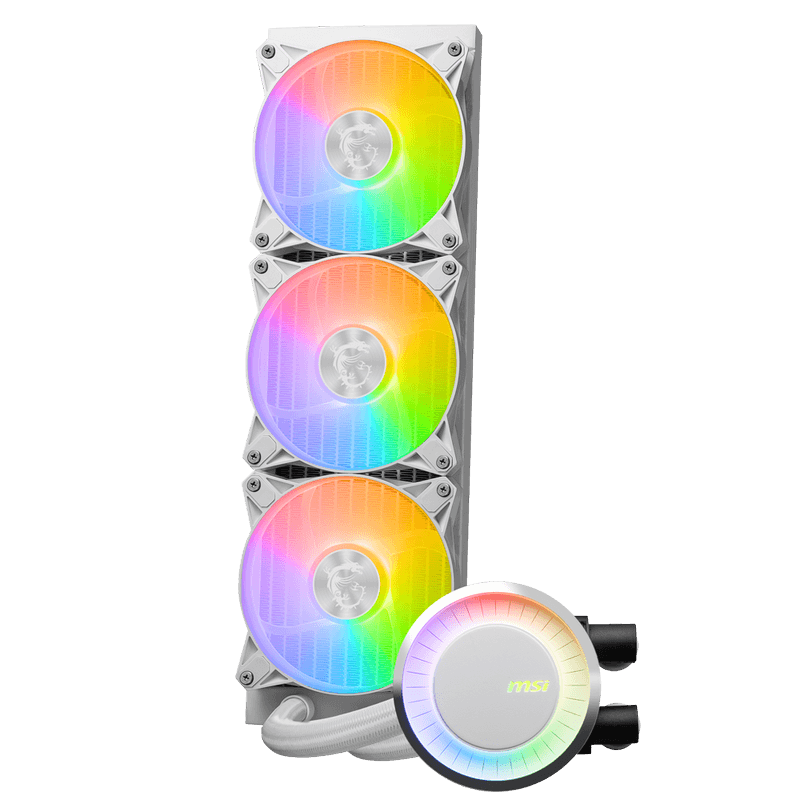

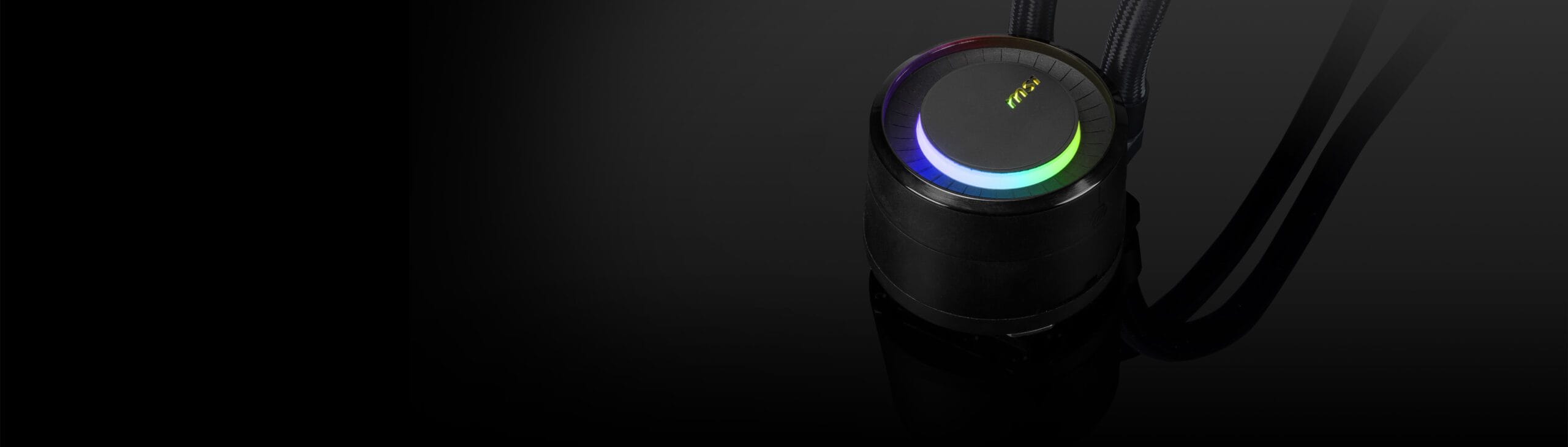

ROTATABLE BLOCKHEAD
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.

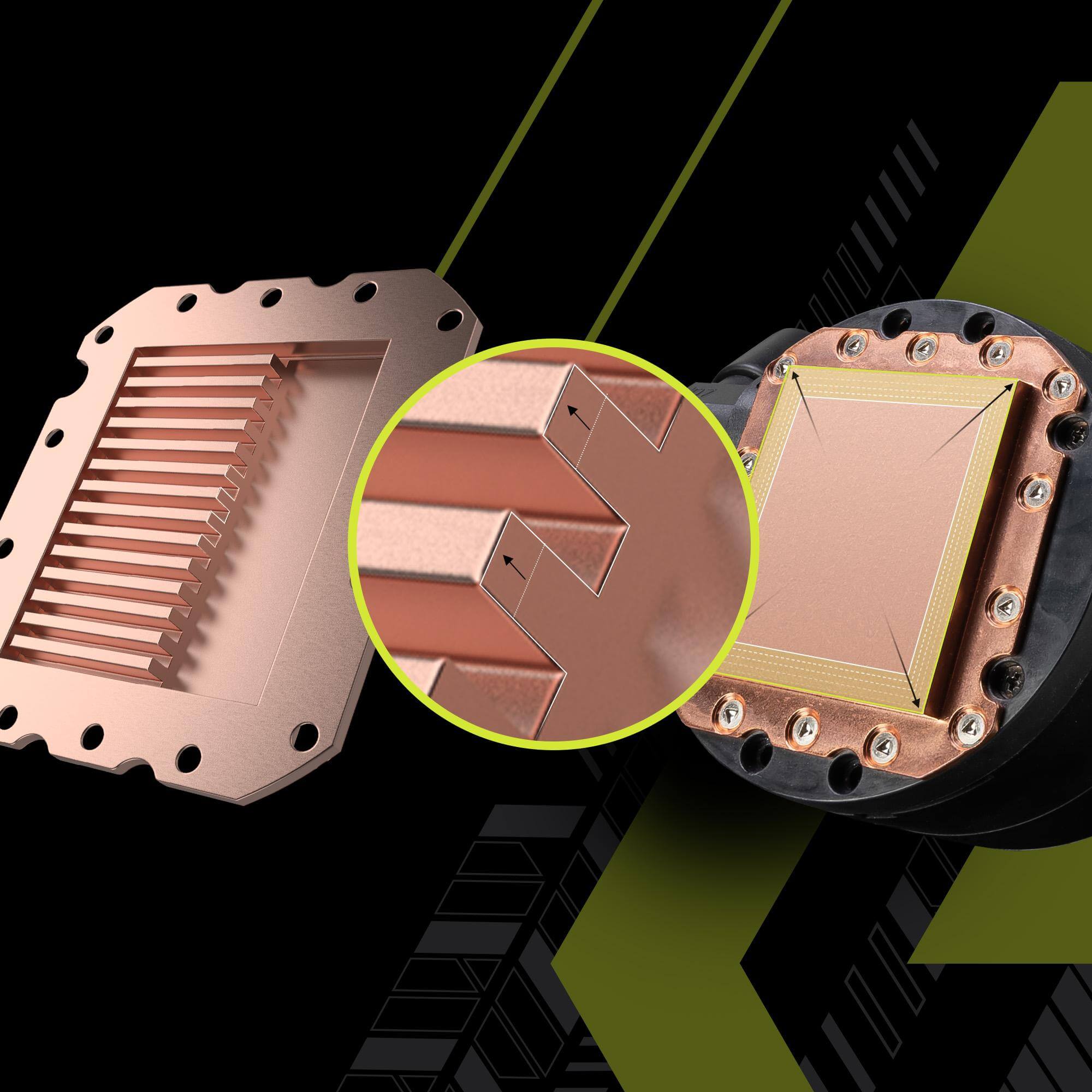

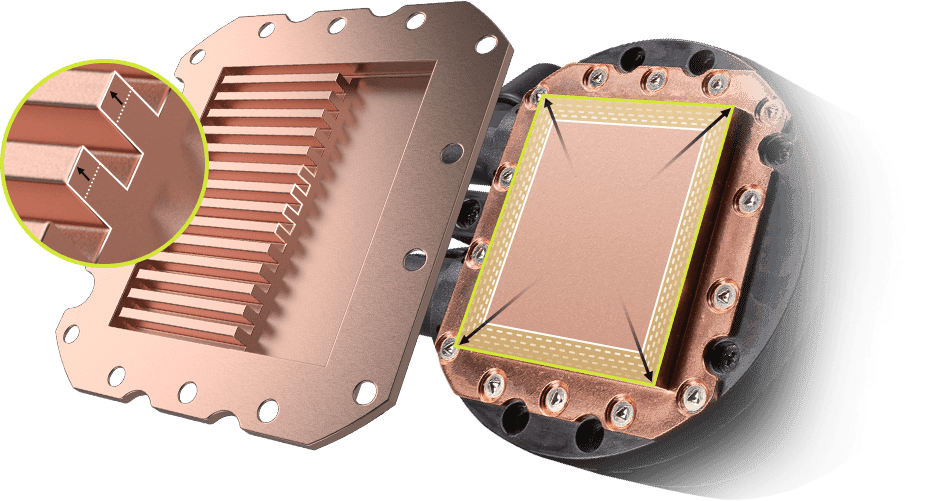

ACHIEVE FULL CPU COVERAGE
By enlarging the contact area between the coolant and the copper base of the water block, the MAG CORELIQUID E Series maximizes heat dissipation from the CPU. The enhanced density of the micro-channel design improves the efficiency of the water cooling system by enlarging the contact surface area.

PUMP COOLING DESIGN
Ensures that the cooled water temperature can be delivered to the desired location of the heat source, effectively reducing the temperature of the heat source.

PUMP MOTOR RESONANCE ELIMINATION

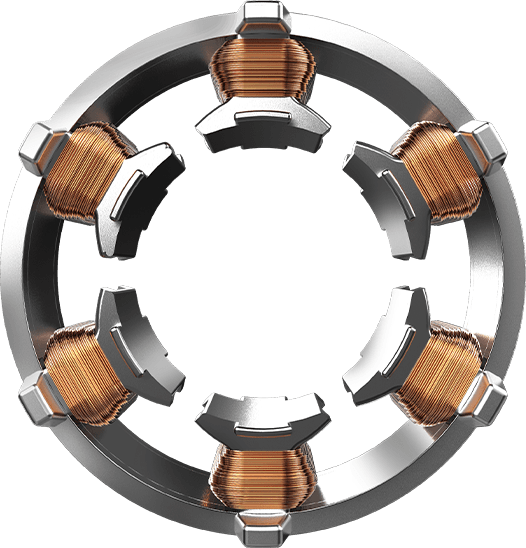

A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.

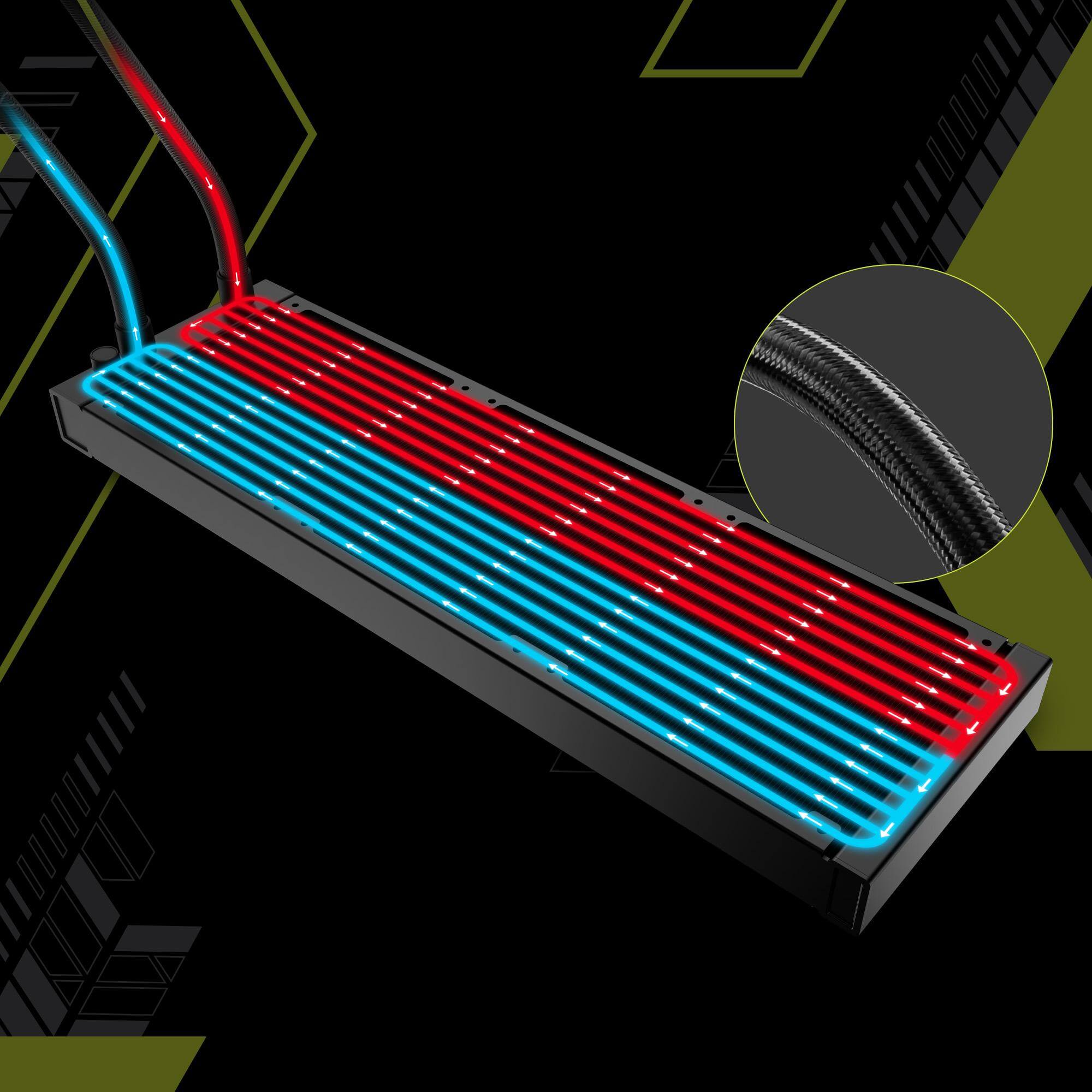

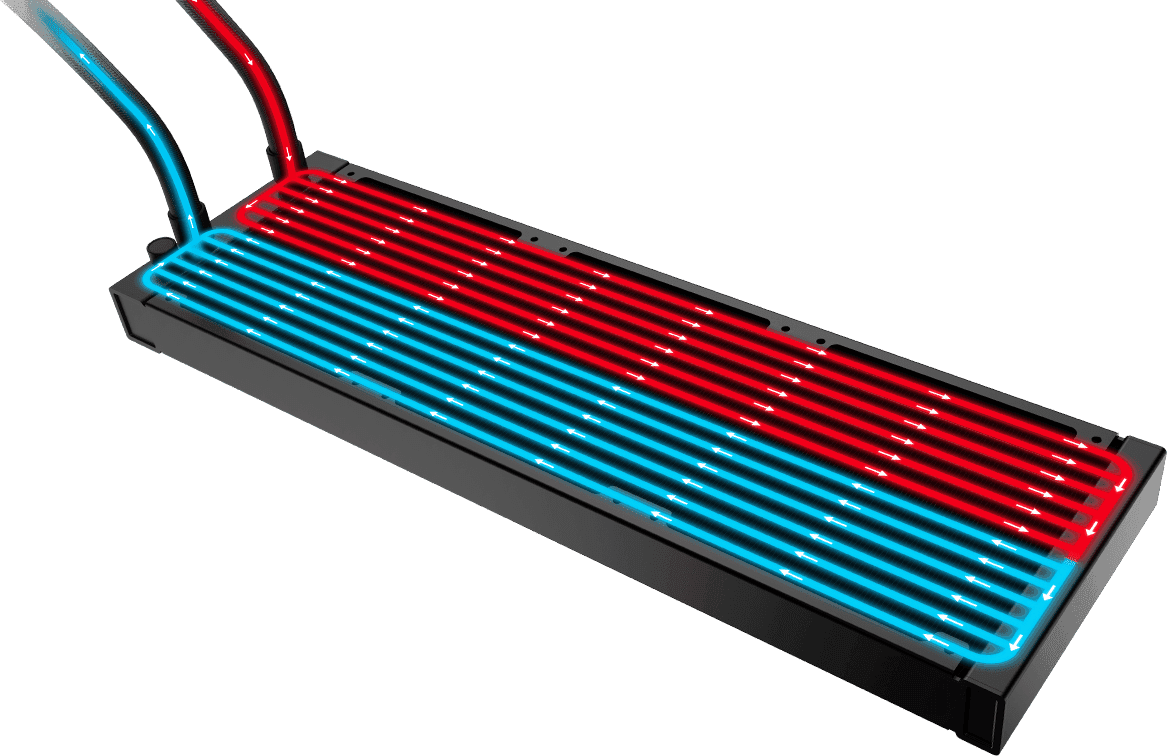

HIGH THERMAL DISSIPATION
The radiator has a 12 pathway designed to help rapidly dissipate heat.

HIGH THERMAL DISSIPATION
The radiator has a 12 pathway designed to help rapidly dissipate heat.

FAN CONSTRUCTION
- The fan’s FDB bearing helps reduce noise level while minimizing vibrations.
The fan blades are constructed of low impurity acrylic for better ARGB lighting presentation.

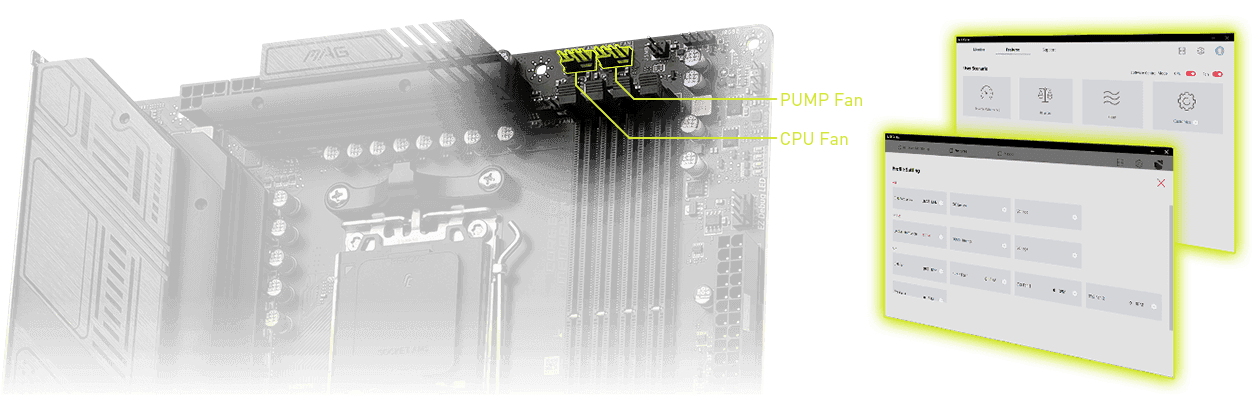

INTEGRATING WITH THE SYSTEM ENVIRONMENT

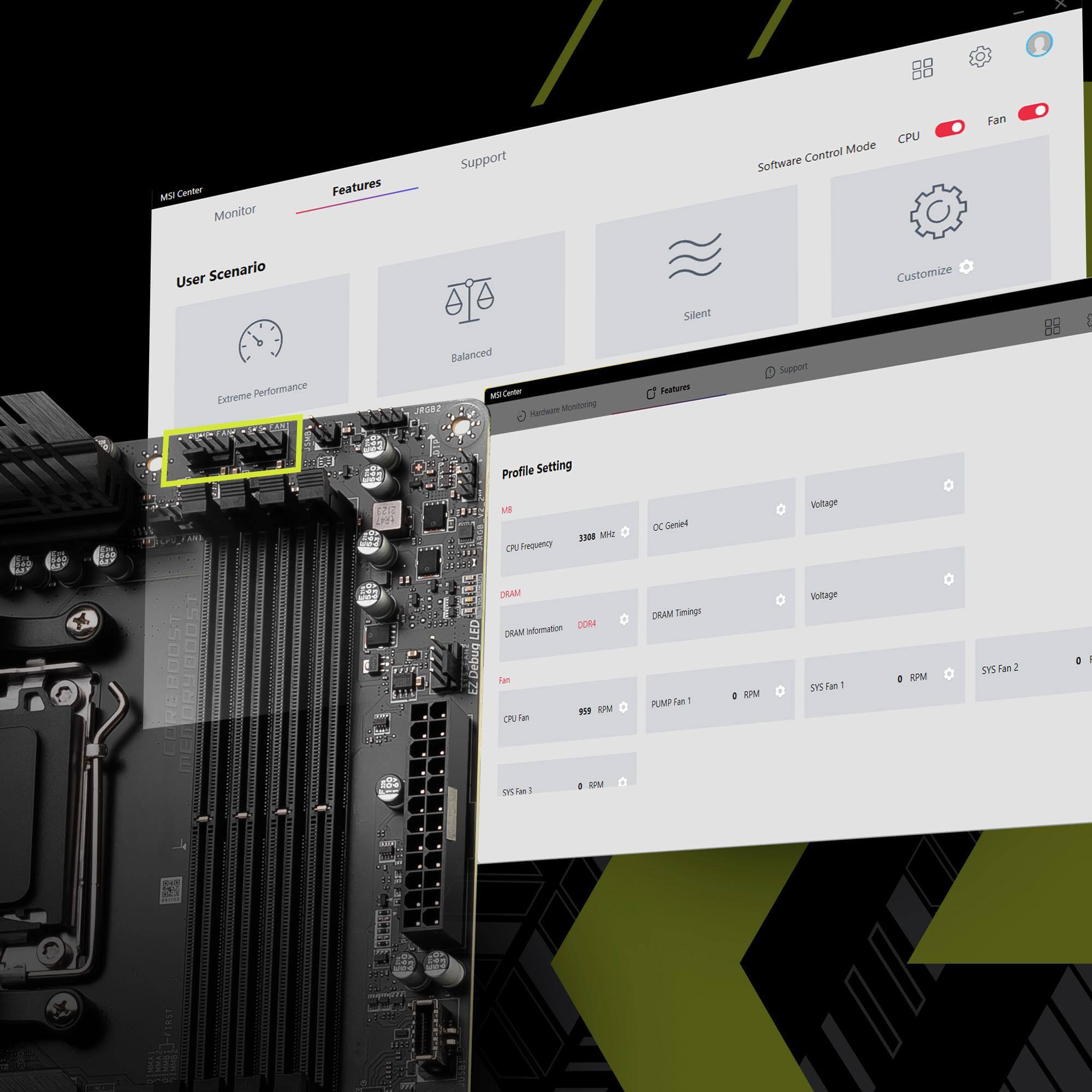

With the MSI CENTER software, users can integrate MSI liquid cooling with MSI motherboard and adjust the speed of the cooling fan and pump through the motherboard. The MSI CENTER provides users with easy-to-use controls to fine-tune their hardware and achieve optimal computer performance.

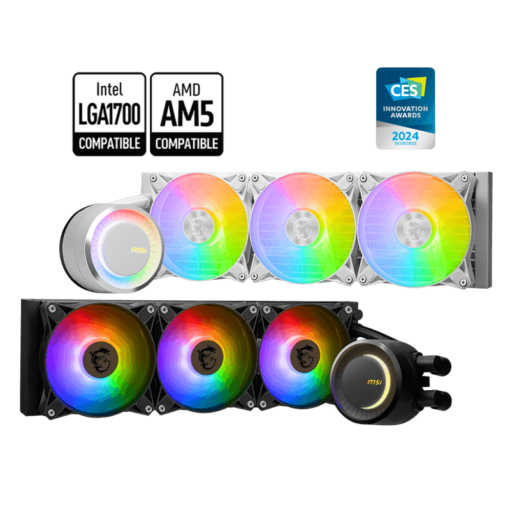

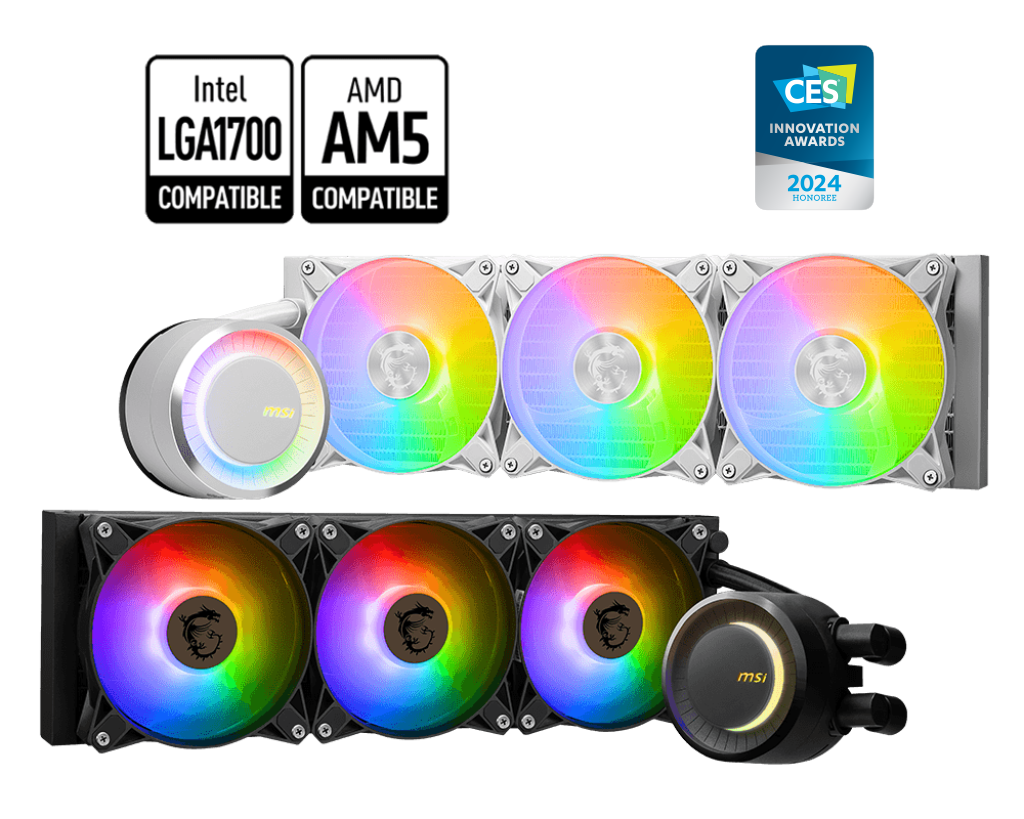

AMD & Intel Compatible
Supported Intel CPU socket types:
- LGA 1700, 1200, 1156, 1155, 1151, 1150
Supported AMD CPU socket types:
- AM5, AM4
- TR4, sTRX4
Includes thermal paste, mounting screws and cables.

Product Name

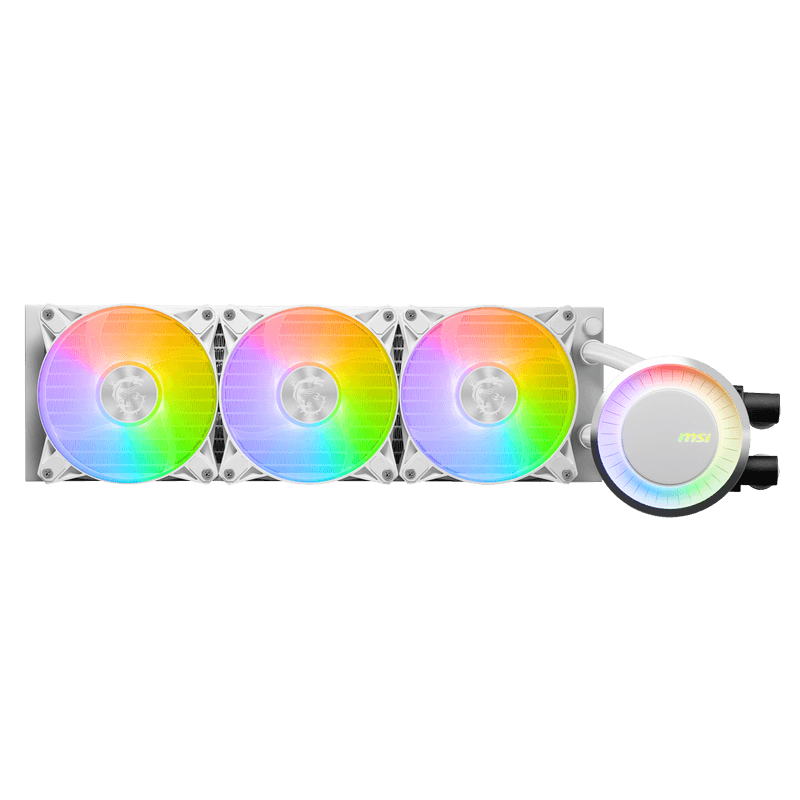

MAG CORELIQUID E360 / WHITE
RADIATOR SIZE
360 mm
RADIATOR DIMENSIONS (WXDXH)
394 x 119.2 x 27mm / 15.51 x 4.69 x 1.06 inches
RADIATOR MATERIAL
Aluminum
WATER COOLING TUBE MATERIAL
Black Rubber
NUMBER OF FANS
3
FAN DIMENSIONS (WXDXH)
120 x 120 x 25mm / 4.7 x 4.7 x 0.98 inches
FAN AIR FLOW
25.5~75.04 CFM
FAN BEARING
Fluid Dynamic Bearing (FDB)
FAN LIFE EXPECTANCY
50,000 hrs@40℃
FAN RATED CURRENT
0.25A(Max:0.4A)
FAN POWER CONSUMPTION
3W(Max:4.8W)
PWM MODE
YES
CABLE LENGTH (PWM CABLE)
550 / 500 mm; 21.65 / 19.69 inches
FAN CONNECTOR
4-Pin
FAN LIGHTING
ARGB
PUMP LIFE EXPECTANCY
200,000 hours in typical use
PUMP NOISE LEVEL
20 dBA (avg.)
PUMP RATED CURRENT
0.25A (Max: 0.5A)
PUMP POWER CONSUMPTION
3W (Max: 6W)
PUMP SPEED
3000 RPM ± 10%
PUMP CONNECTOR
4-pin
COLD PLATE MATERIAL
Copper
BLOCK DIMENSIONS (WXDXH)
41±0.2*47.6±0.2mm
INTEL SOCKET SUPPORT
LGA 1150/1151/1155/1156/1200/1700
AMD SOCKET SUPPORT
AM5/AM4/TR4/sTRx4
ACCESSORIES
1 x 1 to 3 Fan PWM cable
1 x Molex 4-Pin to 4-Pin fan cable
1 x low noise adapter cable
1 x Thermal paste
Bảo hành 24 Tháng
