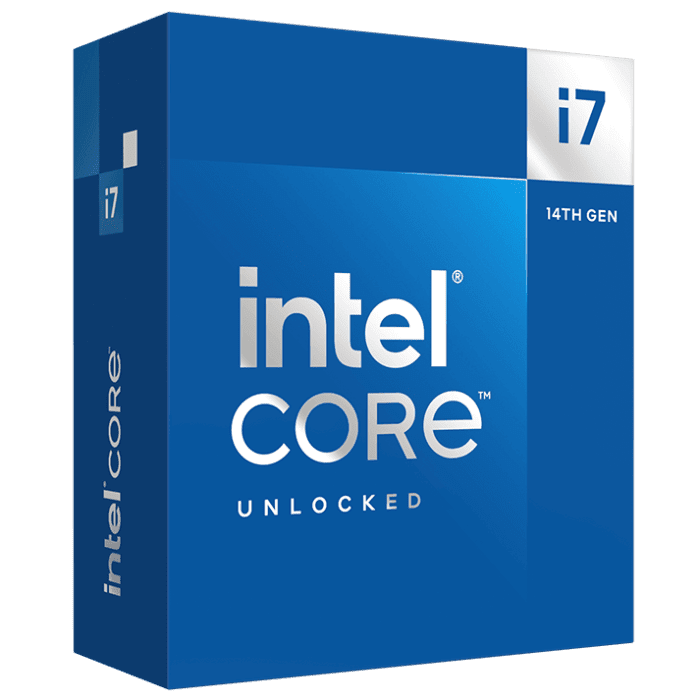

Intel 14th Core i7-14700K CH Processor (20C28T, UHD 770, 3.4 GHz up to 5.6 GHz, 10nm, LGA 1700 Raptor Lake)

General

Vendor

Intel

Released

October 16, 2023

Type

Desktop

instruction set

x86-64

Codename

Raptor Lake Refresh

Model number

i7-14700K

Integrated GPU

UHD Graphics 770

CPU

P-Cores

8

P-Threads

16

Base Frequency (P)

3.4 GHz

Turbo Boost Frequency (P)

5.6 GHz

E-Cores

12

E-Threads

12

Base Frequency (P)

2.5 GHz

Turbo Boost Frequency (P)

4.3 GHz

Total Cores

20

Total Threads

28

Bus Frequency

100 MHz

Multiplier

34x

L1 Cache

80K (per core)

L2 Cache

2MB (per core)

L3 Cache

33MB (shared)

Unlocked Multiplier

Yes

Package

Fabrication process

10 nm

TDP (PL1)

125 W

Max. Boost TDP (PL2)

253 W

Socket

LGA-1700

Peak temperature

100°C

iGPU

Integrated Graphics

Intel UHD Graphics 770

GPU Base Clock

300 MHz

GPU Boost Clock

1600 MHz

Shading Units

256

TMUs

16

ROPs

8

Execution Units

32

TGP

15 W

iGPU FLOPS

0.78 TFLOPS

Memory Support

Memory types

– DDR5-5600
– DDR4-3200

Memory Size

192 GB

Max. Memory Channels

2

Max. Memory Bandwidth

89.6 GB/s

ECC Support

Yes

Misc

PCI Express Version

5.0

PCI Express Lanes

20

Official site

Intel Core i7 14700K official page
