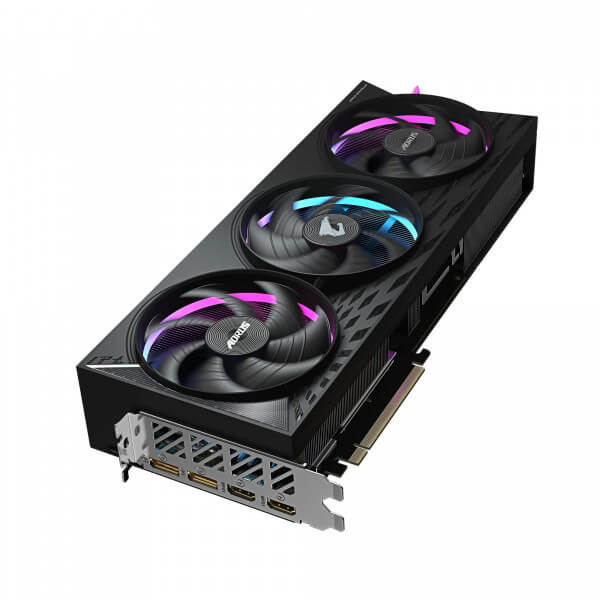

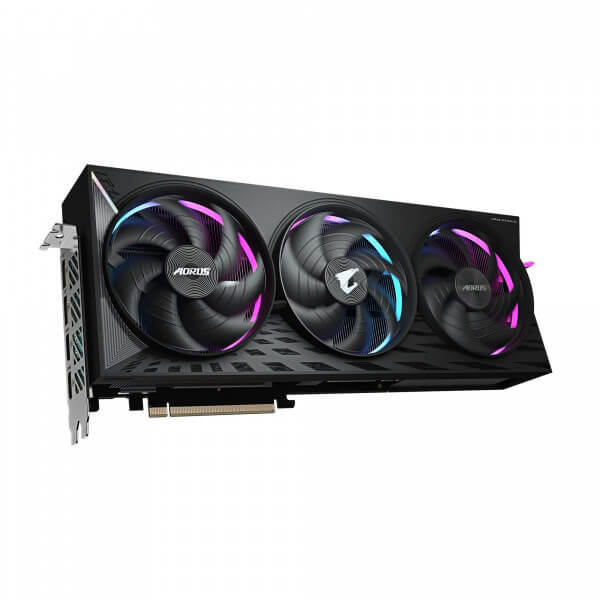

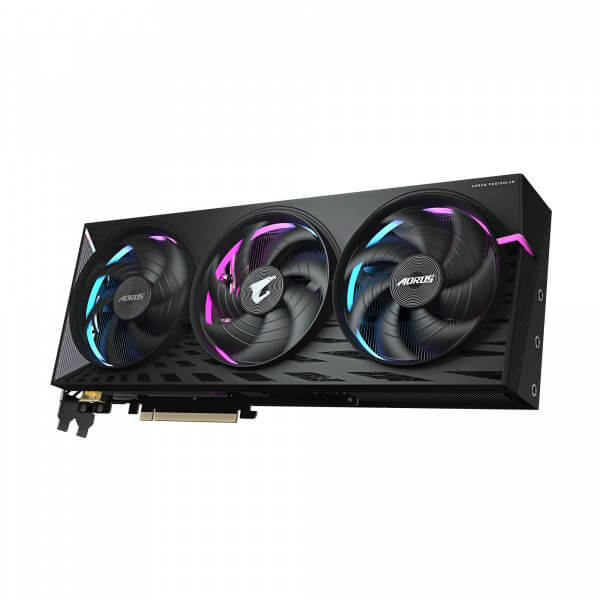

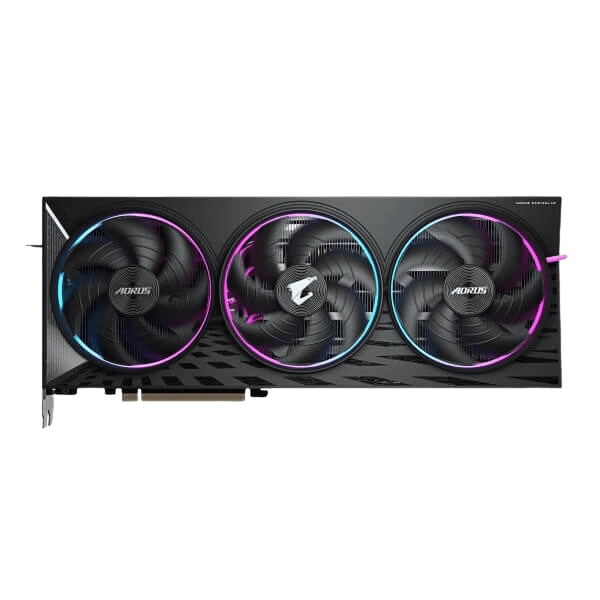

Model
GV-R9070XTAORUS E
GPU Name
NVIDIA®Navi 48
GPU Variant
Navi 48 XT
Kiến trúc
RDNA 4.0
Process Size
4 nm
Số lượng nhân
4096
TMUs
256
ROPs
96
VRAM
16GB GDDR6
Bus Width
256 bit
Tốc độ xung nhịp cơ bản
2400 MHz (may change in the future.)
Tốc độ xung nhịp tối đa
2970 MHz (may change in the future.)
Tốc độ xung nhịp bộ nhớ:
2438 MHz 19.5 Gbps effective (may change in the future.)
Băng thông bộ nhớ
624.1 GB/s
TDP
260 W
Kết nối nguồn
2x 8-pin
Cổng xuất hình
1x HDMI 2.1a, 3x DisplayPort 2.1
Hỗ trợ DirectX
12 Ultimate
Hỗ trợ OpenGL
4.6
Hỗ trợ OpenCL
2.2
Hỗ trợ Vulkan
1.3
Shader Model
6.8
Kích thước (LxWxH)
445mm x × 95mm x 235 mm
Giao diện
PCIe 4.0 x16

* Các thuật ngữ HDMI, HDMI High-Definition Multimedia Interface, Nhận diện thương mại HDMI và Logo HDMI là các nhãn hiệu thương mại hoặc nhãn hiệu thương mại đã đăng ký của HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
- Bảo hành 36 tháng
