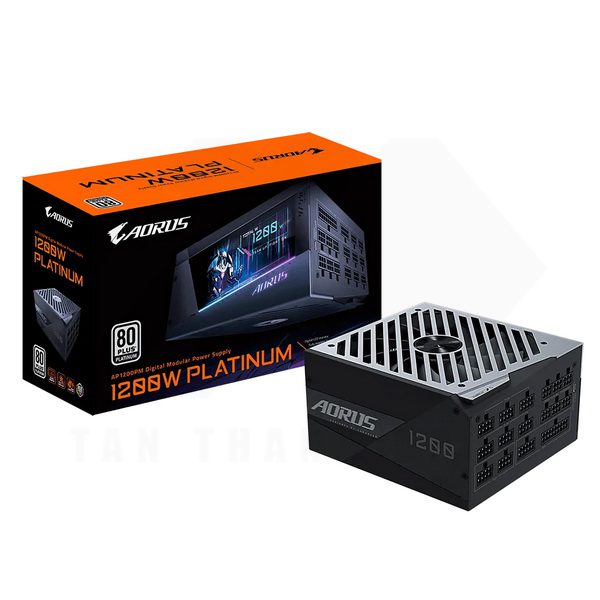

Model | GP-AP1200PM |
Kích cỡ | Intel Form Factor ATX 12V v2.31 |
PFC | Active PFC (>0.9 typical) |
Điện thế đầu vào | 100-240 Vac (full range) |
Điện áp đâu vào | 15-7.5A |
Công suất | 1200W |
Hiệu suất |
80 PLUS Platinum (92% at typical load)
|
Protection | OVP/OPP/SCP/UVP/OCP/OTP |
Loại quạt | 140mm Double ball bearing fan |
Dây nguồn | Flat, All black |
Kết nối | ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 650mm*2 PCI-e 6+2 Pin x 10 : 650mm+150mm*4/650mm*2 SATA x 16 : 650mm+150mm+150mm+150mm*4 4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+120mm+120mm+150mm*2 |
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice. * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration. * All trademarks and logos are the properties of their respective holders. * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount. |
- Bảo hành 10 năm
