Front
- 6.35mm headphone output
- 4.4mm balanced headphone output
- Four-pin XLR balanced headphone output
Rear
- Four-pin XLR balanced headphone output
- RCA line out*2; Three-pin XLR balanced line out
- Coaxial output/input; Optical output/input
- Ethernet: for wired connection to a network
- USB HOST interface: supports external USB devices such as external decoders/hard disks/keyboards/expansion hubs
- Type-C port (USB 3.0): data transfer, DP output mode, USB DAC, and USB HOST related functions
- Micro-SD card slots: supporting up to 2TB micro-SD cards
- AC/DC power switch
- DC power input
- AC power output
- AC power on/off switch WiFi/Bluetooth antenna

① Power cord*1
② USB data cable*1
③ Flat base*1
④ Angled base*1
⑤ Quick start guide*1
⑥ Dustproof plug*2
⑦ Double-sided tape for base*4
⑧ Warranty card*1
⑨ MicroSD card holder*1 (inside the unit)
⑩ Fuse*1+6.35mm adapter*1

① Power cord*1
② USB data cable*1
③ Flat base*1
④ Angled base*1
⑤ Quick start guide*1
⑥ Dustproof plug*2
⑦ Double-sided tape for base*4
⑧ Warranty card*1
⑨ MicroSD card holder*1 (inside the unit)
⑩ Fuse*1+6.35mm adapter*1

With just a turn of a knob
PO: Only front audio outputs are active
LO: Only rear audio outputs are active (fixed at max output)
PRE OUT: Only rear audio outputs are active (adjustable volume)
PO+PRE OUT (default): both front audio outputs + rear audio outputs (adjustable volume) are active

Specially-optimized audio circuit design
R7 sử dụng DAC ES9068AS kết hợp với một cặp bộ khuếch đại tai nghe THX AAA 788+. Ngoài ra, bên trong R7 còn có các linh kiện cao cấp khác như 4 tụ film PPS của Panasonic. Không tiếc tiền sử dụng các linh kiện cao cấp để đảm bảo R7 tái tạo âm thanh của bạn một cách trung thực.

4th-gen FPGA with phase-locked loop clock tech+2 femtosecond crystal oscillators
Allowing for a high-precision, low-jitter unified clock source for cleaner and more stable audio.

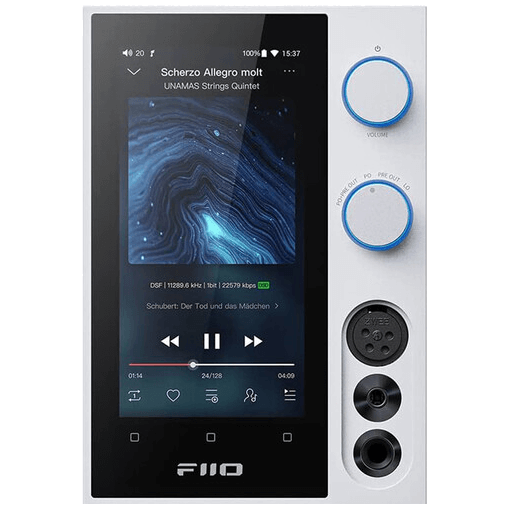

Portrait-oriented screen
Nhờ có màn hình độ phân giải cao 5 inch và hệ điều hành Android, bạn có thể tận hưởng trải nghiệm phát trực tuyến chính và các ứng dụng của bên thứ ba khác chưa từng có trên R7. Đáp ứng mong muốn sử dụng phương tiện truyền thông của bạn với R7.

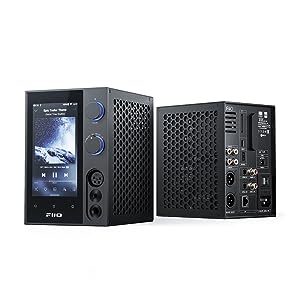

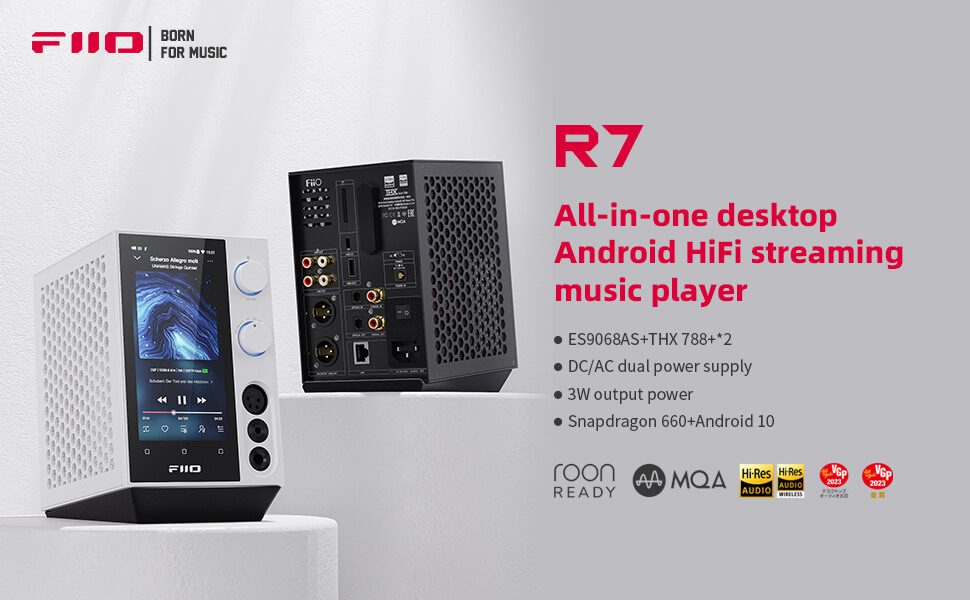

FiiO R7 All-in-One Desktop Hi-Fi Streaming Player & Amplifier
Product highlights
- Full range of inputs and outputs
- Four output modes
- Eight operating modes including Roon Ready
- DC/AC dual power supply design
- ES9068AS+THX AAA 788+*2 design
- Five gain levels
- 3W output power
- Portrait media streaming design
- Snapdragon 660+Android 10
- Customizable RGB lights
- Ethernet port
- Personalized screensaver
- Exclusive DP mode
- Dual USB ports
Specs
- Color: Black/white (white version expected to launch around March 2023)
- SoC: Snapdragon 660
- DAC: ES9068AS
- Amplifier: THX AAA 788+ *2
- Supported audio formats: 384kHz-32bit PCM, DSD256
- USB connectors: Type-C USB3.0, USB-A
- Display: 5.0-inch minimal bezel FHD+ high-definition display
- Output power 1: 3000mW (32Ω/balanced/enhanced over-ear headphone mode)
- Output power 2: 630mW (300Ω/balanced/enhanced over-ear headphone mode)
- Frequency response: 20Hz~90kHz (-3dB)
- SNR: ≥122dB (A-weighted)
- Noise floor: LO≤1.5μV (A-weighted); PO≤4μV (A-weighted); BAL LO≤2.4μV (A-weighted): BAL≤5.5μV (A-weighted)
- Output impedance: <1Ω (32Ω load)
- THD+N: ≤0.0004% (1kHz/32kΩ)
Dimensions & Weights
Dimension
110*160*134mm
Weight
1.3kg

What’s in the box
① Power cord*1
② USB data cable*1
③ Flat base*1
④ Angled base*1
⑤ Quick start guide*1
⑥ Dustproof plug*2
⑦ Double-sided tape for base*4
⑧ Warranty card*1
⑨ MicroSD card holder*1 (inside the unit)
⑩ Fuse*1+6.35mm adapter*1

- Bảo hành 12 tháng
