Storage Form Factor

M.2 2280

Memory Type

PCIe Gen 4.0 x4

SSD Max Sequential Read CDM

Up to 7000MB/s

Power Consumption Active

10.9W Average

NAND Technology

3D TLC

Storage Temperature

-40°C to +85°C

Endurance

6000TBW

Storage Humidity

93% RH (40° C)

SSD Package Contents

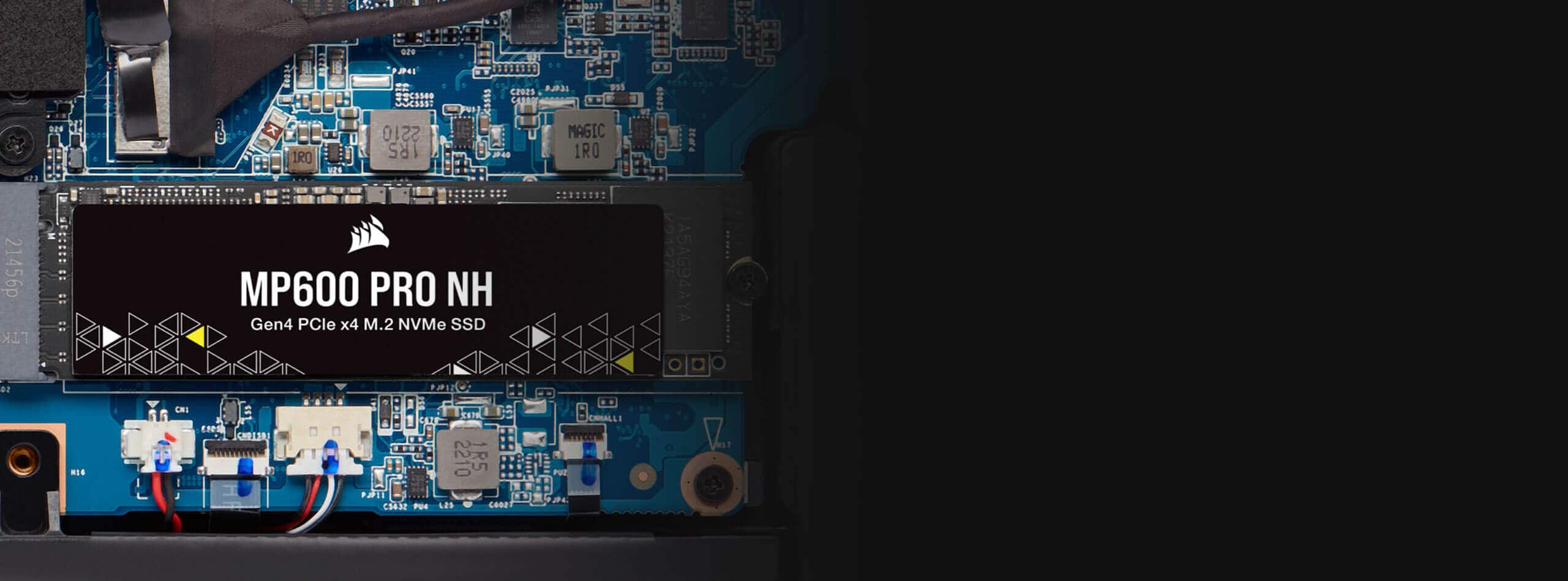

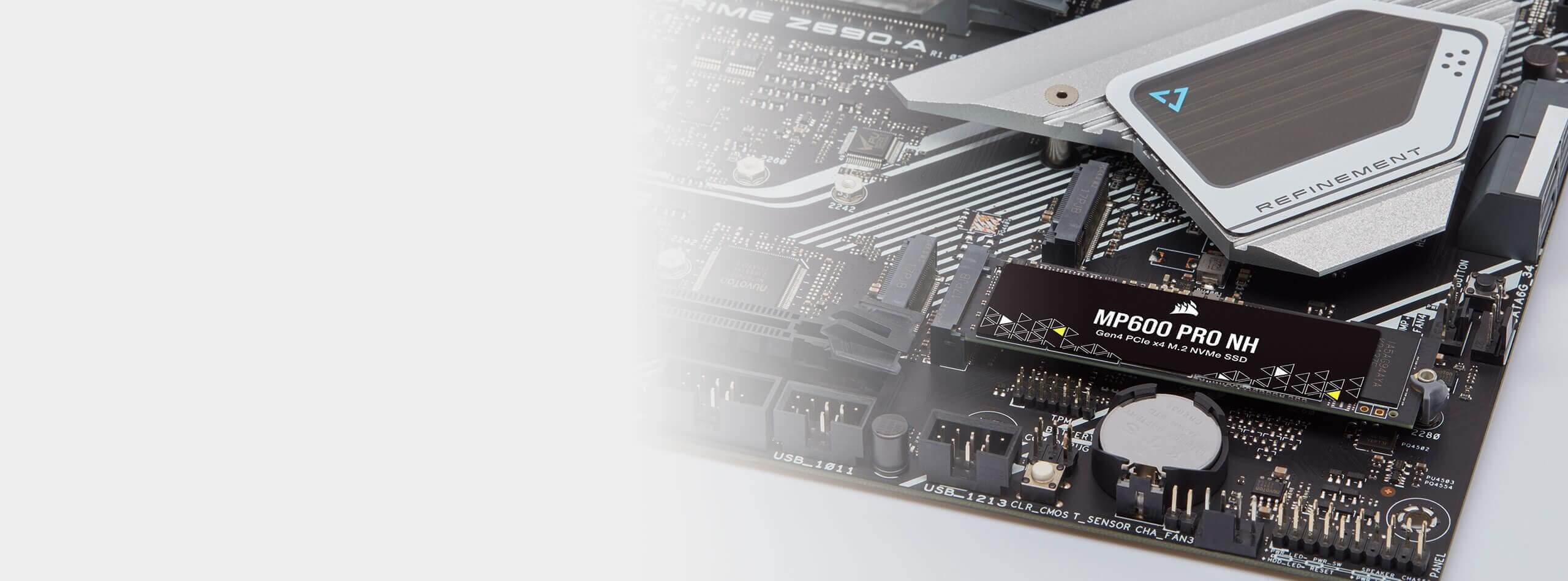

MP600 PRO NH M.2 SSD

SSD Max Sequential Write CDM

Up to 6100MB/s

Max Random Read QD32 IOMeter

Up to 950K IOPS

Max Random Write QD32 IOMeter

Up to 1.2M IOPS

SSD Smart Support

Yes

SSD Operating Temperature

0°C to +65°C

SSD Shock

1,500 G

Form Factor

M.2 2280

Application Consumer

Client

SSD Compatibility

M.2 2280 Interface Connector Windows 11, Windows 10, Mac OS X

Voltage

3.3V, +/- 5%

Vibration

20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G

DEVSLP

PS4: <3mW

Encryption

AES 256-bit Encryption

MTBF Hours

1,600,000 Hours

SSD TBW

6000

Interface

PCIE* 4 x 4

Weight

0.03
