CPU hỗ trợ |
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 10 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
|
Chipset | Intel® B660 |
Bộ nhớ trong | 4 x DIMM, Max. 128GB, DDR5 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(OC) / Non-ECC, Un-buffered Memory*Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP) OptiMem II *Actual Memory data rate support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
Hiển thị đồ họa | 1 x DisplayPort**
1 x HDMI® port*** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Support 8K@60Hz as specified in DisplayPort 1.4. *** Support 4K@60Hz as specified in HDMI 2.1. |
Hỗ trợ Multi-GPU | |
Khe mở rộng | Intel® 12th Gen Processors
1 x PCIe 5.0 x16 slot(s) Intel® B660 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2x PCIe 4.0 x1 slots |
Chuẩn lưu trữ | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 – Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. |
Mạng | 1 x Intel® 2.5Gb Ethernet
ASUS LANGuard “Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2” |
Âm Thanh | “ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A
– Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/192 kHz playback” Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Premium audio capacitors – Audio cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |

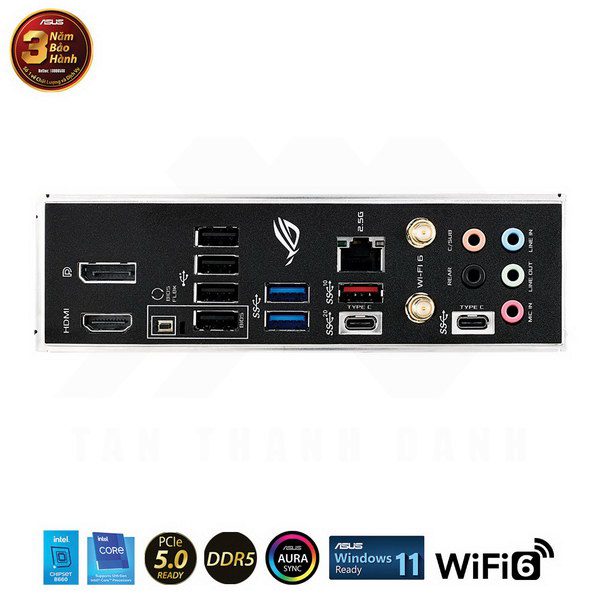

Kết nối ngoài | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button |
Kết nối trong | Fan and Cooling related
1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 2 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header |
Kích thước | mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
- Bảo hành 3 năm
