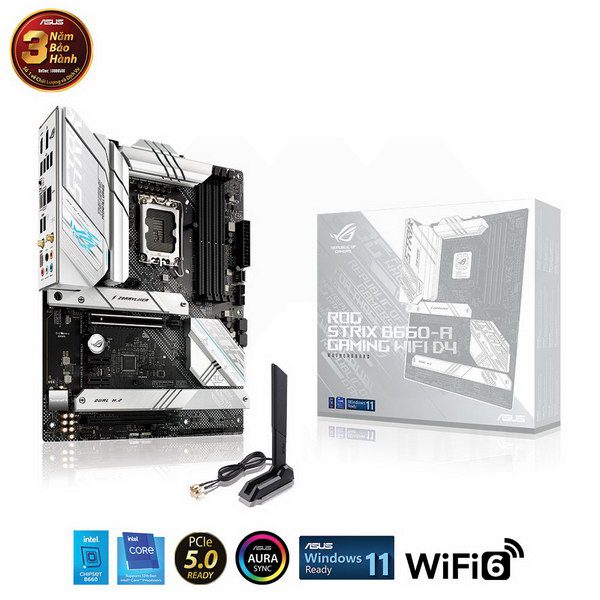

ASUS ROG STRIX B660-A GAMING WIFI D4 Mainboard

Giá: Original price was: 5.290.000 VNĐ.Current price is: 4.690.000 VNĐ.

Intel^® B660 LGA 1700 ATX motherboard with PCIe^® 5.0, 12+1 power stages, Two-Way AI Noise Cancelation, AI Cooling, AI Networking, WiFi 6 (802.11ax), Intel 2.5 Gb Ethernet, three PCIe 4.0 M.2 slots with heatsinks, USB 3.2 Gen 2×2 Type-C^®, SATA and Aura Sync RGB lighting

Intel^® LGA 1700 Socket: Ready for 12^th Gen Intel Core^™, Pentium^® Gold and Celeron^® processors
Optimal Power Solution: 12+1 power stages with ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
Optimized Thermal Design: Integrated I/O cover, VRM heatsinks with high conductivity thermal pads, and three onboard M.2 heatsinks
High-performance Networking: On-board Intel^® WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
Best Gaming Connectivity: Supports HDMI^® 2.1 and DisplayPort™ 1.4 output, three M.2 slots, as well as USB 3.2 Gen 2×2 Type-C^®
Intelligent Control: ASUS-exclusive AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ button and Q-LED
Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 headers
Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS^® Sound Unbound™ and Sonic Studio III
Renowned Software: Bundled 60-day free trial of AIDA64 Extreme, and an intuitive UEFI BIOS dashboard with integrated MemTest86

Cho phép đặt hàng trước

Mô tả
Thông tin bổ sung

Chi Tiết Kỹ Thuật
Chính sách bảo hành

CPU hỗ trợ	Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 10 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® B660
Bộ nhớ trong	4 x DIMM, Max. 128GB, DDR4 5333(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 Non-ECC, Un-buffered MemoryDual Channel Memory Architecture OptiMem II Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Hiển thị đồ họa	1 x DisplayPort 1 x HDMI^® port* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. * Support 4K@60Hz as specified in DisplayPort 1.4. *Support 4K@60Hz as specified in HDMI 2.1. ** VGA resolution support depends on processors’ or graphic cards’ resolution.
Hỗ trợ Multi-GPU
Khe mở rộng	Intel^® 12^th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot(s)* Intel^® B660 Chipset** 1 x PCIe 3.0 x16 slot (supports x4 mode)* 2 x PCIe 3.0 x1 slots * Please check PCIe bifurcation table in User Guide Chapter 1 // support site. ** Supports Intel^® Optane Memory H Series on PCH-attached PCIe slot
Chuẩn lưu trữ	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel^® 12^th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 – Intel^® 12^th Gen processors support PCIe 4.0 x4 mode. Intel^® B660 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports*** * Intel^® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Mạng	1 x Intel^® 2.5Gb Ethernet ASUS LANGuard Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
Âm Thanh	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/384 kHz playback Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Premium audio capacitors – Audio cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Kết nối ngoài	1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C^®) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 3 x USB 3.2 Gen 1 port(s) (2 x Type-A + 1 x USB Type-C^®) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel^® 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack^™ button
Kết nối trong	Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (support USB Type-C^®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 10-1pin header + 1 USB 2.0 4pin header support additional 3 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header
Kích thước	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Bảo hành 3 năm

Mainboard Socket	Intel Socket 1700
Mainboard Chipset	Intel B660
Mainboard Networking	2.5GbE LAN, Wi-Fi 6E/6
Mainboard Memory Slot	4
Mainboard Graphics Interface	PCIe 3.0, PCIe 5.0
Mainboard USB	Front USB Type-C, USB 2.0, USB 3.2 GEN 1, USB 3.2 GEN 2, USB 3.2 GEN 2×2, USB Type-C
Mainboard Form Factor	ATX
Mainboard M.2 SSD Slots	3 x M.2
Mainboard Memory Type	DDR4
