Mainboard - Bo mạch chủ

-22%

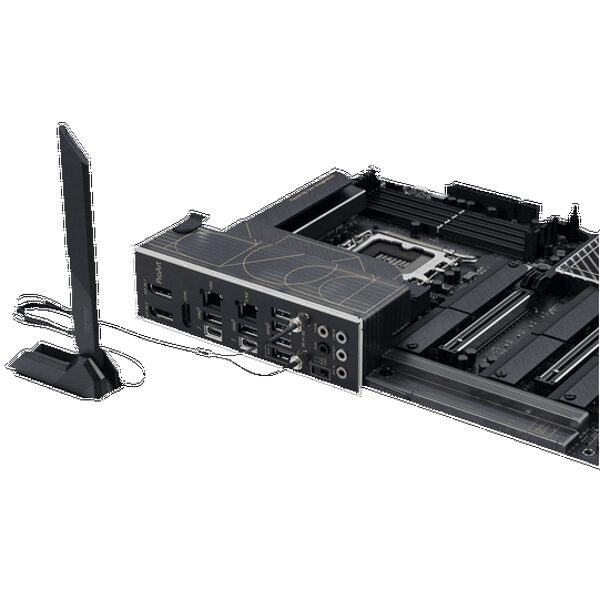

ASUS ProArt Z790-CREATOR WIFI Mainboard

Giá: 11.890.000 VNĐ

PCIe 5.0® slots for graphics cards and storage Learn more
Unleash DDR5 with AEMP II Learn more

Two Thunderbolt™ 4 ports (USB4® Compliant) Learn more
10Gb & 2.5 Gb Ethernet, WiFi 6E Learn more
16+1 teamed power solution rated for 70A per stage Learn more
AI Overclocking Learn more
AI Cooling II Learn more
ProArt Creator Hub Learn more

Cho phép đặt hàng trước

Mô tả
Thông tin bổ sung

z790 creator 1 1 1 z790 creator 1 2 1 z790 creator 1 3 1 z790 creator 1 4 1 z790 creator 1 5 1 z790 creator 1 6 1 z790 creator 1 7 1 z790 creator 1 8 1 z790 creator 1 9 1

CPU	Intel^® Socket LGA1700 for 13^th Gen Intel^® Core™ Processors & 12^th Gen Intel^® Core^™, Pentium^® Gold and Celeron^® Processors* Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel^® Z790 Chipset
Memory	4 x DIMM, Max. 128GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel^® Extreme Memory Profile (XMP) OptiMem II * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics	1 x HDMI^® port 2 x Intel^® Thunderbolt™ 4 ports (USB Type-C^®) support DisplayPort* and Thunderbolt^™ video outputs**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Support 4K@60Hz as specified in HDMI 2.1. * Support 8K@60Hz as specified in DisplayPort 1.4. **** Output at TBT4_E1 and TBT4_E2, the USB Type-C^® ports right under RJ45 ports, each requires a USB-C to DisplayPort adapter cable. VGA resolution support depends on processors’ or graphic cards’ resolution.
Expansion Slots	Intel^® 13th & 12th Gen Processors* 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes) Intel^® Z790 Chipset** 1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage	Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports* Intel^® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel^® Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 8 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** M.2_4 slot shares bandwidth with SATA6G_5~8. SATA6G5~8 will be suspended once either a SATA or NVMe device is detected at M.2_4.
Ethernet	1 x Marvell^® AQtion 10Gb Ethernet 1 x Intel^® 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.3** * WiFi 6E 6GHz regulatory may vary between countries. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
USB	Rear USB (Total 8 ports) 2 x Thunderbolt^™ 4 port(s) (2 x USB Type-C^®) with up to 5V/3A, 15W charging support 6 x USB 3.2 Gen 2 port(s) (6 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2×2 connector(s) (support(s) USB Type-C^® with 60W PD 3.0 / QC 4+) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Audio	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback* Audio Features – Premium audio capacitors – Dedicated audio PCB layers – Audio cover – Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports	2 x Thunderbolt™ 4 USB Type-C^® port(s) 6 x USB 3.2 Gen 2 port(s) (6 x Type-A) 2 x DisplayPort (Input only) 1 x HDMI^® port 1 x ASUS Wi-Fi Module 1 x Marvell^® AQtion 10Gb Ethernet port 1 x Intel^® 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack^™ button
Internal I/O Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 5 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 1 x 6-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 8 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2×2 (support(s) USB Type-C^®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header
Special Features	ASUS 5X PROTECTION III – DIGI+ VRM (- Digital power design with DrMOS) – Enhanced DRAM Overcurrent Protection – ESD Guards – LANGuard – Overvoltage Protection – SafeSlot – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – Q-Connector – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Box Headers – ProCool II – Pre-mounted I/O shield AURA Sync – AURA RGB header(s) – Addressable Gen 2 header(s)
Software Features	ASUS Exclusive Software Armoury Crate – AURA Creator – AURA Sync – Fan Xpert 4 with AI Cooling II – Two-Way AI Noise Cancelation – Power Saving AI Suite 3 – Easy Optimization with AI Overclocking – TPU – DIGI+ Power Control – Turbo app – PC Cleaner ASUS CPU-Z IT Management software supported – ASUS Control Center Express(ACCE) ProArt Creator Hub CreationFirst MyAsus Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode FlexKey MemTest86
BIOS	256 Mb
Manageability	WOL by PME, PXE
Operating System	Windows^® 11 64-bit, Windows^® 10 64-bit
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Bảo hành 3 năm

Mainboard Socket	Intel Socket 1700
Mainboard Chipset	Intel Z790
Mainboard Form Factor	ATX
Mainboard Memory Type	DDR5
Mainboard Memory Slot	4
Mainboard Graphics Interface	PCIe 4.0, PCIe 5.0
Mainboard M.2 SSD Slots	4 x M.2
Mainboard Graphics Output	HDMI, Thunderbolt 4
Mainboard USB	Front USB Type-C, USB 2.0, USB 3.2 GEN 1, USB 3.2 GEN 2, USB 3.2 GEN 2×2, Thunderbolt
