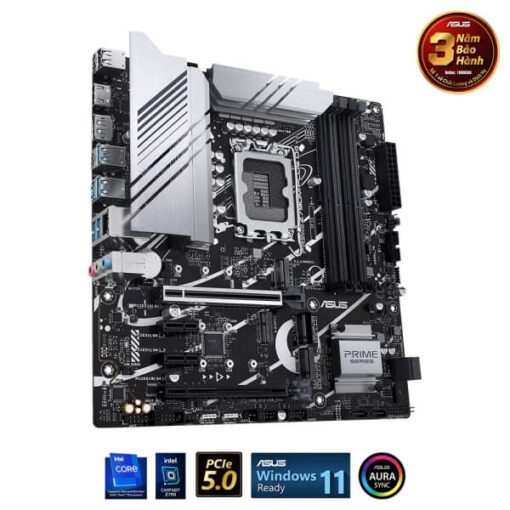

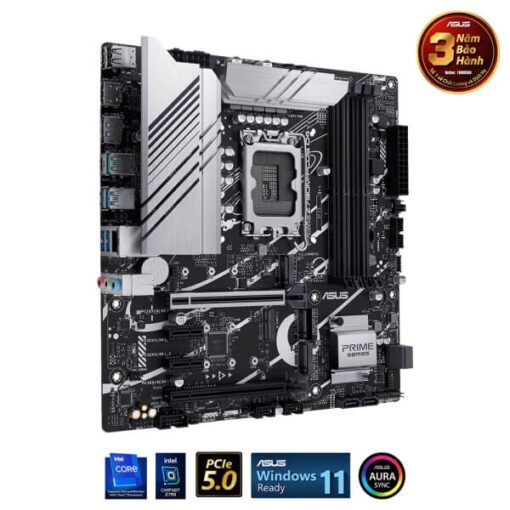

ASUS PRIME Z790M-PLUS D4-CSM Mainboard

Giá: 4.990.000 VNĐ

Intel^® LGA 1700 socket: Sẵn sàng cho CPU thế hệ 12 và 13
Enhanced power solution: 10+1 DrMOS, 6-layer PCB, ProCool connectors, cuộn cảm hợp kim và tụ điện bền để cung cấp nguồn điện ổn định.
Next-gen connectivity: PCIe ® 5.0, Intel ® 1 Gb Ethernet, USB 3.2 Gen2x2 Type-C ® , front panel USB 3.2 Gen 1 Type-C ® , hỗ trợ đầu cắm Thunderbolt ™ (USB4 ® )
ASUS OptiMem II: Cải thiện khả năng ép xung
Comprehensive cooling: Tản nhiệt VRM lớn, tản nhiệt PCH, đầu cắm hybrid fan và Quạt Xpert 4 với AI Cooling II
ASUS Control Center Express: Phần mềm quản lý và giám sát IT theo thời gian thực để tăng cường bảo vệ dữ liệu

Cho phép đặt hàng trước

Mô tả
Thông tin bổ sung

ASUS PRIME Z790M PLUS D4 TTD 5

ASUS PRIME Z790M PLUS D4 TTD 4

ASUS PRIME Z790M PLUS D4 TTD 3

ASUS PRIME Z790M PLUS D4 TTD 6 ASUS PRIME Z790M PLUS D4 TTD 7

CPU hỗ trợ	Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® Z790 Chipset
Bộ nhớ trong	4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel^® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Hiển thị đồ họa	1 x DisplayPort 1 x HDMI^® port* * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors’ or graphic cards’ resolution.
Khe mở rộng	Intel^® 13^th & 12^th Gen Processors* 1 x PCIe 5.0 x16 slot Intel^® Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x1 slots * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Chuẩn lưu trữ	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel^® 13^th & 12^th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel^® Z790 Chipset M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel^® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Mạng	1 x Intel® 2.5Gb Ethernet ASUS LANGuard
WIreless & Bluetooth	M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately.
USB	Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C^®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C^®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports* * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Âm Thanh	Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

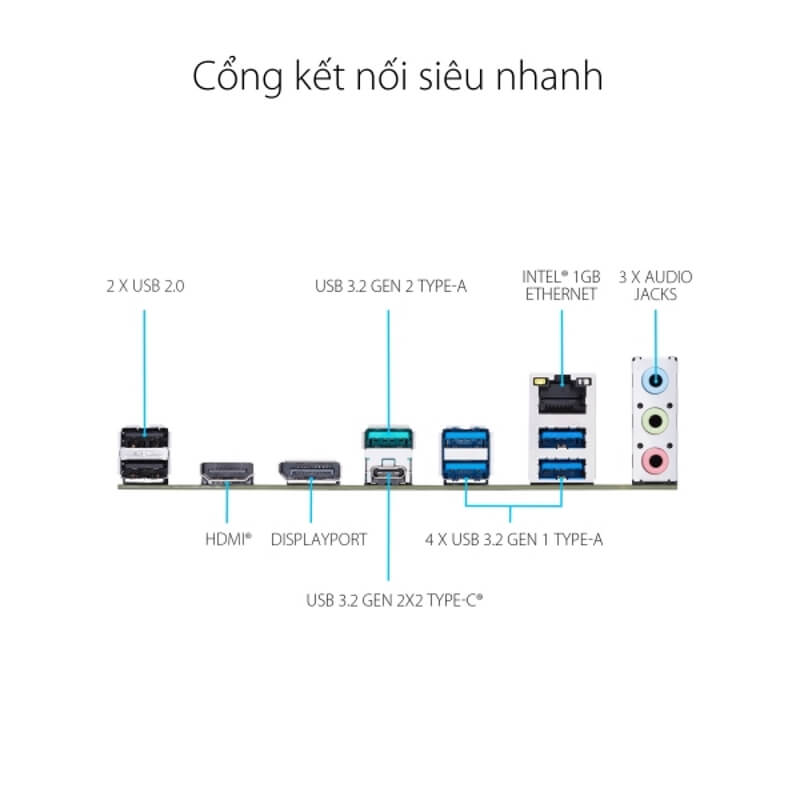

Cổng I/O phía sau	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C^®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI^® port 1 x Intel^® 1Gb Ethernet port 3 x Audio jacks
Kết nối trong	Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin + 12V Power connector 1 x 4-pin + 12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C^®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4^®) header
Speacial Feature	ASUS 5X PROTECTION III – DIGI+ VRM (- Digital power design with DrMOS) – LANGuard – Overvoltage Protection – SafeSlot Core+ – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-LED Core – Q-Slot ASUS Thermal Solution – VRM heatsink design ASUS EZ DIY – ProCool Aura Sync – Aura RGB header – Addressable Gen 2 headers
Software Feature	ASUS Exclusive Software Armoury Crate – Aura Sync – Fan Xpert 4 (with AI Cooling II) – Power Saving AI Suite 3 – TurboV EVO – DIGI+ VRM – PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Phụ kiện đi kèm	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x Screw packages for M.2 SSD Documentation 1 x ACC Express Activation Key Card 1 x User guide
Hỗ trợ hệ điều hành	Windows® 11, Windows® 10 64-bit
Kích thước	mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Bảo hành 3 năm

Mainboard Socket	Intel Socket 1700
Mainboard Chipset	Intel Z790
Mainboard Memory Type	DDR4
Mainboard Memory Slot	4
Mainboard Graphics Interface	PCIe 4.0, PCIe 5.0
Mainboard M.2 SSD Slots	3 x M.2
Mainboard USB	Front USB Type-C, USB 2.0, USB 3.2 GEN 1, USB 3.2 GEN 2, USB 3.2 GEN 2×2, USB Type-C
Mainboard Networking	1GbE LAN
Mainboard Form Factor	mATX ( Micro-ATX)
