Bạn đang tìm kiếm một bo mạch chủ đơn giản cung cấp cho bạn các tính năng, hiệu suất đáng tin cậy và thiết kế không phô trương mà bạn cần, tất cả với một mức giá phù hợp? Dòng sản phẩm ASUS Prime của chúng tôi có những gì bạn đang tìm kiếm.
Chúng tôi đang cung cấp bộ ba bo mạch Prime cho nền tảng AMD mới. Đầu tiên là WiFi Prime X670E-Pro. Với sự hỗ trợ của nó cho DDR5, khe cắm PCIe 5.0 x16 và khe cắm PCIe 5.0 M.2, đây là một lựa chọn hiệu quả về chi phí cho bất kỳ ai đang xây dựng một chiếc PC thế hệ tiếp theo. WiFi 6E, cổng Realtek 2,5Gb Ethernet và đầu cắm Thunderbolt 4 đều bổ sung rất ấn tượng. Tấm chắn I / O được gắn sẵn giúp đơn giản hóa quá trình cài đặt, nó có nút PCIe Slot Q-Release của chúng tôi giúp loại bỏ những rắc rối khi tháo cạc đồ họa và bảng Q-LED giúp chẩn đoán giải quyết sự cố.
Tốc độ truyền đáng kinh ngạc được cung cấp bởi SSD PCIe 5.0 tạo nên sự khác biệt trong nhiều khối lượng công việc, nhưng có lẽ đó không phải là tính năng phải có trong danh sách mua sắm bo mạch chủ AM5 của bạn. Chúng tôi thiết kế WiFi Prime X670-P và Prime X670-P dành riêng cho bạn. Các bo mạch này hoàn thành công việc nhờ hỗ trợ DDR5 và cung cấp không gian lưu trữ rộng rãi với ba khe cắm M.2 trên bo mạch. Đầu cắm Thunderbolt 4 cho phép bạn thiết lập cổng bảng điều khiển phía trước linh hoạt, tốc độ cao trong một hộp tương thích. Nếu kết nối mạng không dây trên bo mạch là bắt buộc, hãy lấy WiFi Prime X670-P, cung cấp kết nối WiFi 6. Nếu bạn hài lòng với mạng có dây, hãy chọn Prime X670-P giống hệt nhau.
CPU |
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. |
Chipset |
AMD X670 |
Memory |
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. ** Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function. |
Graphics |
1 x DisplayPort** 1 x HDMI® port*** * Graphics specifications may vary between CPU types. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
Expansion Slots |
AMD Ryzen™ 7000 Series Desktop Processors* -1 x PCIe 5.0 x16 slot AMD X670 Chipset -1 x PCIe 4.0 x16 slot (supports x4 mode) -1 x PCIe 4.0 x4 slots * Please check PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/. |
Storage |
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD X670 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports *AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. ** M.2_2 slot shares bandwidth with SATA6G_1&2. When M.2_2 runs at PCIe x4 mode, SATA6G_1&2 will be disabled. |
Ethernet |
1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
Wireless & Bluetooth |
Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries. |
USB |
Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports |
Audio |
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback* Audio Features – Power pre-regulator reduces power input noise to ensure consistent performance – Premium audio capacitors – Dedicated audio PCB layers – Audio cover – Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
Back Panel I/O Ports |

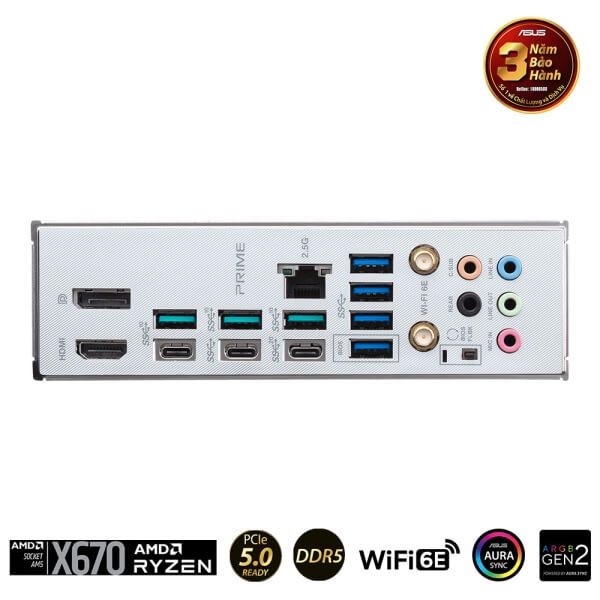

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C®) 5 x USB 3.2 Gen 1 ports (4 x Type-A, 1 x USB Type-C®) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button |
Internal I/O Connectors |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS button 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x Power button 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header |
Special Features |
ASUS 5X PROTECTION III – DIGI+ VRM (- Digital power design with DrMOS) – ESD Guards – LANGuard – Overvoltage Protection – Safeslot Core+ – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-Connector – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Clear CMOS button – ProCool – Pre-mounted I/O shield – SafeSlot – SafeDIMM AURA Sync – AURA RGB header – Addressable Gen 2 headers |
Software Features |
ASUS Exclusive Software Armoury Crate – AURA Sync – Fan Xpert 4 (with AI Cooling II) – Power Saving – Two-Way AI Noise Cancelation AI Suite 3 – Easy Optimization – TPU – DIGI+ VRM – Turbo app – PC Cleaner ASUS CPU-Z DTS:X® Ultra MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode FlexKey |
BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
Manageability |
WOL by PME, PXE |
Accessories |
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 2 x Rubber packages for M.2 2 x Screw packages for M.2 SSD 1 x Q-connector Documentation 1 x User guide |
Operating System |
Windows® 11 64-bit, Windows® 10 64-bit |
Form Factor |
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
- Bảo hành 36 tháng
