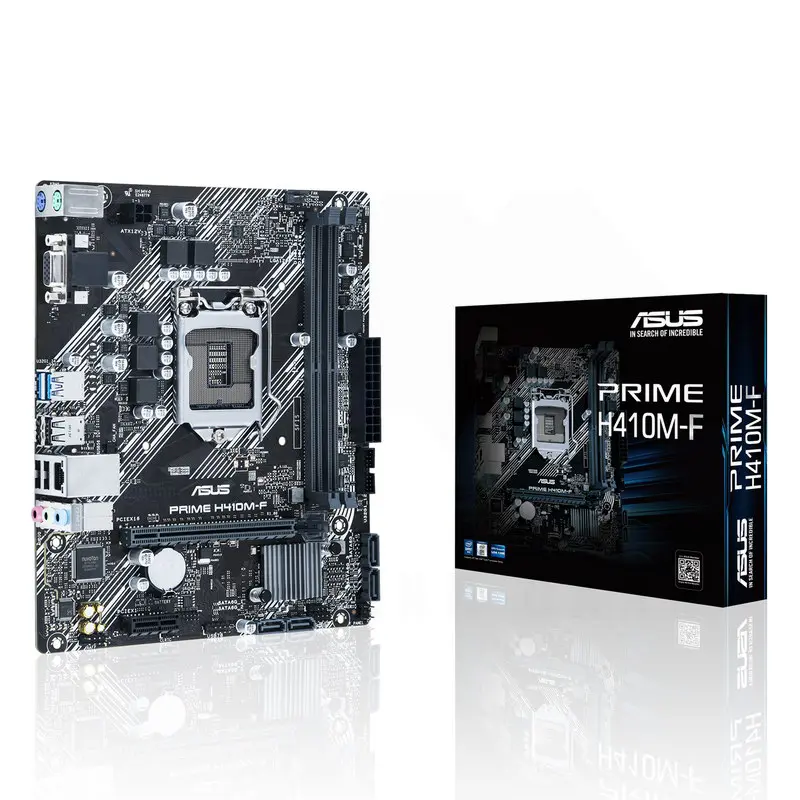

ASUS PRIME H410M-F Mainboard

Name: ASUS PRIME H410M-F Mainboard
SKU: SKU
Rating: 5 (20 reviews)

Giá: 1.550.000 VNĐ

Intel® H410 (LGA 1200) mic-ATX motherboard with DDR4 2933MHz, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps

Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
5X Protection III: Multiple hardware safeguards for all-round protection
ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
Ultrafast connectivity: 1 Gb Ethernet, USB 3.2 Gen 1 Type-A

Cho phép đặt hàng trước

Mô tả
Thông tin bổ sung

Chi Tiết Kỹ Thuật
Chính sách bảo hành

CPU hỗ trợ	Intel® Socket 1200 for 10^th Gen Intel^® Core^™, Pentium^® Gold and Celeron^® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset	Intel® H410
Bộ nhớ trong	2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Hiển thị đồ họa	Integrated Graphics Processor 1 x D-Sub *Graphics specifications may vary between CPU types.
Hỗ trợ Multi-GPU
Khe mở rộng	Intel® 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel® H410 Chipset 1 x PCIe 3.0 x1
Chuẩn lưu trữ	Total supports 4x SATA 6Gb/s ports Intel® H410 Chipset : 4 x SATA 6Gb/s port(s)
Mạng	Realtek® RTL8111H
Âm Thanh	Realtek ALC887/897 7.1-Channel High Definition Audio CODEC * – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : – Audio Shielding – Dedicated audio PCB layers * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Kết nối ngoài	1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 1 Type-A 4 x USB 2.0 3 x Audio jack(s)
Kết nối trong	1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector
Kích thước	mATX Form Factor 8.4 inch x 7.2 inch ( 21.3 cm x 18.3 cm )
Accessories	I/O Shield 2 x SATA 6Gb/s cable(s) User manual

Bảo hành 3 năm

Mainboard Chipset	Intel H410
Mainboard Socket	Intel Socket 1200
Mainboard Form Factor	mATX ( Micro-ATX)
Mainboard Memory Type	DDR4
Mainboard Graphics Interface	PCIe 3.0
Mainboard Networking	1GbE LAN
Mainboard USB	USB 2.0, USB 3.2 GEN 1
Mainboard Memory Slot	2
