Bàn phím máy tính - Keyboard

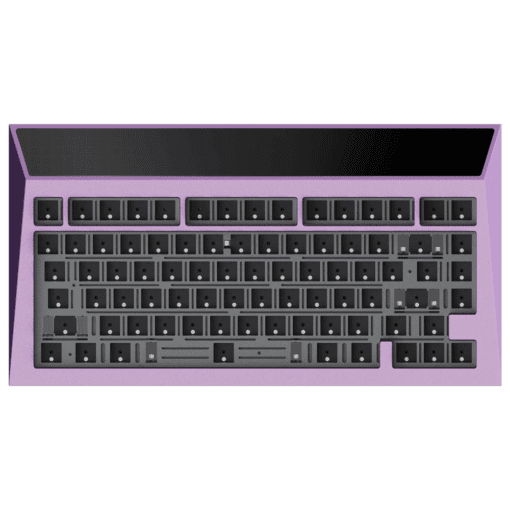

ANGRY MIAO Cyberboard R4 Gangstar Base Kit – 75%, Alluminium Case, PCB RGB, POM Plate, Leaf-spring
Giá: Liên hệ
- Layout: 75%
- Typing Angle: 10°
- CMF: CNC machined aluminum body
- Mounting method: Three-Stage Adjustable Leaf-Spring Mount (18 typing combos)
- Plate: POM plate
- LEDs: LED panel with 200 LEDs (5*40), 81 in-switch RGB LEDs
- PCB: 1.2mm hotswap PCB with cutouts and in-switch LEDs configurable via Angry Miao DIY site
- Connection: Bluetooth / wired (USB Type-C, supports C to C)
- Dimensions: 340.5*181*42.94mm (front height: 18.1mm)
- Weight: Base Kit 2.9Kg, Bundle 3.2Kg
- Battery: Lithium polymer 5000mAh *2, 10000mAh total (typical), supports wireless charging.
R4 có gì mới?
- Bốn màu mới lấy cảm hứng từ JoJo’s Bizarre Adventure: Gangstar (tím xám), Fluo Free (xanh huỳnh quang), Cloud White V2 (trắng ấm) và Stone Face (xám bê tông, phiên bản giới hạn).
- Giá đỡ lò xo lá có thể điều chỉnh ba giai đoạn để điều chỉnh độ linh hoạt và tổng cộng 18 tổ hợp gõ.
- Hỗ trợ phần cứng 2.4G để chúng tôi có thể bổ sung hỗ trợ kết nối 2.4G trong tương lai.
- Các bộ phận bên trong được cải tiến, bao gồm màng PET mới, miếng chuyển đổi IXPE 8 và miếng đệm Poron, khiến nó trở thành CYBERBOARD có âm thanh tốt nhất từ trước đến nay.
- Icy Silver Pro Switch mới.
LED panel with custom lighting effects
With thanks to our users,
we were able to include custom LED panel lighting effects for each of the e-coat colorways.
Of course, you can also create your own custom lighting effects through our DIY site.
Updated internals, upgraded feel
The best sounding CYBERBOARD yet
With the experience accumlated from developing AM AFA and AM Compact Touch, we believe we have found the perfect setup when it comes to keyboard internals.Now, it’s time to apply our findings to CYBERBOARD.
Featured content
Icy Silver Pro Switches included in Bundle
RGB x thock
The CYBERBOARD R4 Bundle marks the debut of our Icy Silver Pro Switch, co-developed with Tango Works. All-new Y3 composite stem, pre-lubedPolished translucent PC switch housing37gf actuation and 45gf bottom-out, light yet smoothTop level feel, sound and RGB
Adjustable Leaf Spring Mount
With our Adjustable Leaf Spring Mount, the typing feel of your keyboard no longer depends on the hardness of the Top Mount or the softness of the Gasket Mount.
It’s completely up to you.By mixing stainless steel and phosphorus copper leaf springs, adjusting the three gear levels and using different pads, you can achieve your perfect typing combo.
Accessories
Base Kit includes:
Keyboard body (aluminum), PCB (hotswap, cut-outs, RGB, 1.2mm thickness), POM plate (with cut-outs), Leaf Spring accessory kit, carrying case
Bundle includes:
In addition to the accessories included in the Base Kit:
- keycaps *81 (no extras),
- Icy Silver Pro Switches *81 (linear),
- Gateron Ink Black Stabilizers (screw-in, 2U*3, 6.25*1)
The Cloud White V2 Bundle includes 021C keycaps, other colorways include Glacier Dark keycaps.
Notice
Due to the inclusion of a Leaf Spring mount, the disassembly sequence is different from CYBERBOARD R2/R3.
We recommend watching the build guide when dissassembling your CYBERBOARD R4 for the first time.
The POM plate is finished in a dark matte gray. As a result, oil marks may be visible caused by excess lube from the switches. Please keep this in mind when placing your order.
Cloud White
Fluo Free
Gangstar
Stone Face
Specifications
Layout
75%
Mount
Angry Miao Three-Stage Adjustable Leaf 10°
Weight
Base Kit 29kg (±0.1)
Bundle 3.2kg (±0.1)
Material
6063 aluminum alloy body
Dimensions
340.5mm (L) x 181mm (W), Front height 18.1mm, rear height 4294mm (excluding feet)
Finish
Electrophoresis painting process
PCB
1.2mm thickness, 4-layer with cutouts,
Supports hotswap and in-switch LEDs
USB Type-C port (supports C to C)
Bluetooth 5.1
Accessories
Base Kit
– Keyboard body (aluminum)
– PCB (hotswap, cut-outs, RGB, 1.2mm thickness)
– POM plate (with cut-outs)
– Leaf Spring accessory kit
– Screwdriver accessory kit
– Carrying case
Bundle
In addition to the accessories included in the Base Kit:
– Keycaps *81
– Icy Silver Pro Switches *81 (linear)
– Gateron Ink Black Stabilizers (screw-in, 2U*3, 6.25*1)
* The Cloud White V2 Bundle includes 021C keycaps, other colorways include Glacier Dark keycaps.
