• Name:

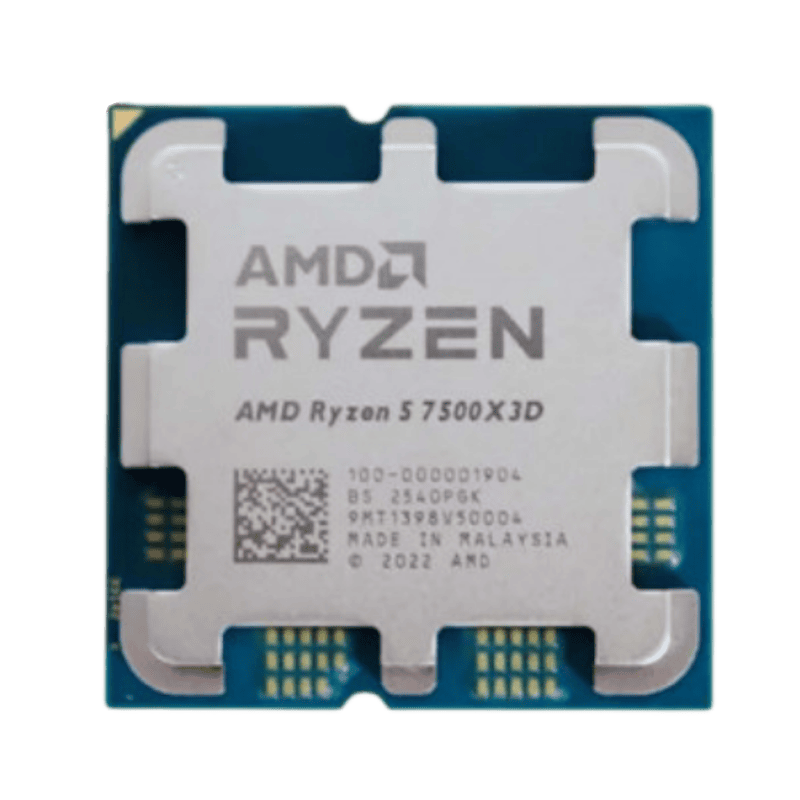

AMD Ryzen™ 5 7500X3D

• Family:

Ryzen

• Series:

Ryzen 7000 Series

• Form Factor:

Desktops , Boxed Processor

• Market Segment:

Enthusiast Desktop

• AMD PRO Technologies:

No

• Consumer Use:

Yes

• Regional Availability:

NA , EMEA

• Former Codename:

Raphael AM5

• Architecture:

Zen 4

• # of CPU Cores:

6

• Multithreading (SMT):

Yes

• # of Threads:

12

• Max. Boost Clock:

Up to 4.5 GHz

• Base Clock:

4 GHz

• L1 Cache:

384 KB

• L2 Cache:

6 MB

• L3 Cache:

96 MB

• Default TDP:

65W

• Processor Technology for CPU Cores:

TSMC 5nm FinFET

• Processor Technology for I/O Die:

TSMC 6nm FinFET

• CPU Compute Die (CCD) Size:

71mm²

• I/O Die (IOD) Size:

122mm²

• Package Die Count:

2

• Unlocked for Overclocking:

Yes

• AMD EXPO™ Memory Overclocking Technology:

Yes

• Precision Boost Overdrive:

Yes

• Curve Optimizer Voltage Offsets:

Yes

• AMD Ryzen™ Master Support:

Yes

• CPU Socket:

AM5

• Supporting Chipsets:

A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

• CPU Boost Technology:

Precision Boost 2

• Instruction Set:

x86-64

• Supported Extensions:

AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

• Thermal Solution (PIB):

Not Included

• Thermal Solution (MPK):

Liquid cooler recommended for optimal performance

• Max. Operating Temperature (Tjmax):

89°C

• Launch Date:

11/12/2025

• *OS Support:

Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
